American Bass XR 10" Car Subwoofer 1000 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 1000W RMS / 2000W Max — big output from a compact 10
- Dual 2Ω or dual 4Ω — XR-1022 and XR-1044 to match your amp
- 14mm Xmax — long-throw motor for deep bass in a small box
- Cast frame & stitched rubber surround — durable, premium build
- Models XR-1022 / XR-1044 — side-mounted terminals for easy wiring
American Bass XR 10" Car Subwoofer — 1000W RMS Dual Voice Coil (XR-1022 / XR-1044)
This Listing Includes:
- (1) American Bass XR 10" Subwoofer
The American Bass XR 10" proves a 10 can hit deep and clean. With a fiberglass cone, cast frame, and 14mm of Xmax, the XR-1022 and XR-1044 turn 1000 watts RMS into surprisingly big low end. The side-mounted terminals make install quick, so you can get to the fun part faster. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features

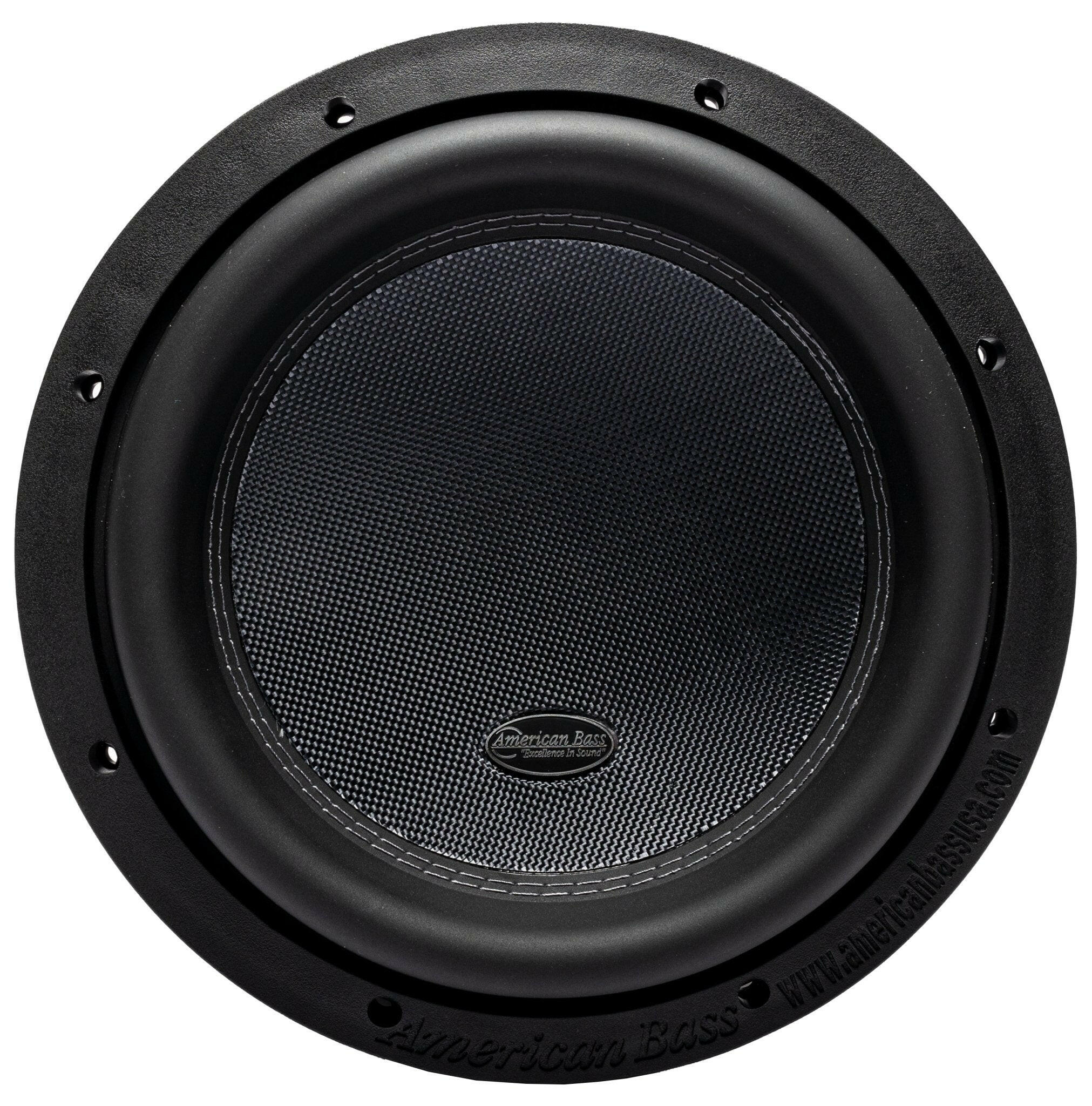

- Fiberglass-reinforced cone for stiffness and clean output
- Stitched rubber surround for durable, long-throw excursion
- 3.0" aluminum voice coil for low mass and quick response
- 200 oz magnet for strong motor control

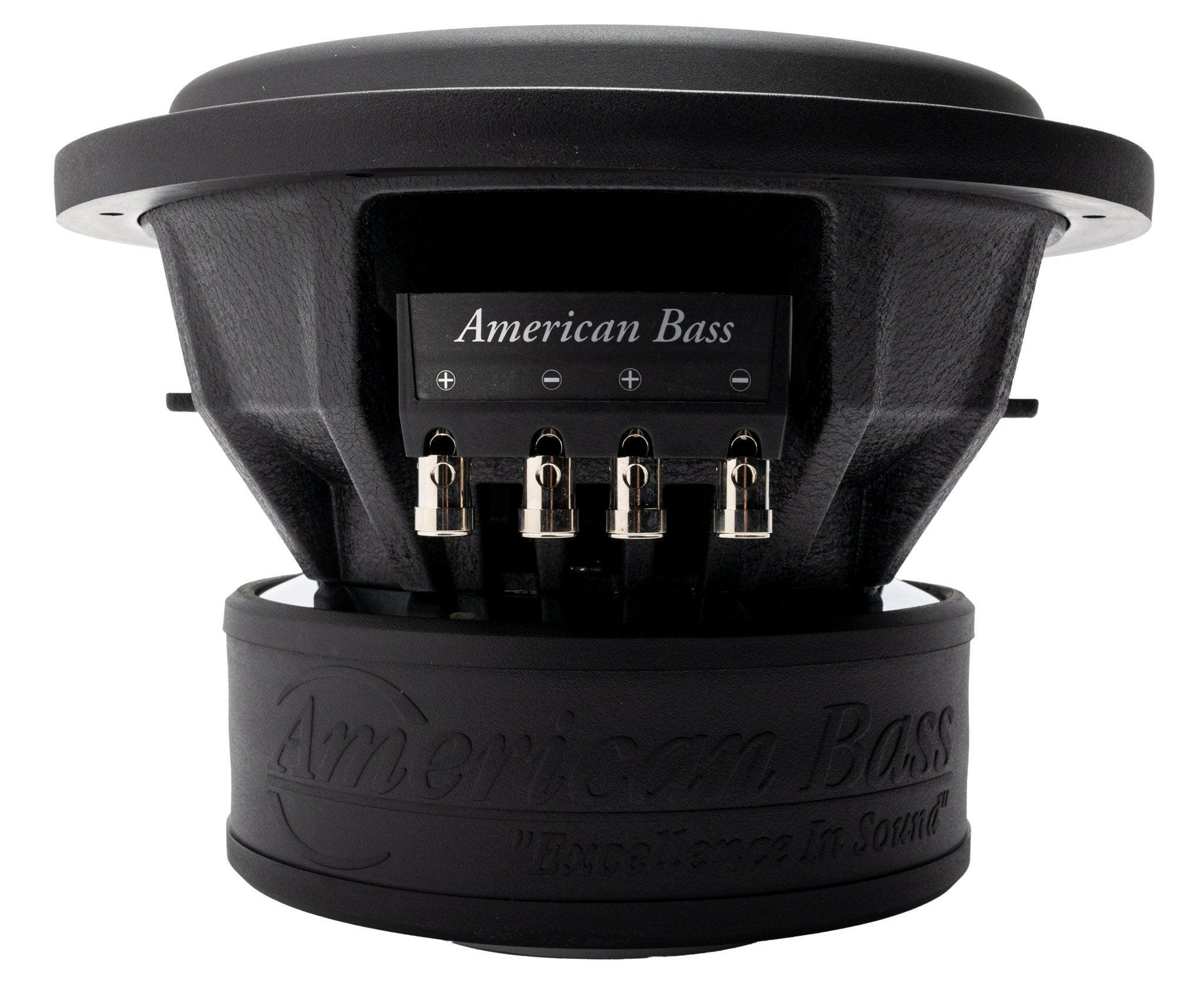

- Cast aluminum frame with side-mounted terminals for easy installation
Specifications
| RMS Power | 1000W |
| Max Power | 2000W |
| Impedance | Dual 2Ω (XR-1022) or Dual 4Ω (XR-1044) |
| Sensitivity | 82.65 dB (XR-1022) / 83.32 dB (XR-1044) |
| Frequency Range | 30 Hz – 500 Hz |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 200 oz |
| Basket / Frame | Cast |
| Cone Material | Fiberglass |
| Surround | Stitched rubber |
| Mounting Depth | 7.08" |
| Cutout Diameter | 9.21" |
| Fs | 38.8 Hz (XR-1022) / 40.9 Hz (XR-1044) |
| Qts | 0.579 (XR-1022) / 0.558 (XR-1044) |
| Qes | 0.626 (XR-1022) / 0.606 (XR-1044) |
| Qms | 7.62 (XR-1022) / 7.04 (XR-1044) |
| Vas | 7.16 L (XR-1022) / 8.13 L (XR-1044) |
| Xmax | 14 mm (XR-1022) / 13.65 mm (XR-1044) |
| BL | 11.95 (XR-1022) / 15.16 (XR-1044) |
| Mms | 377.29 g (XR-1022) / 316.7 g (XR-1044) |
| Sd | 336.54 cm² (XR-1022) / 309.4 cm² (XR-1044) |
| Re | 0.97 Ω (XR-1022) / 1.71 Ω (XR-1044) |
| Le | 0.587 mH (XR-1022) / 0.725 mH (XR-1044) |
