- 1500W RMS / 3000W Max — deep, effortless 15-inch bass
- Dual 2Ω or dual 4Ω — XR-1522 and XR-1544 to match your amp
- 24mm Xmax — long throw for serious low-end movement
- Cast frame & stitched rubber surround — built to last
- Models XR-1522 / XR-1544 — loud, clean, and easy to install
American Bass XR 15" Car Subwoofer — 1500W RMS Dual Voice Coil (XR-1522 / XR-1544)
This Listing Includes:
- (1) American Bass XR 15" Subwoofer
The American Bass XR 15" brings big, easy low end with a cast frame and 24mm of Xmax. Side-mounted terminals make wiring the XR-1522 or XR-1544 painless, and 1500 watts RMS in a ported box delivers the kind of deep bass you feel in your seat. It is a 15 that looks as good as it sounds. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features

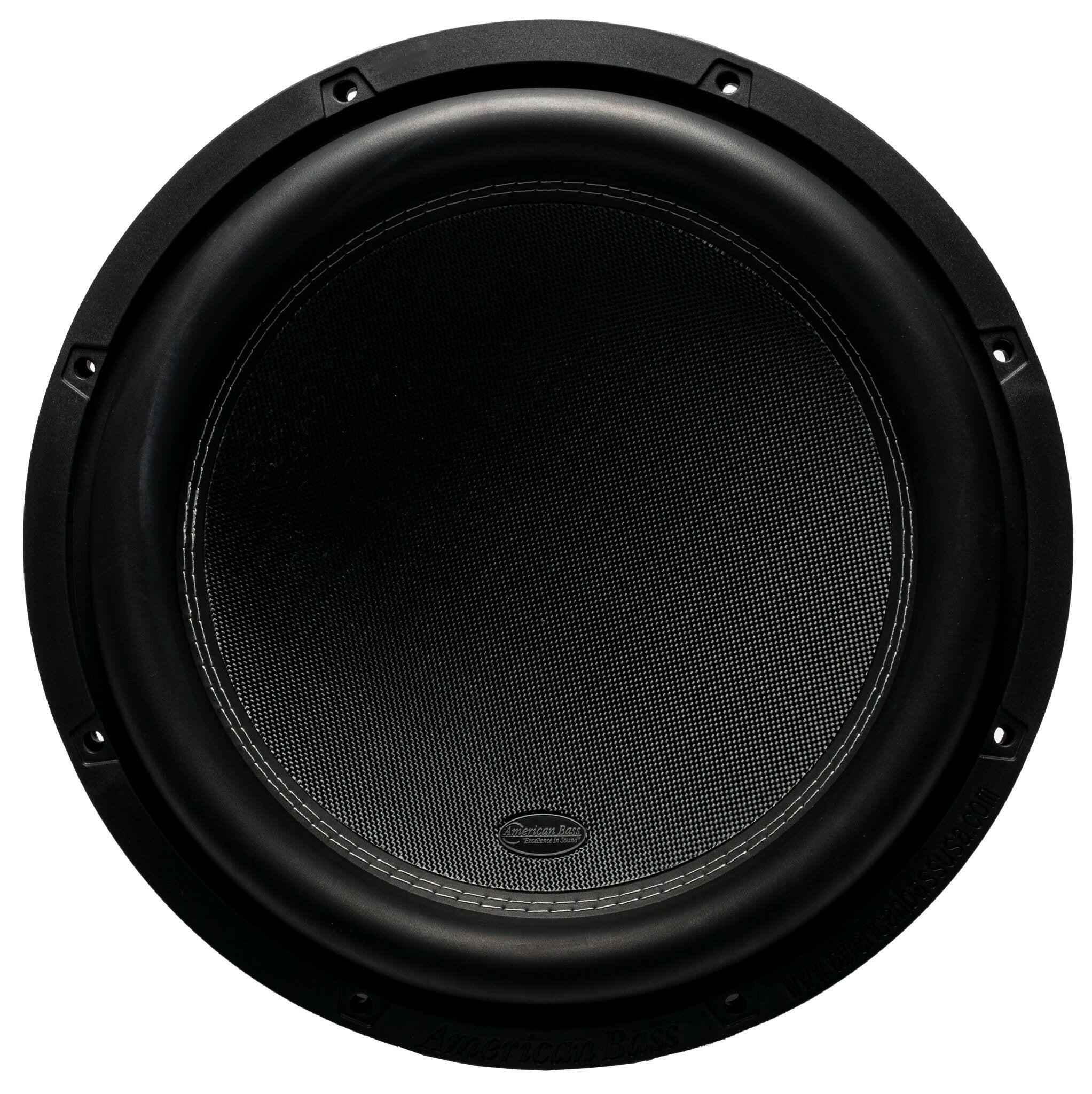

- Fiberglass-reinforced cone for stiffness and clean output
- Stitched rubber surround for durable, long-throw excursion
- 3.0" aluminum voice coil for low mass and quick response
- 200 oz magnet for strong motor control

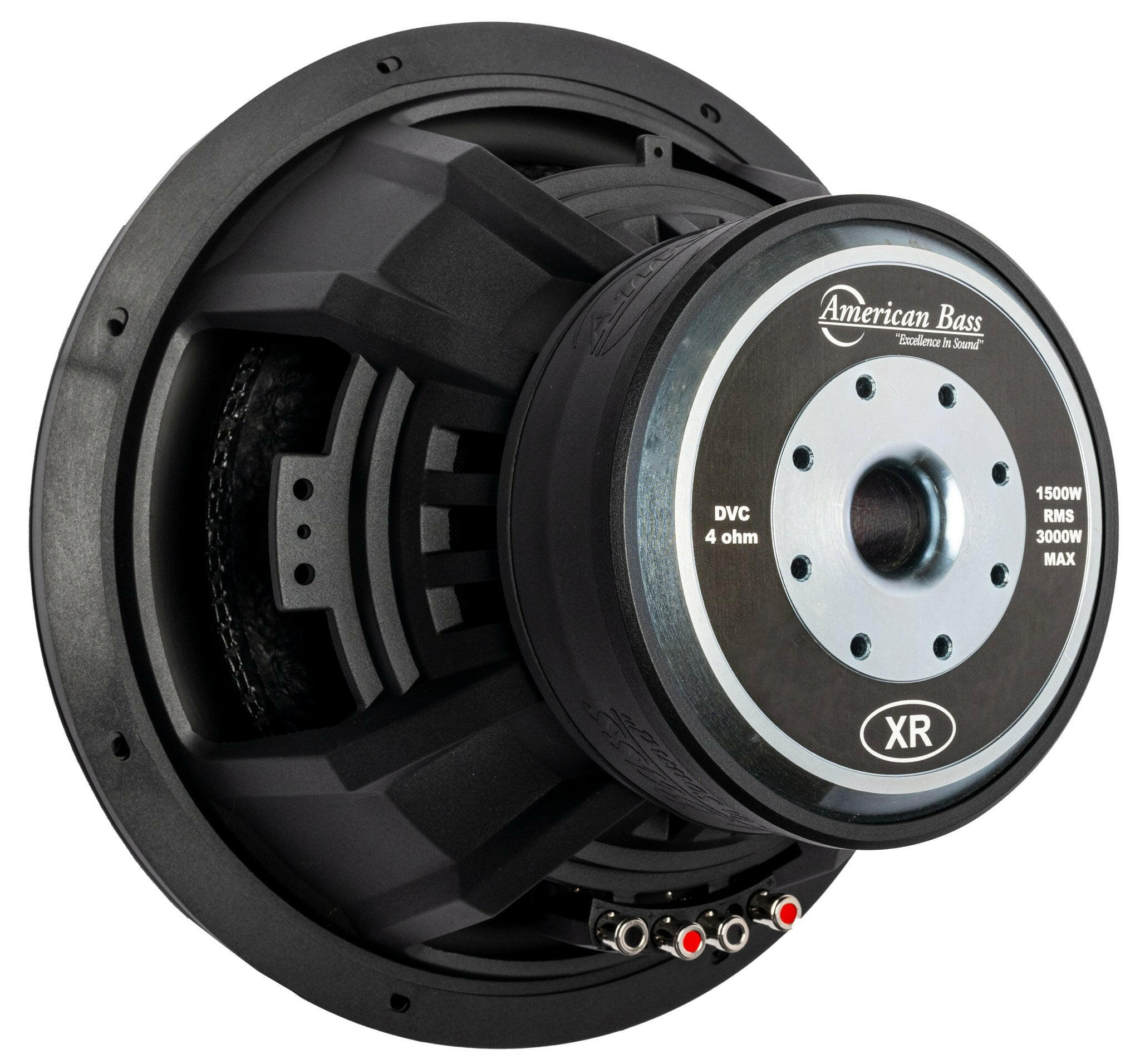

- Cast aluminum frame with side-mounted terminals for easy installation
Specifications
| RMS Power | 1500W |
| Max Power | 3000W |
| Impedance | Dual 2Ω (XR-1522) or Dual 4Ω (XR-1544) |
| Sensitivity | 84.06 dB (XR-1522) / 80.92 dB (XR-1544) |
| Frequency Range | 33 Hz – 500 Hz |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 200 oz |
| Basket / Frame | Cast |
| Cone Material | Fiberglass |
| Surround | Stitched rubber |
| Mounting Depth | 8.66" |
| Cutout Diameter | 14.09" |
| Fs | 32.8 Hz (XR-1522) / 34.7 Hz (XR-1544) |
| Qts | 0.72 (XR-1522) / 1.17 (XR-1544) |
| Qes | 0.83 (XR-1522) / 1.51 (XR-1544) |
| Qms | 5.38 (XR-1522) / 5.31 (XR-1544) |
| Vas | 39.65 L (XR-1522) / 41.59 L (XR-1544) |
| Xmax | 24 mm |
| BL | 11.52 (XR-1522) / 13.61 (XR-1544) |
| Mms | 510.39 g (XR-1522) / 434.94 g (XR-1544) |
| Sd | 485.81 cm² (XR-1522) / 410.36 cm² (XR-1544) |
| Re | 1.05 Ω (XR-1522) / 2.96 Ω (XR-1544) |
| Le | 0.73 mH (XR-1522) / 0.774 mH (XR-1544) |
