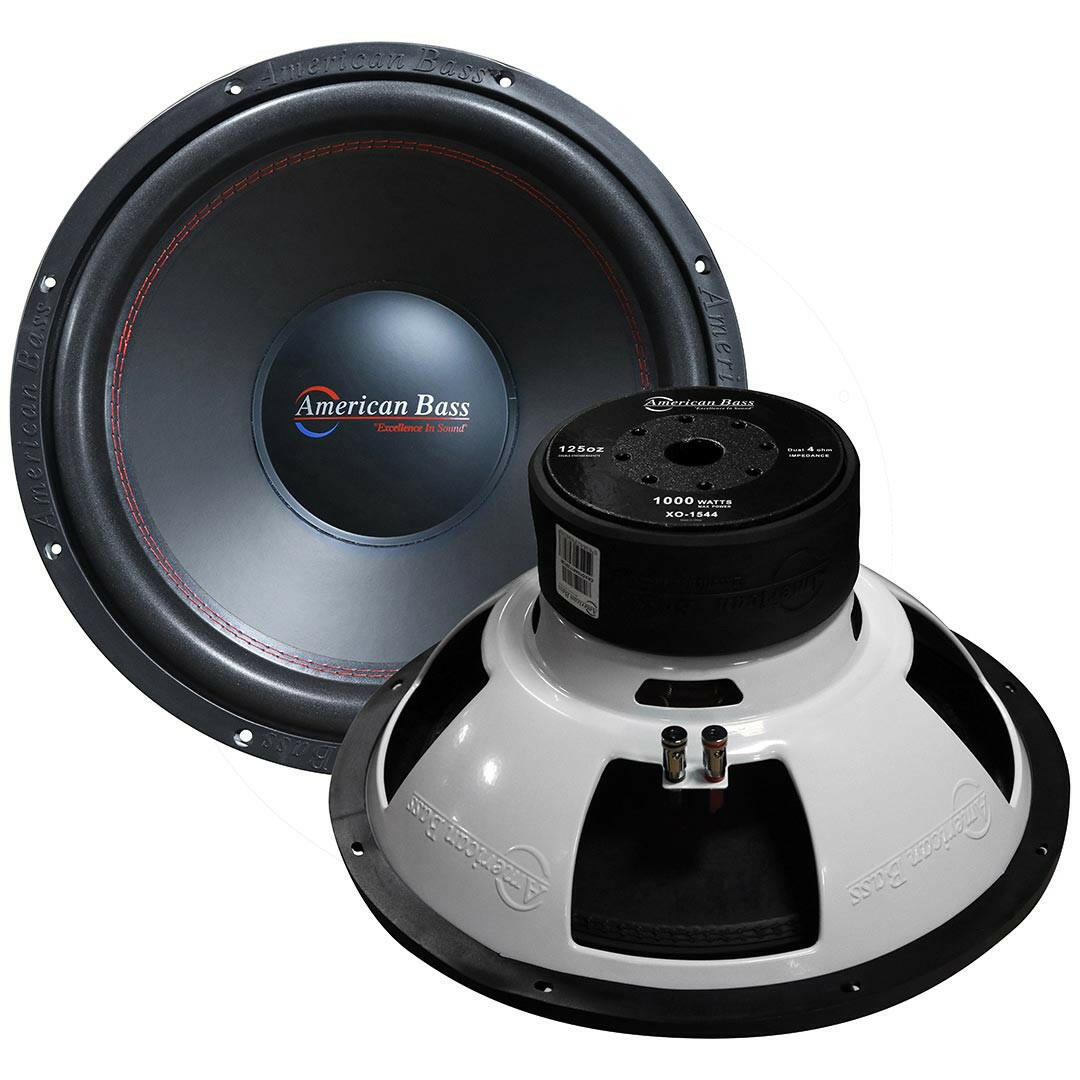

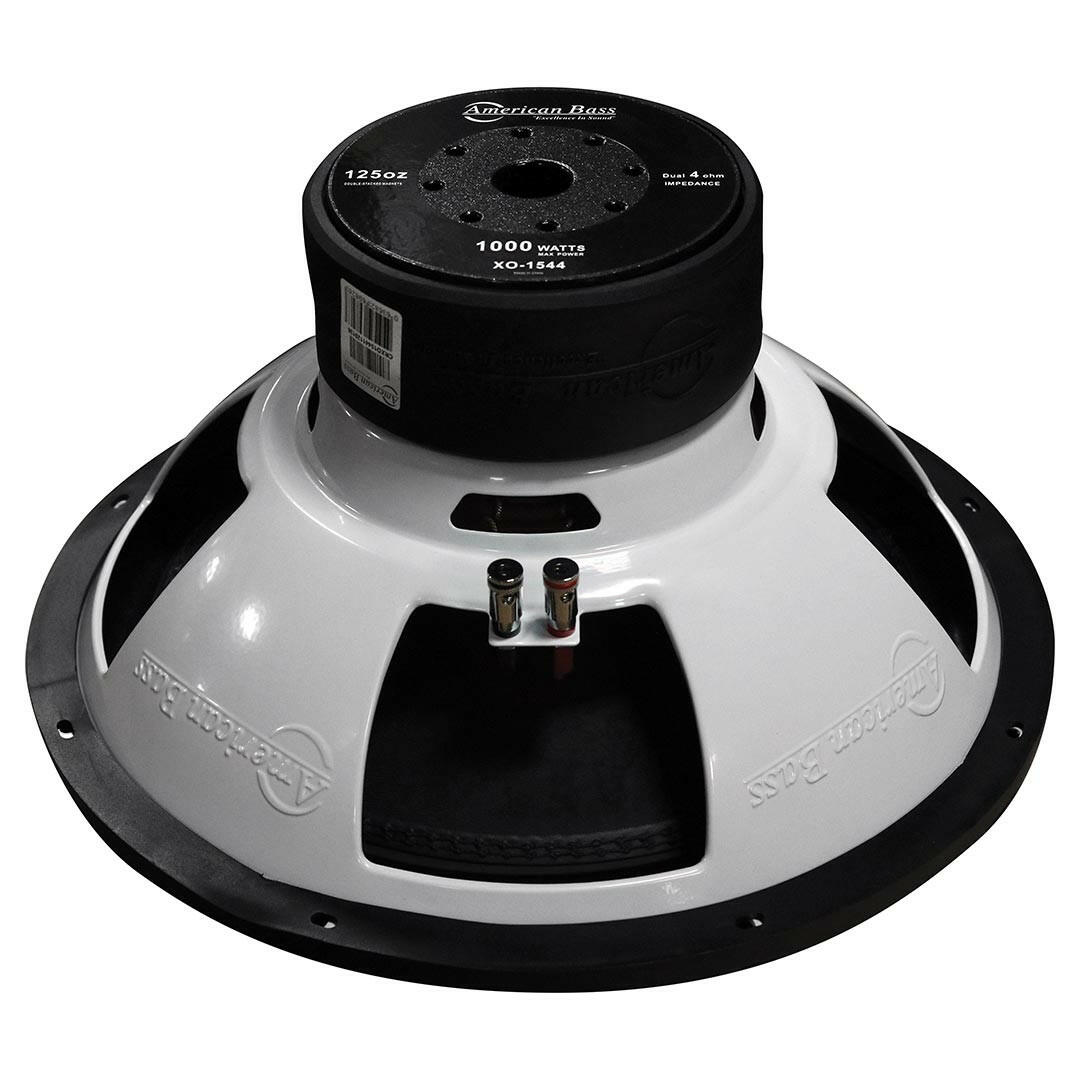

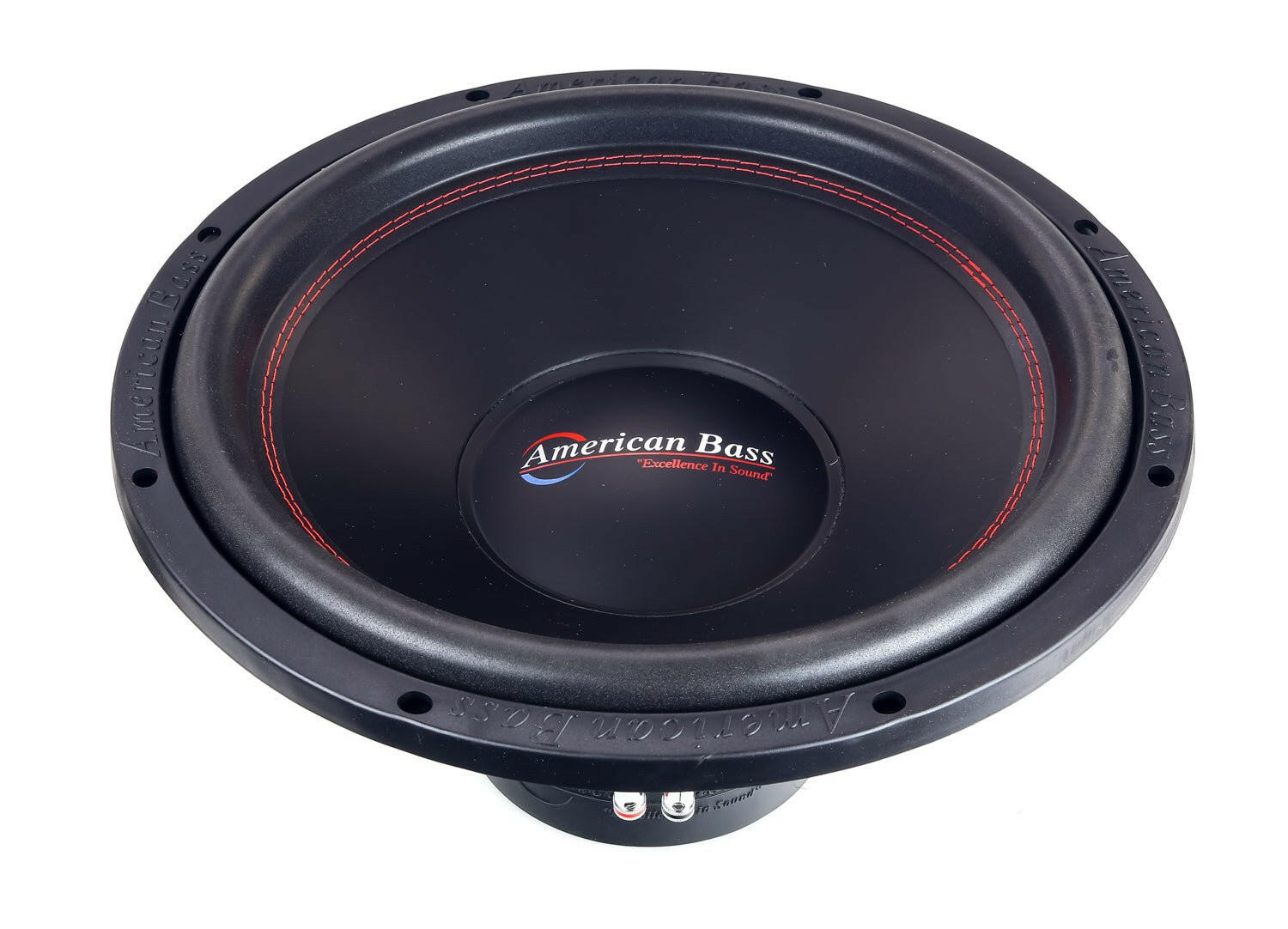

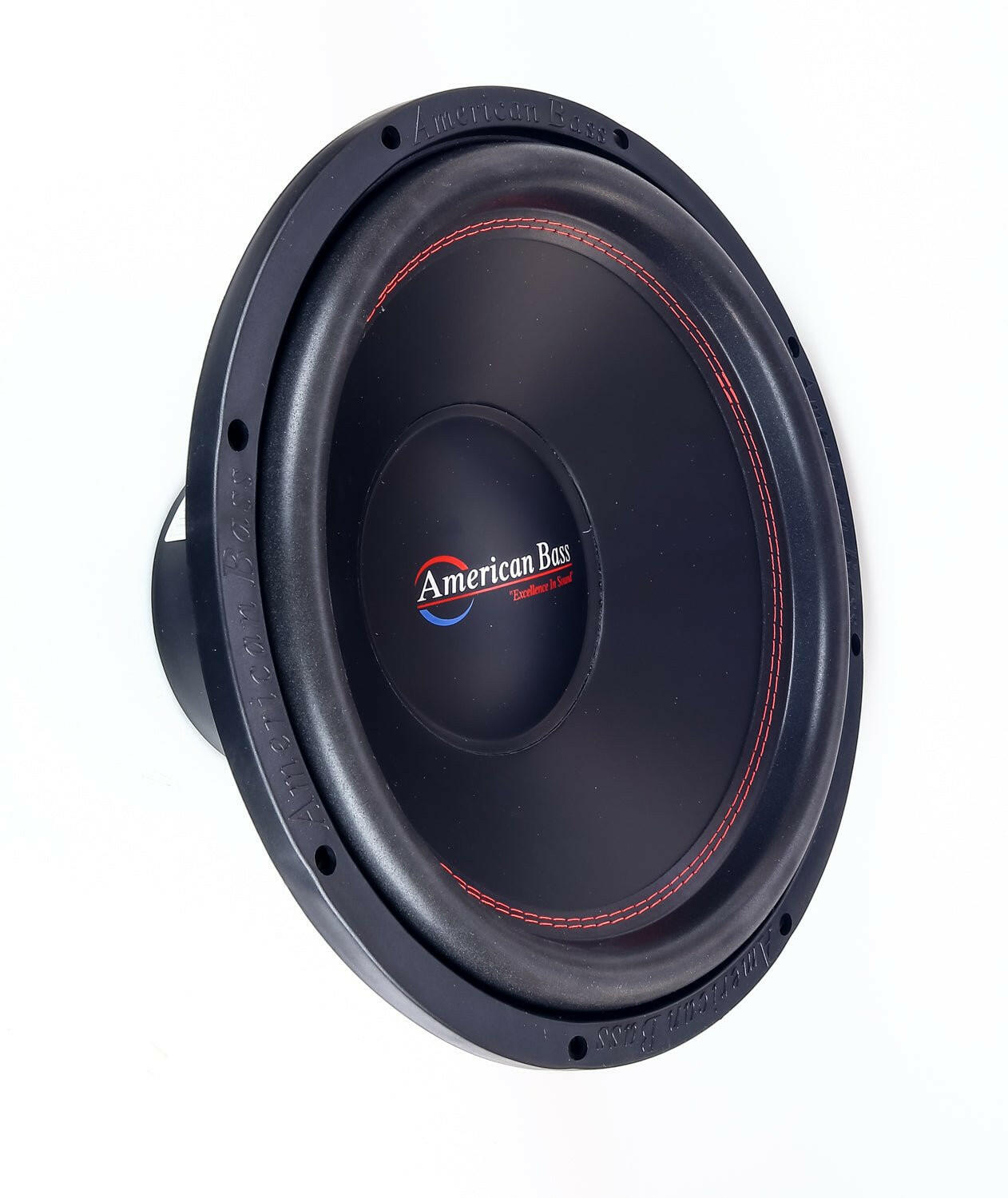

American Bass XO 15" Car Subwoofer 500 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 500W RMS / 1000W max — thunderous bass at an unbeatable price
- Dual 4Ω voice coils — flexible wiring for your amp
- 87.2 dB sensitivity — loud output, easy to drive
- 2.5" copper voice coil — reliable power handling
- Model XO-1544 — 130 oz ferrite motor with 15mm Xmax
American Bass XO 15" Car Subwoofer — 500W RMS Dual Voice Coil 4Ω (XO-1544)
This Listing Includes:
- (1) American Bass XO 15" Subwoofer
The American Bass XO 15" brings deep, powerful bass that won’t break the bank. The XO Series is the entry-level dual-voice-coil line designed to work flawlessly in enclosures, and the XO 15" pairs a 2.5" copper coil with a 130 oz motor and a non-pressed paper cone for a thunderous response. Wire the dual 4Ω coils to match your amp and let the XO 15" fill your build with low end.
Features
- 2.5" copper voice coil
- 130 oz ferrite magnet motor
- Non-pressed paper cone with stitched foam surround
- Heavy-duty metal frame
- Dual 4Ω voice coils for flexible wiring
- 15mm Xmax for strong excursion
Specifications
| RMS Power | 500W |
| Max Power | 1000W |
| Impedance | Dual 4Ω |
| Sensitivity | 87.2 dB |
| Voice Coil | 2.5" copper |
| Magnet | 130 oz ferrite |
| Basket | Heavy-duty metal |
| Cone | Non-pressed paper, stitched foam surround |
| Mounting Depth | 7.1" |
| Cutout Diameter | 14.32" |
| Fs | 29.9 Hz |
| Qts | 0.61 |
| Qes | 0.69 |
| Qms | 5.21 |
| Vas | 71.5 L |
| Xmax | 15.0 mm |
| BL | 22.0 |
| Mms | 323.5 g |
| Sd | 804 cm² |
| Re | 3.4Ω |
