American Bass XO 12" Car Subwoofer 300 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 300W RMS / 600W max — deep bass that won’t break the bank
- Dual 4Ω voice coils — flexible wiring options
- 86.1 dB sensitivity — efficient, enclosure-friendly output
- 2.0" copper voice coil — solid power handling

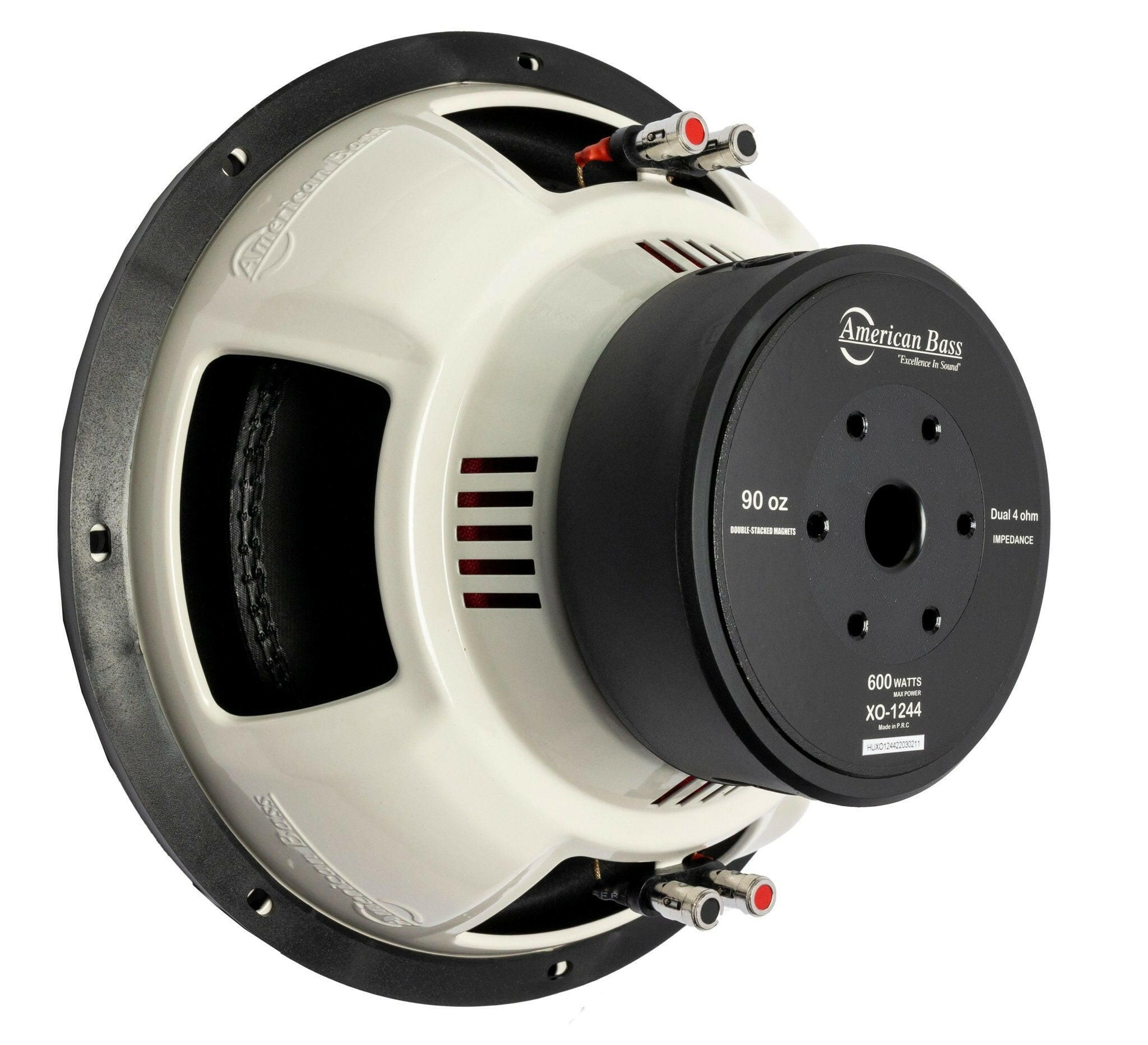

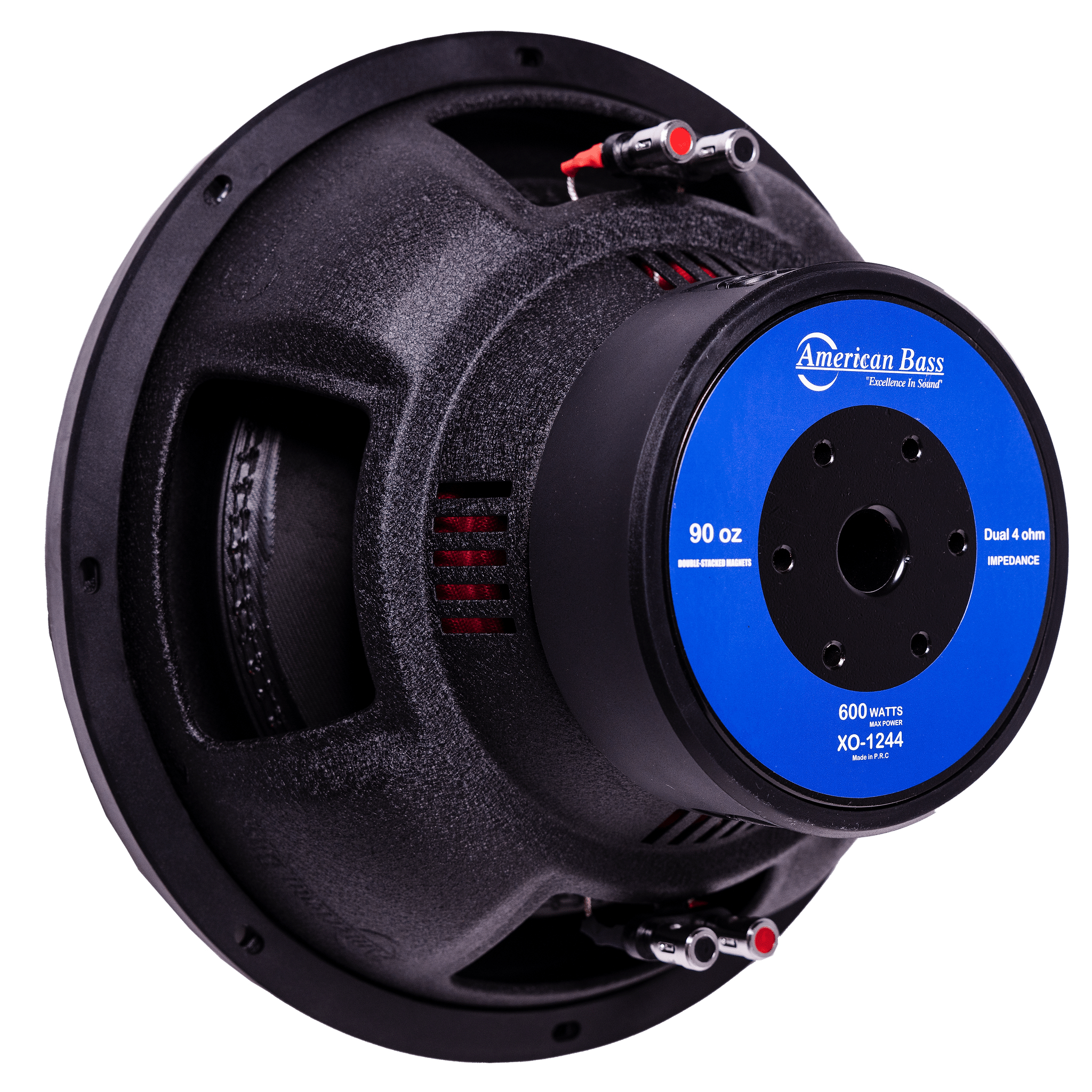

- Model XO-1244 — 90 oz ferrite motor with 12mm Xmax

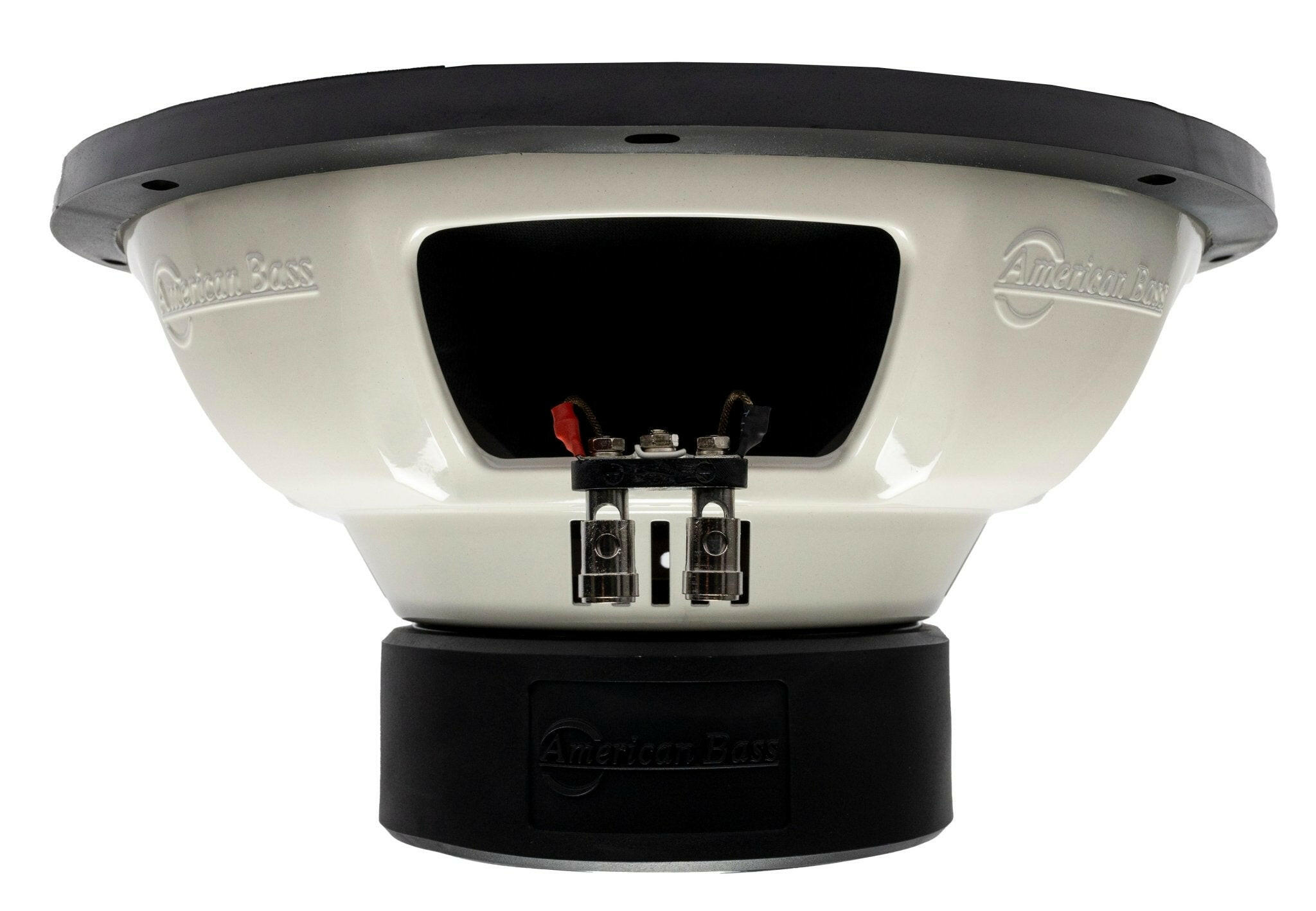

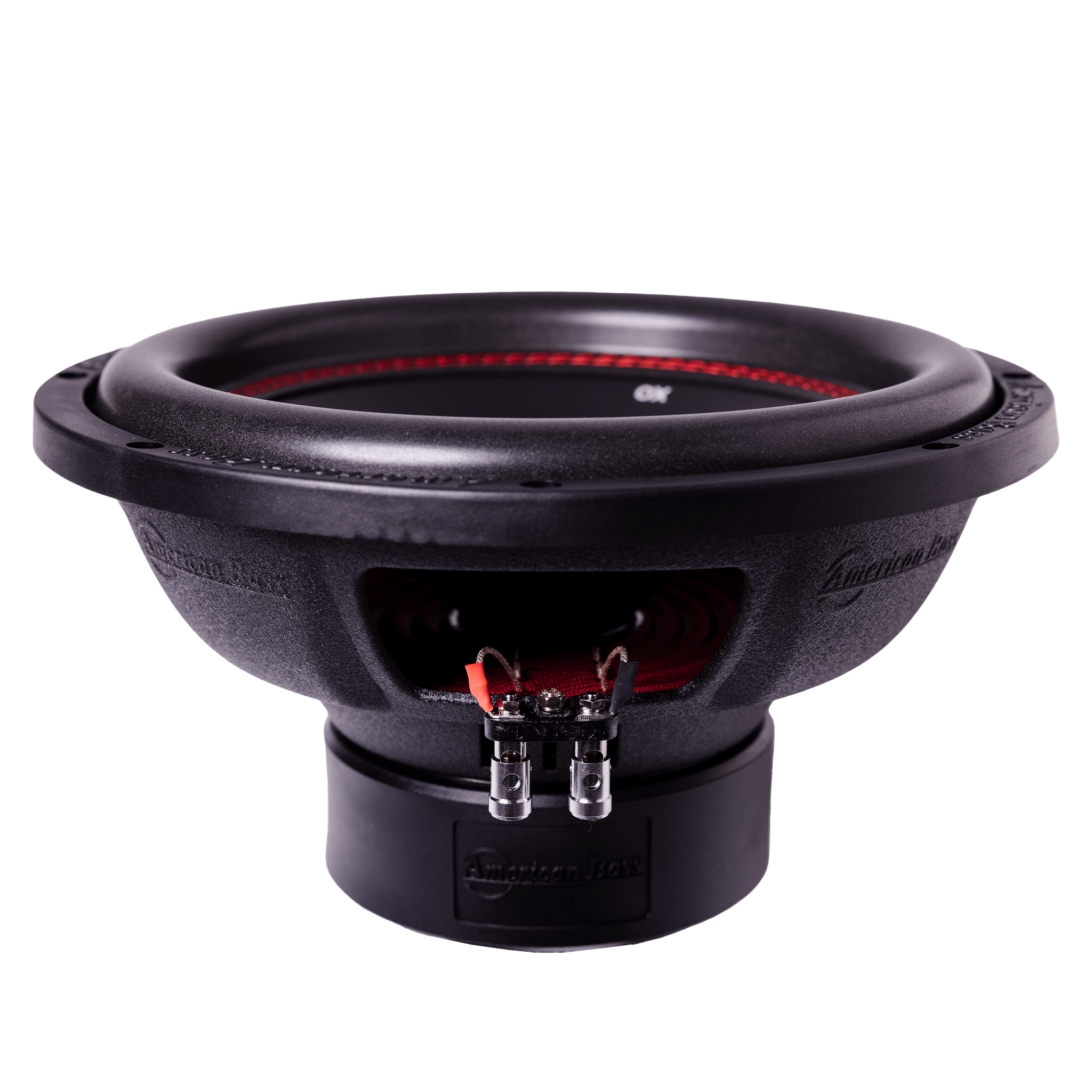

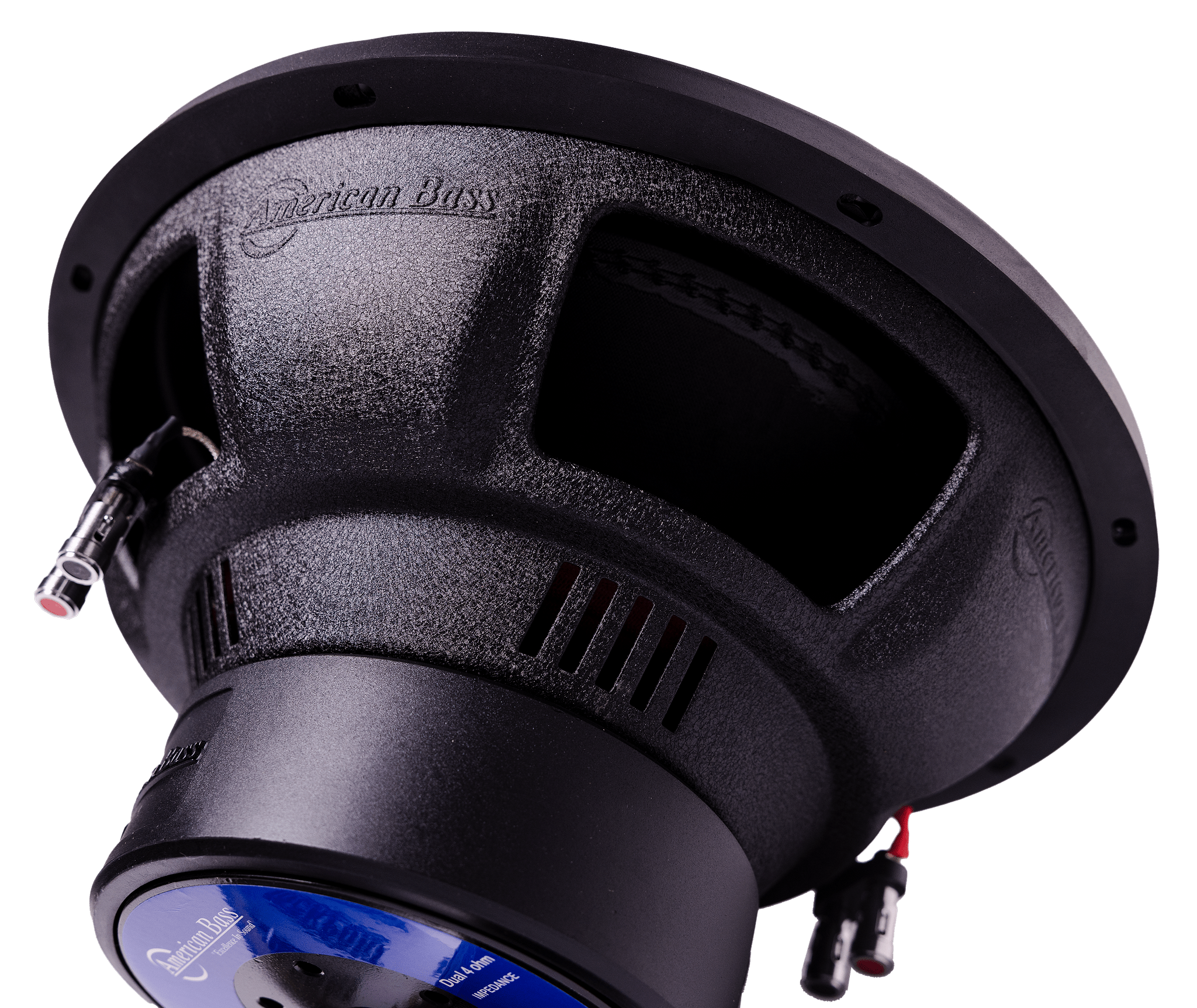

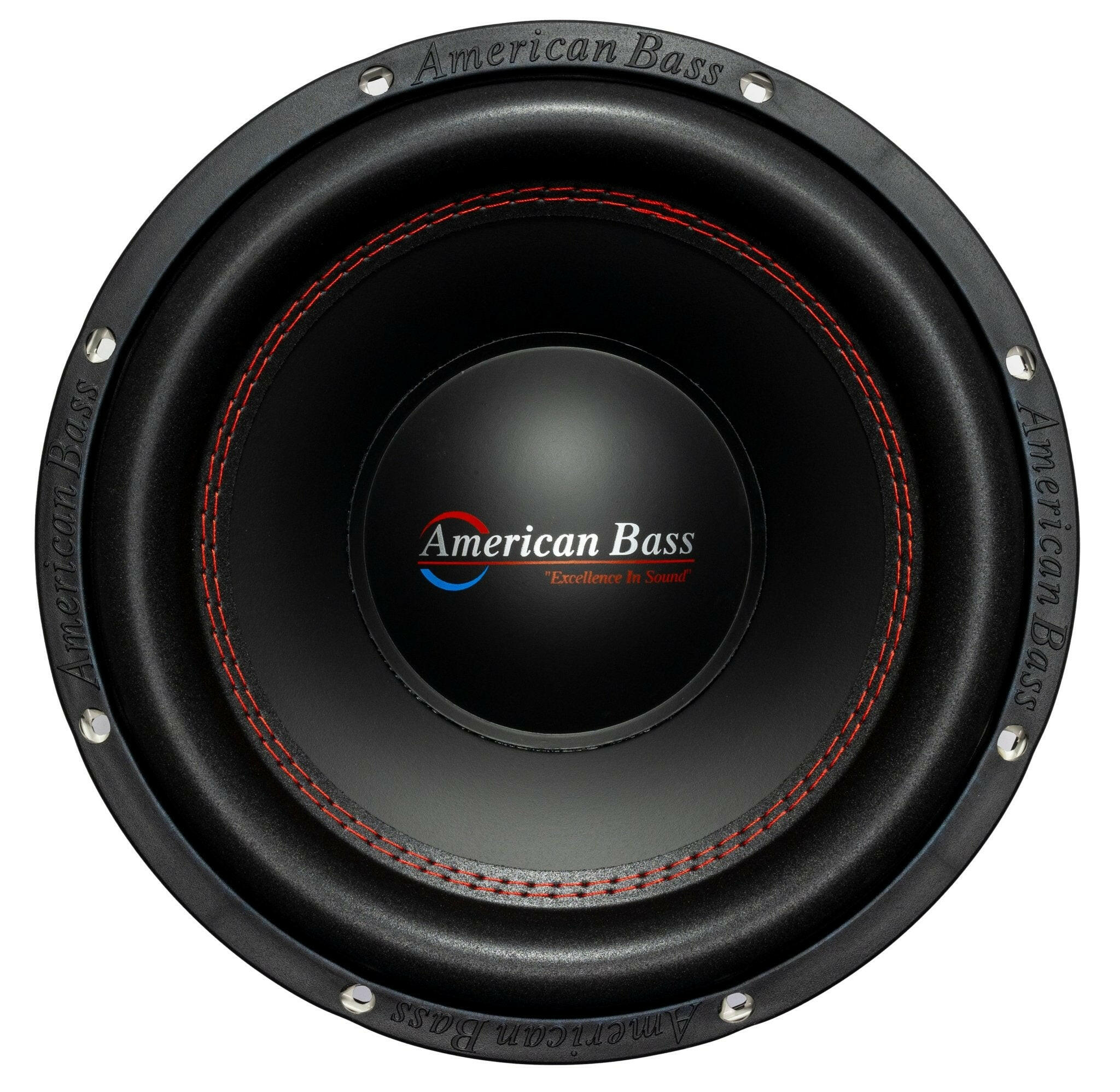

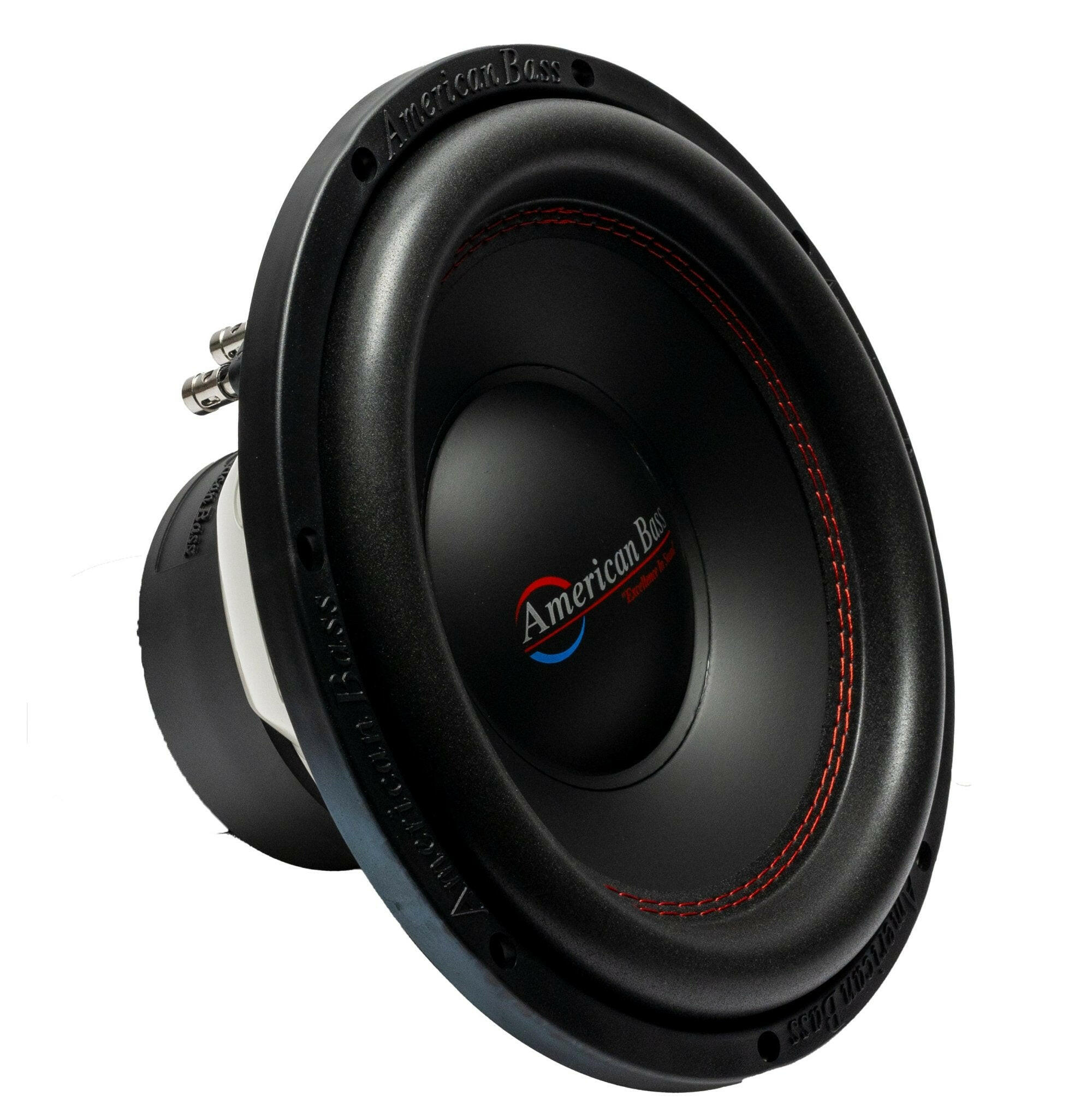

American Bass XO 12" Car Subwoofer — 300W RMS Dual Voice Coil 4Ω (XO-1244)
This Listing Includes:
- (1) American Bass XO 12" Subwoofer
The American Bass XO 12" delivers a deep, powerful bass response at an entry-level price. Part of the dual-voice-coil XO Series built to work flawlessly in enclosures, the XO 12" runs a 2.0" copper coil and a 90 oz motor behind a non-pressed paper cone for impactful, budget-friendly low end. Wire the dual 4Ω coils to suit your amp and let the XO 12" thump. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2.0" copper voice coil
- 90 oz ferrite magnet motor
- Non-pressed paper cone with stitched foam surround
- Heavy-duty metal frame

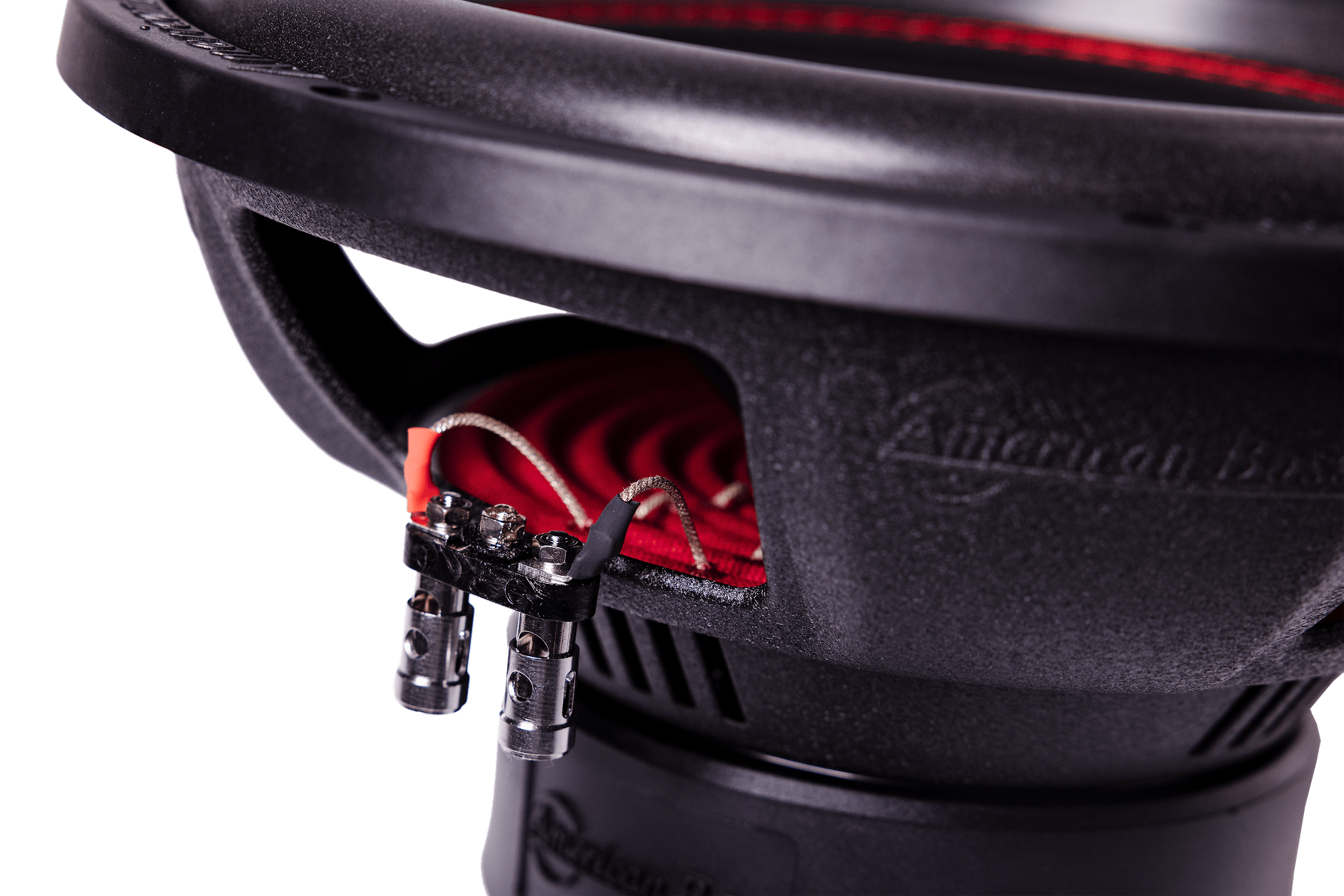

- Dual 4Ω voice coils for flexible wiring
- 12mm Xmax for strong excursion
Specifications
| RMS Power | 300W |
| Max Power | 600W |
| Impedance | Dual 4Ω |
| Sensitivity | 86.1 dB |
| Voice Coil | 2.0" copper |
| Magnet | 90 oz ferrite |
| Basket | Heavy-duty metal |
| Cone | Non-pressed paper, stitched foam surround |
| Mounting Depth | 6.08" |
| Cutout Diameter | 11.52" |
| Fs | 31.1 Hz |
| Qts | 0.57 |
| Qes | 0.63 |
| Qms | 5.51 |
| Vas | 54.2 L |
| Xmax | 12.0 mm |
| BL | 18.7 |
| Mms | 176.6 g |
| Sd | 510 cm² |
| Re | 3.4Ω |
