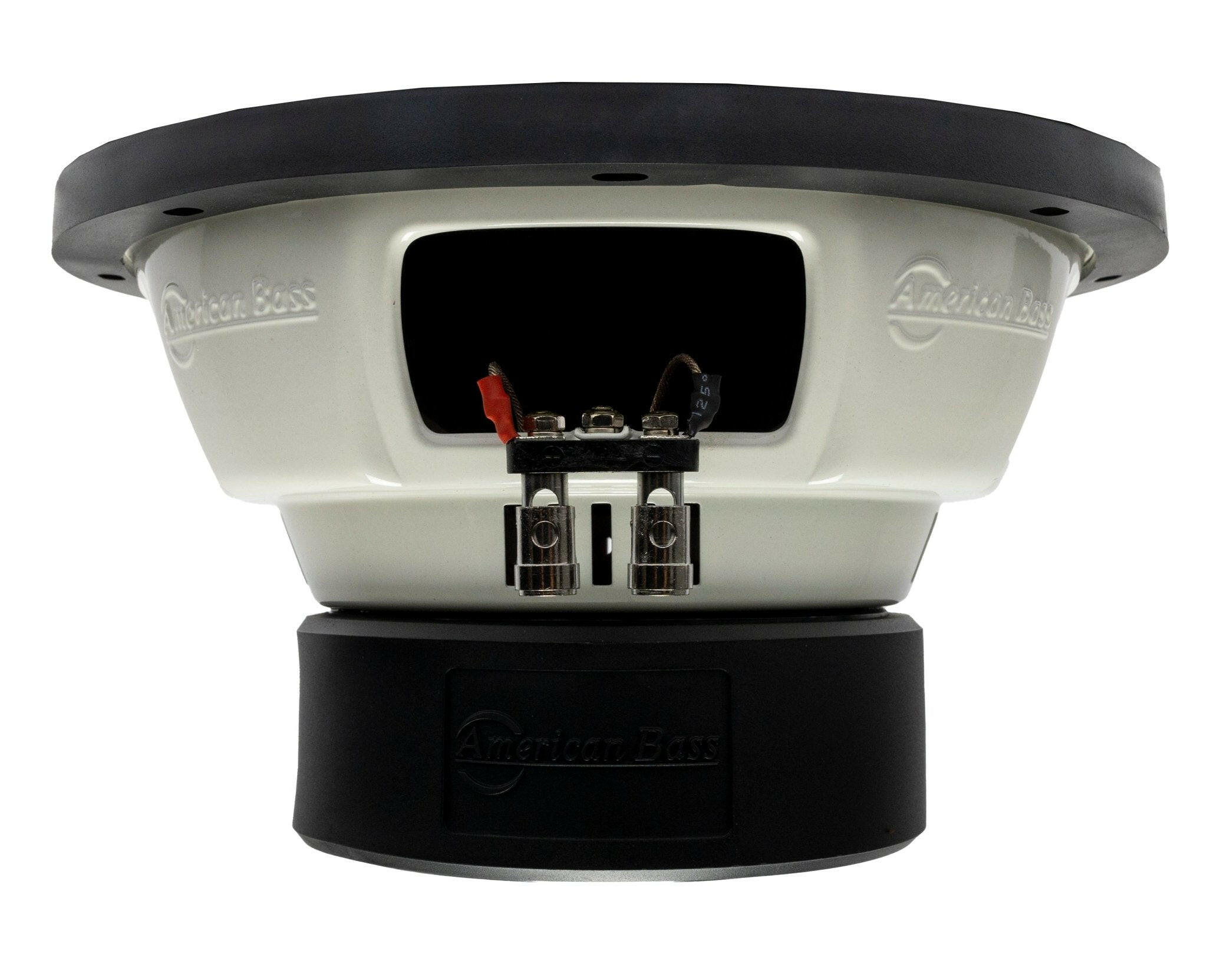

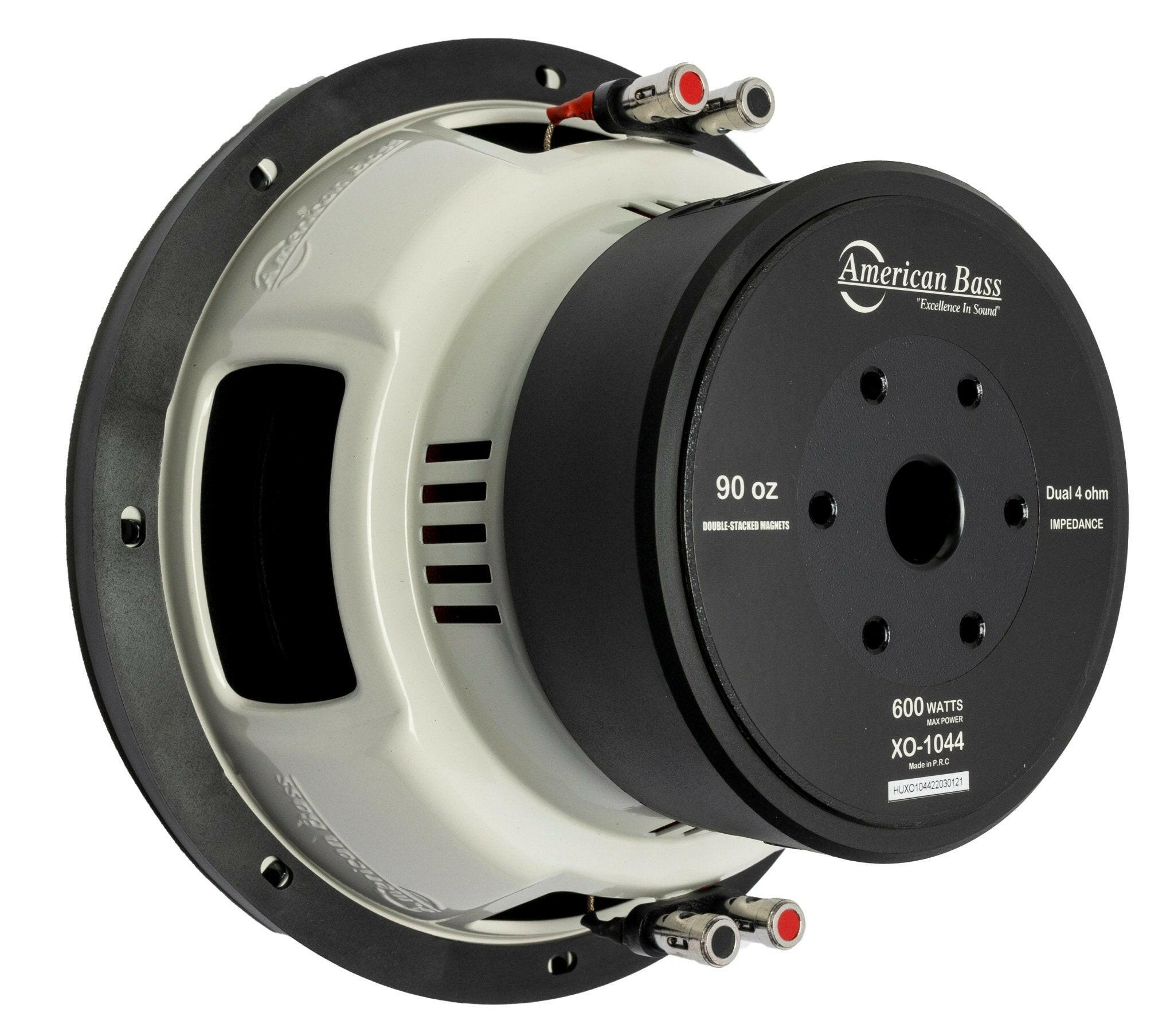

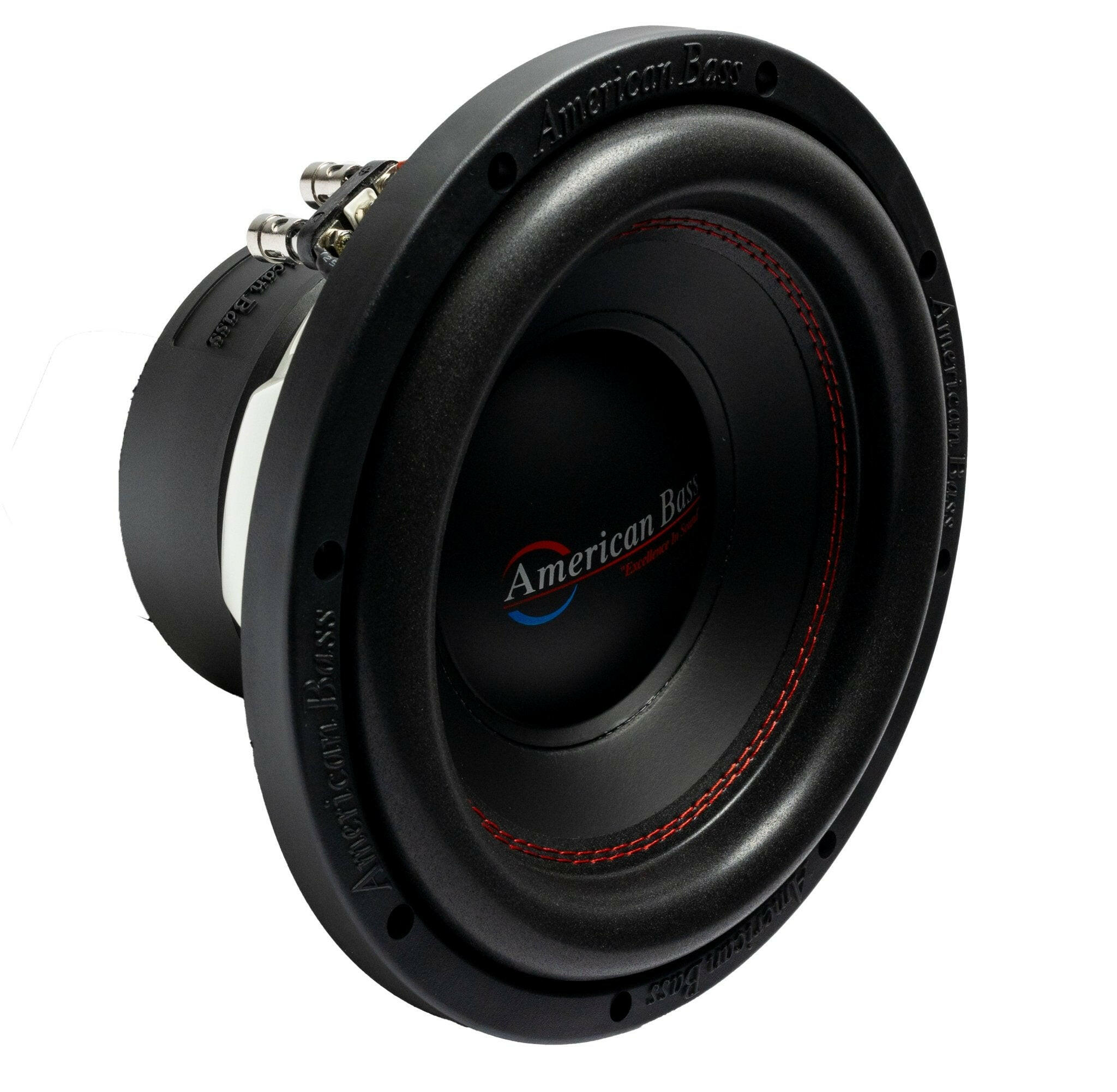

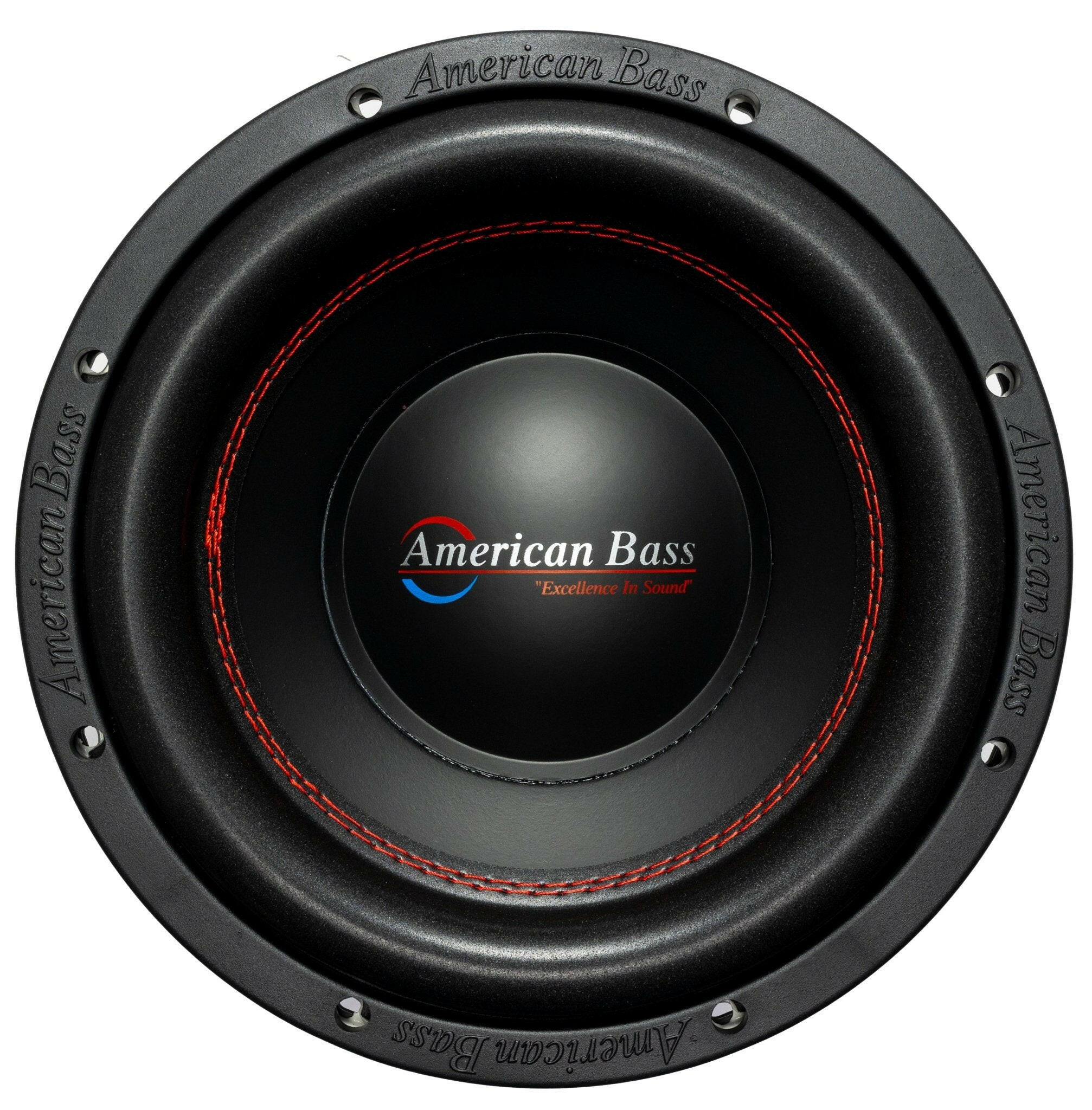

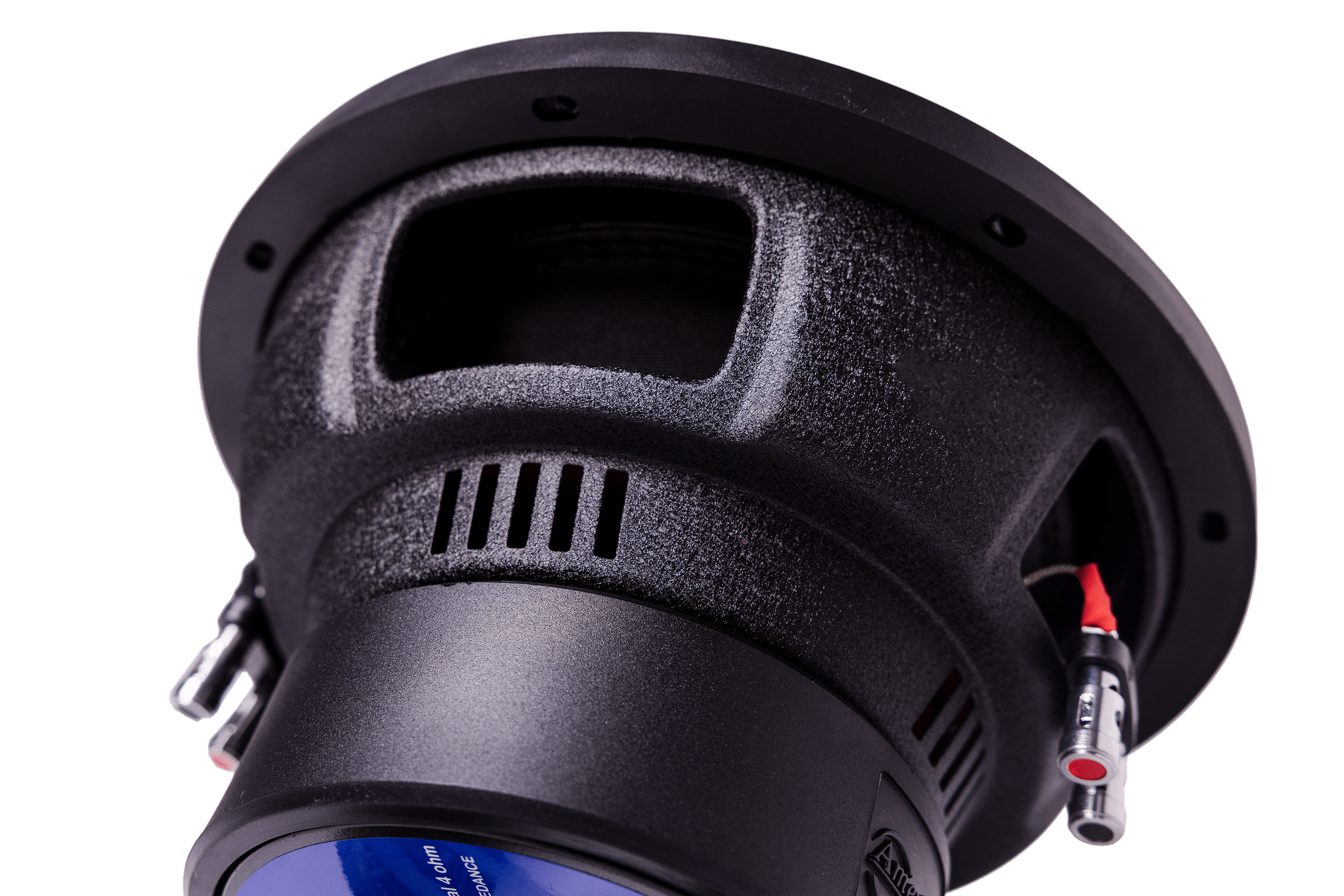

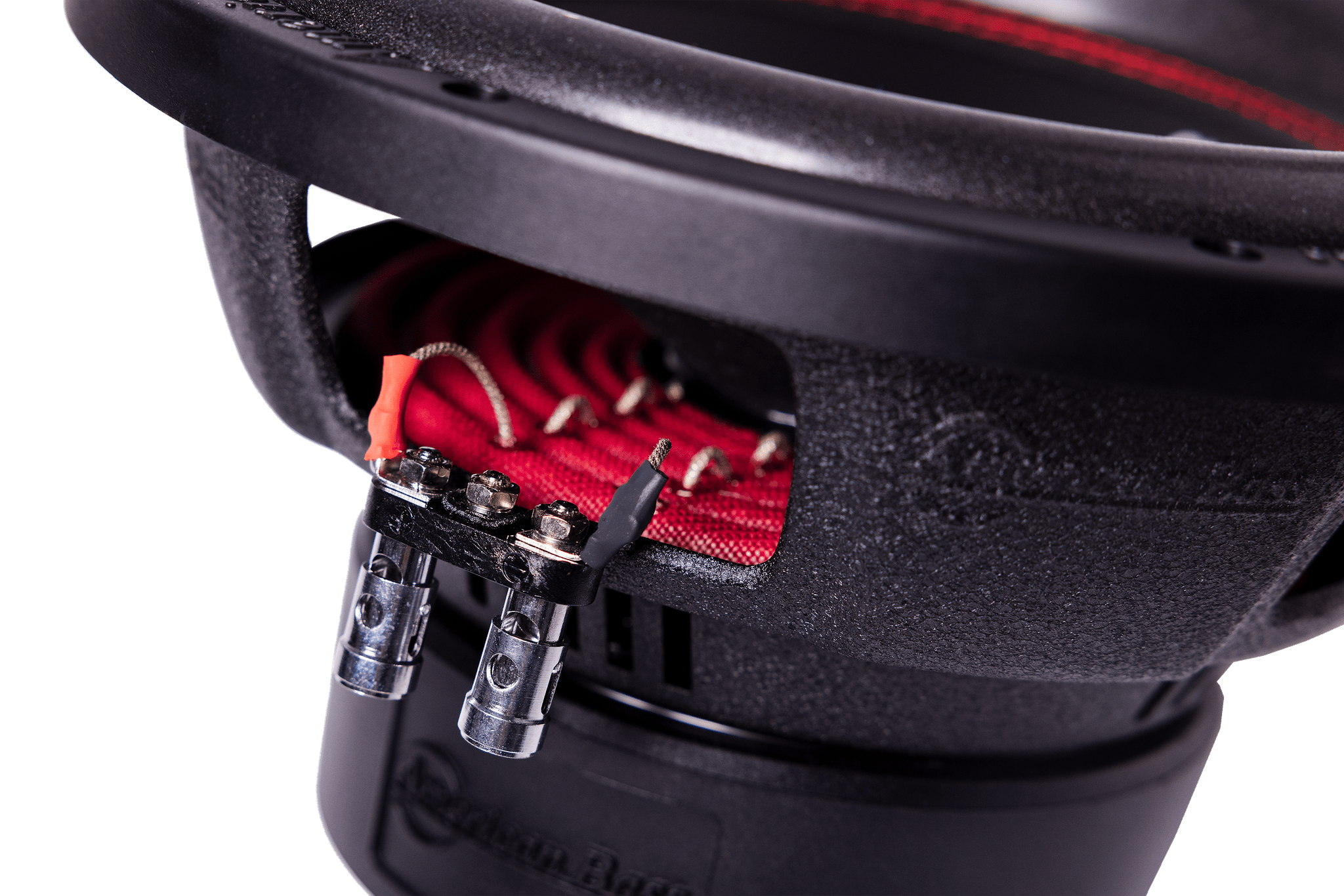

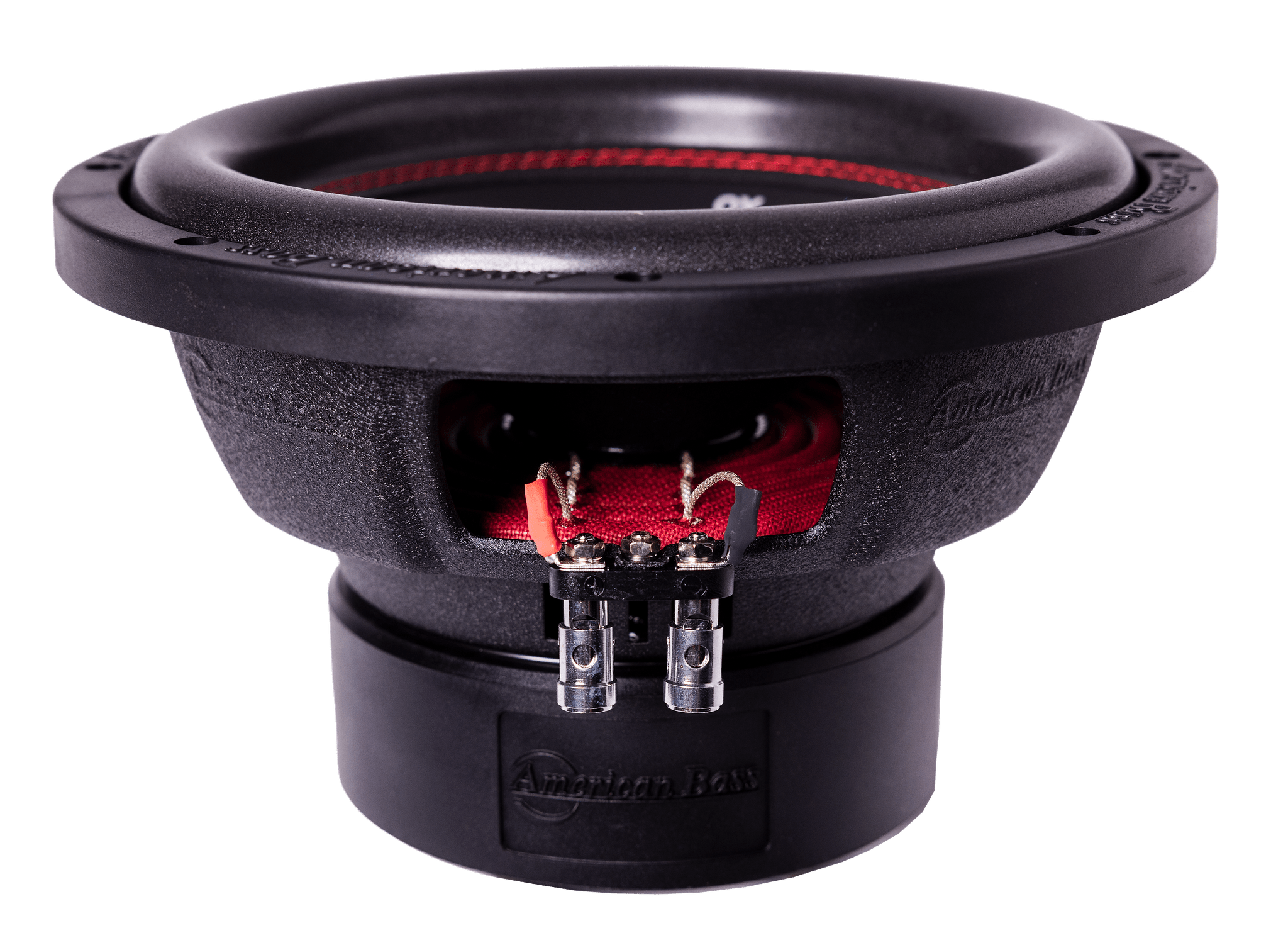

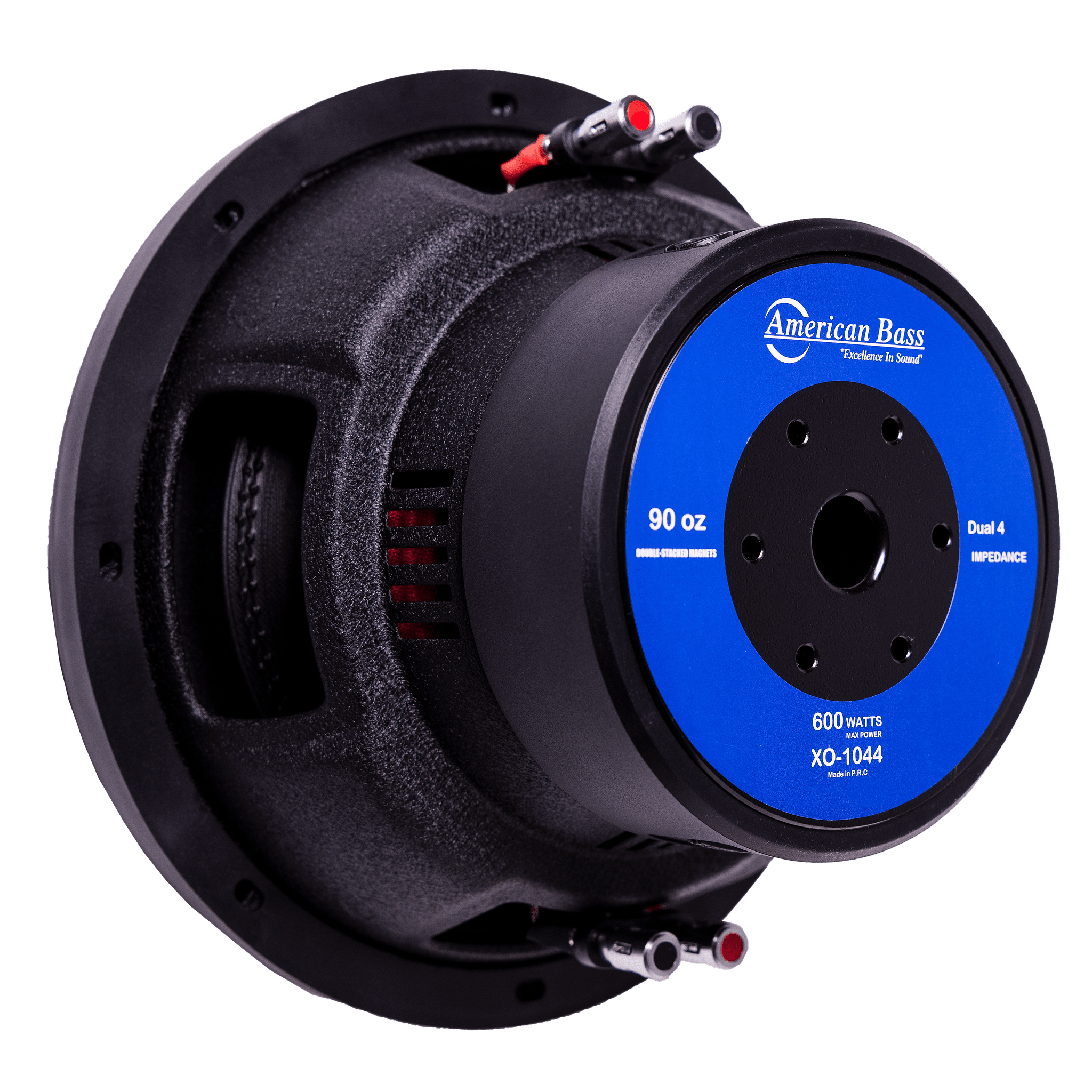

American Bass XO 10" Car Subwoofer 350 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 300W RMS / 600W Max — deep, budget-friendly bass that punches above its price
- Dual 4Ω voice coils — flexible wiring for 2Ω or 8Ω amp loads
- 2" hi-temp 4-layer voice coil — handles real power without sagging
- 11mm Xmax — long, controlled excursion for a clean low end
- Model XO-1044 — the easy, proven choice for a first real sub stage
American Bass XO 10" Car Subwoofer — 300W RMS Dual Voice Coil (XO-1044 / XO-1044v2)
This Listing Includes:
- (1) American Bass XO 10" Subwoofer
The American Bass XO 10" is the no-fuss way to get serious low end without overthinking it. Drop the XO-1044 in a ported box, wire those dual 4-ohm coils to your amp, and let 300 watts RMS do the work. It is the sub that proves you do not need to spend a fortune to feel the bass in your chest. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Non-pressed paper cone with foam surround for smooth, musical output
- Hi-temp 4-layer 2" voice coil for reliable power handling
- 90 oz ferrite magnet for strong motor control
- Stamped-steel frame keeps it light and easy to mount
- Dual 4Ω voice coil design for flexible amplifier wiring
Specifications
| RMS Power | 300W |
| Max Power | 600W |
| Impedance | Dual 4Ω (4 + 4) |
| Sensitivity | 86.4 dB |
| Voice Coil Diameter | 2" |
| Magnet Weight | 90 oz |
| Basket / Frame | Stamped steel |
| Cone Material | Paper |
| Surround | Foam |
| Mounting Depth | 5.1" |
| Cutout Diameter | 9.17" |
| Fs | 37.5 Hz |
| Qts | 0.525 |
| Qes | 0.6 |
| Qms | 4.04 |
| Vas | 19.2 L |
| Xmax | 11 mm |
| BL | 9.72 |
| Mms | 131.2 g |
| Sd | 330 cm² |
| Re | 3.4 Ω |
| Le | 1.3 mH |
