- 1000W RMS / 2000W Max — clean, deep 15" output
- Dual 2Ω (XD-1522) or Dual 4Ω (XD-1544) — pick your coil
- 3" hi-temp 4-layer voice coil — reliable under sustained power
- 20 mm Xmax — long, controlled excursion for deep bass
- XD 15" (XD-1522 / XD-1544) — foam surround, stamped basket

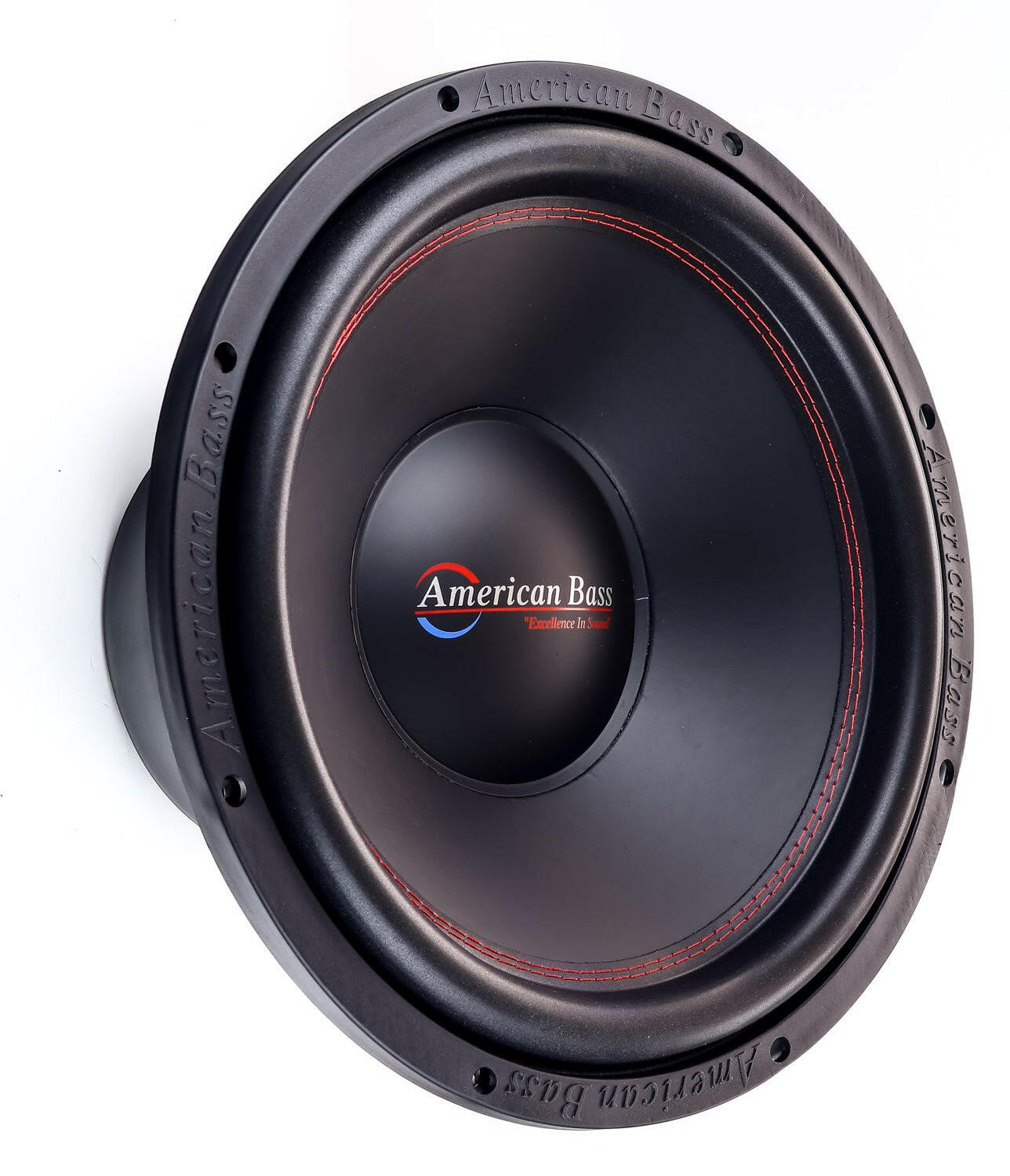

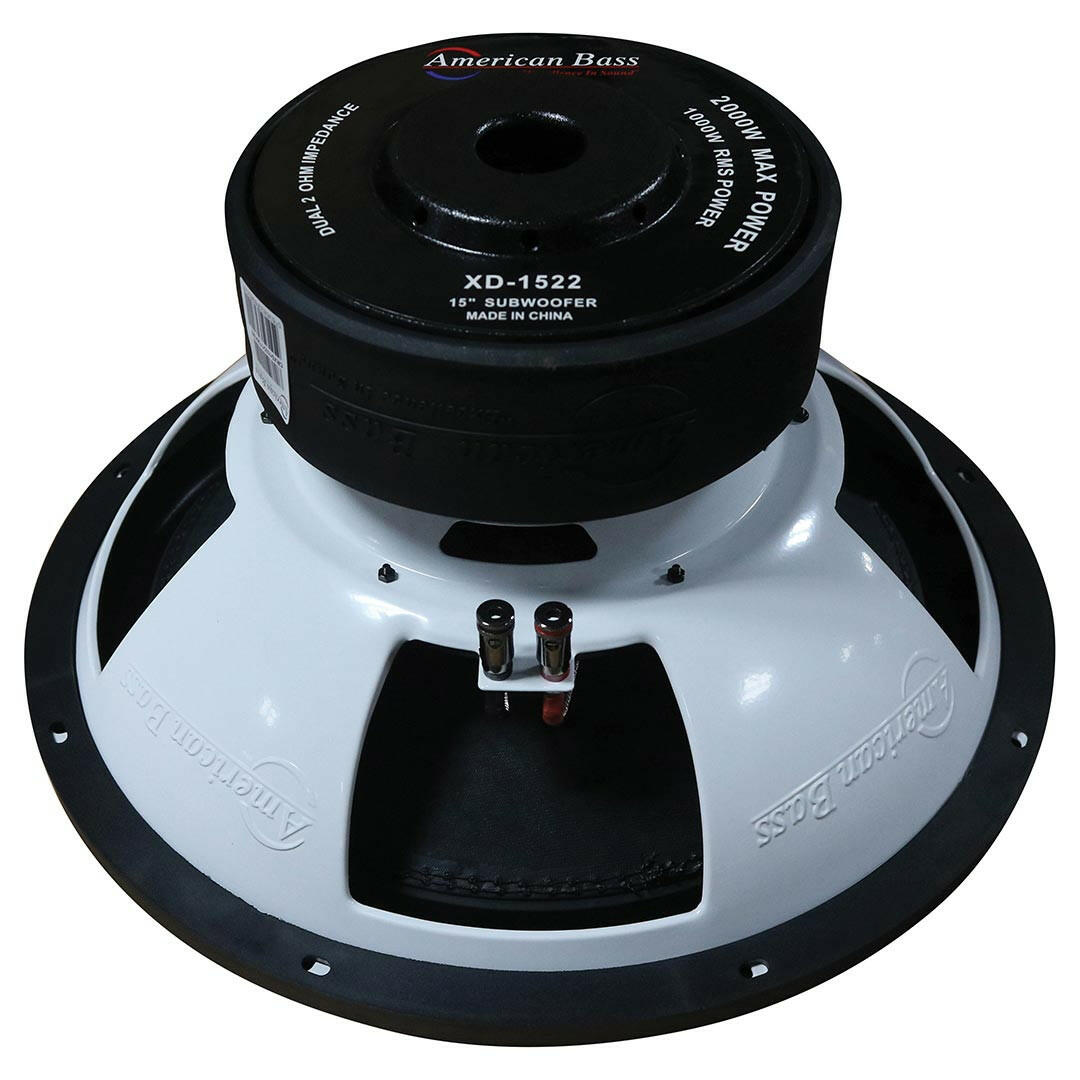

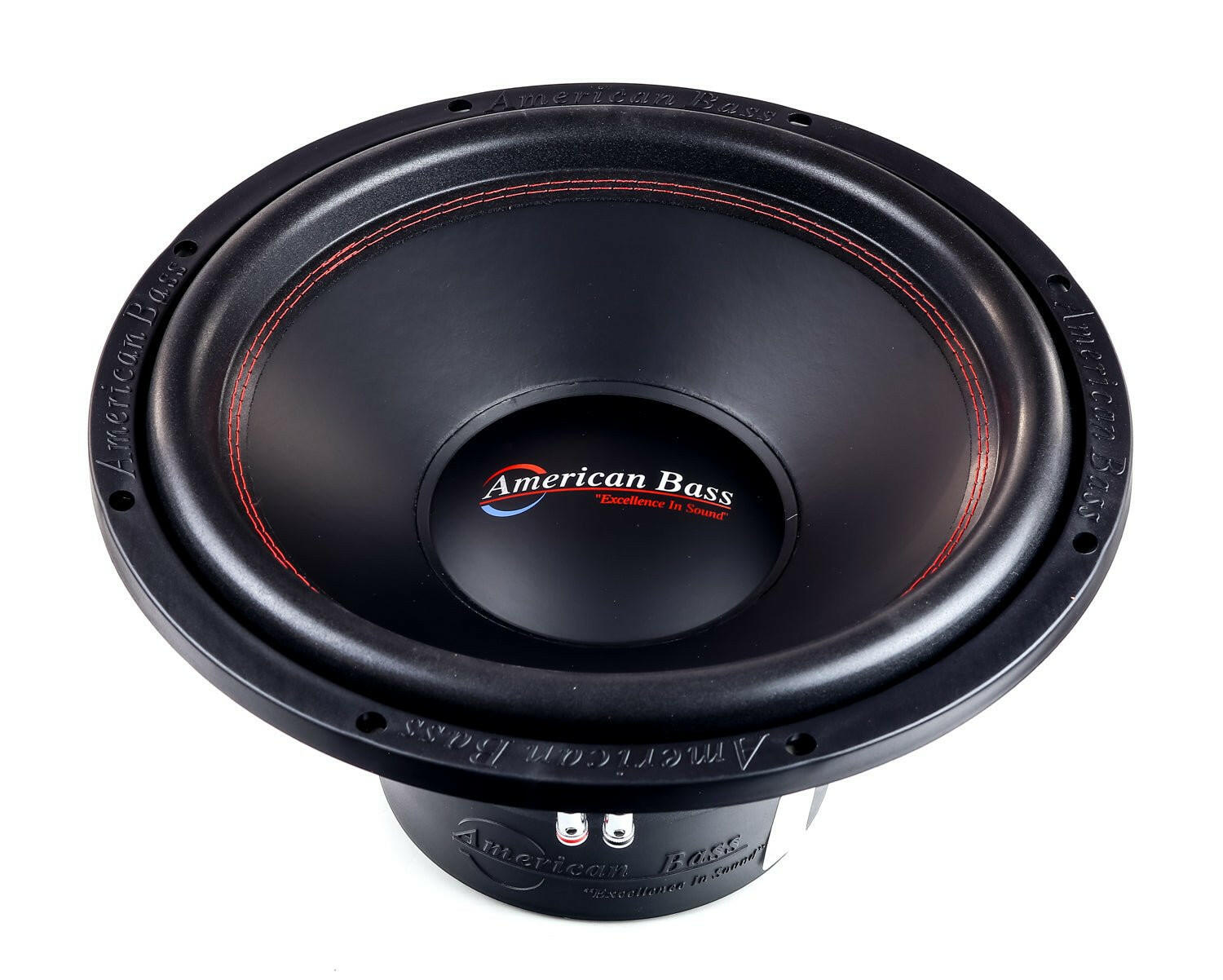

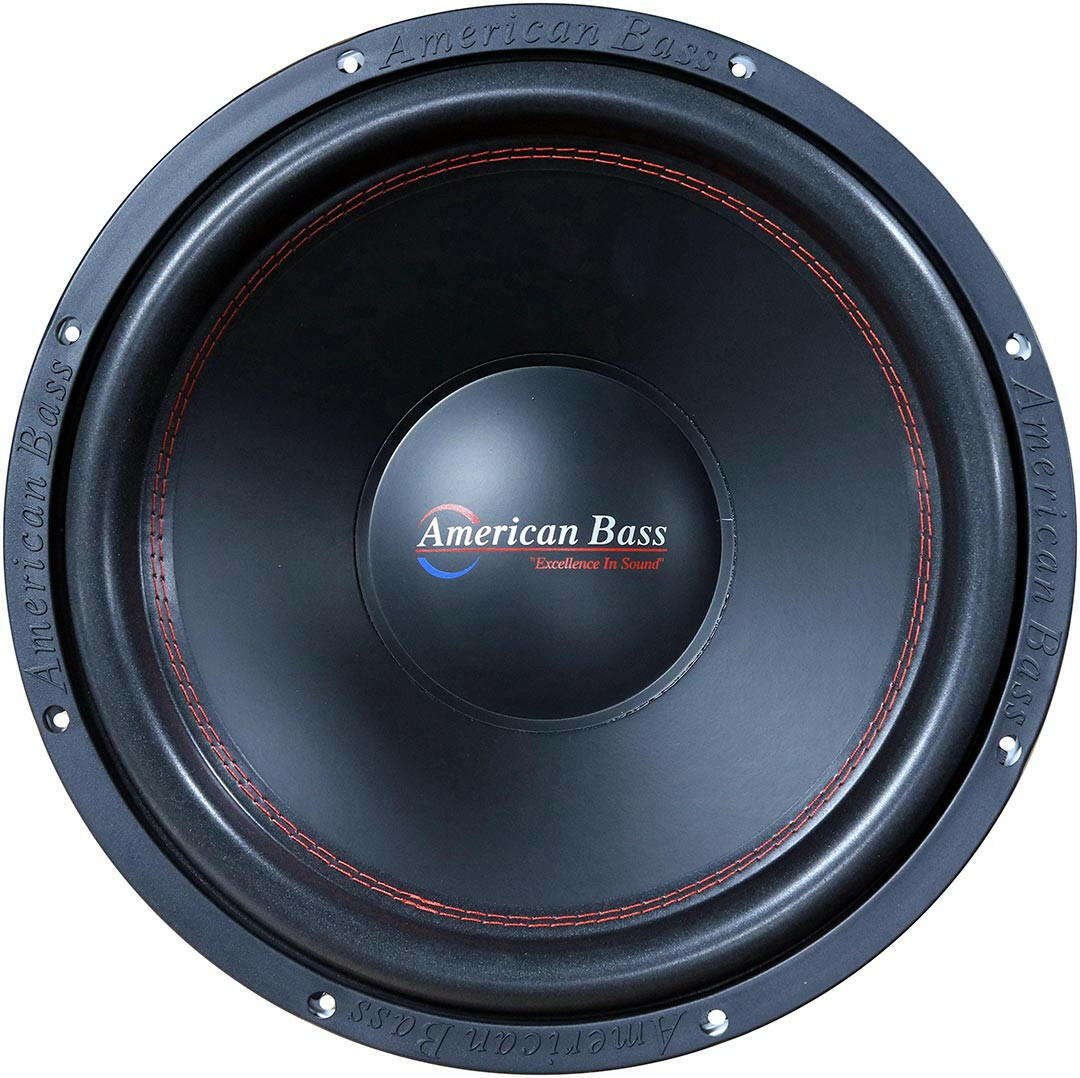

American Bass XD 15" Car Subwoofer — 1000W RMS Dual Voice Coil (XD-1522 / XD-1544)
This Listing Includes:
- (1) American Bass XD 15" Subwoofer
The American Bass XD 15" is a long-running favorite for a reason: it delivers tight, deep bass and even power handling at a price that is hard to argue with. A 3" four-layer voice coil and 20 mm of Xmax let the XD 15" move serious air on 1000 watts RMS. Choose the dual 2Ω XD-1522 or dual 4Ω XD-1544 to match your amp and box. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Hi-temp 4-layer voice coil
- Stacked ferrite magnet motor
- Heavy-duty stamped steel basket
- Foam surround
- Non-pressed paper cone
Specifications
| RMS Power | 1000W |
| Max Power | 2000W |
| Impedance | Dual 2Ω (XD-1522) or Dual 4Ω (XD-1544) |
| Sensitivity | 88.2 dB (2Ω) / 87.4 dB (4Ω) |
| Voice Coil Diameter | 3.0" |
| Basket | Stamped steel |
| Mounting Depth | 7.64" |
| Cutout Diameter | 14.06" |
| Fs | 38.1 Hz (2Ω) / 34.54 Hz (4Ω) |
| Qts | 0.625 (2Ω) / 0.601 (4Ω) |
| Xmax | 20.0 mm |
| Mms | 378.0 g (2Ω) / 388.3 g (4Ω) |
