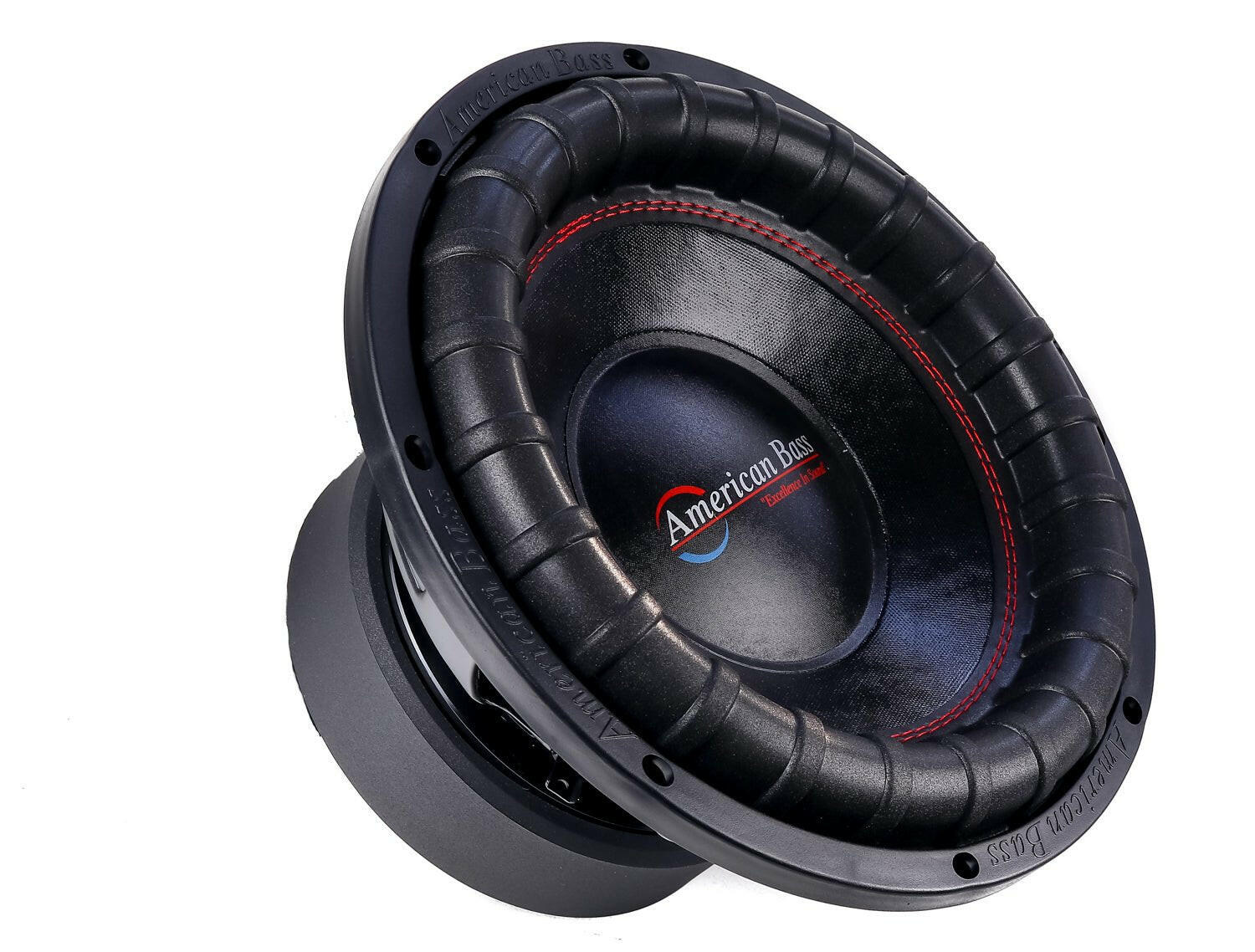

American Bass Elite 12" Car Subwoofer 1200 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 1200W RMS / 2400W Max — high-output 12" for big systems
- Dual 4Ω voice coils — wire to suit your amp
- 3" hi-temp 4-layer voice coil — takes the heat under power
- 150 oz stacked magnet — strong, controlled motor
- Elite 12" (ELITE-1244) — fiber-added cone, double-stitched surround
American Bass Elite 12" Car Subwoofer — 1200W RMS Dual Voice Coil (ELITE-1244)
This Listing Includes:
- (1) American Bass Elite 12" Subwoofer
The American Bass Elite 12" brings XFL-style performance to a more attainable price. A 3" hi-temp four-layer voice coil and a 150 oz stacked magnet give the Elite 12" the headroom to handle 1200 watts RMS cleanly, while the double-stitched foam surround keeps long excursion under control. Wire the dual 4Ω coils to your amp and feed it. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 3" hi-temp 4-layer voice coil on an aluminum bobbin
- 150 oz stacked ferrite magnet
- Stamped steel basket
- Hi-roll high-density foam surround with double stitching
- Fiber-added non-pressed paper cone
Specifications
| RMS Power | 1200W |
| Max Power | 2400W |
| Impedance | Dual 4Ω |
| Sensitivity | 85.6 dB |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 150 oz |
| Basket | Stamped steel |
| Mounting Depth | 6.77" |
| Cutout Diameter | 10.94" |
| Re | 6.8 Ω |
| Fs | 32.64 Hz |
| Qts | 0.444 |
| Qes | 0.496 |
| Qms | 4.262 |
| Vas | 33.35 L |
| Xmax | 14.0 mm |
| BL | 27.244 |
| Mms | 253.98 g |
| Le | 7.708 mH |
