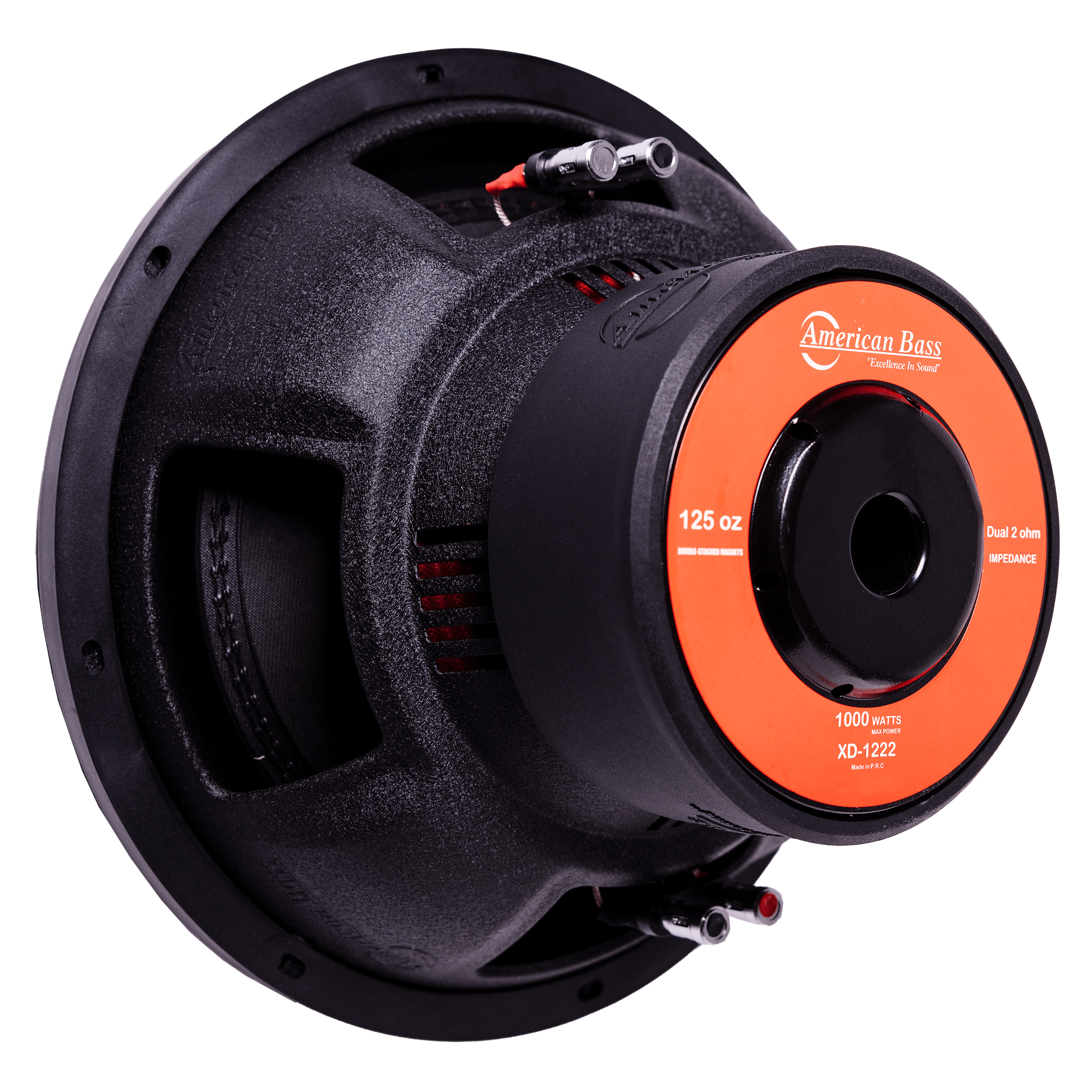

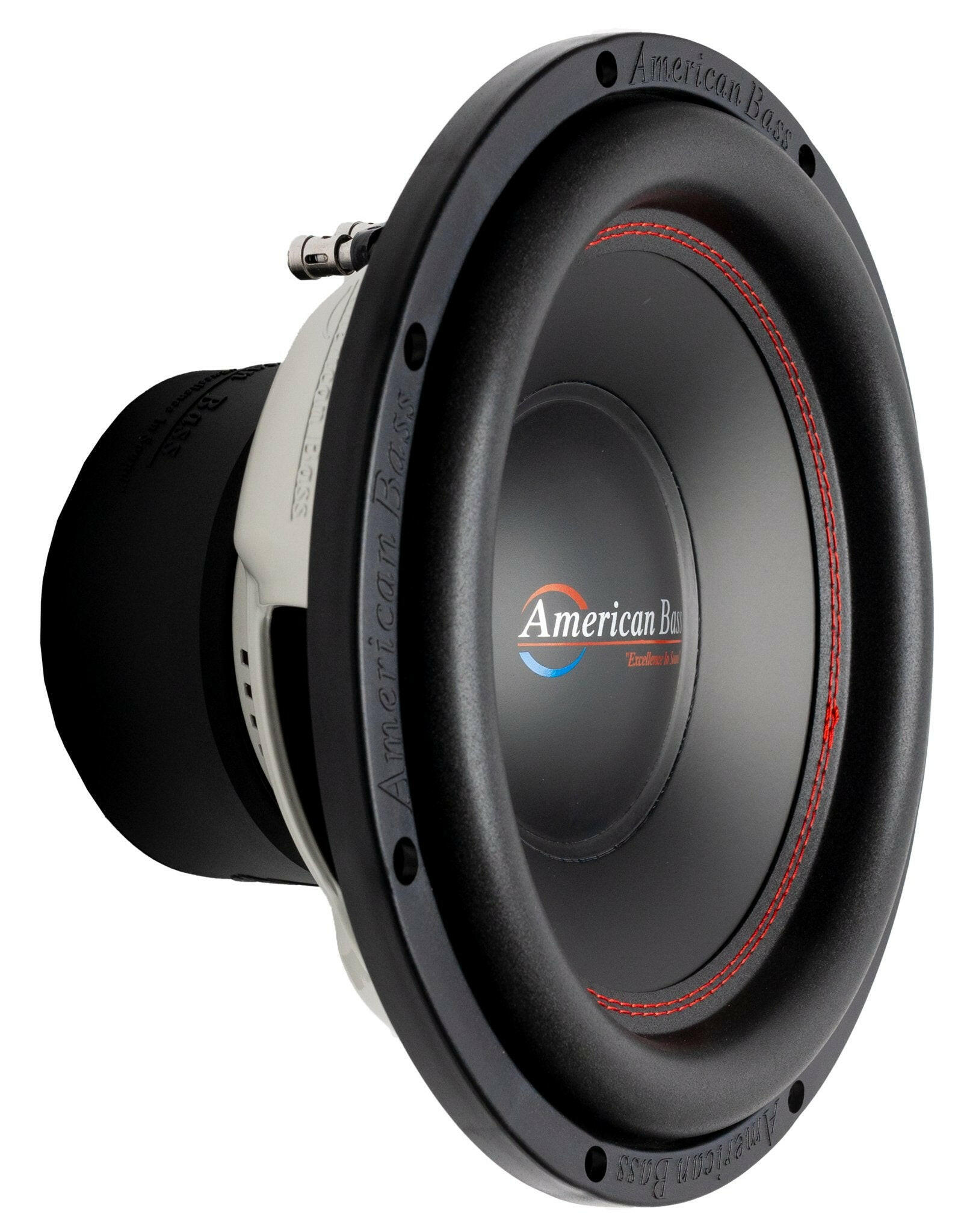

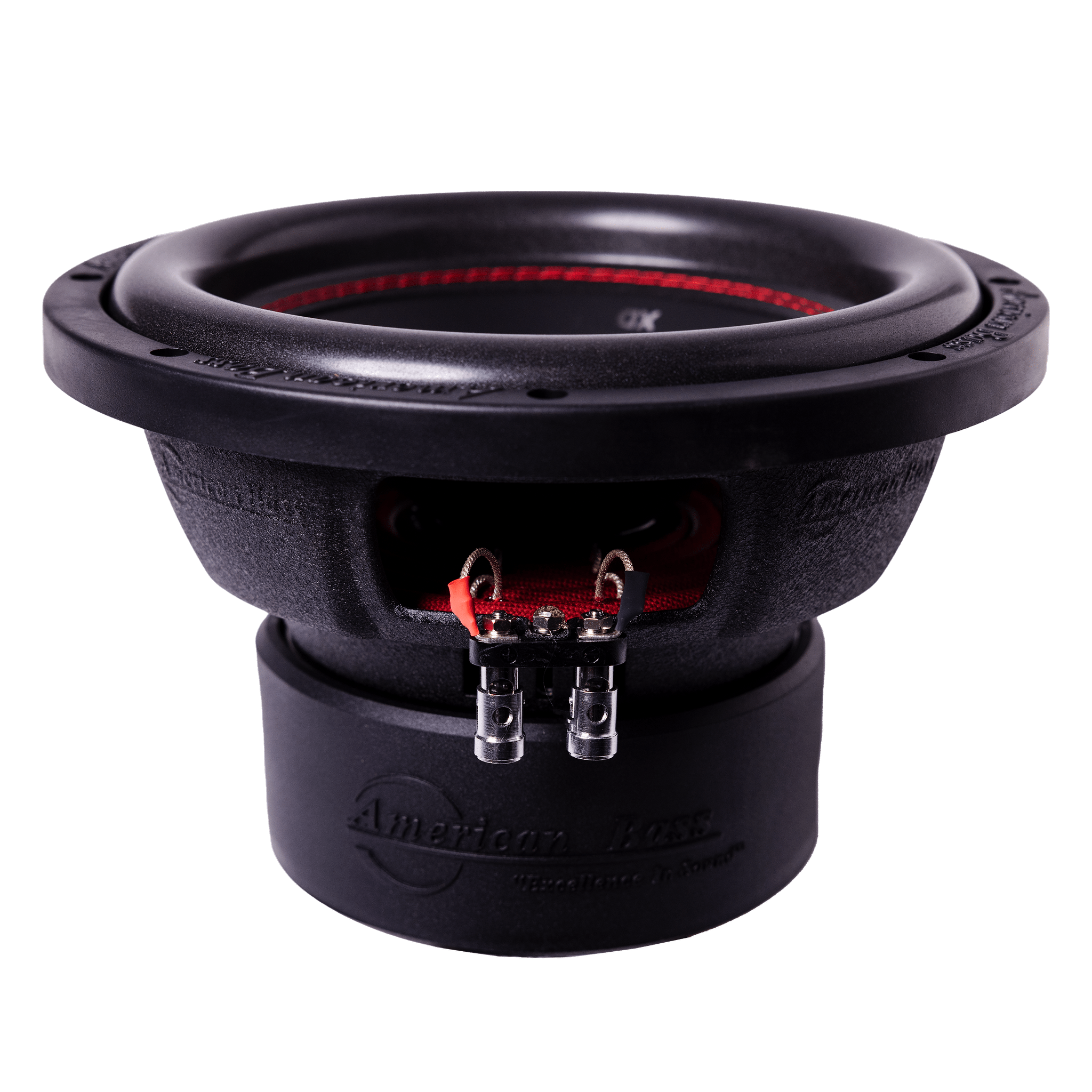

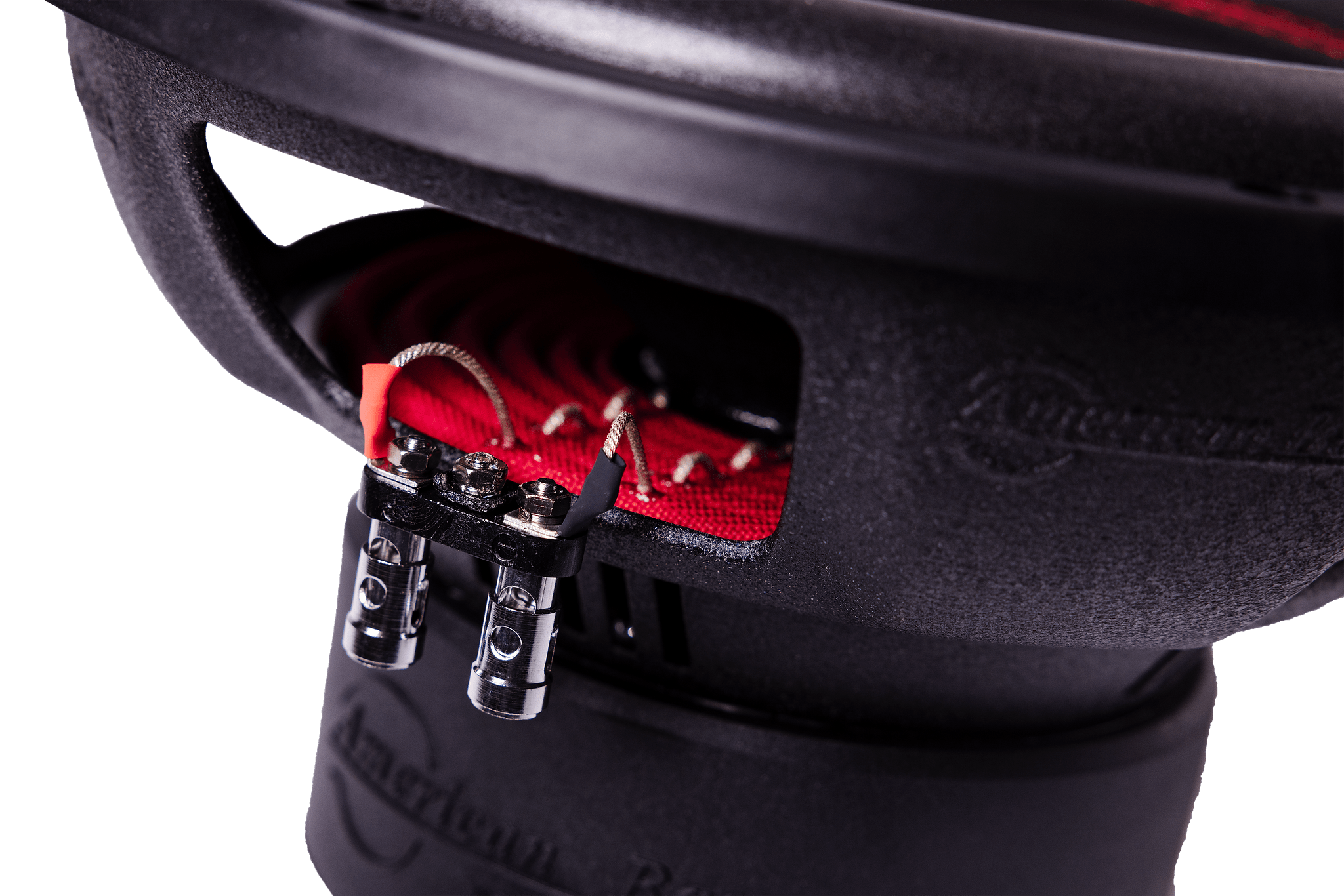

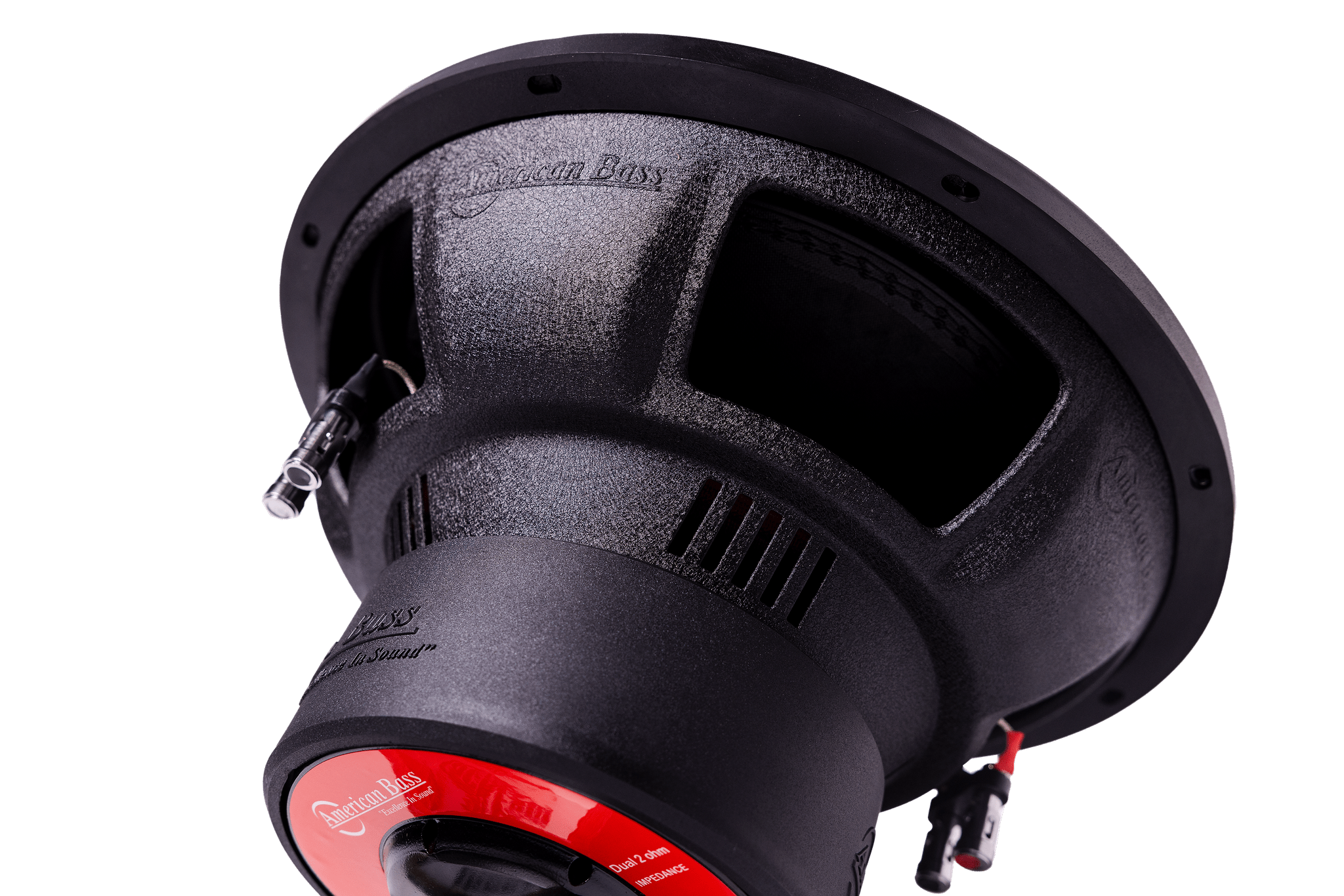

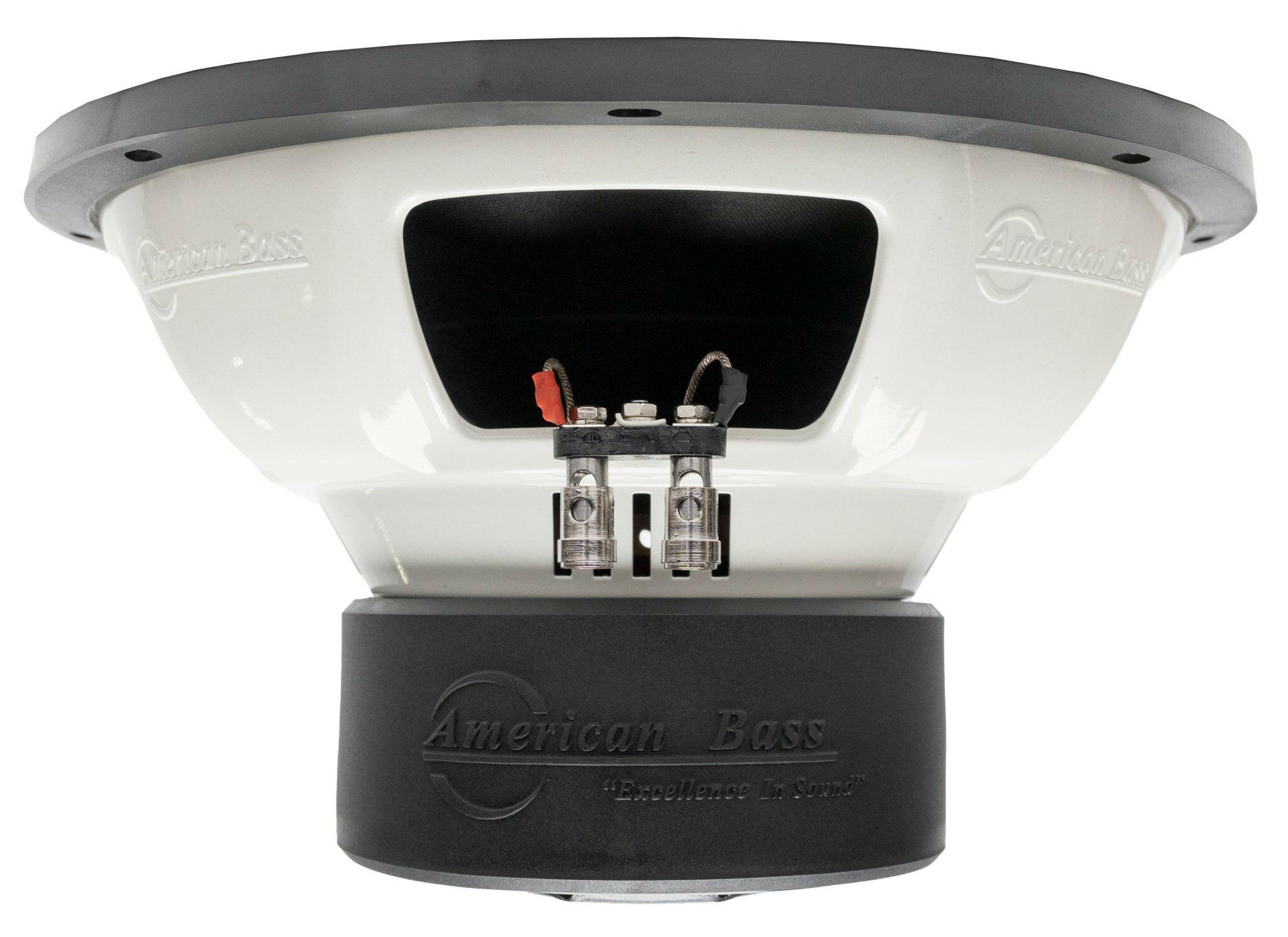

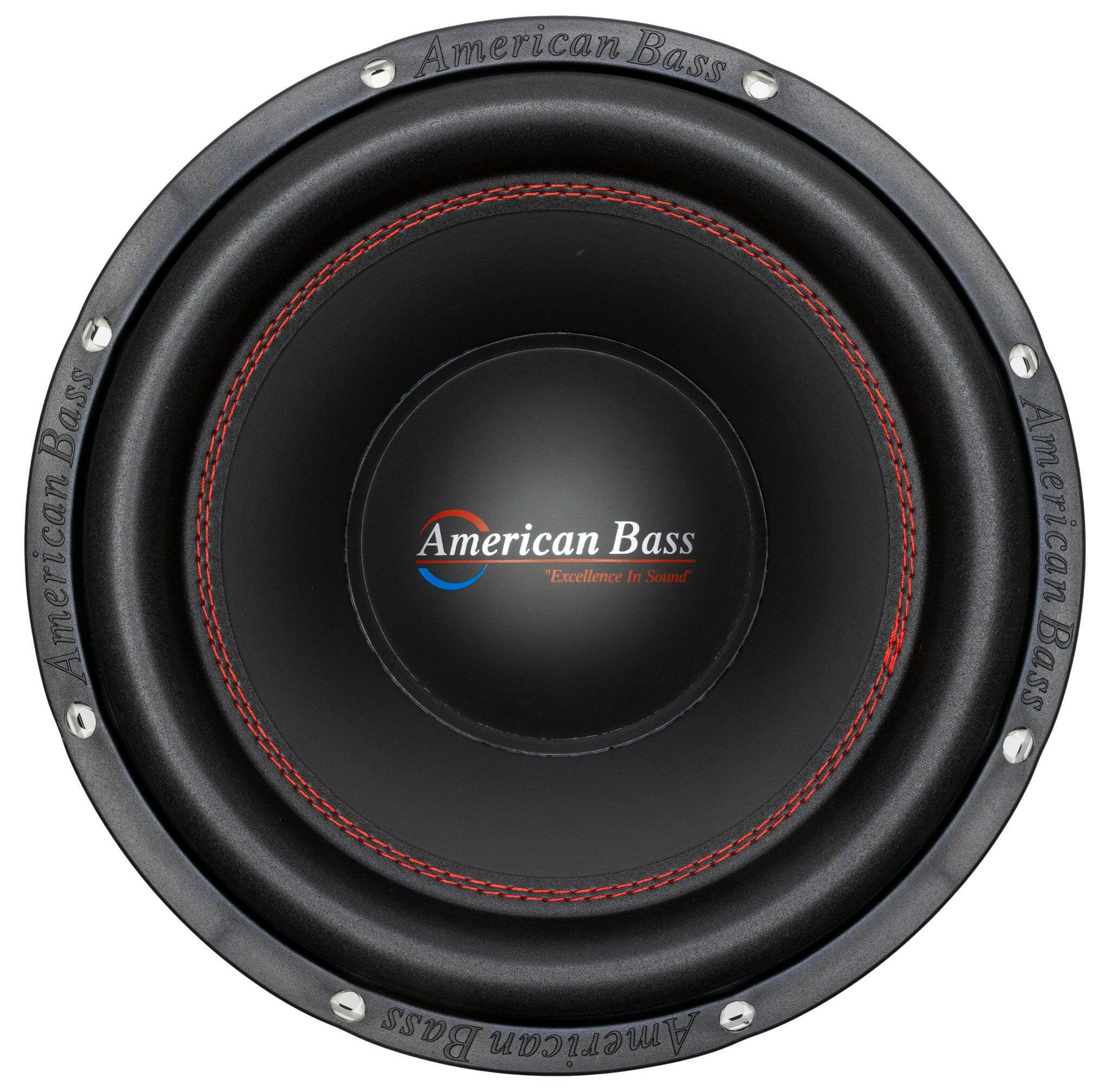

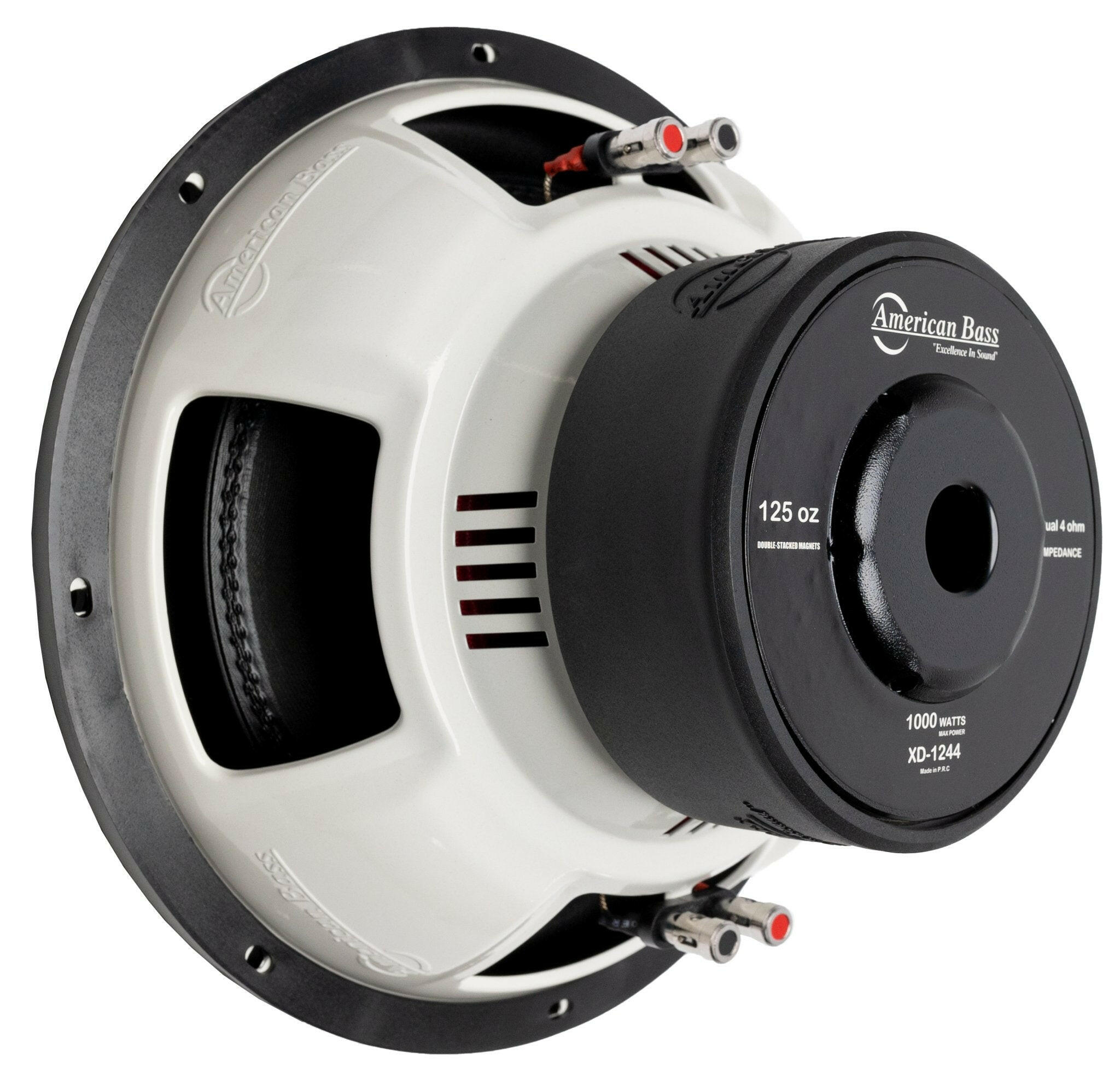

American Bass XD 12" Car Subwoofer 500 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20or%20Dual%204%CE%A9%20(XD-1244)%20%E2%80%94%20choose%20your%20coil%0A%0A2.4%22%20hi-temp%204-layer%20voice%20coil%20%E2%80%94%20steady%20under%20power%0A%0A11.35%20mm%20Xmax%20%E2%80%94%20controlled%20excursi...
){kind=link}
- 500W RMS / 1000W Max — tight, musical 12" bass
- Dual 2Ω (XD-1222) or Dual 4Ω (XD-1244) — choose your coil
- 2.4" hi-temp 4-layer voice coil — steady under power
- 11.35 mm Xmax — controlled excursion for clean output
- XD 12" (XD-1222 / XD-1244) — foam surround, stamped basket
American Bass XD 12" Car Subwoofer — 500W RMS Dual Voice Coil (XD-1222 / XD-1244)
This Listing Includes:
- (1) American Bass XD 12" Subwoofer
The American Bass XD 12" is the easy-button daily driver: clean, tight bass and even power handling without a huge amp or box. A 2.4" four-layer voice coil keeps the XD 12" composed on 500 watts RMS, and it drops happily into a modest sealed or ported enclosure. Pick the dual 2Ω XD-1222 or dual 4Ω XD-1244 to match your amplifier. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Hi-temp 4-layer voice coil
- Stacked ferrite magnet motor
- Heavy-duty stamped steel basket
- Foam surround
- Non-pressed paper cone
Specifications
| RMS Power | 500W |
| Max Power | 1000W |
| Impedance | Dual 2Ω (XD-1222) or Dual 4Ω (XD-1244) |
| Sensitivity | 86.1 dB (2Ω) / 85.7 dB (4Ω) |
| Voice Coil Diameter | 2.4" |
| Basket | Stamped steel |
| Mounting Depth | 6.57" |
| Cutout Diameter | 11.34" |
| Fs | 40.96 Hz (2Ω) / 39.96 Hz (4Ω) |
| Qts | 0.598 (2Ω) / 0.691 (4Ω) |
| Xmax | 11.35 mm |
| Mms | 219.0 g (2Ω) / 196.0 g (4Ω) |
