American Bass Hawk 15" Car Subwoofer 1500 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 1500W RMS / 3000W Max — deep, SPL-ready 15-inch output
- Dual 4Ω voice coils — flexible wiring for 2Ω or 8Ω loads
- 3.0" 4-layer copper voice coil — on an aluminum bobbin for heat control
- 240 oz triple-stacked magnet — strong motor for big, clean travel
- Model HAWK-1544 — die-cast basket built to take a beating

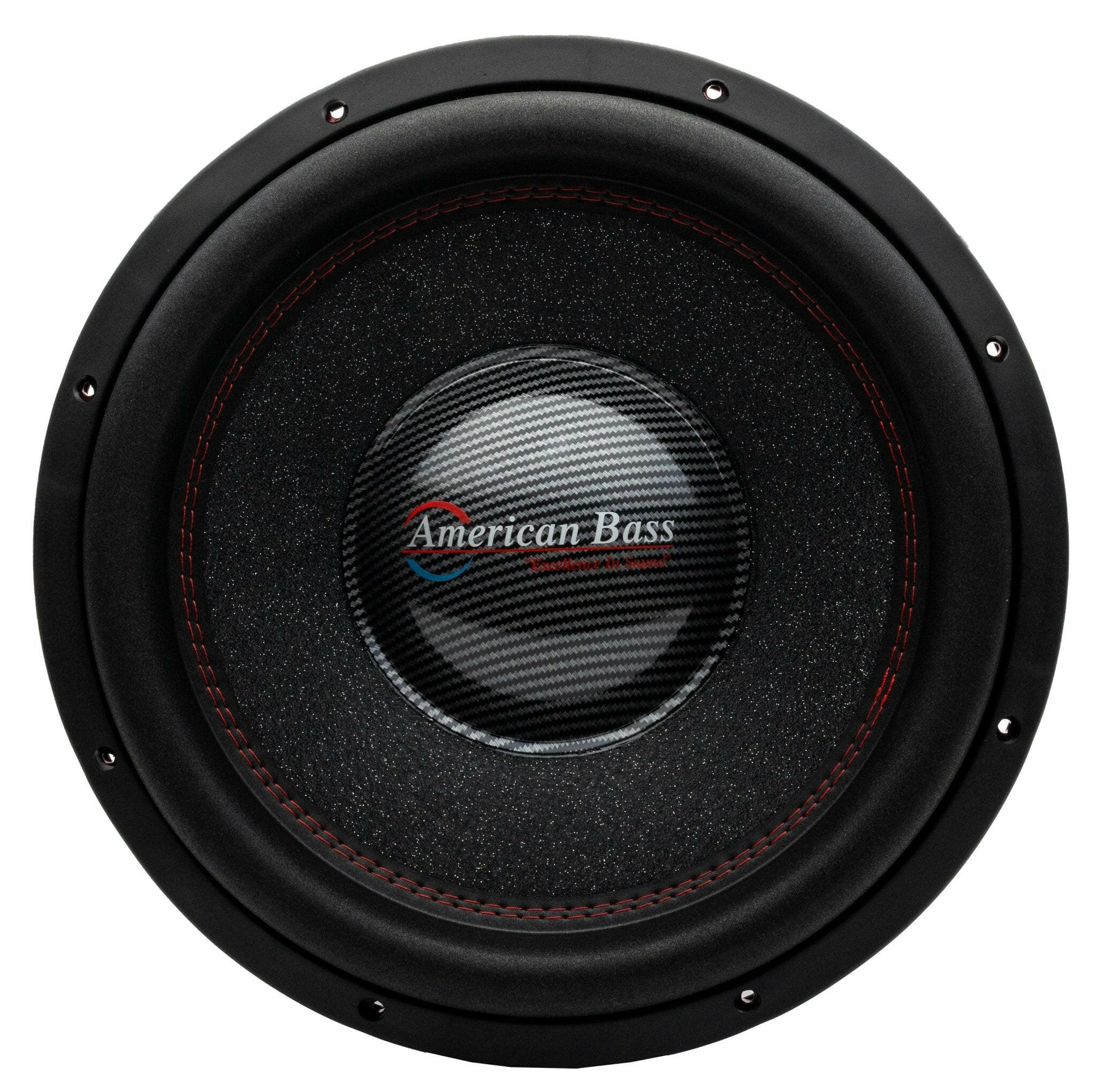

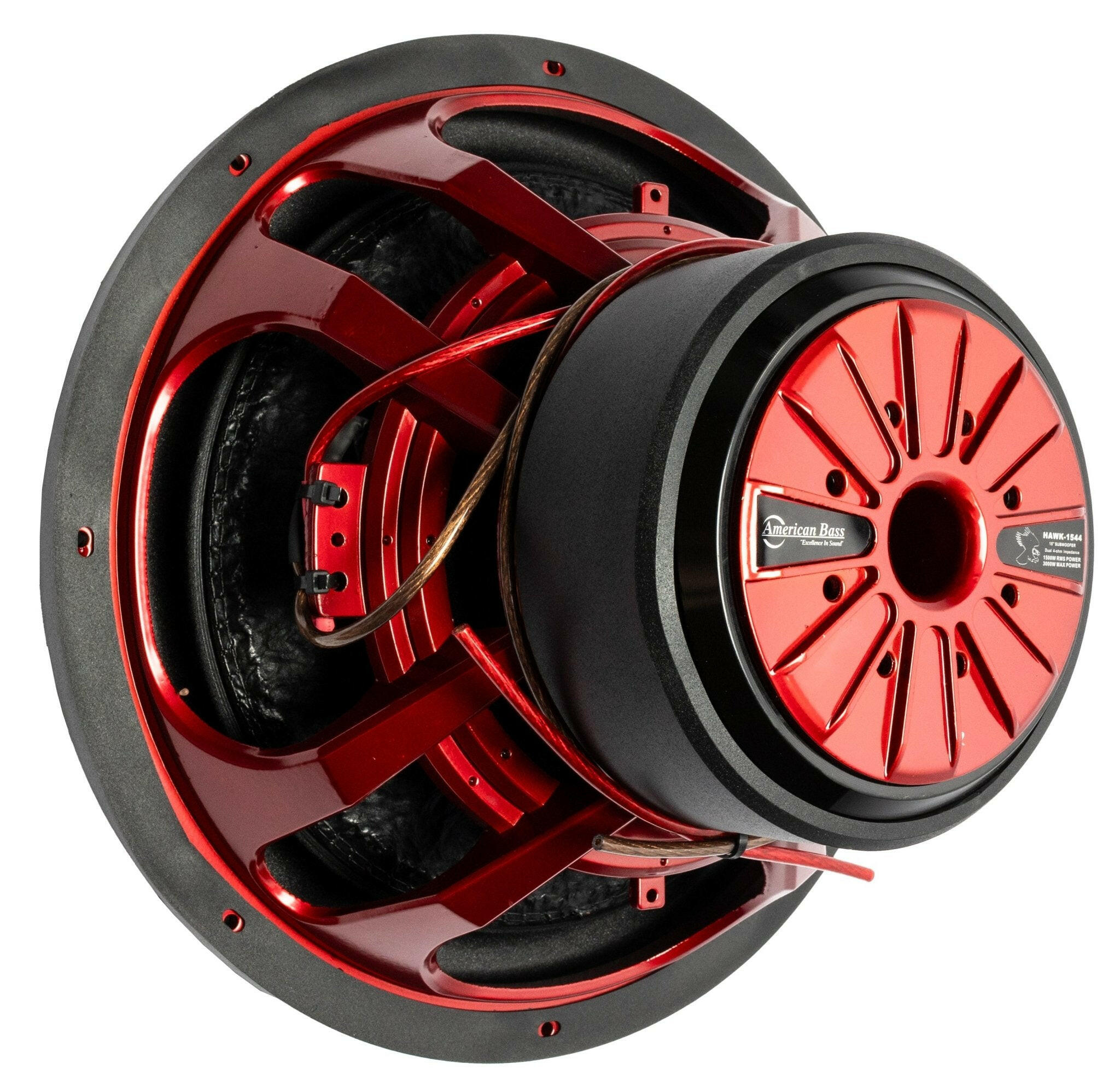

American Bass Hawk 15" Car Subwoofer — 1500W RMS Dual 4Ω Voice Coil (HAWK-1544)
This Listing Includes:
- (1) American Bass Hawk 15" Subwoofer
The American Bass Hawk 15" brings serious 15-inch low end to enthusiasts and SPL competitors alike. With a 240 oz triple-stacked magnet, a 3-inch 4-layer coil, and 15.5mm of Xmax, the HAWK-1544 moves real air on 1500 watts RMS. Drop it in a tuned ported box and let this 15 pressurize the cabin. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Die-cast basket with red metal finish for strength and looks
- 3.0" hi-temp 4-layer copper voice coil on an aluminum bobbin
- 240 oz triple-stacked strontium magnets for relentless motor force
- Long 15.5mm Xmax for deep, controlled excursion
- Dual 4Ω voice coil design for flexible amplifier wiring
Specifications
| RMS Power | 1500W |
| Max Power | 3000W |
| Impedance | Dual 4Ω (4 + 4) |
| Sensitivity | 88.1 dB |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 240 oz |
| Basket / Frame | Heavy-duty die-cast, red metal finish |
| Mounting Depth | 8.27" |
| Cutout Diameter | 13.78" |
| Qts | 0.431 |
| Qes | 0.47 |
| Qms | 5.242 |
| Vas | 68.7 L |
| Xmax | 15.5 mm |
| Mms | 331.8 g |
| Sd | 80.4 cm² |
