American Bass Hawk 10" Car Subwoofer 1500 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 1500W RMS / 3000W Max — aggressive SPL-ready output from a 10
- Dual 4Ω voice coils — flexible wiring for 2Ω or 8Ω loads
- 3.0" 4-layer copper voice coil — on an aluminum bobbin for heat control
- 240 oz triple-stacked magnet — massive motor for a 10
- Model HAWK-1044 — die-cast basket built for daily abuse
American Bass Hawk 10" Car Subwoofer — 1500W RMS Dual 4Ω Voice Coil (HAWK-1044)
This Listing Includes:
- (1) American Bass Hawk 10" Subwoofer
The American Bass Hawk 10" is the answer for enthusiasts and SPL competitors who want big bass without a big footprint. A 240 oz triple-stacked magnet, a 3-inch 4-layer coil, and a rear heat sink let the HAWK-1044 throw down hard drops without cooking the coil. Build it into a ported box and feel a 10 hit way above its weight. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Die-cast basket with red metal finish for strength and looks
- 3.0" hi-temp 4-layer copper voice coil on an aluminum bobbin
- 240 oz triple-stacked 80 oz strontium magnets

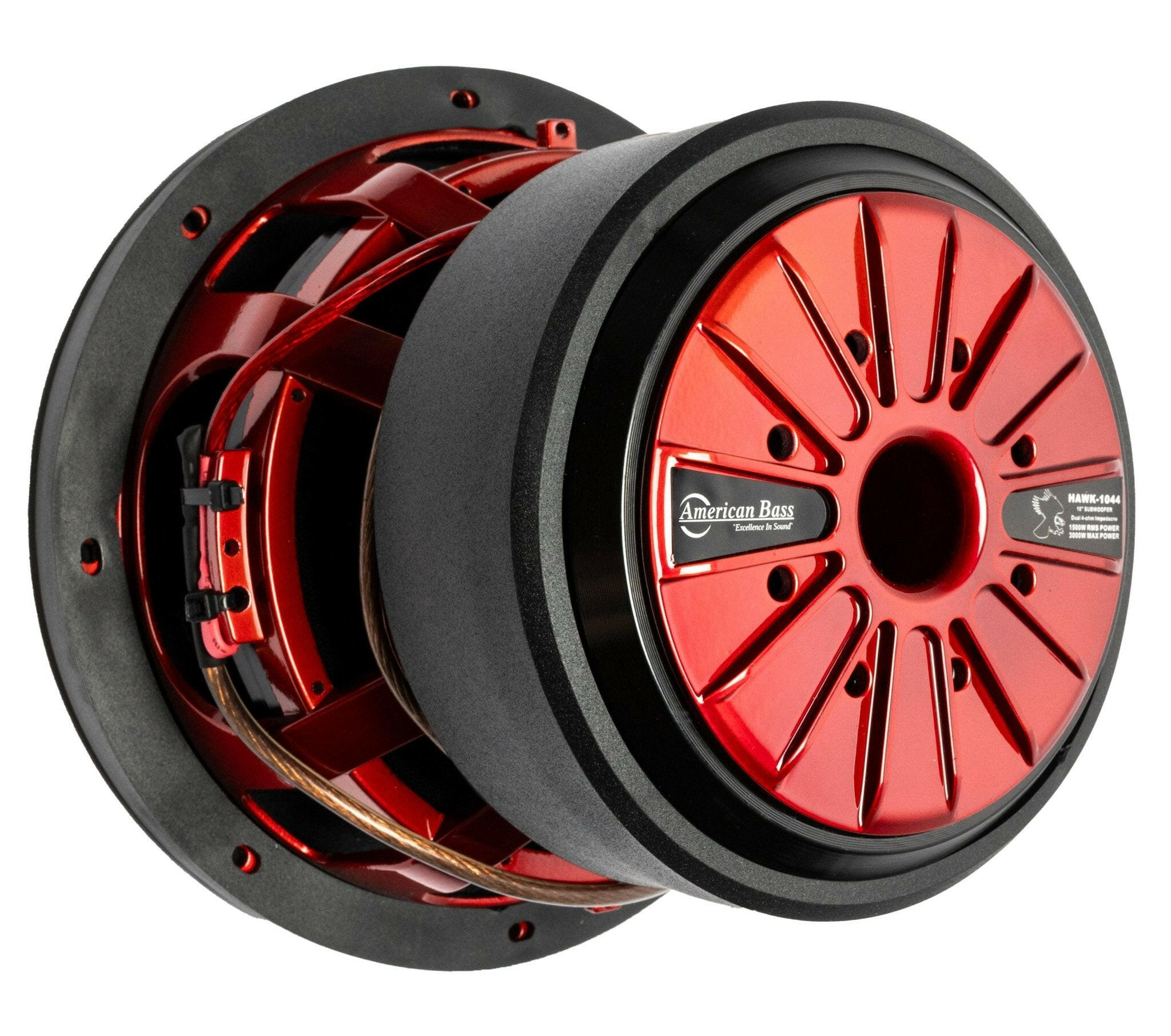

- Rear heat sink to keep the motor cool under sustained power
- Dual 4Ω voice coil design for flexible amplifier wiring
Specifications
| RMS Power | 1500W |
| Max Power | 3000W |
| Impedance | Dual 4Ω (4 + 4) |
| Sensitivity | 85.6 dB |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 240 oz |
| Basket / Frame | Heavy-duty die-cast, red metal finish |
| Mounting Depth | 7.48" |
| Cutout Diameter | 9.25" |
| Fs | 35.5 Hz |
| Qts | 0.299 |
| Qes | 0.323 |
| Qms | 4.202 |
| Vas | 14.4 L |
| Xmax | 12 mm |
| BL | 14.53 |
| Mms | 192.9 g |
