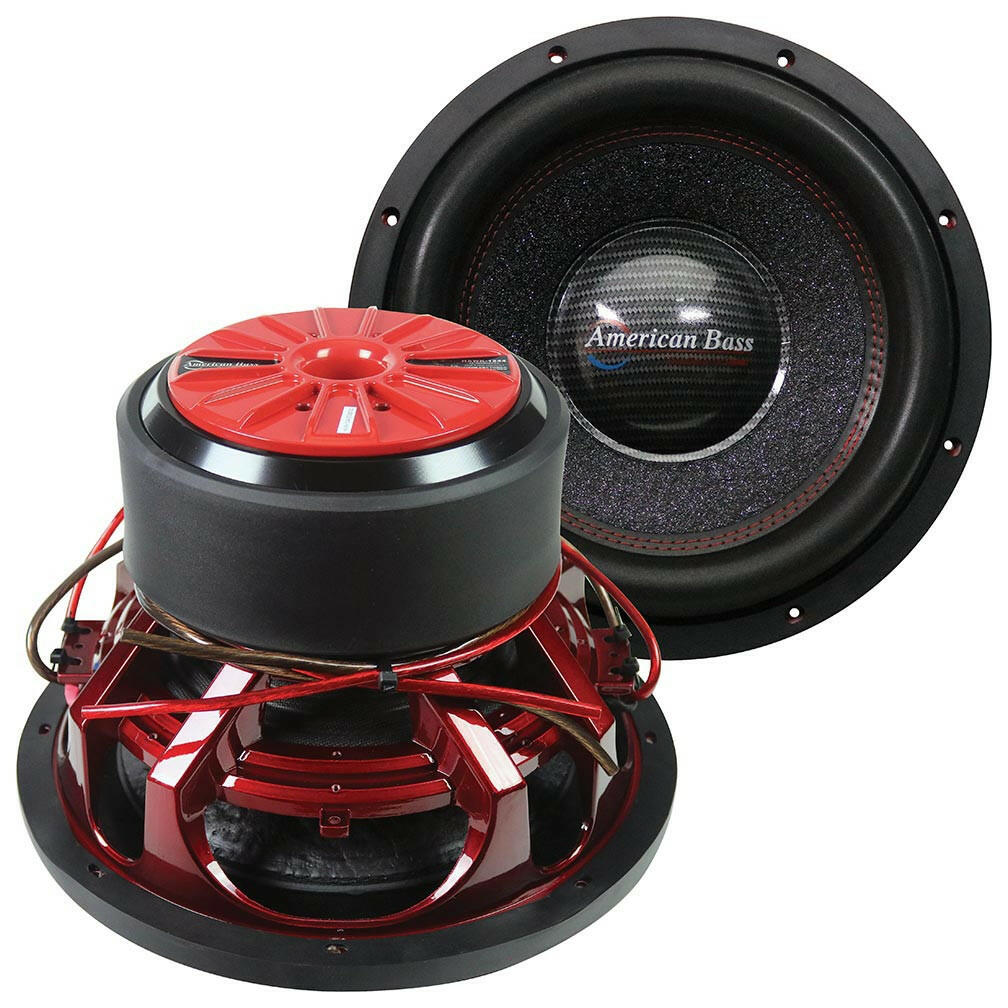

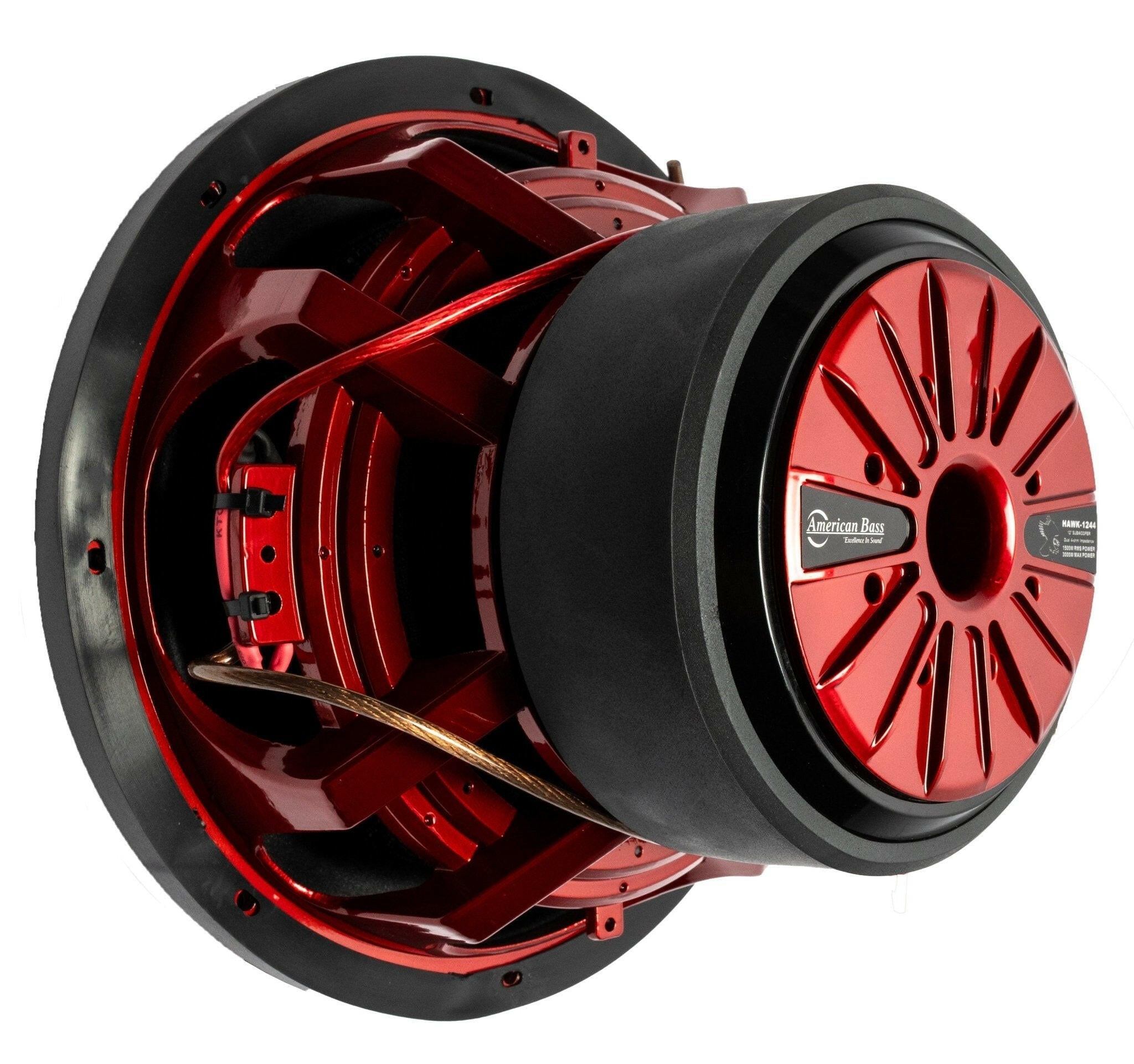

American Bass Hawk 12" Car Subwoofer 1500 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20%E2%80%94%20flexible%20wiring%20down%20to%201%CE%A9%20or%20up%20to%208%CE%A9%0A%0A3%22%20hi-temp%204-layer%20copper%20voice%20coil%20%E2%80%94%20handles%20heat%20under...
){kind=link}
- 1500W RMS / 3000W Max — serious daily-driver and competition output
- Dual 4Ω voice coils (4+4Ω) — flexible wiring down to 1Ω or up to 8Ω
- 3" hi-temp 4-layer copper voice coil — handles heat under heavy power
- 240 oz triple-stacked strontium magnet — tight, authoritative motor control
- Hawk 12" (HAWK-1244) — Kevlar-added cone in a die-cast basket
American Bass Hawk 12" Car Subwoofer — 1500W RMS Dual Voice Coil (HAWK-1244)
This Listing Includes:
- (1) American Bass Hawk 12" Subwoofer
The American Bass Hawk 12" is built for drivers who want big, clean low end without babying the sub. With 1500 watts RMS on tap, a 3" four-layer copper voice coil, and a 240 oz triple-stacked strontium magnet, the Hawk 12" stays composed when you push it hard. Drop it into a sealed or ported enclosure, wire those dual 4Ω coils to suit your amp, and let it work. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Hi-temp 4-layer copper wire voice coil on an aluminum bobbin
- Triple stacked 80 oz strontium magnets (240 oz total)
- Heavy-duty die-cast basket with red metal finish
- Hi-roll high-density foam surround with red stitching
- Kevlar fiber added non-press paper cone with texture finish
Specifications
| RMS Power | 1500W |
| Max Power | 3000W |
| Impedance | Dual 4Ω (4+4Ω) |
| Sensitivity | 86.6 dB |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 240 oz |
| Basket | Die-cast |
| Mounting Depth | 7.68" |
| Cutout Diameter | 11.34" |
| Fs | 33.5 Hz |
| Qts | 0.396 |
| Qes | 0.429 |
| Qms | 5.116 |
| Vas | 26.7 L |
| Xmax | 15.5 mm |
| BL | 14.18 |
| Mms | 256.3 g |
| Sd | 51.1 cm² |
