- 3000W RMS / 6000W Max — flagship SPL-grade power handling
- Dual 1Ω (GF-1511) or Dual 2Ω (GF-1522) — choose your coil
- 4" flat-wound aluminum voice coil — massive thermal capacity
- 400 oz triple-stacked strontium magnet — brutal motor control
- Godfather 15" (GF-1511 / GF-1522) — die-cast basket, woven Kevlar cone

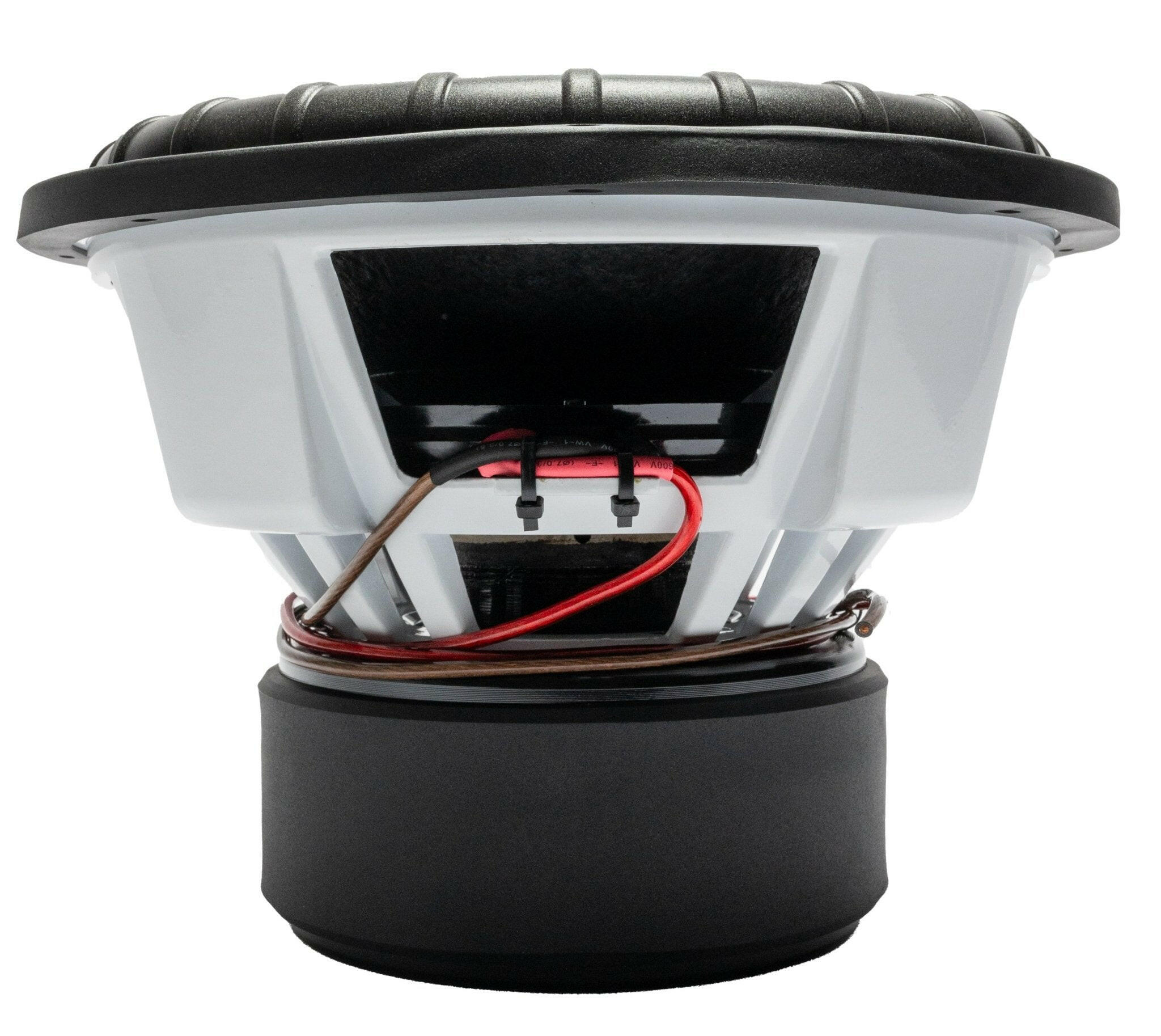

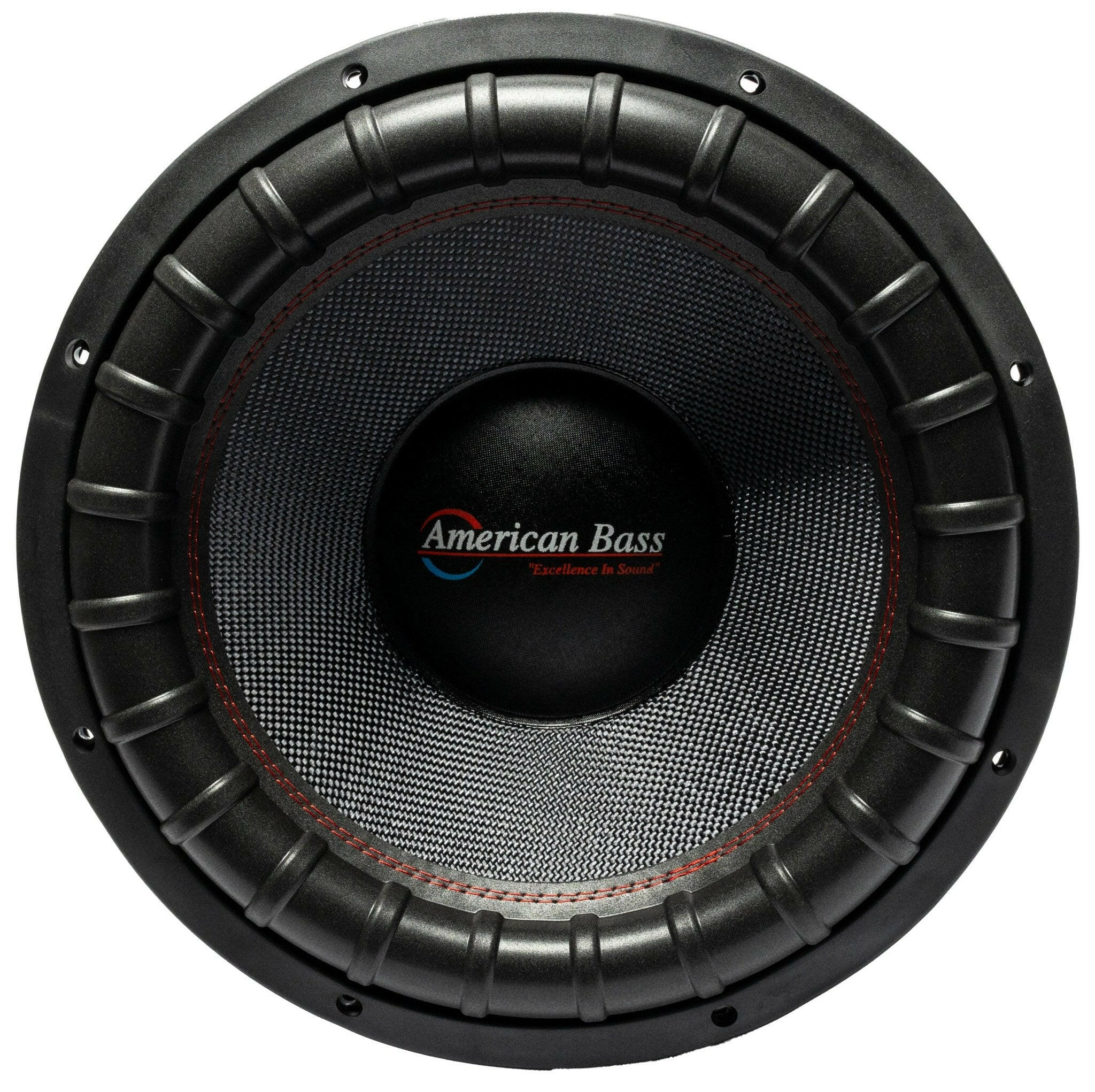

American Bass Godfather 15" Car Subwoofer — 3000W RMS Dual Voice Coil (GF-1511 / GF-1522)
This Listing Includes:
- (1) American Bass Godfather 15" Subwoofer
The American Bass Godfather 15" is a true competition heavyweight. A 4" flat-wound aluminum voice coil and a 400 oz triple-stacked strontium magnet let the Godfather 15" swallow 3000 watts RMS and pound out the kind of SPL that rattles trunk lids. Pick the dual 1Ω GF-1511 or dual 2Ω GF-1522 to match your amplifier, build it a big ported box, and turn it up. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- American-made 4" flat aluminum wire voice coil on an aluminum bobbin
- Triple stacked 133 oz strontium magnets (400 oz total)
- Heavy-duty die-cast basket with black powder finish
- Hi-roll high-density foam surround with red stitching
- Black Kevlar fiber woven non-press cone
Specifications
| RMS Power | 3000W |
| Max Power | 6000W |
| Impedance | Dual 1Ω (GF-1511) or Dual 2Ω (GF-1522) |
| Sensitivity | 87.0 dB (1Ω) / 88.2 dB (2Ω) |
| Voice Coil Diameter | 4.0" |
| Magnet Weight | 400 oz |
| Basket | Die-cast |
| Mounting Depth | 9.92" |
| Cutout Diameter | 13.78" |
| Fs | 28.9 Hz |
| Qts | 0.397 |
| Qes | 0.438 |
| Qms | 5.039 |
| Vas | 67.9 L |
| Xmax | 17.5 mm |
| BL | 15.98 |
| Mms | 384.3 g |
| Sd | 77.9 cm² |
