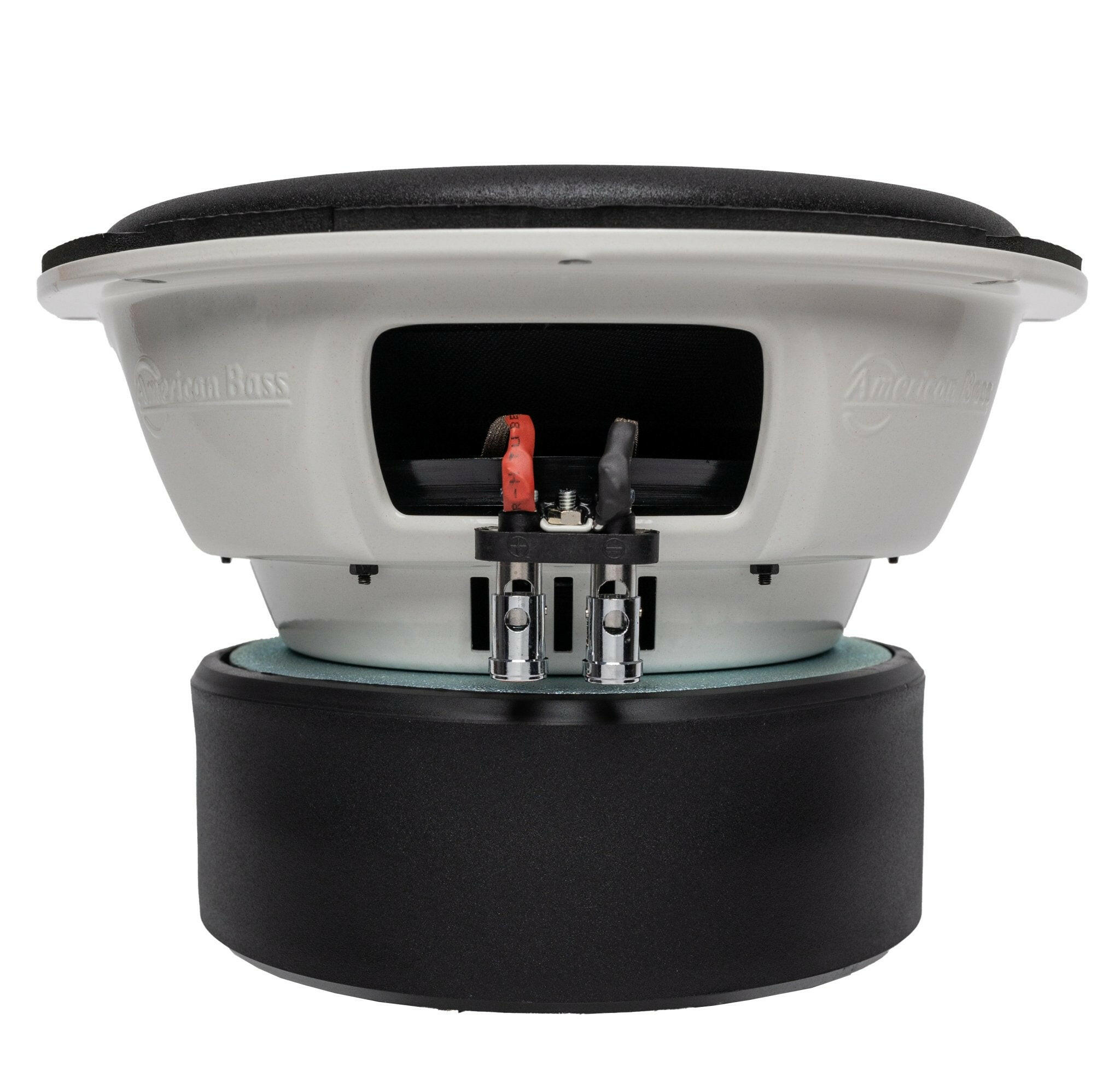

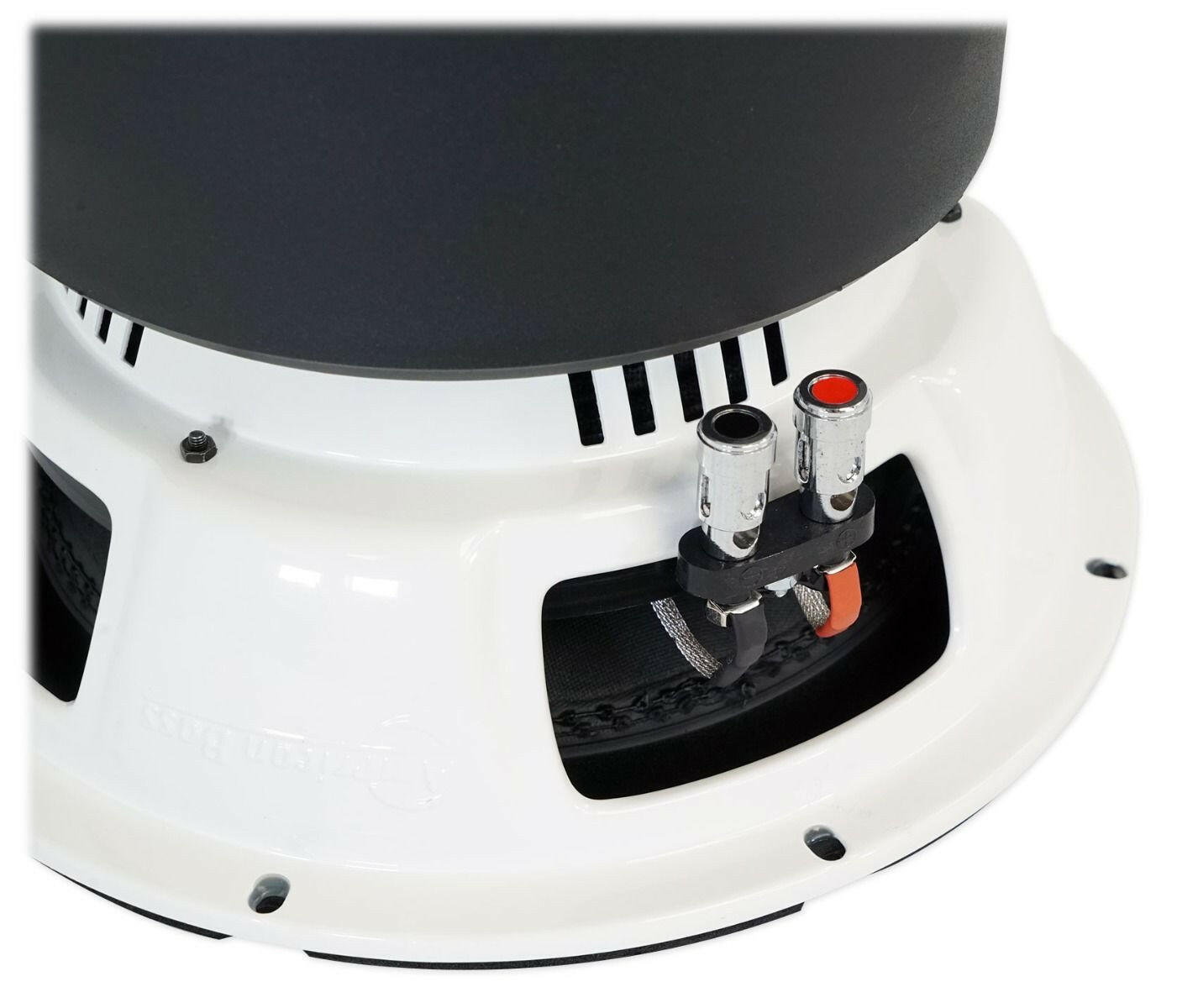

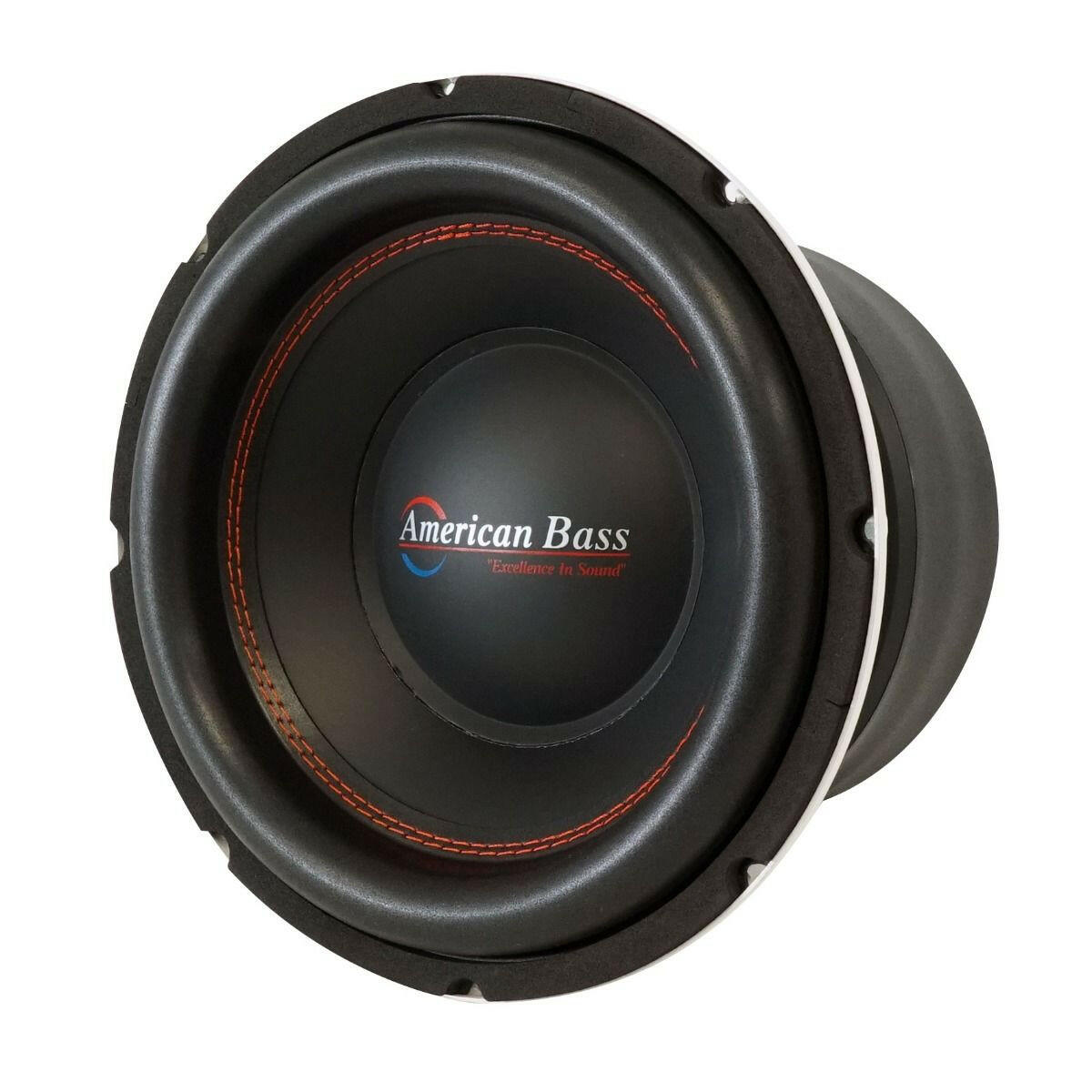

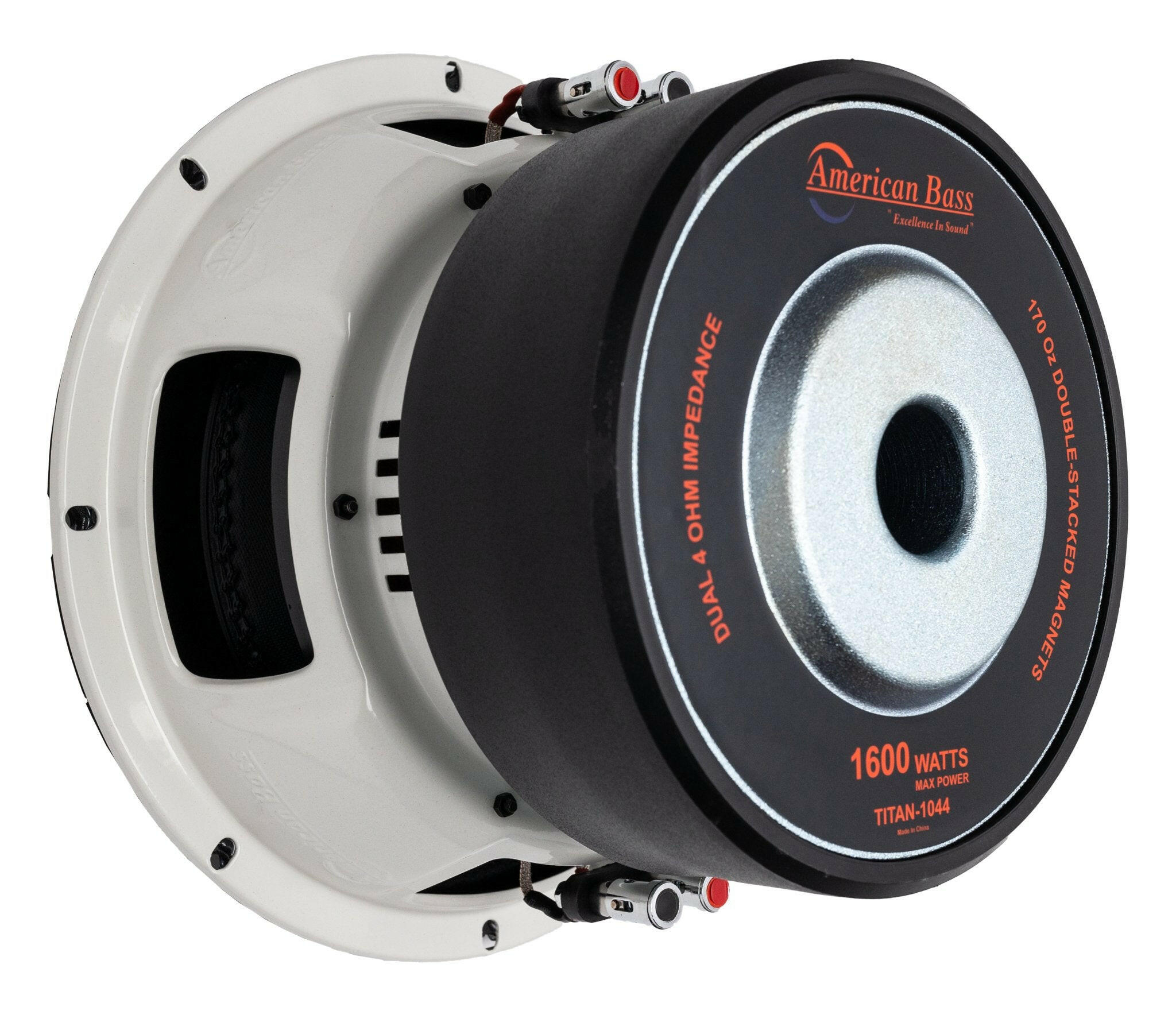

American Bass Titan 10" Car Subwoofer 800 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 800W RMS / 1600W Max — punchy 10" output for tight spaces
- Dual 4Ω voice coils — flexible wiring options
- 3" 4-layer voice coil with Nomex — thermal durability
- 120 oz double-stacked magnet — controlled, accurate motor
- Titan 10" (TITAN-1044) — Kevlar-reinforced cone, vented basket
American Bass Titan 10" Car Subwoofer — 800W RMS Dual Voice Coil (TITAN-1044)
This Listing Includes:
- (1) American Bass Titan 10" Subwoofer
The American Bass Titan 10" packs tight, hard-hitting bass into a compact 10" footprint. A 3" four-layer voice coil with Nomex protection and a 120 oz double-stacked magnet give the Titan 10" the muscle to stay clean at 800 watts RMS. Wire the dual 4Ω coils to your amp and drop it into a modest sealed or ported box for a quick, satisfying hit.
Features
- High-temperature 4-layer voice coil with Nomex protection
- Double stacked high-energy magnets (120 oz)
- Heavy-duty stamped basket with perimeter vents for voice-coil cooling
- 3-layer foam surround
- Kevlar-reinforced paper cone
Specifications
| RMS Power | 800W |
| Max Power | 1600W |
| Impedance | Dual 4Ω |
| Sensitivity | 84.2 dB |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 120 oz |
| Basket | Stamped steel |
| Mounting Depth | 6.34" |
| Cutout Diameter | 8.98" |
| Re | 6.4 Ω |
| Fs | 36.01 Hz |
| Qts | 0.57 |
| Qes | 0.66 |
| Qms | 4.37 |
| Vas | 15.23 L |
| Xmax | 17.5 mm |
| BL | 21.14 |
| Mms | 203.0 g |
| Sd | 334.56 cm² |
