- 500W RMS / 1000W Max — real output from a slim 10"
- Dual 2Ω (ES-1022) or Dual 4Ω (ES-1044) — choose your coil
- 3.66" mounting depth — true shallow-mount fit
- 2.5" aluminum voice coil — power handling in a thin frame
- ES 10" (ES-1022 / ES-1044) — rubber surround, 65 oz magnet

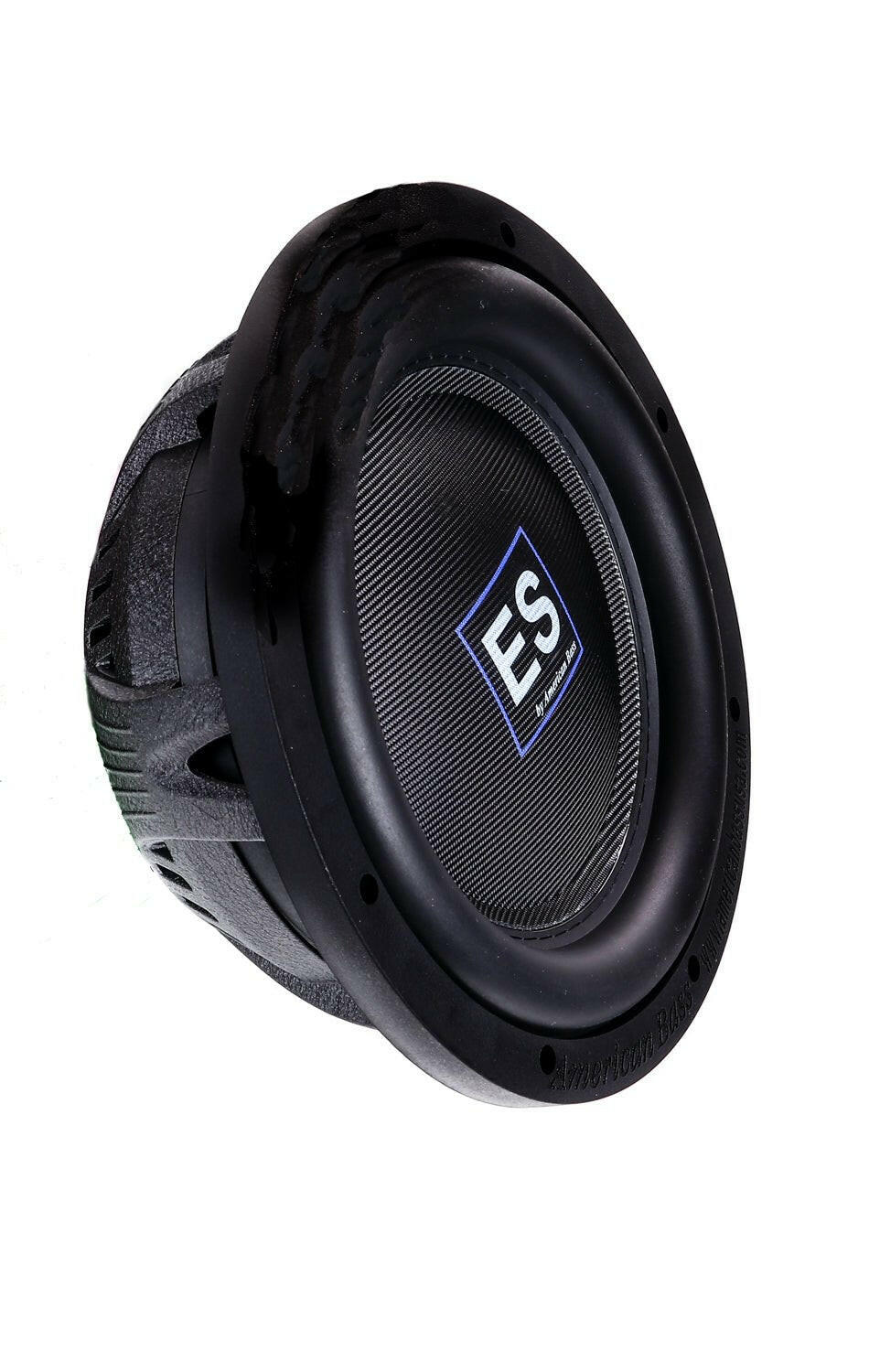

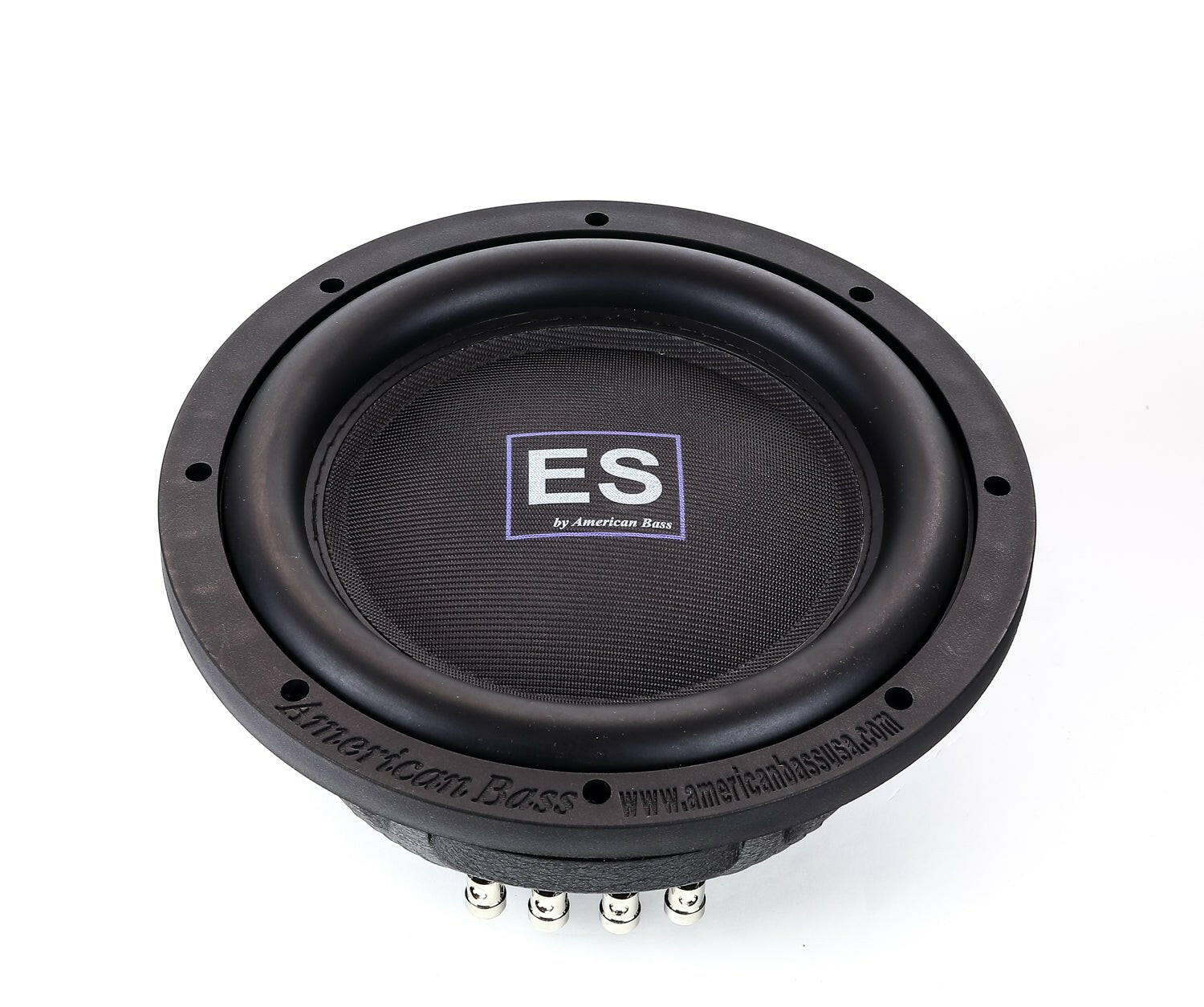

American Bass ES 10" Shallow-Mount Car Subwoofer — 500W RMS Dual Voice Coil (ES-1022 / ES-1044)
This Listing Includes:
- (1) American Bass ES 10" Shallow-Mount Subwoofer
The American Bass ES 10" gives you slim-mount convenience without the wimpy bass slim subs are known for. A 2.5" dual voice coil over a 65 oz ferrite magnet lets the ES 10" take 500 watts RMS, and at just 3.66" deep it fits where bigger subs cannot. Pick the dual 2Ω ES-1022 or dual 4Ω ES-1044 to match your amplifier. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2.5" aluminum dual voice coil
- 65 oz ferrite magnet
- Aluminum basket
- Stitched rubber surround
- Paper cone (ES-1022) / fiberglass cone (ES-1044)
Specifications
| RMS Power | 500W |
| Max Power | 1000W |
| Impedance | Dual 2Ω (ES-1022) or Dual 4Ω (ES-1044) |
| Sensitivity | 85 dB (2Ω) / 84 dB (4Ω) |
| Frequency Range | 20–500 Hz |
| Voice Coil Diameter | 2.5" |
| Magnet Weight | 65 oz |
| Basket | Aluminum |
| Mounting Depth | 3.66" |
| Cutout Diameter | 9.25" |
| Re | 1.09 Ω |
| Fs | 38.8 Hz |
| Qts | 1.059 |
| Qes | 1.208 |
| Qms | 8.575 |
| Vas | 12.85 L |
| Xmax | 11.5 mm |
| BL | 6.978 |
| Mms | 222.0 g |
| Sd | 346.36 cm² |
| Le | 0.676 mH |
