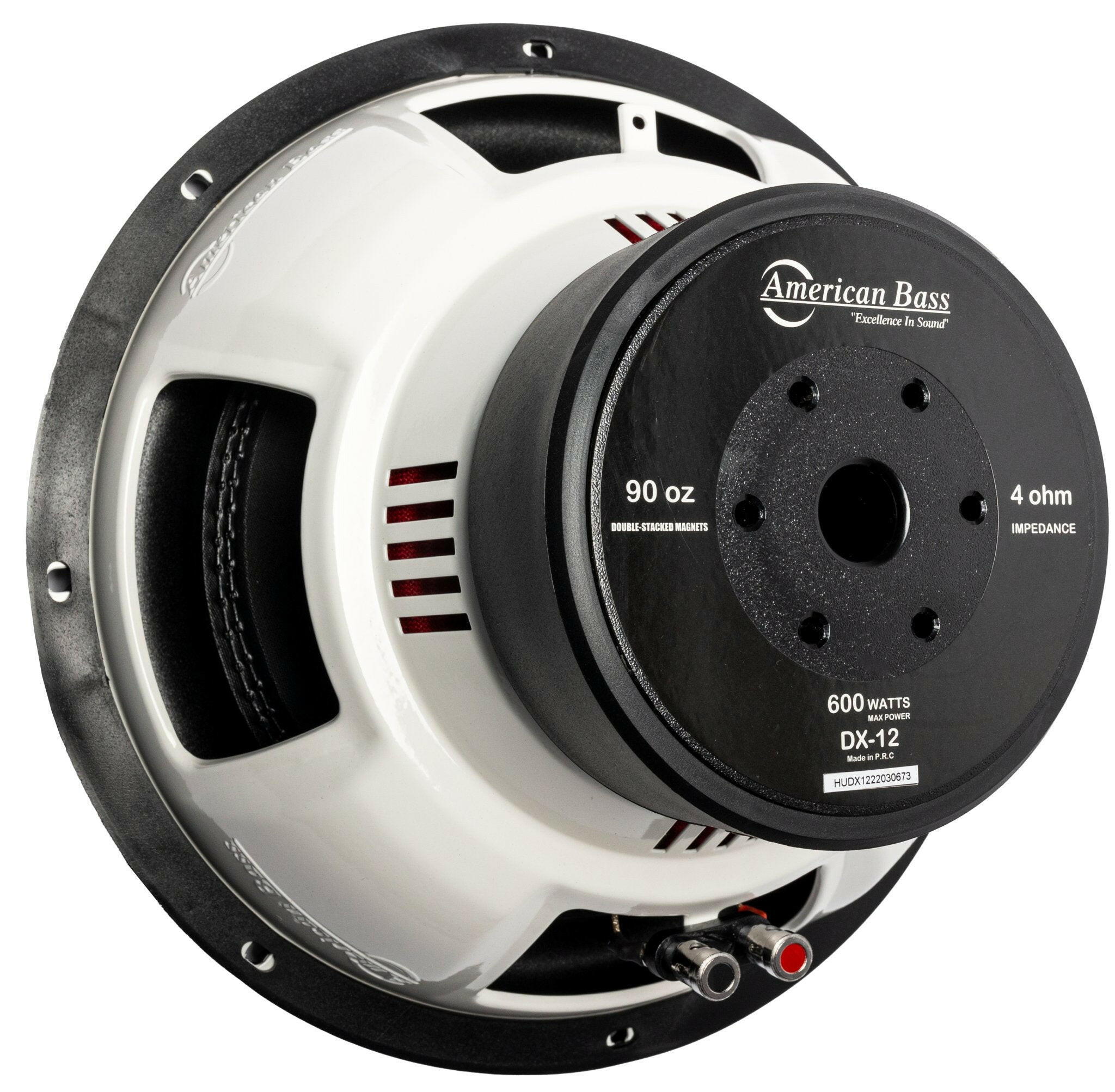

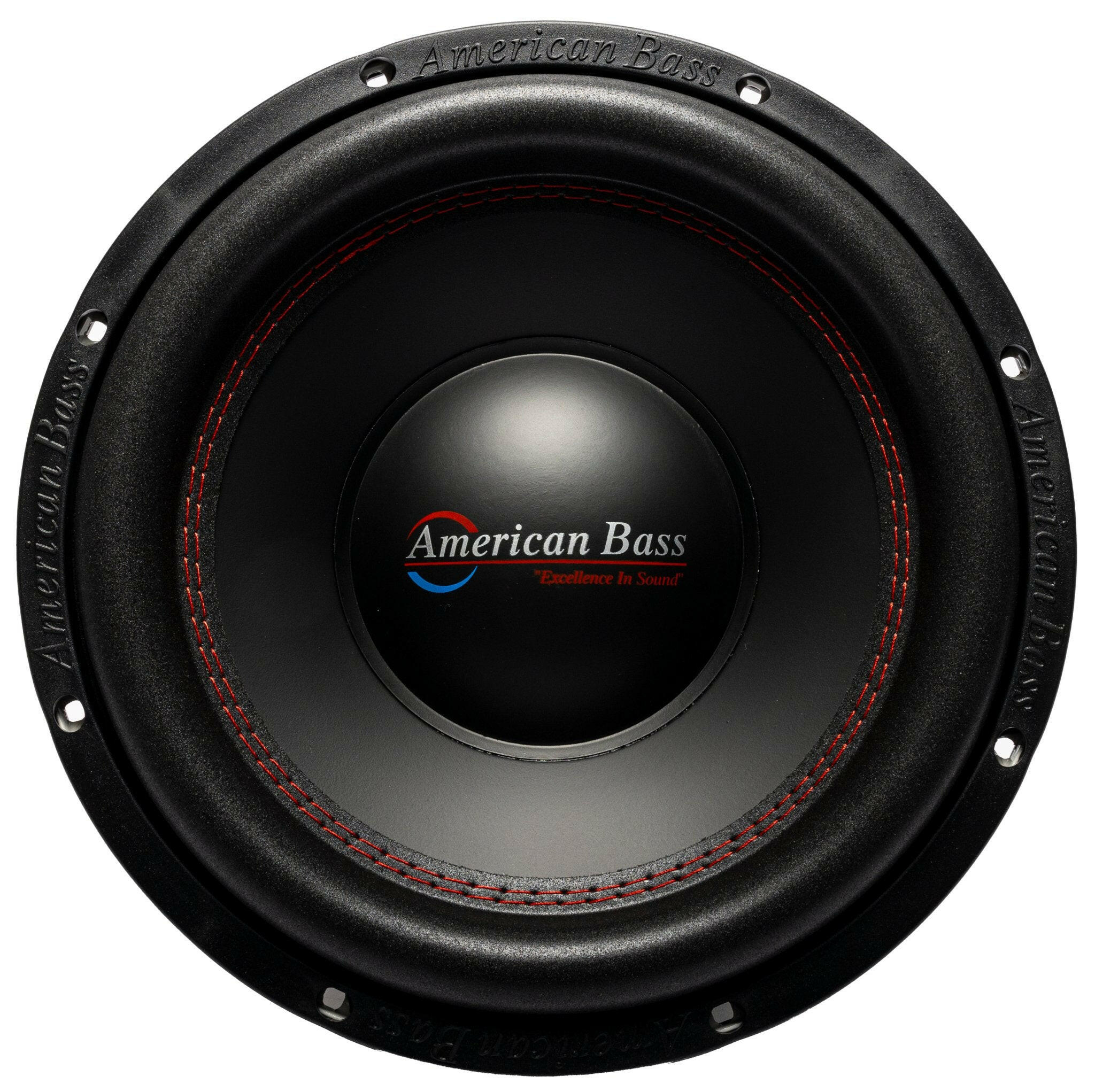

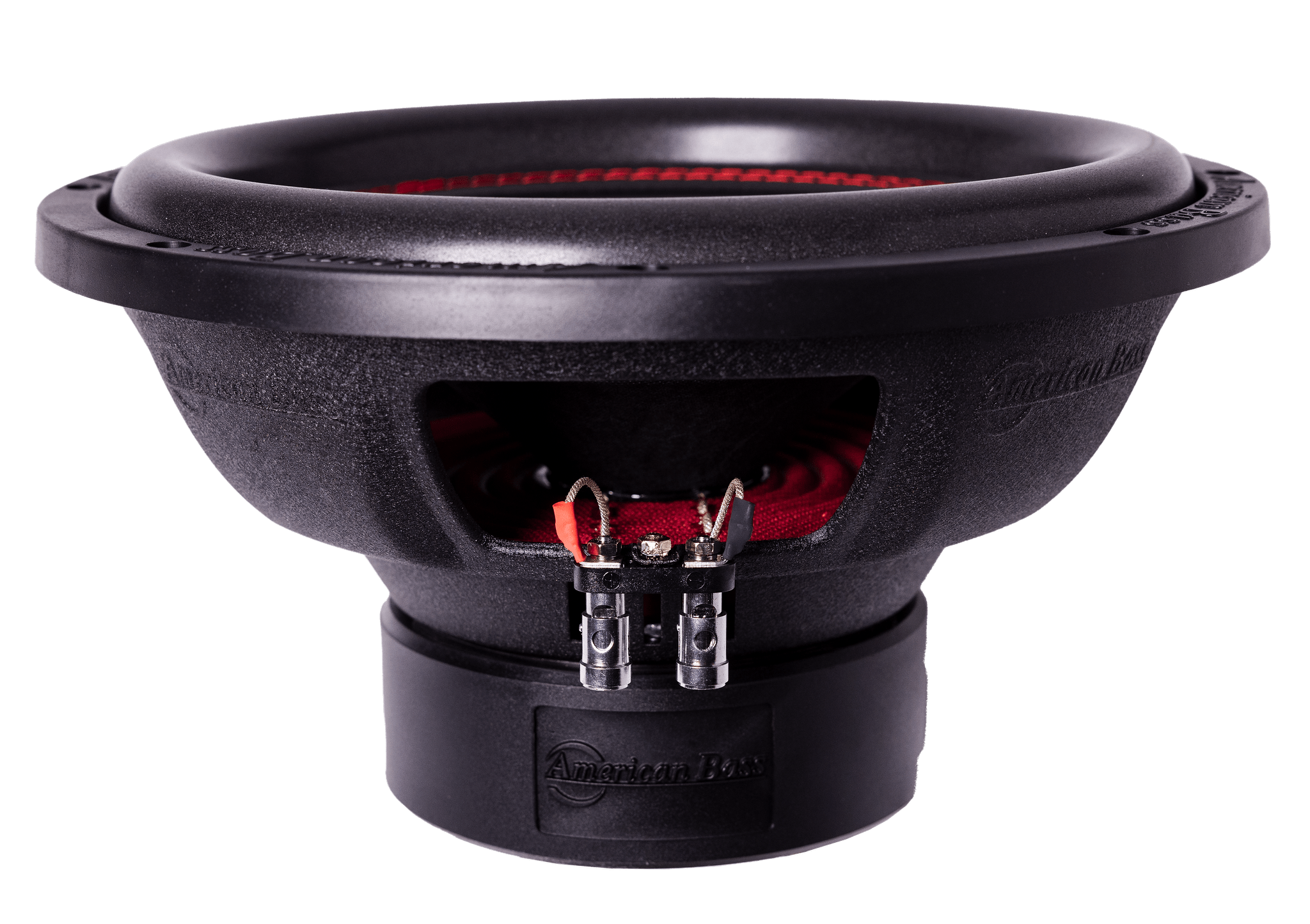

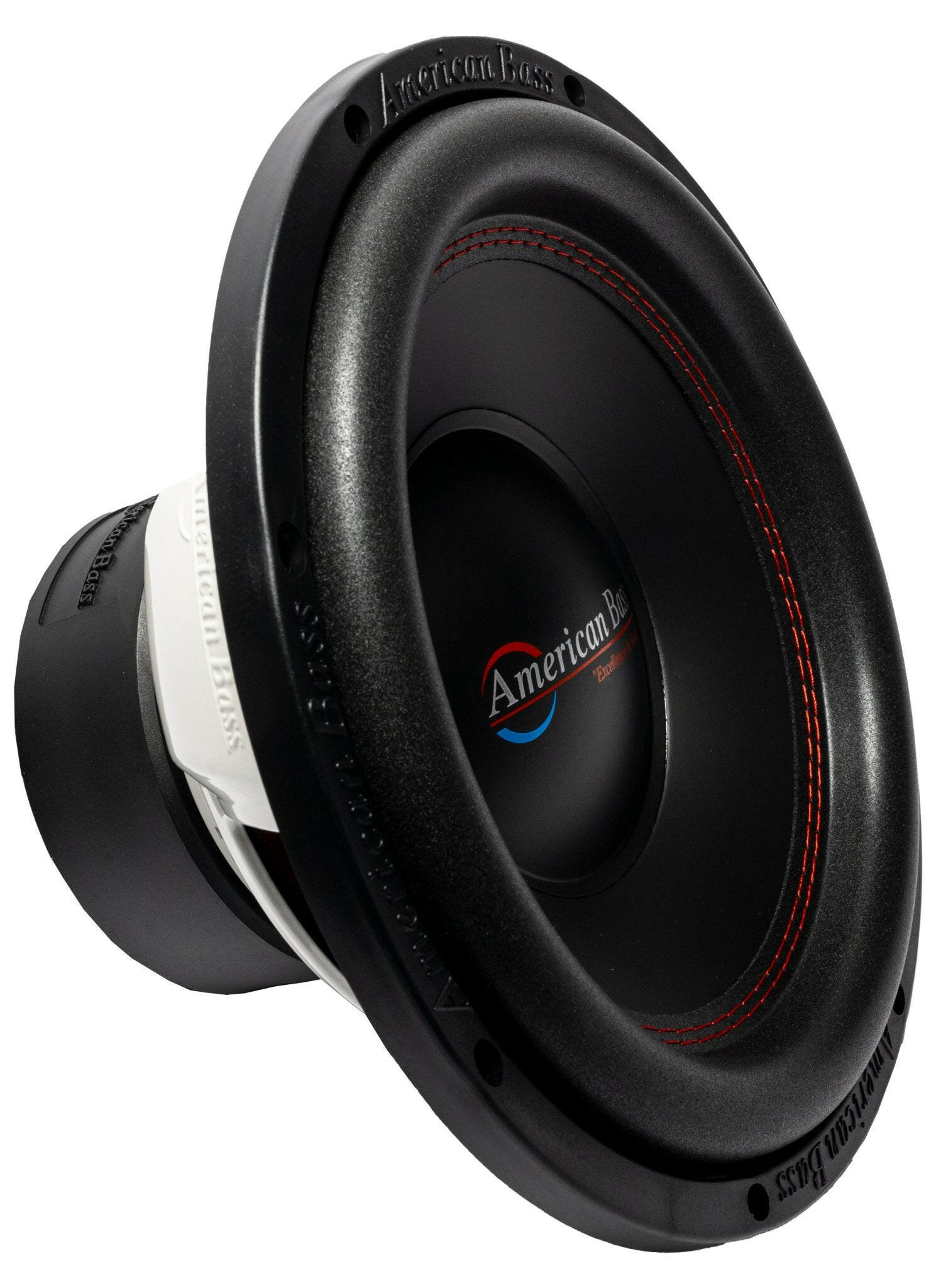

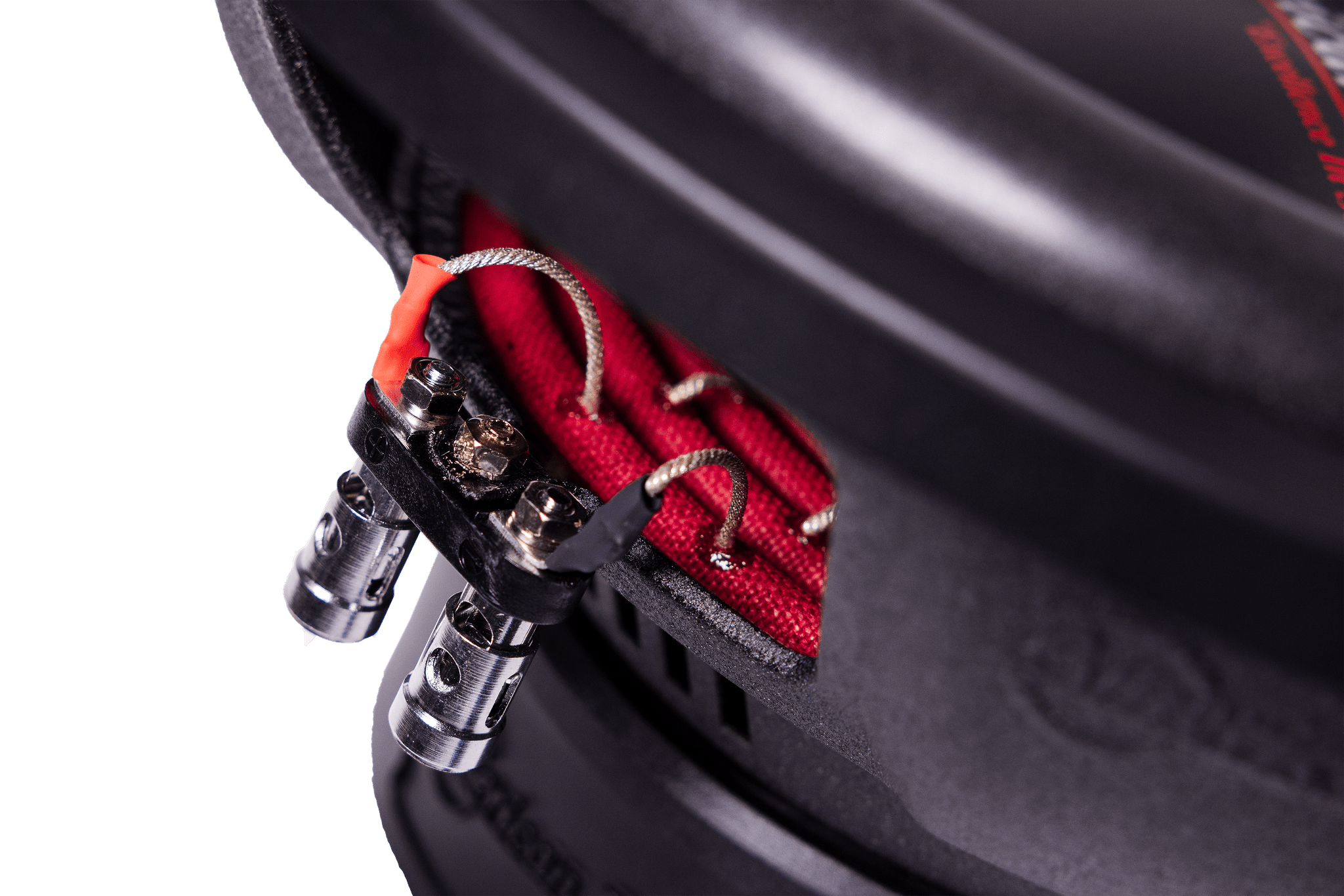

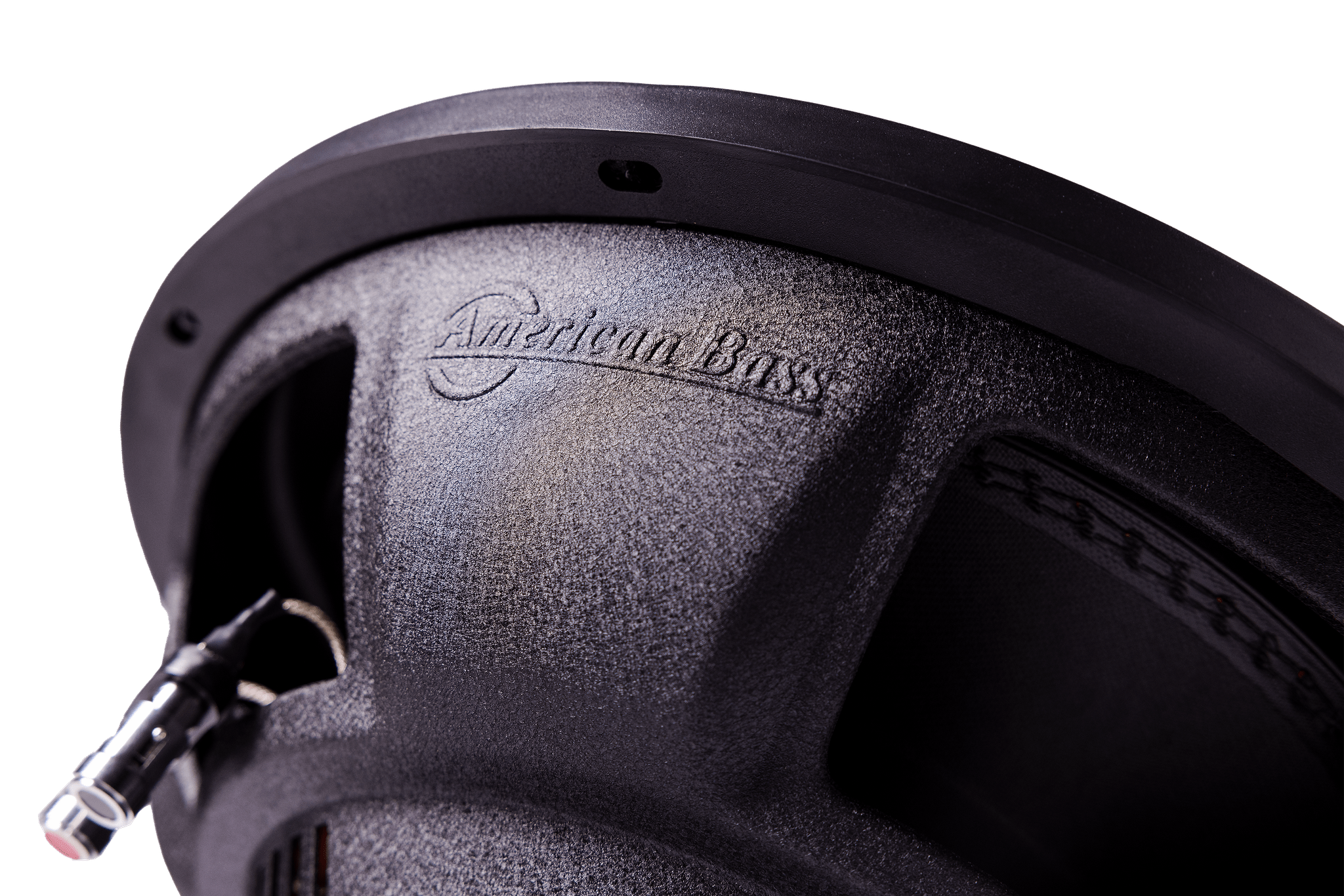

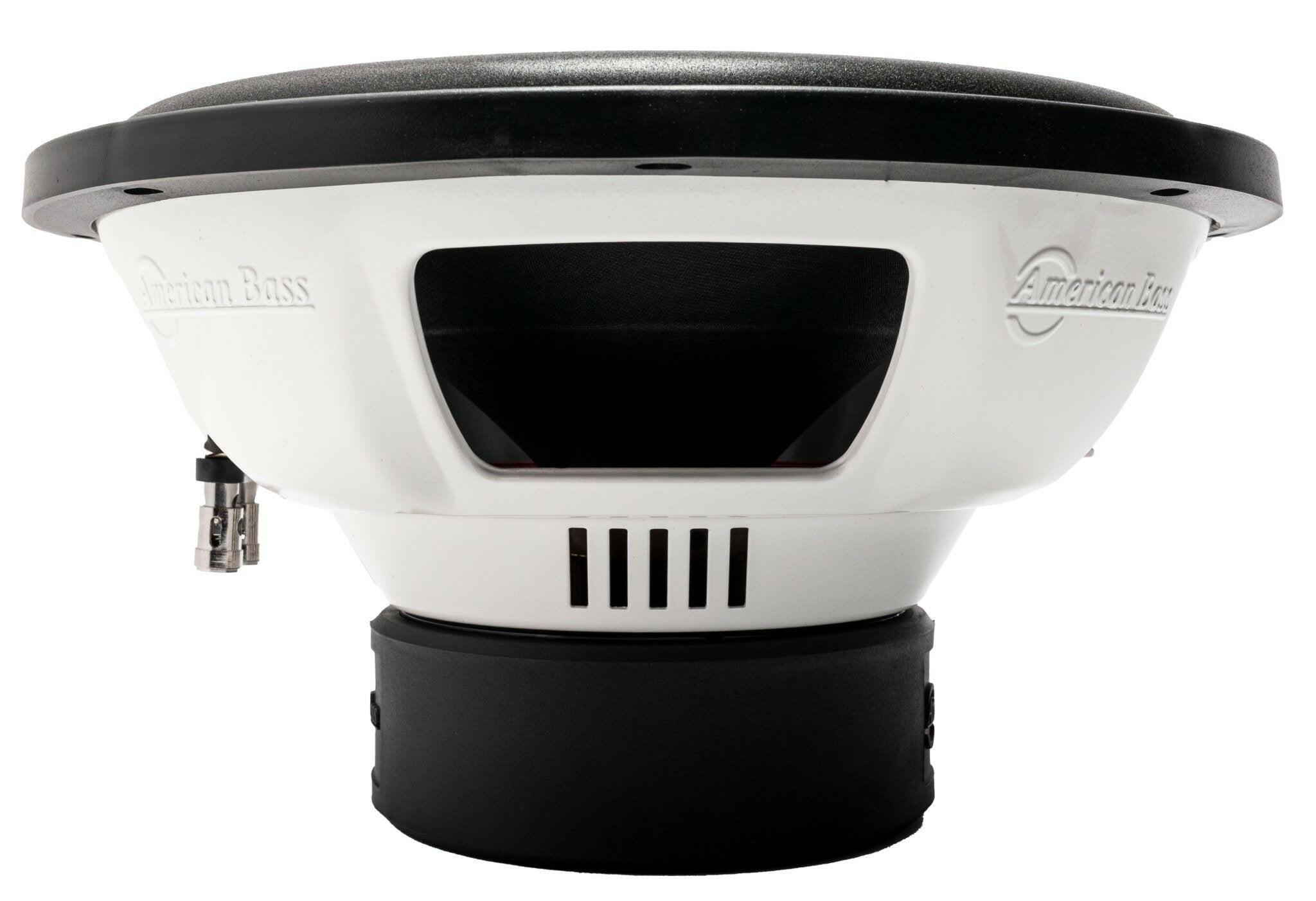

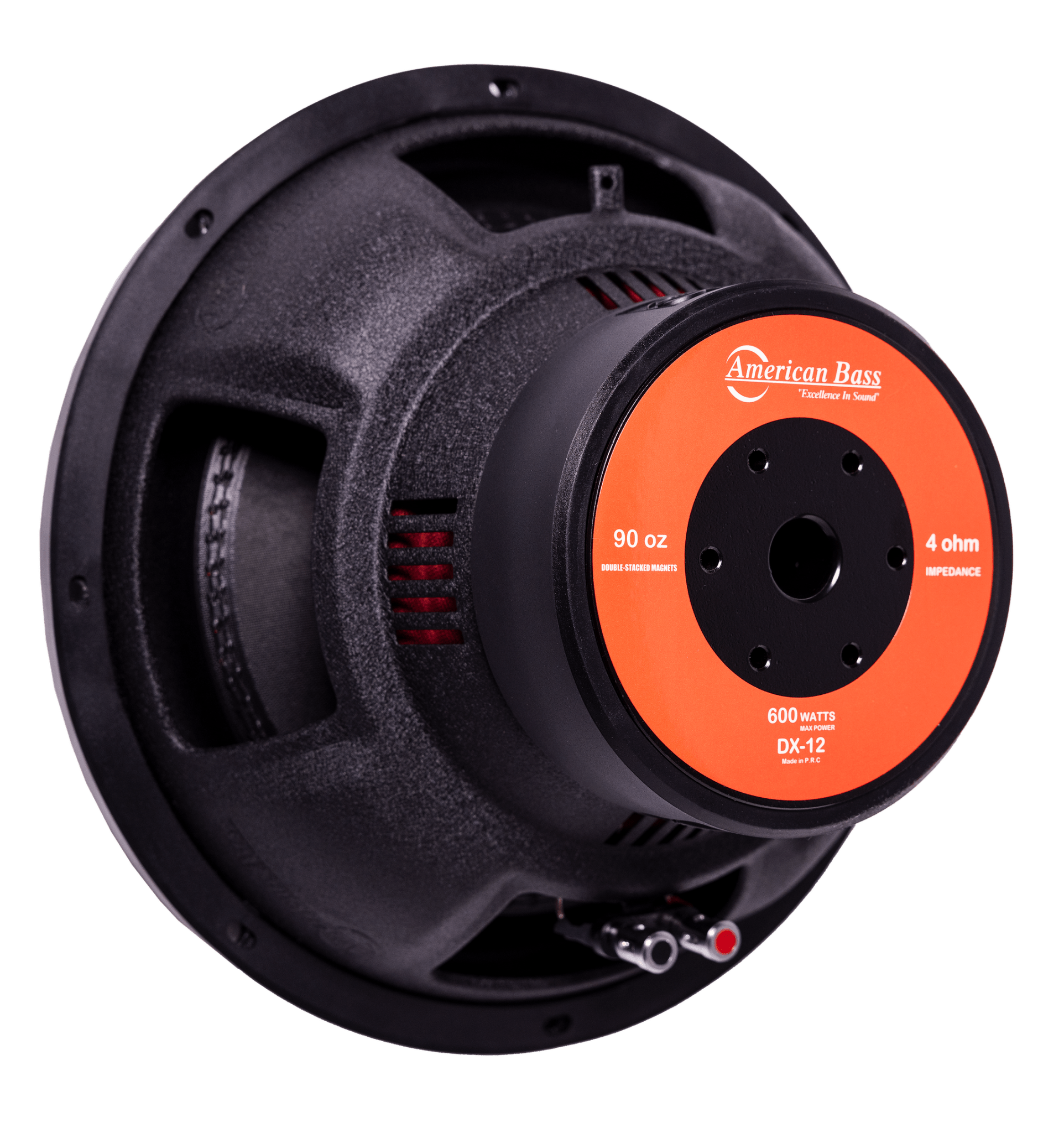

American Bass DX 12" Car Subwoofer 300 Watts RMS Single Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 300W RMS / 600W max — dependable daily bass
- Single 4Ω voice coil — plug-and-play simple
- 86 dB sensitivity — efficient output for the power
- 2.0" hi-temp 4-layer voice coil — solid power handling
- Model DX-124 — 90 oz ferrite motor with 12mm Xmax
American Bass DX 12" Car Subwoofer — 300W RMS Single Voice Coil 4Ω (DX-124)
This Listing Includes:
- (1) American Bass DX 12" Subwoofer
The American Bass DX 12" is the brand’s best-selling sub for good reason — it packs a serious punch and never disappoints. The DX Series is the budget-friendly, plug-and-play line optimized for everyday use, and the DX 12" delivers extreme lows with no surprises from a single 4Ω coil that’s easy to wire. The DX 12" is the no-nonsense choice for clean, reliable bass on a budget. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2.0" hi-temp 4-layer voice coil
- 90 oz ferrite magnet motor
- Paper cone
- Single 4Ω voice coil for easy wiring
- Plug-and-play everyday design
- 12mm Xmax for strong excursion
Specifications
| RMS Power | 300W |
| Max Power | 600W |
| Impedance | Single 4Ω |
| Sensitivity | 86 dB |
| Voice Coil | 2.0" hi-temp 4-layer |
| Magnet | 90 oz ferrite |
| Cone | Paper |
| Mounting Depth | 6.06" |
| Cutout Diameter | 11.52" |
| Fs | 31.5 Hz |
| Qts | 0.6 |
| Qes | 0.67 |
| Qms | 5.25 |
| Vas | 41.5 L |
| Xmax | 12.0 mm |
| BL | 13.28 |
| Mms | 155.4 g |
| Sd | 510 cm² |
| Re | 3.2Ω |
