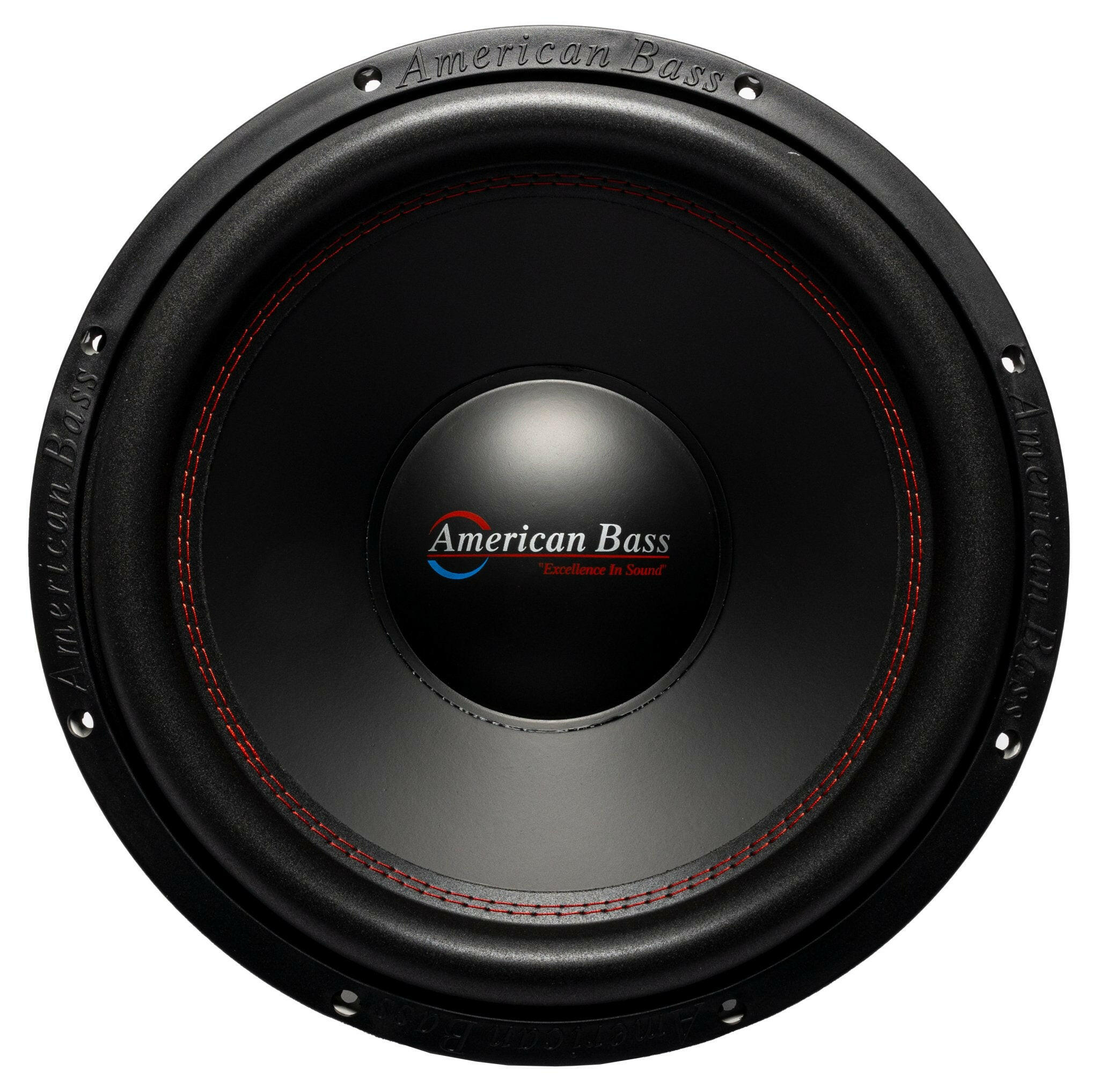

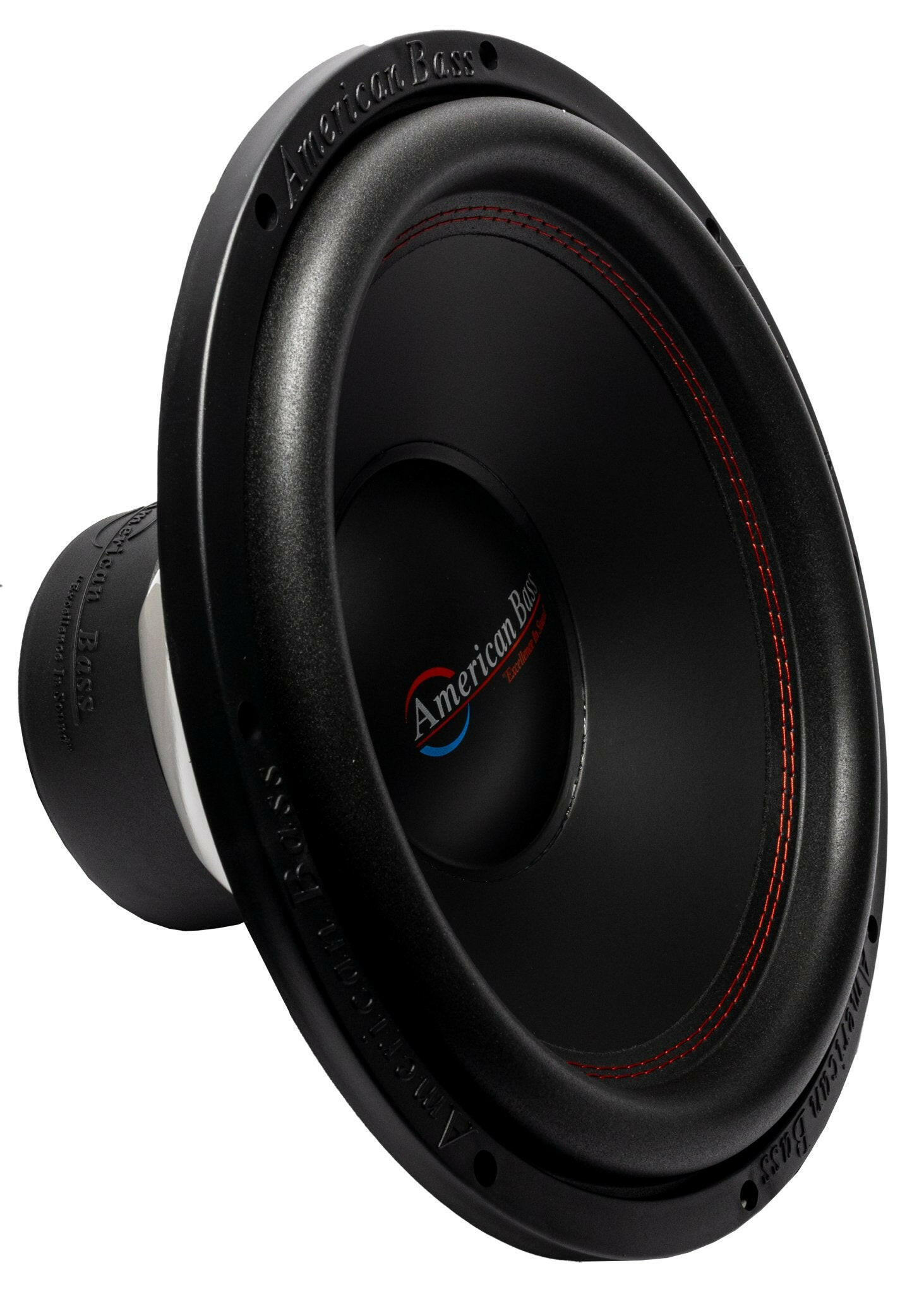

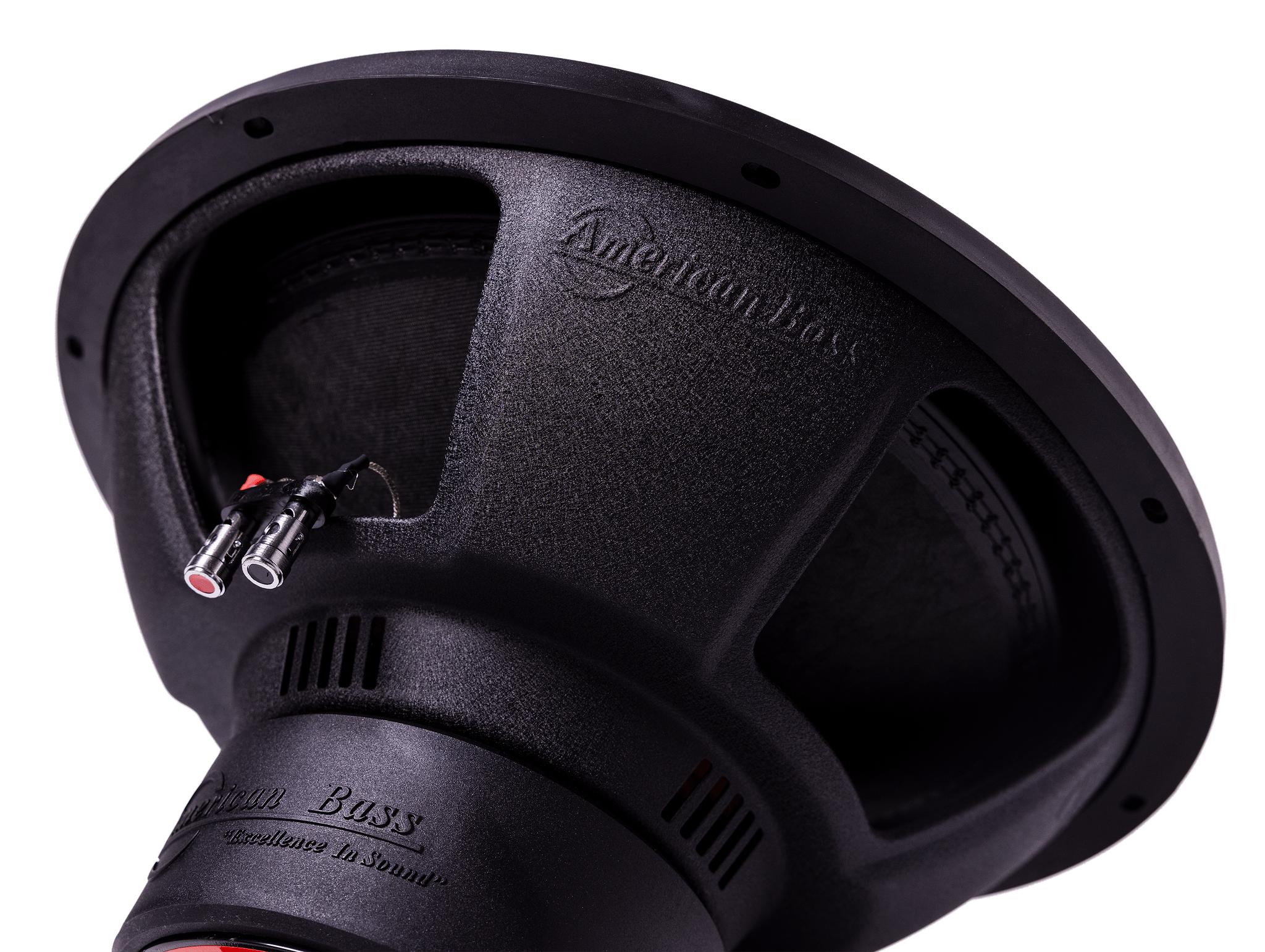

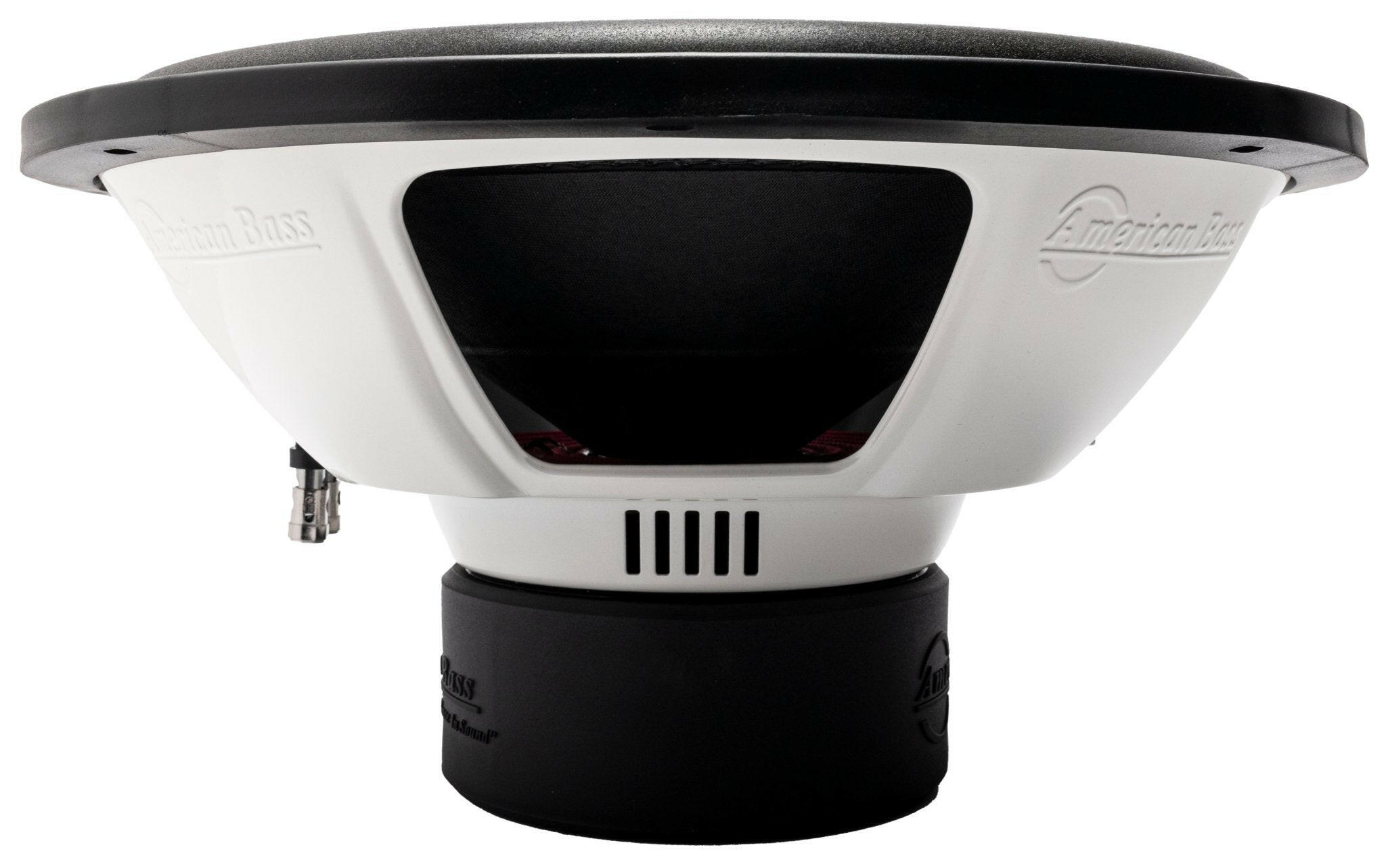

American Bass DX 15" Car Subwoofer 500 Watts RMS Single Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 500W RMS / 600W max — everyday bass that just works
- Single 4Ω voice coil — simple, plug-and-play wiring
- 89.8 dB sensitivity — gets loud without a huge amp
- 2.5" hi-temp 4-layer voice coil — reliable power handling

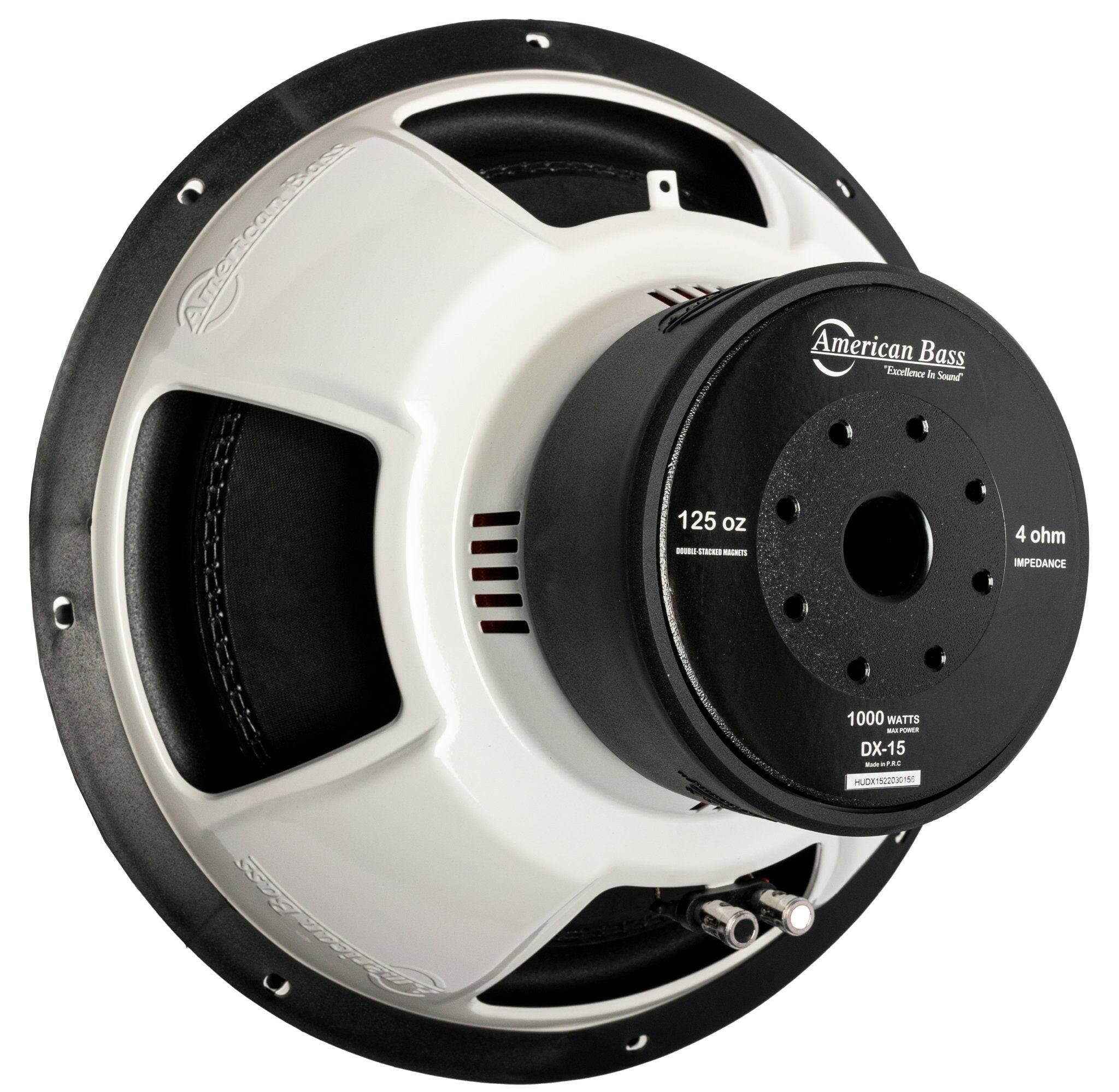

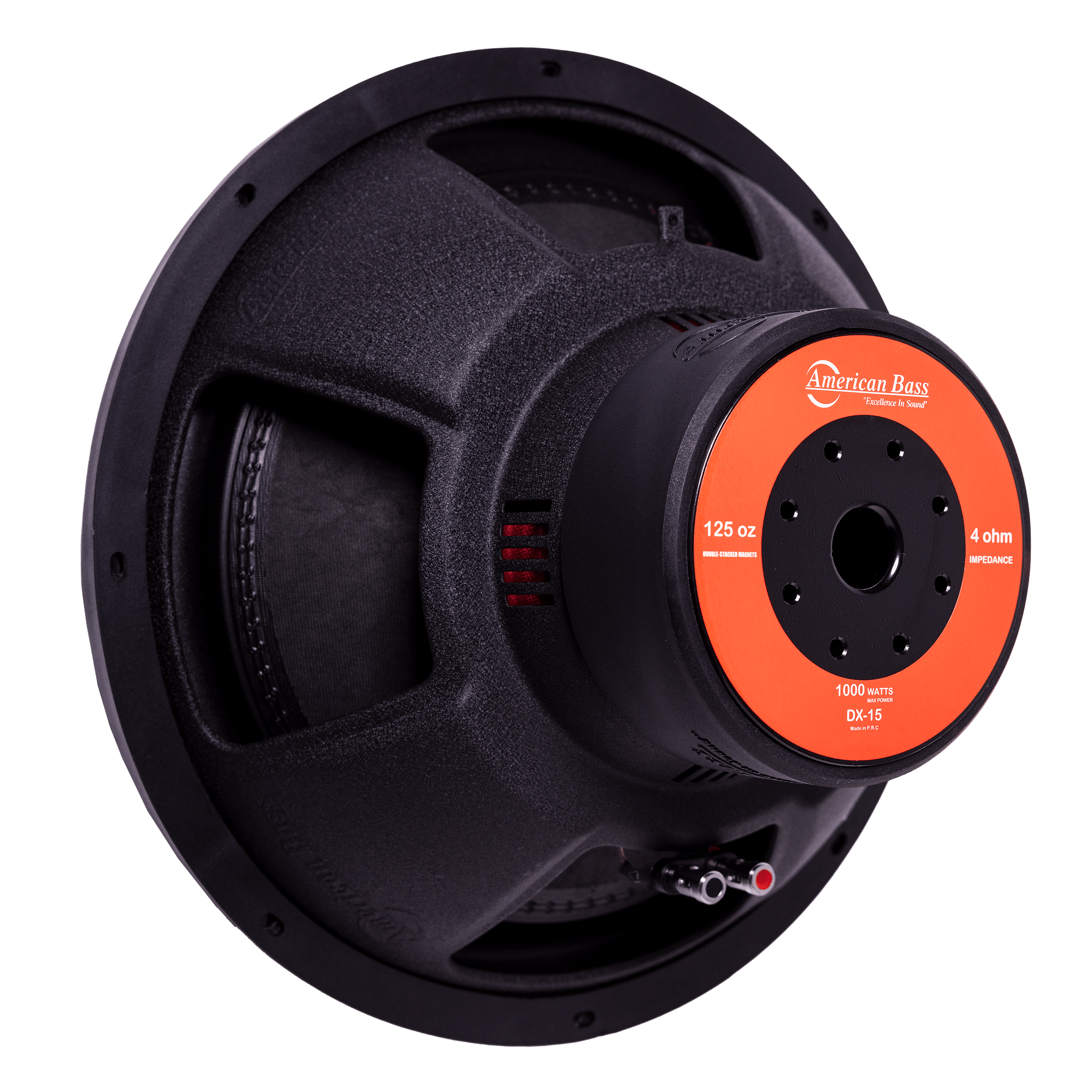

- Model DX-154 — 125 oz ferrite motor with 12.5mm Xmax
American Bass DX 15" Car Subwoofer — 500W RMS Single Voice Coil 4Ω (DX-154)
This Listing Includes:
- (1) American Bass DX 15" Subwoofer
The American Bass DX 15" is the best-seller for a reason: it packs a serious punch and never disappoints. The DX Series is the budget-friendly, plug-and-play line built for everyday use, and the DX 15" brings big 15" lows with a single 4Ω coil that’s easy to wire to almost any amp. With high 89.8 dB sensitivity, the DX 15" turns up loud without breaking the bank.
Features

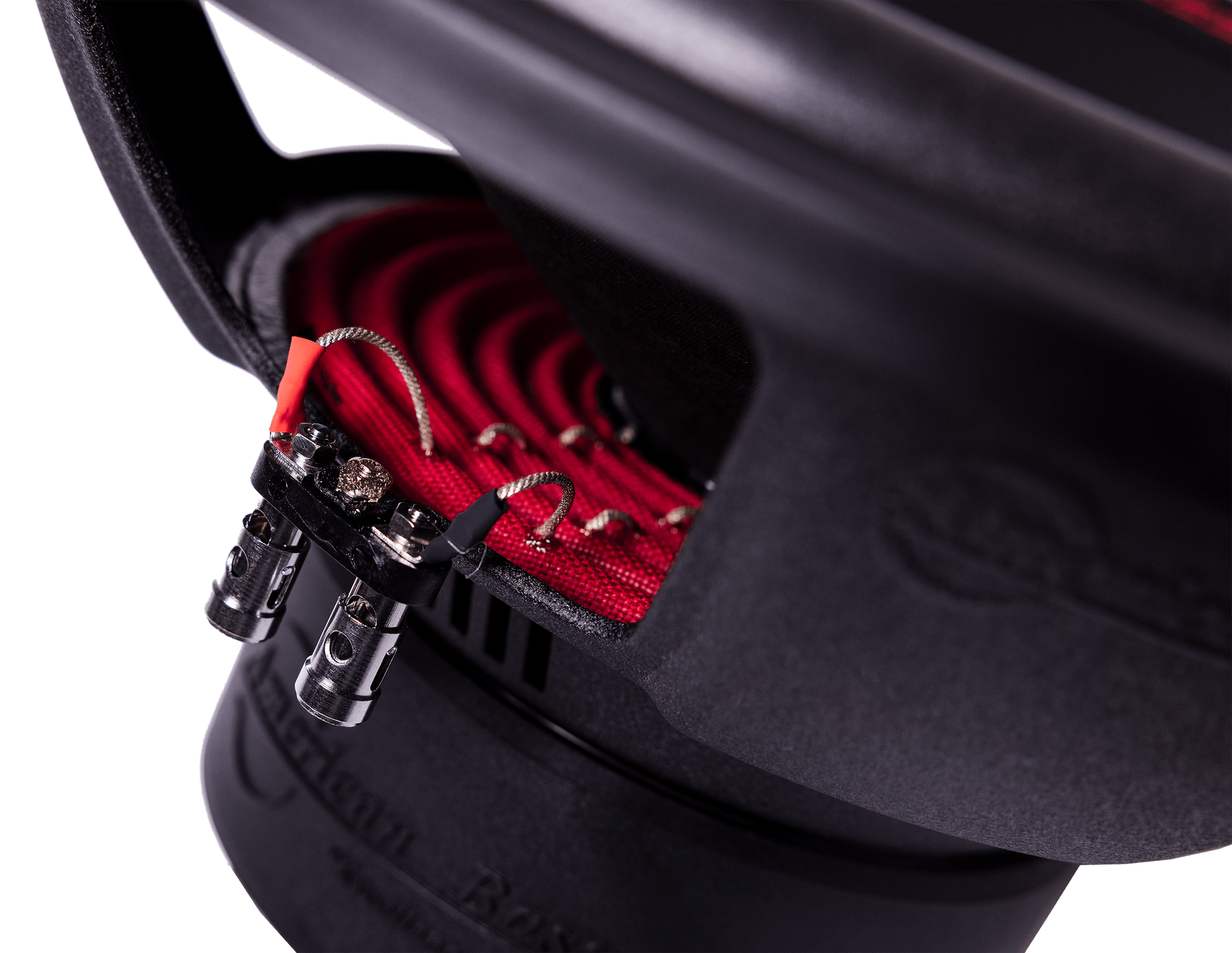

- 2.5" hi-temp 4-layer voice coil
- 125 oz ferrite magnet motor
- Paper cone with foam surround
- Stamped-steel frame
- Single 4Ω voice coil for easy wiring
- 12.5mm Xmax for strong excursion
Specifications
| RMS Power | 500W |
| Max Power | 600W |
| Impedance | Single 4Ω |
| Sensitivity | 89.8 dB |
| Voice Coil | 2.5" hi-temp 4-layer |
| Magnet | 125 oz ferrite |
| Basket | Stamped steel |
| Cone | Paper |
| Mounting Depth | 7.1" |
| Cutout Diameter | 13.9" |
| Fs | 30.4 Hz |
| Qts | 0.56 |
| Qes | 0.64 |
| Qms | 4.76 |
| Vas | 89.6 L |
| Xmax | 12.5 mm |
| BL | 16.29 |
| Mms | 259.6 g |
| Sd | 804 cm² |
| Re | 3.2Ω |
