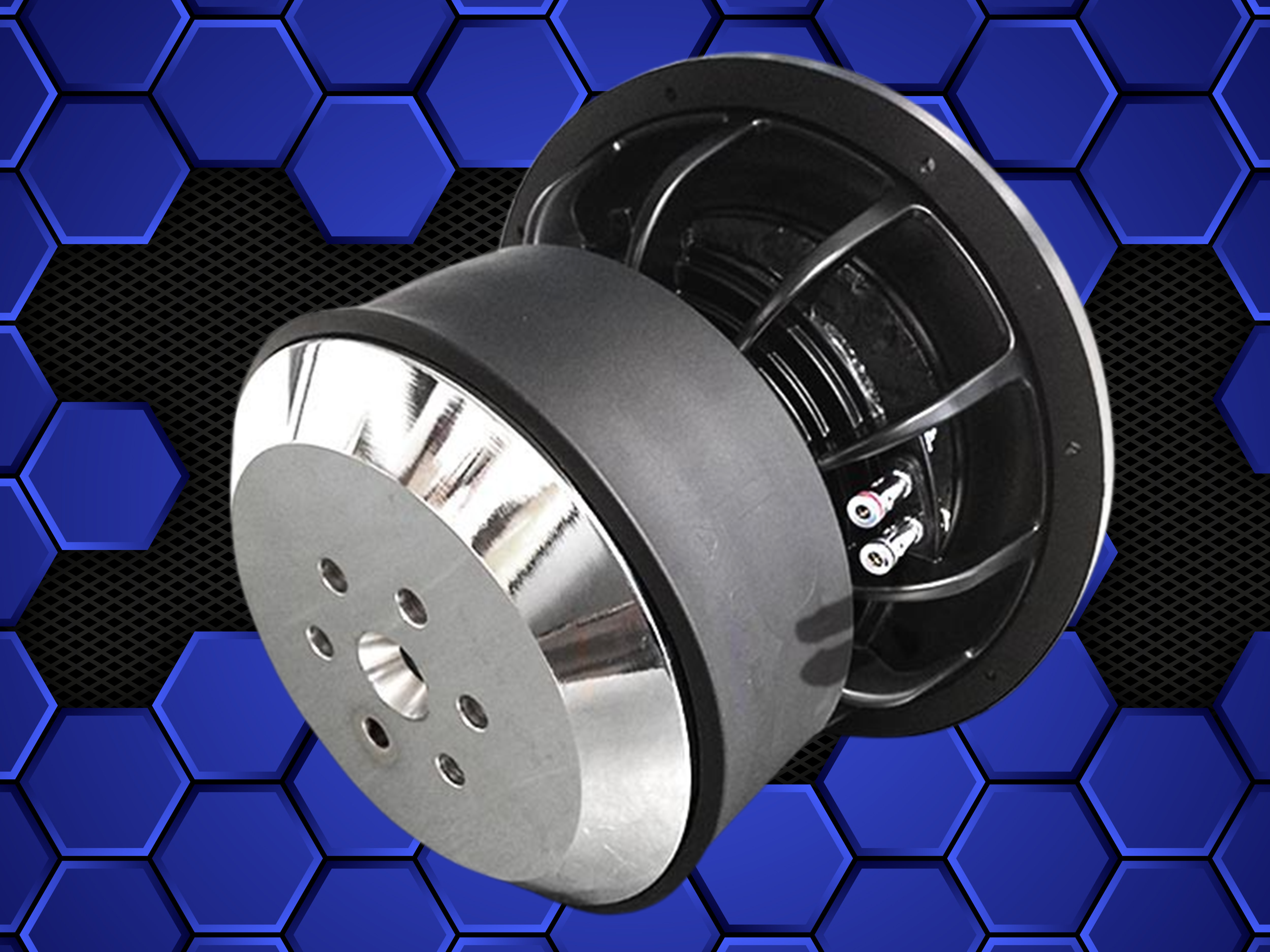

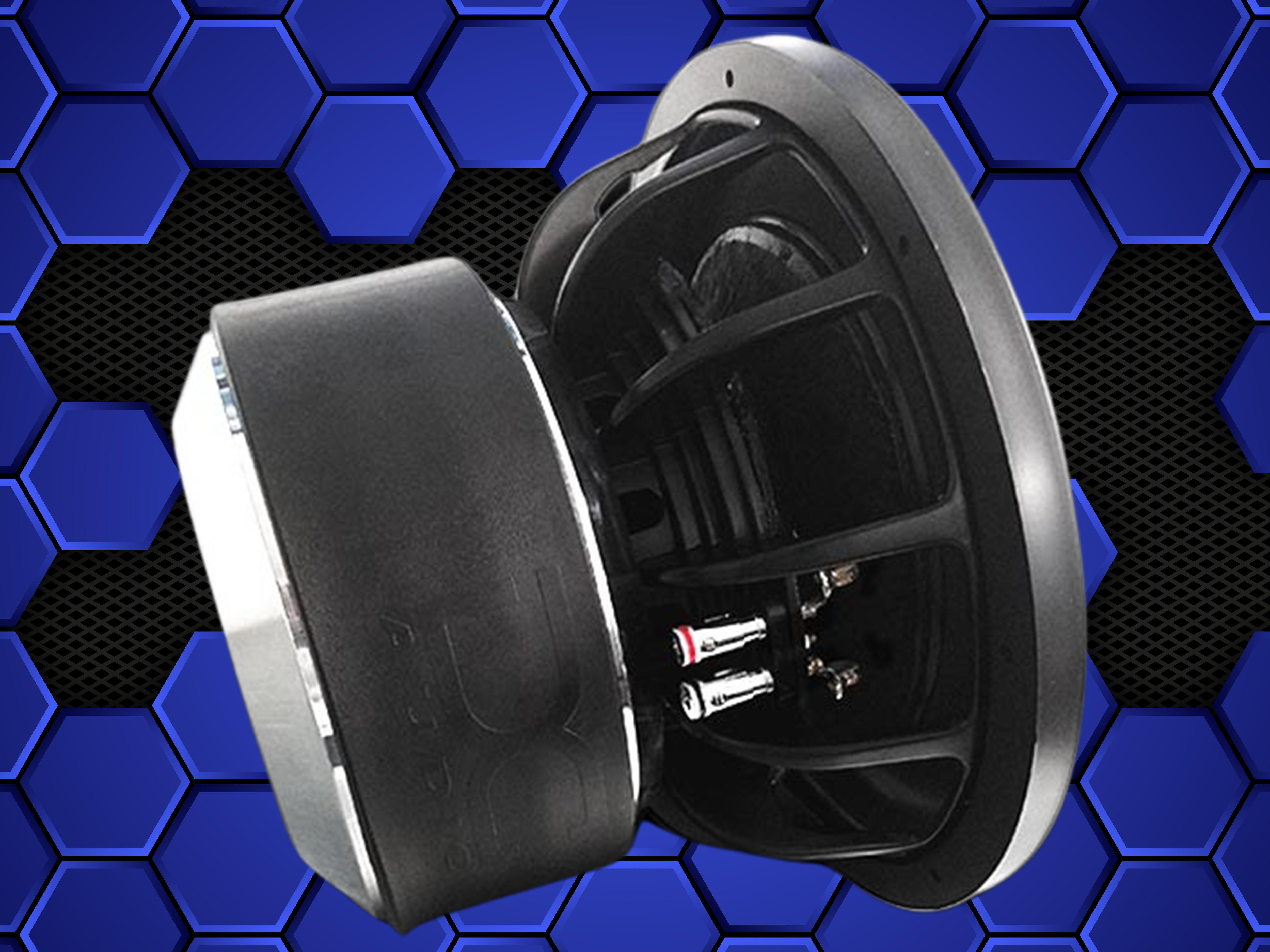

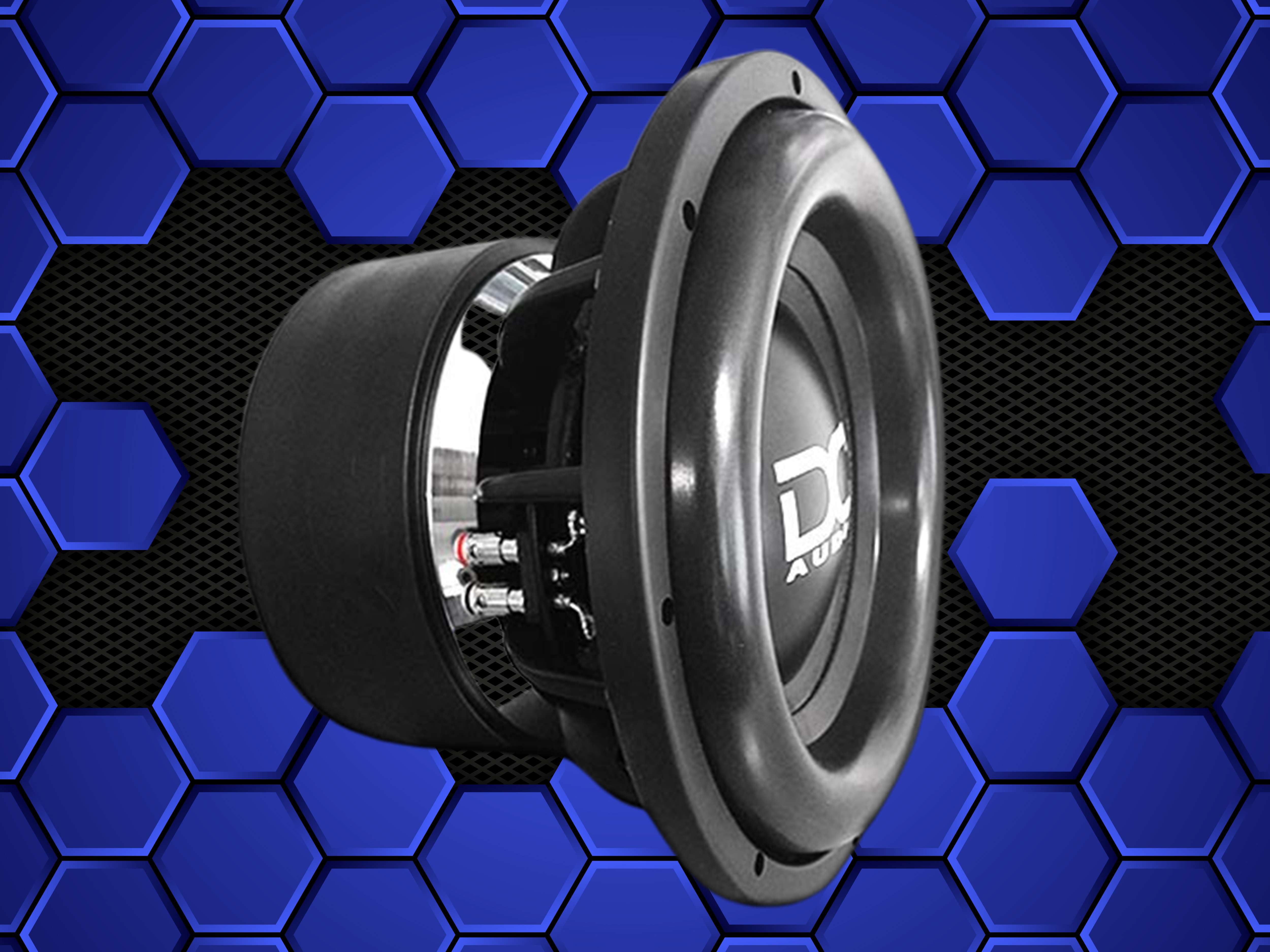

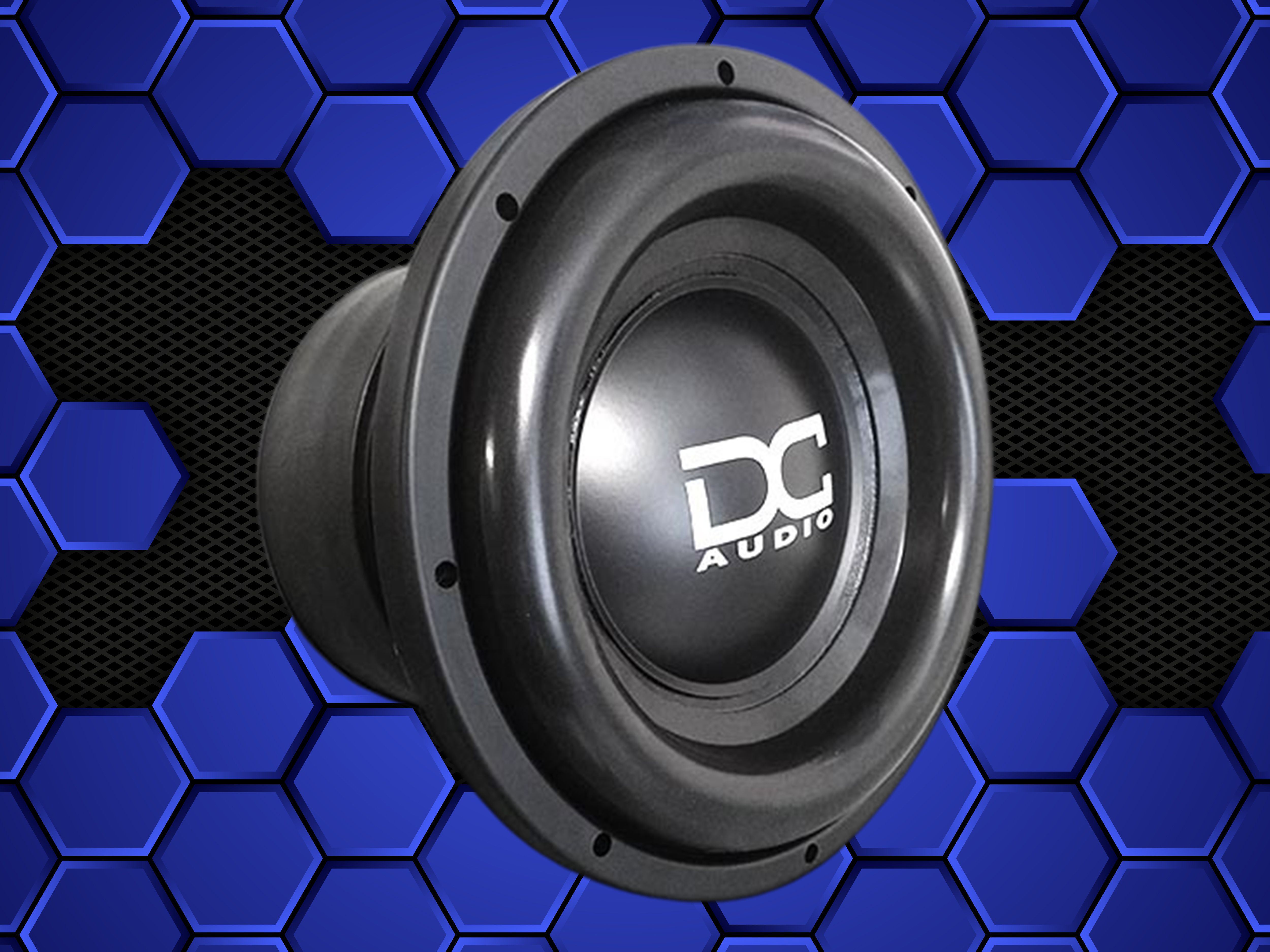

DC Audio XL SPL Subwoofer 2200W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 2200W RMS / 4400W Peak — next generation of DC's most award-winning driver
- 8-layer flat-wound aluminum coil — added pole vent, redesigned top plate and T-yoke
- Larger magnets + aluminum shorting ring — triple 8" stiff progressive-roll spiders
- Upgraded cone and surround — rigid non-pressed paper for SPL abuse
- Available 10"–18", dual 0.5–4 ohm — a beast in the SPL lanes
This Listing Includes: (1) DC Audio XL SPL Subwoofer
The DC Audio XL SPL (M5) is the next generation of DC's most award-winning driver, rated 2,200 watts RMS. An added pole vent, redesigned top plate and T-yoke, larger magnets and an 8-layer flat-wound voice coil push it harder than ever, while triple 8" stiff progressive-roll spiders and an aluminum shorting ring keep it linear under SPL abuse. Available 10–18" with dual 0.5–4 ohm options, it's built for anyone who wants a driver that sounds great and gets loud — hand-built in the USA. Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 8-layer flat-wound hi-temp aluminum voice coil
- Added pole vent, redesigned top plate and T-yoke
- Larger magnets with aluminum shorting ring
- Triple 8" OD stiff progressive-roll spiders
- Rigid non-pressed paper cone, cast aluminum frame
Specifications
| RMS Power | 2,200W |
| Peak Power | 4,400W |
| Voice Coil | 8-layer flat-wound aluminum |
| Spiders | Triple 8" stiff progressive roll |
| Cone | Non-pressed paper |
| Frame | Cast aluminum |
| Available Sizes | 10", 12", 15", 18" |
| Impedance | Dual 0.5, 0.7, 1, 1.4, 2 or 4 Ohm |
| Build | Hand-built USA (7–14 days) |
