Violator Audio VA3600.4 4-Channel Amplifier — 255W x 4 RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The Violator Audio VA3600.4 is a USA-designed four-channel amplifier delivering rich, three-dimensional sound quality across your full-range and component speakers. Flexible filtering makes it equally at home powering doors, highs, or a bridged pair.

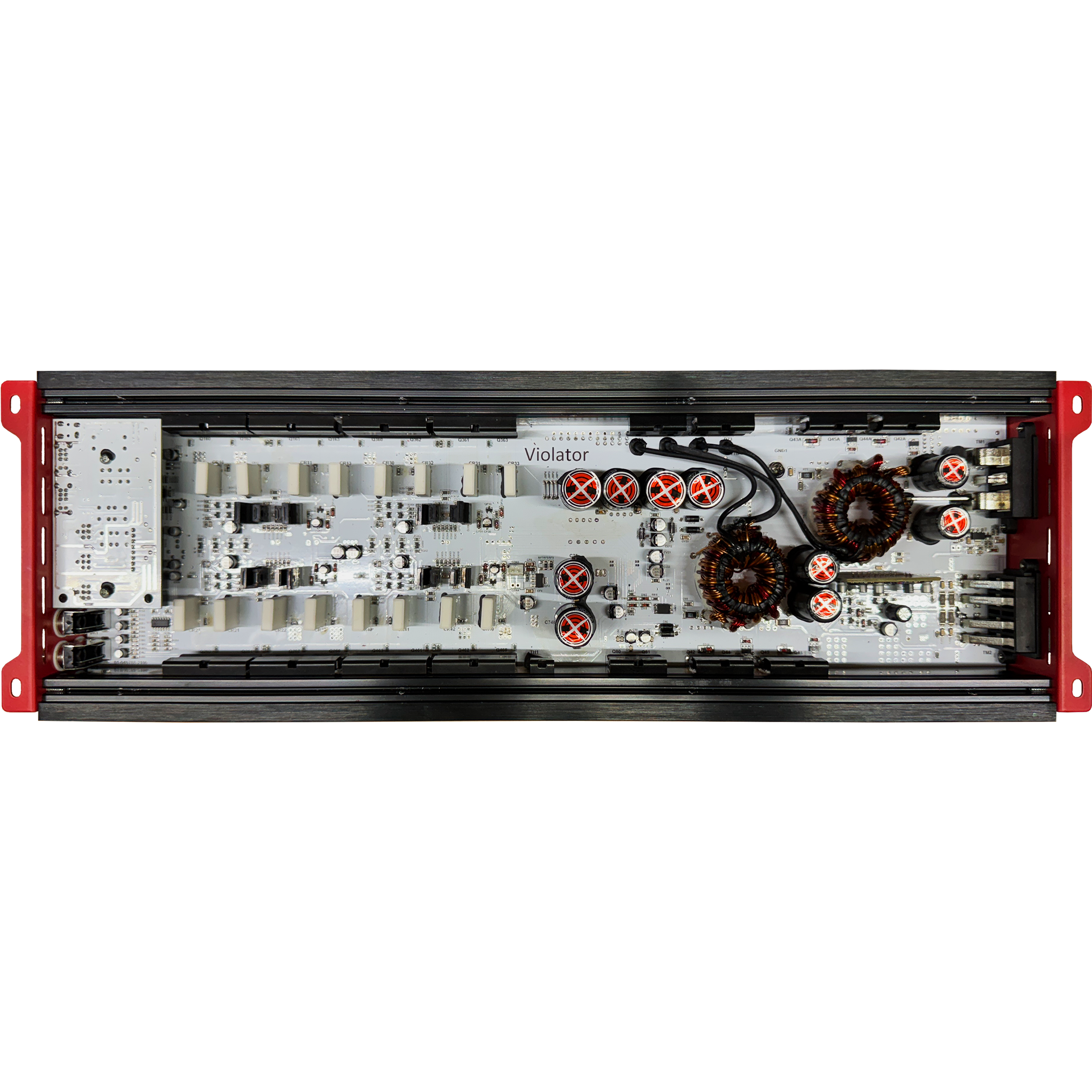

Built around a custom-machined aluminum heat sink with robust connections and comprehensive protection, the VA3600.4 keeps the party going without fatigue.
Specifications
| RMS @ 4 Ohm | 155W x 4 |
| RMS @ 2 Ohm | 255W x 4 |
| THD | 0.06% |
| S/N Ratio | 93 dB |
| Frequency Response | 10Hz – 25kHz |
| Low Pass Filter Range | 45Hz – 490Hz |
| High Pass Filter Range | 20Hz – 5.2kHz |
| Bass Boost Frequency | 47Hz |
| Bass Boost Gain | 0dB / 6dB / 12dB |
| Input Sensitivity | 5.5VAC – 0.2VAC |
| Input Voltage Range | 9VDC – 16VDC |
Features

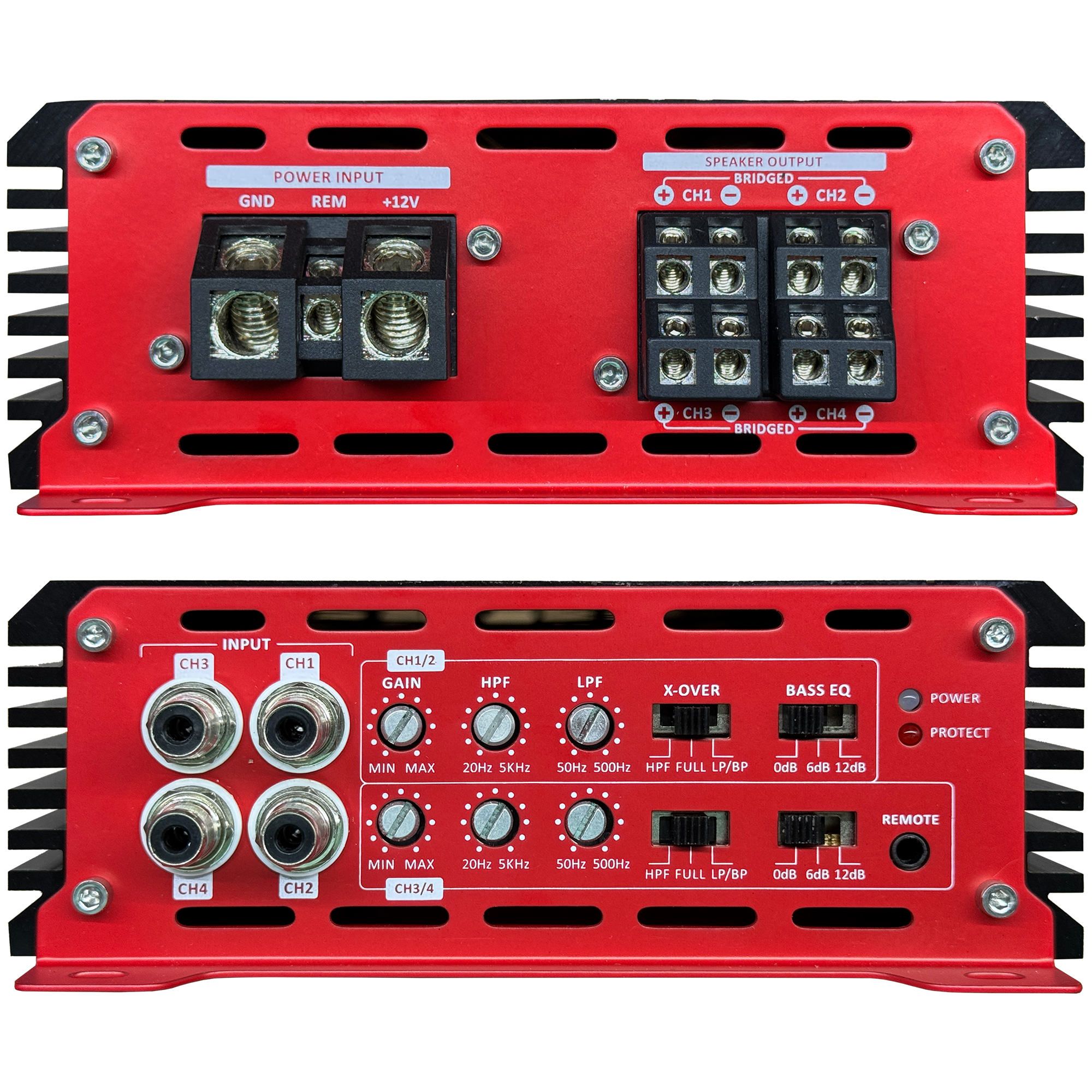

- Panel-locking RCA audio inputs
- Bass boost circuitry
- Variable high-pass and low-pass filtration
- Comprehensive band-pass customization
- Custom machined aluminum heat sink
- Robust power inputs and speaker outputs
- Nickel-plated connections for superior conductivity
- Subsonic filtration
- Thermal, dead-short, and low-voltage protection
- Limited one-year warranty
JS Ultimate Sounds is an authorized Violator Audio dealer. Every product is 100% genuine and backed by full manufacturer warranty. Questions about fitment, wiring, or building your system? Our car-audio experts are here to help — reach out any time.
