The Violator Audio VA2400.4 is a USA-designed four-channel amplifier that brings clean, detailed power to your door speakers and components. Adjustable high-pass and low-pass filters make setup a breeze in any system.
A custom-machined aluminum heat sink, robust terminals, and full protection circuitry keep the VA2400.4 cool and dependable.
Specifications
| RMS @ 4 Ohm | 75W x 4 |
| RMS @ 2 Ohm | 115W x 4 |
| THD | 0.15% |
| S/N Ratio | 93 dB |
| Frequency Response | 10Hz – 25kHz |
| Low Pass Filter Range | 20Hz – 5.2kHz |
| High Pass Filter Range | 45Hz – 485Hz |
| Bass Boost Frequency | 47Hz |
| Bass Boost Gain | 0dB / 6dB / 12dB |
| Input Sensitivity | 5VAC – 0.2VAC |
| Input Voltage Range | 9VDC – 16VDC |
Features
- Panel-locking RCA audio inputs
- Bass boost circuitry

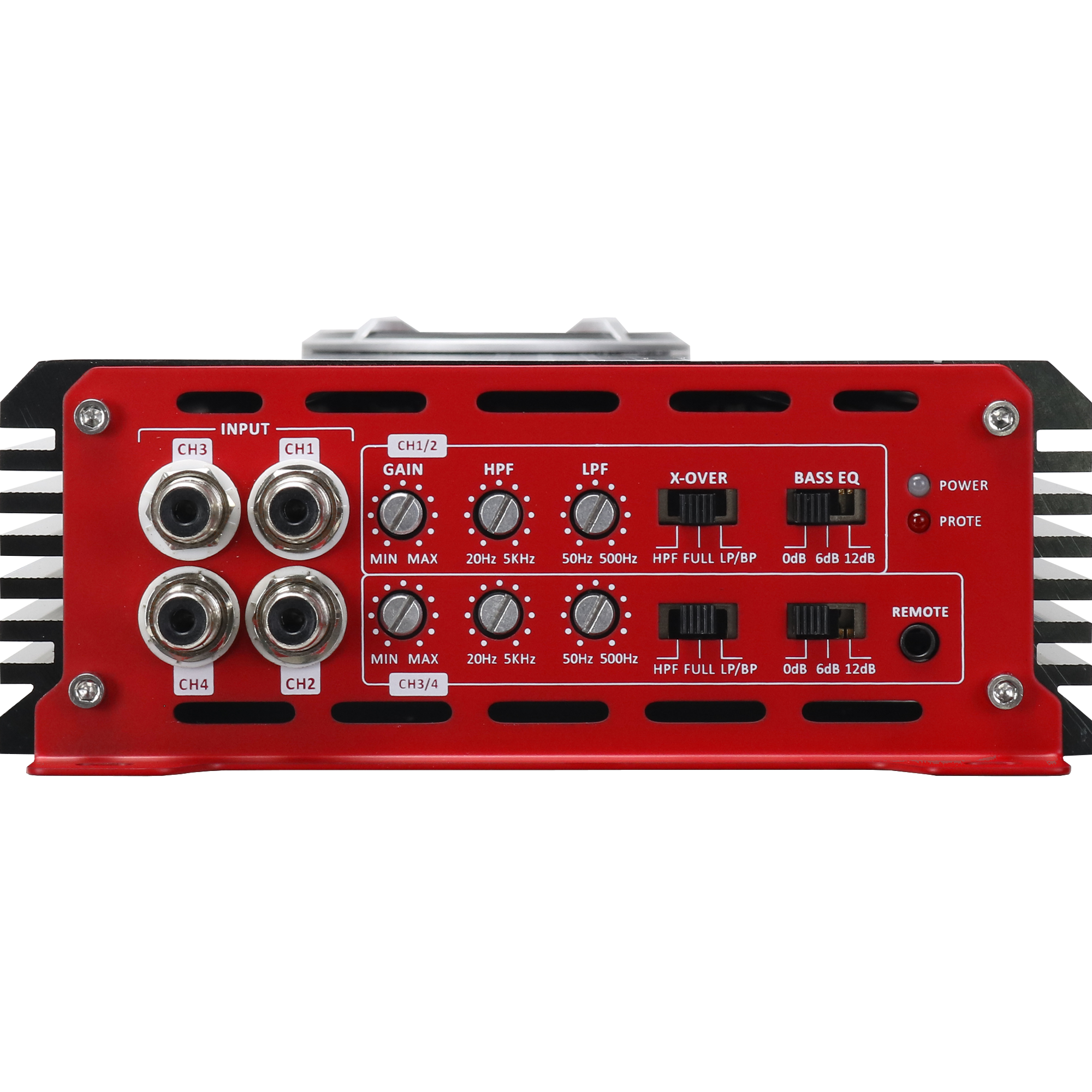

- Variable high-pass and low-pass filtration
- Comprehensive band-pass customization
- Custom machined aluminum heat sink

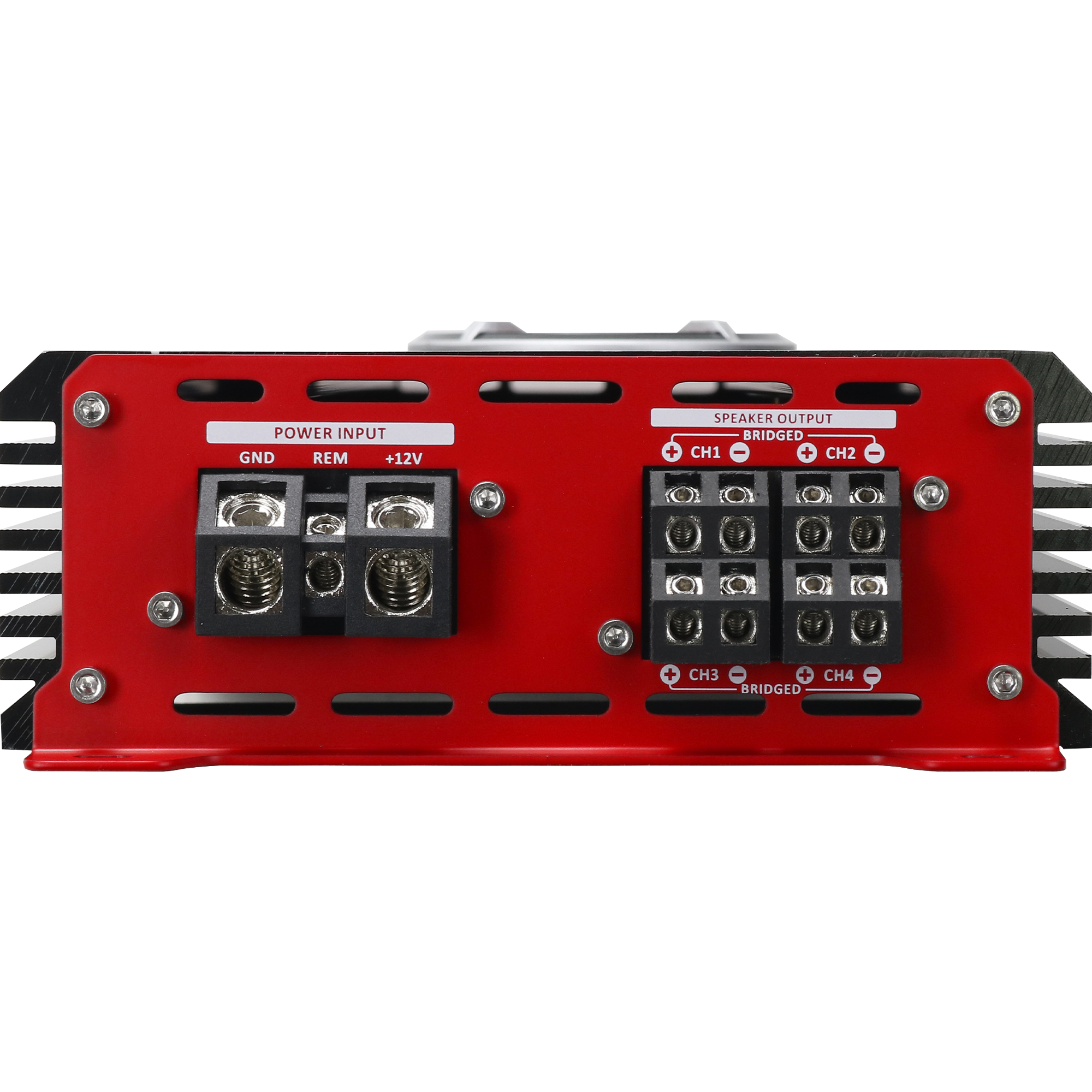

- Robust power inputs and speaker outputs
- Nickel-plated connections for superior conductivity
- Subsonic filtration
- Thermal, dead-short, and low-voltage protection
- Limited one-year warranty
