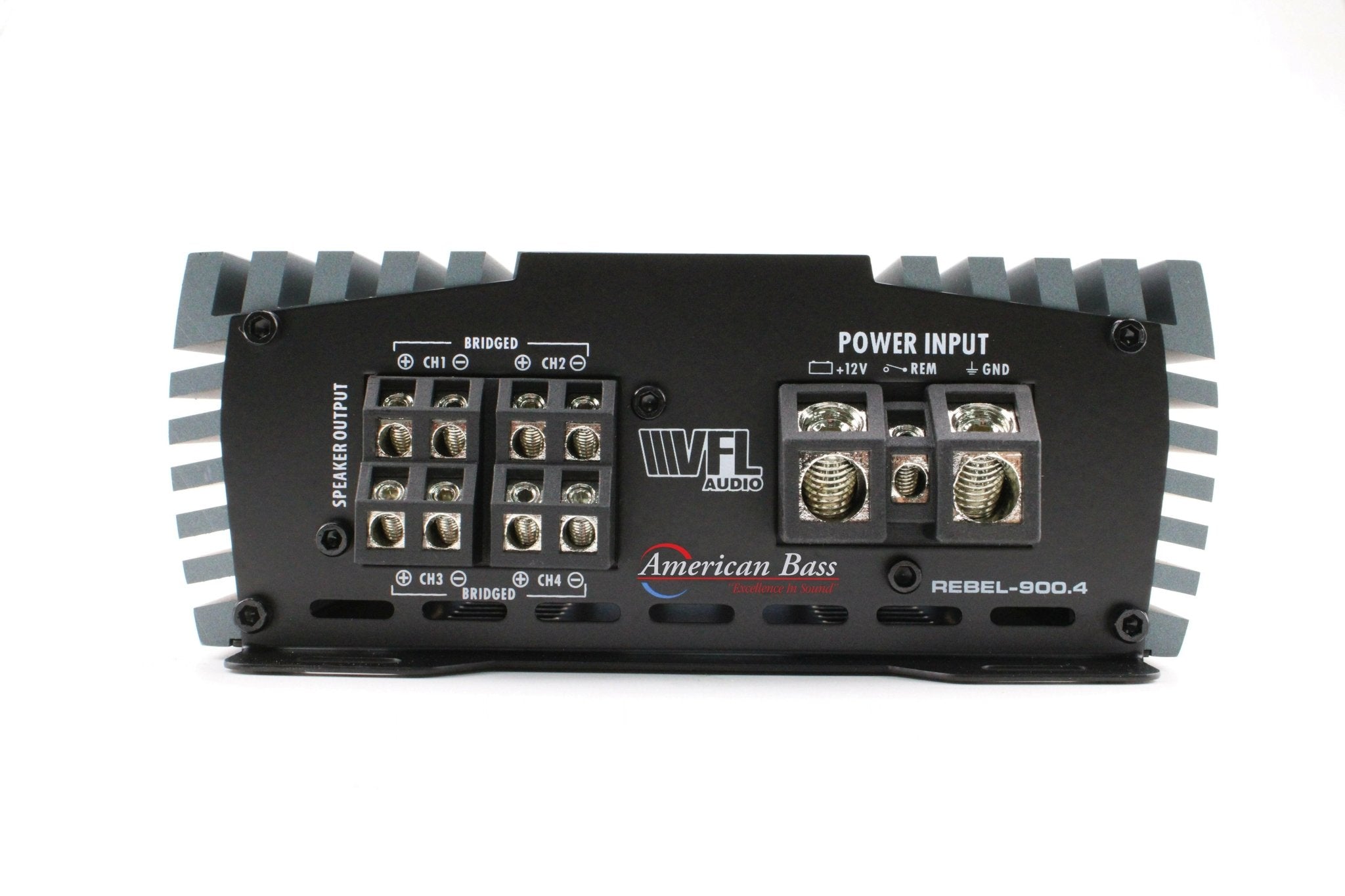

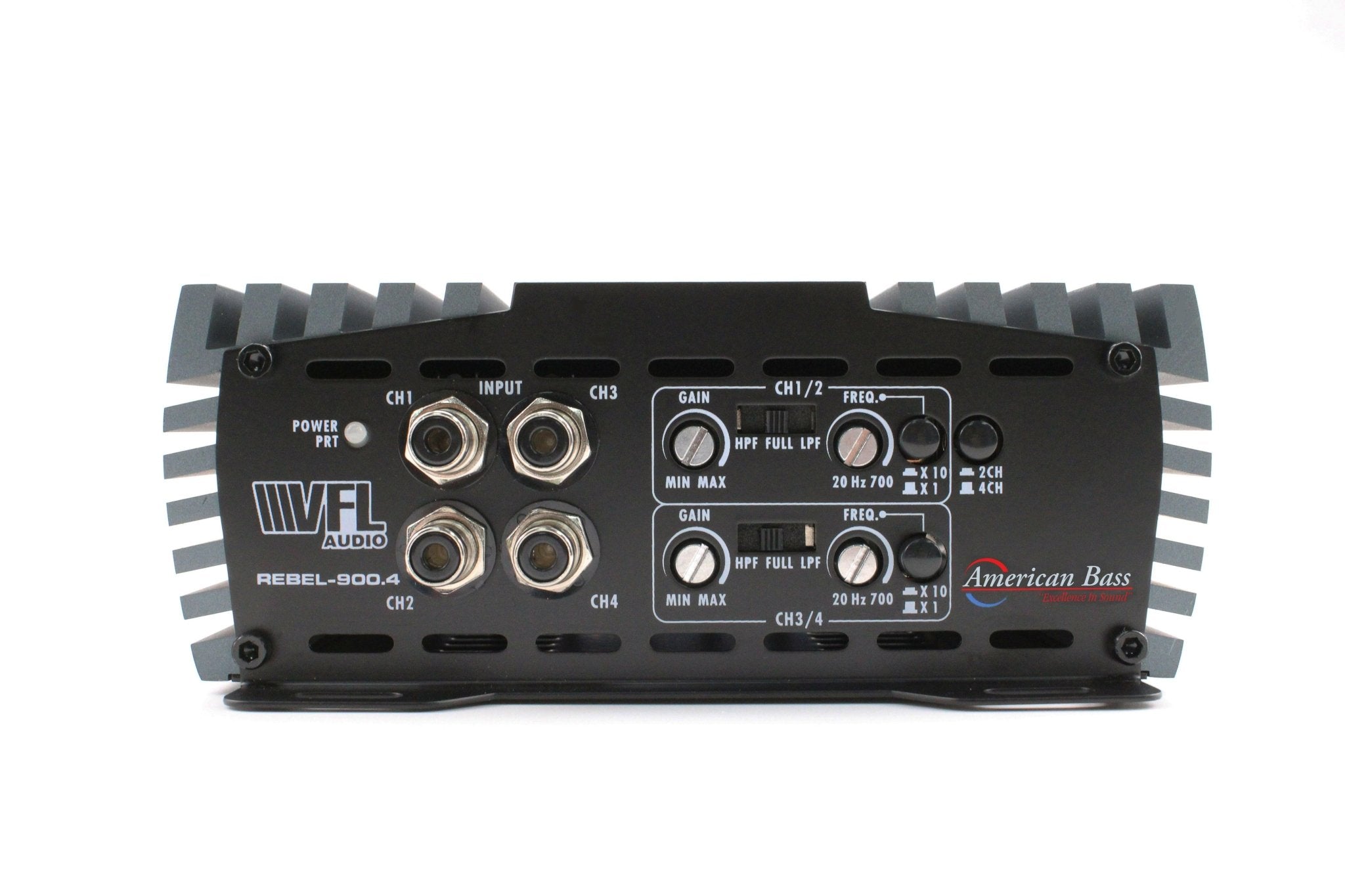

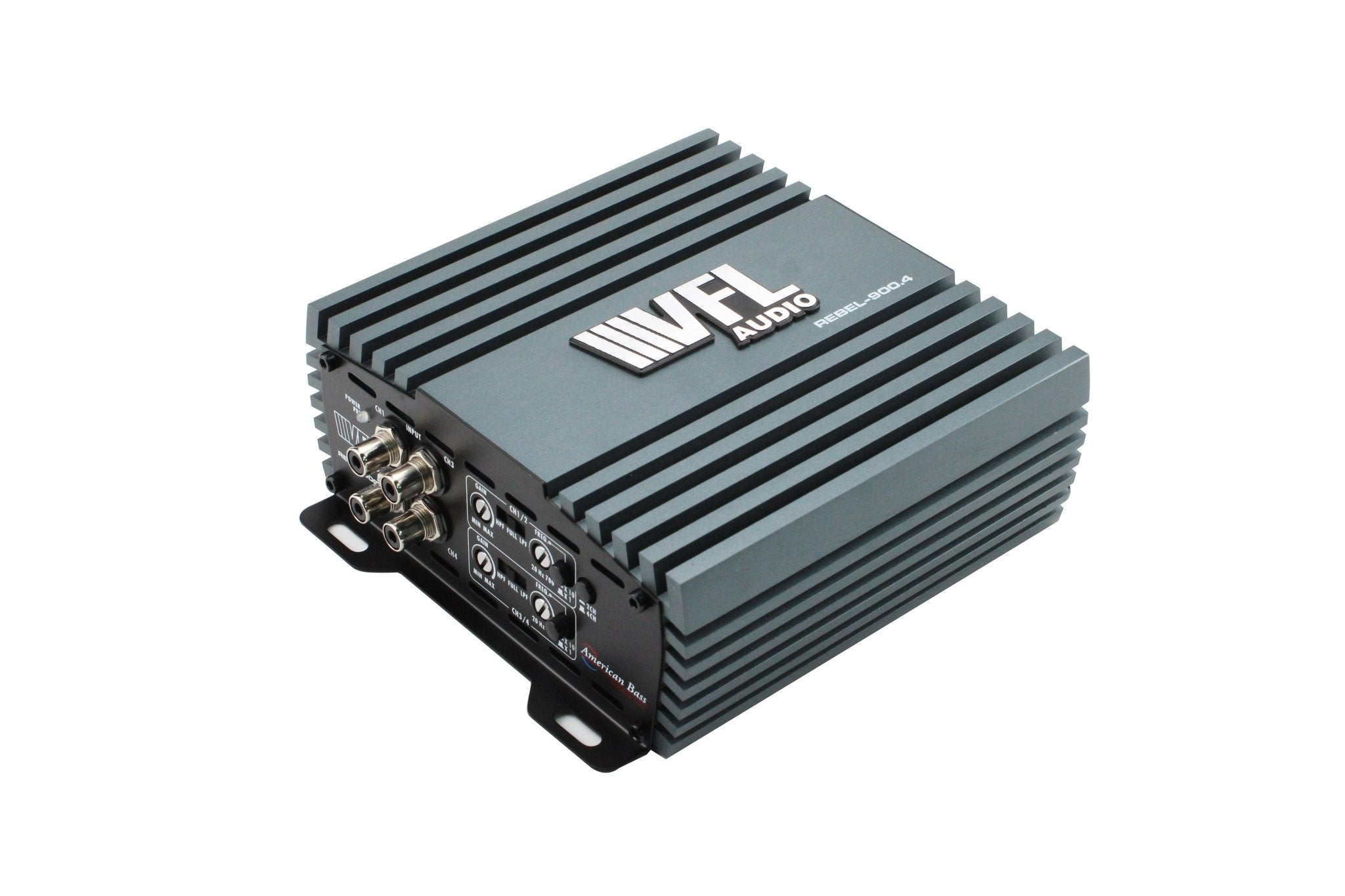

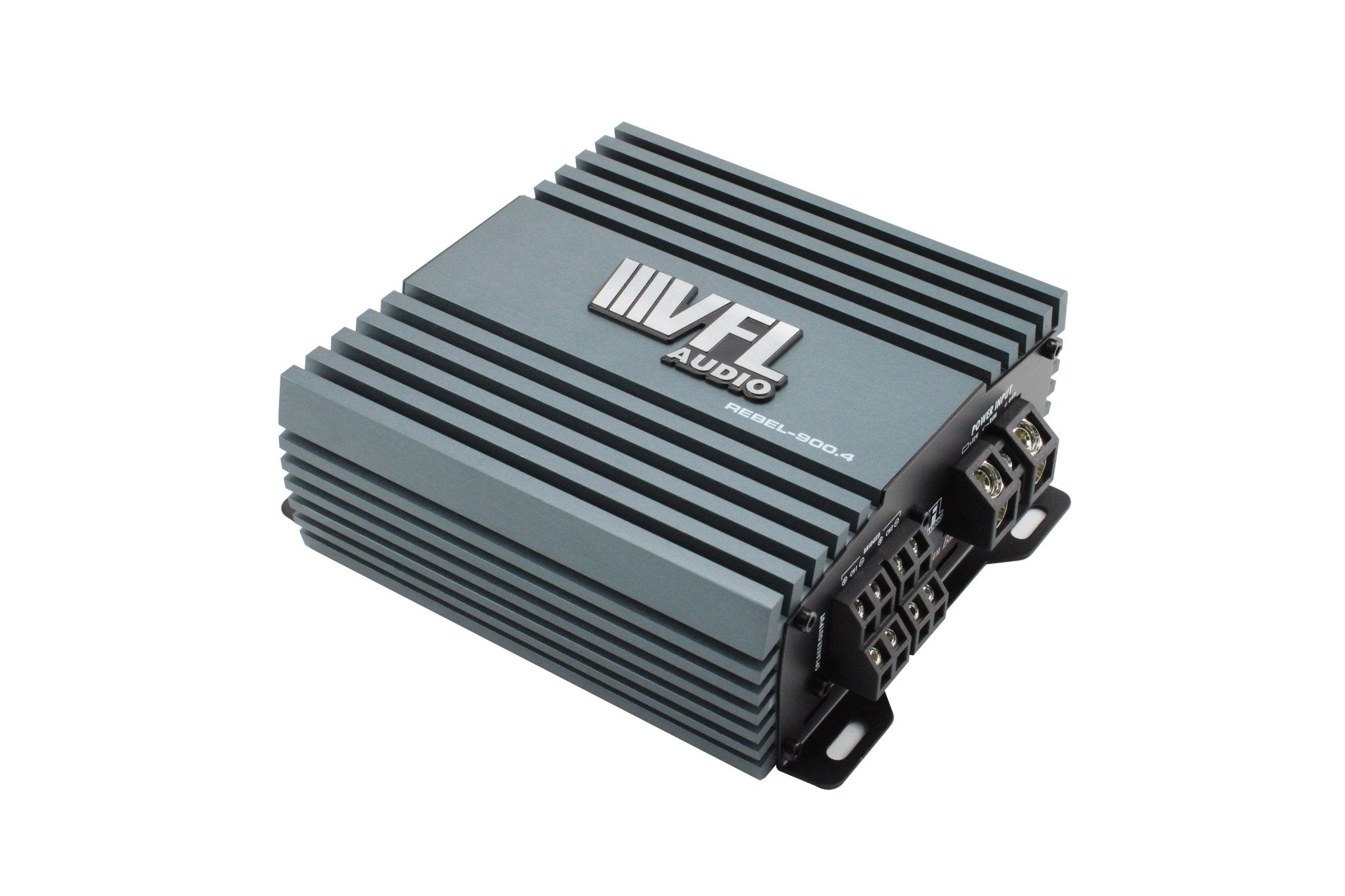

VFL REBEL-900.4 Class D High Performance Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20and%20high-pass%20(20Hz%E2%80%93200Hz)%20filters%0ADamping%20...
){kind=link}
- 4-channel Class D power: 150W x 4 @ 4Ω, 220W x 4 @ 2Ω RMS
- Bridgeable for a flexible front/rear or speakers-plus-sub setup
- Variable low-pass (700Hz–7KHz) and high-pass (20Hz–200Hz) filters
- Damping factor of 150 for clean, controlled output
- Ultra-compact chassis with 80A fuse rating and 4-way protection
VFL REBEL-900.4 Class D 4-Channel Car Amplifier — 150W x 4 RMS @ 4Ω (REBEL-900.4)
This Listing Includes:
- (1) VFL REBEL-900.4 4-Channel Amplifier
The VFL REBEL-900.4 brings American Bass's competition-line attitude to a compact, install-friendly 4-channel amp. It's the perfect choice for powering door speakers and components cleanly, with bridgeable outputs that let it grow with your build.
Features
- Class D 4-channel design with bridgeable outputs
- Variable low-pass filter, 700Hz – 7KHz
- Variable high-pass filter, 20Hz – 200Hz
- High input sensitivity range, 0.4 – 8V
- 4-way protection circuitry in an ultra-compact chassis
Specifications
| Number of Channels | 4 |
| Amplifier Class | Class D |
| RMS Power @ 4Ω | 150W x 4 |
| RMS Power @ 2Ω | 220W x 4 |
| Low-Pass Filter | 700Hz – 7KHz |
| High-Pass Filter | 20Hz – 200Hz |
| Signal-to-Noise Ratio | <93dB |
| THD | <0.35% |
| Damping Factor | 150 |
| Input Sensitivity | 0.4 – 8V |
| Fuse Rating | 80A |
| Dimensions (L x W x H) | 8.58" x 5.9" x 2.24" |
