- 4-channel Class D power: 425W x 4 @ 4Ω, 640W x 4 @ 2Ω RMS
- Bridgeable for high-output front/rear or component-plus-sub systems
- Variable low-pass (700Hz–7KHz) and high-pass (20Hz–200Hz) filters
- Damping factor of 150 for tight, accurate response
- 200A fuse rating with 4-way protection circuitry

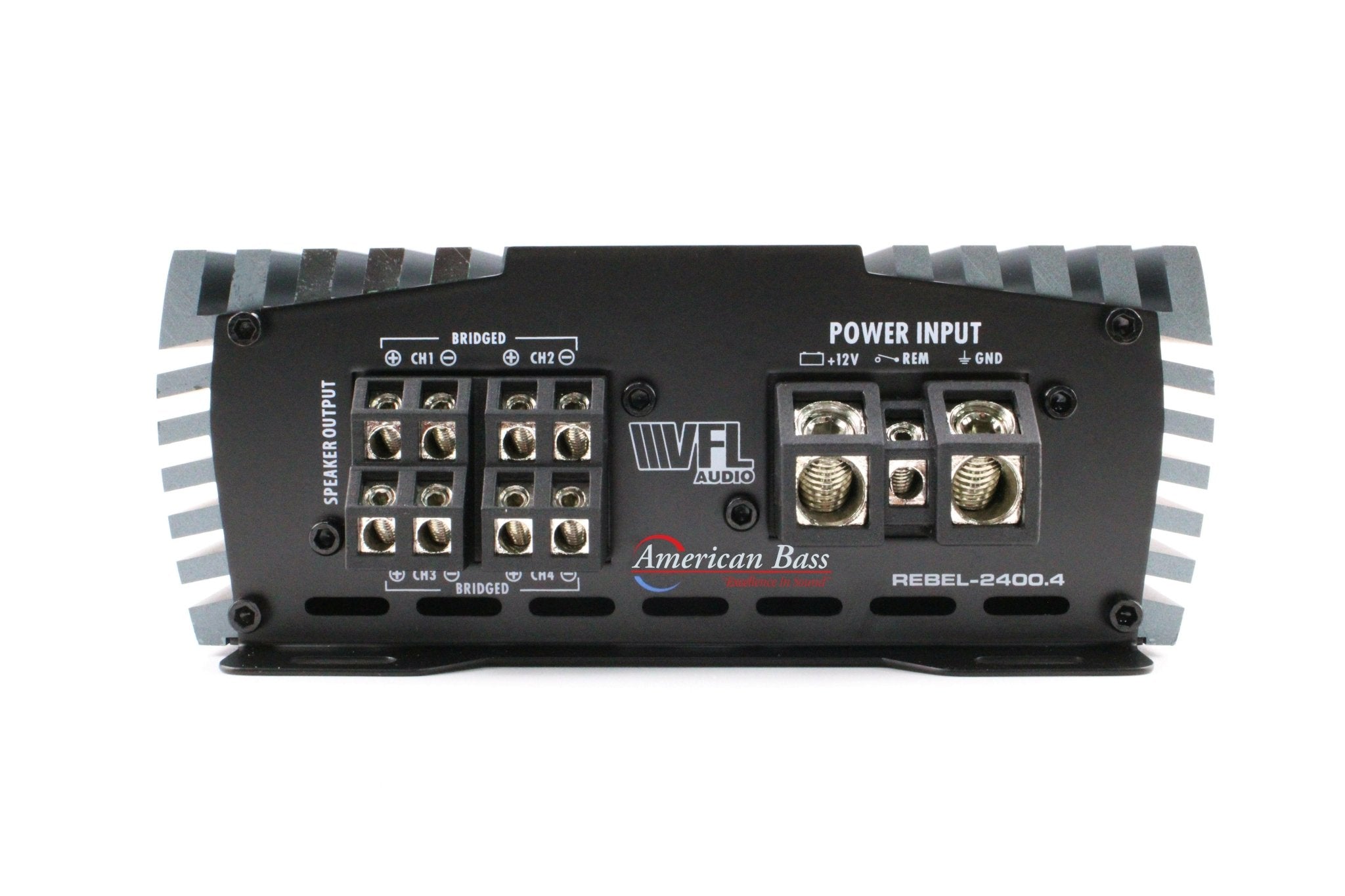

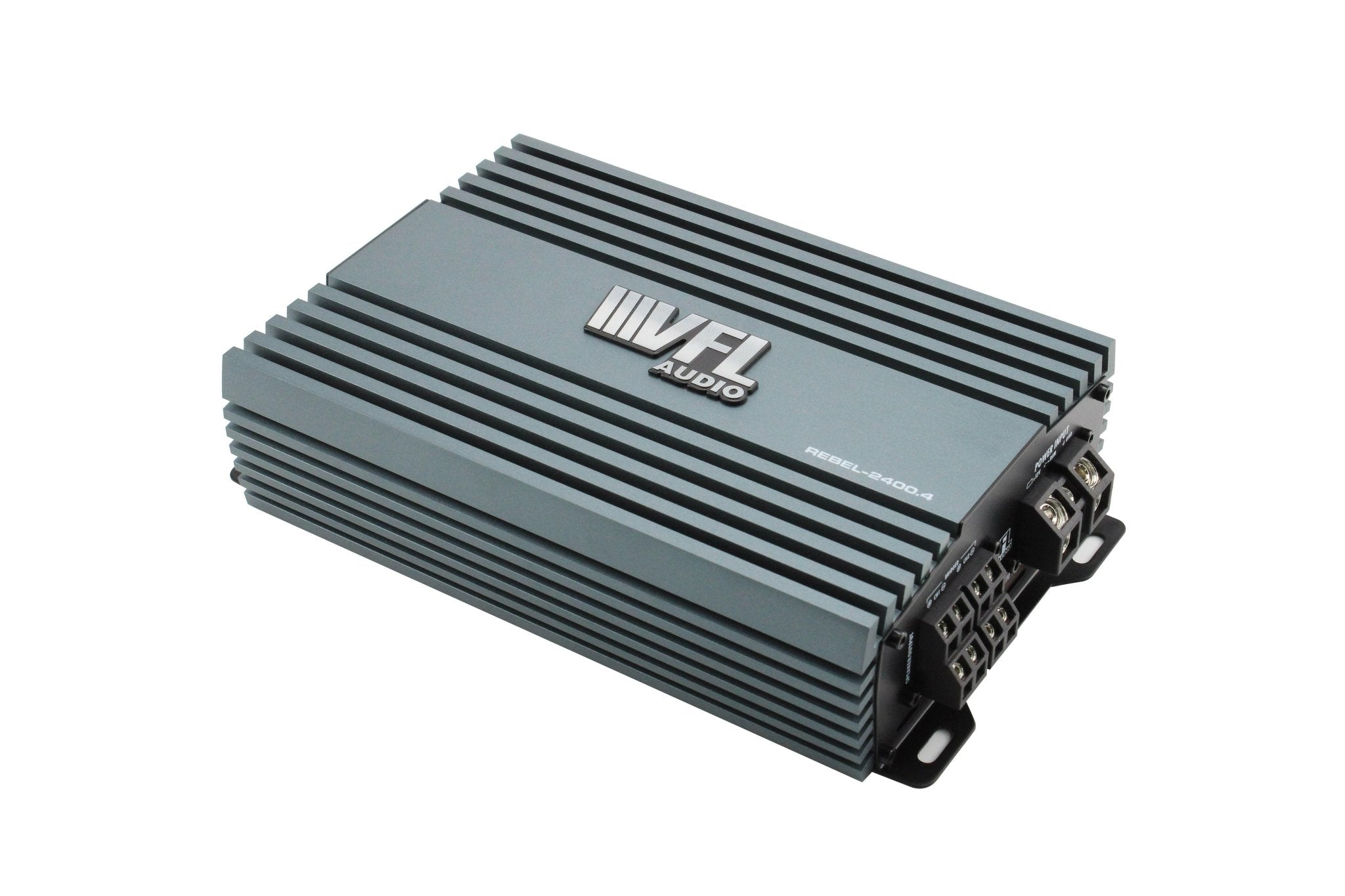

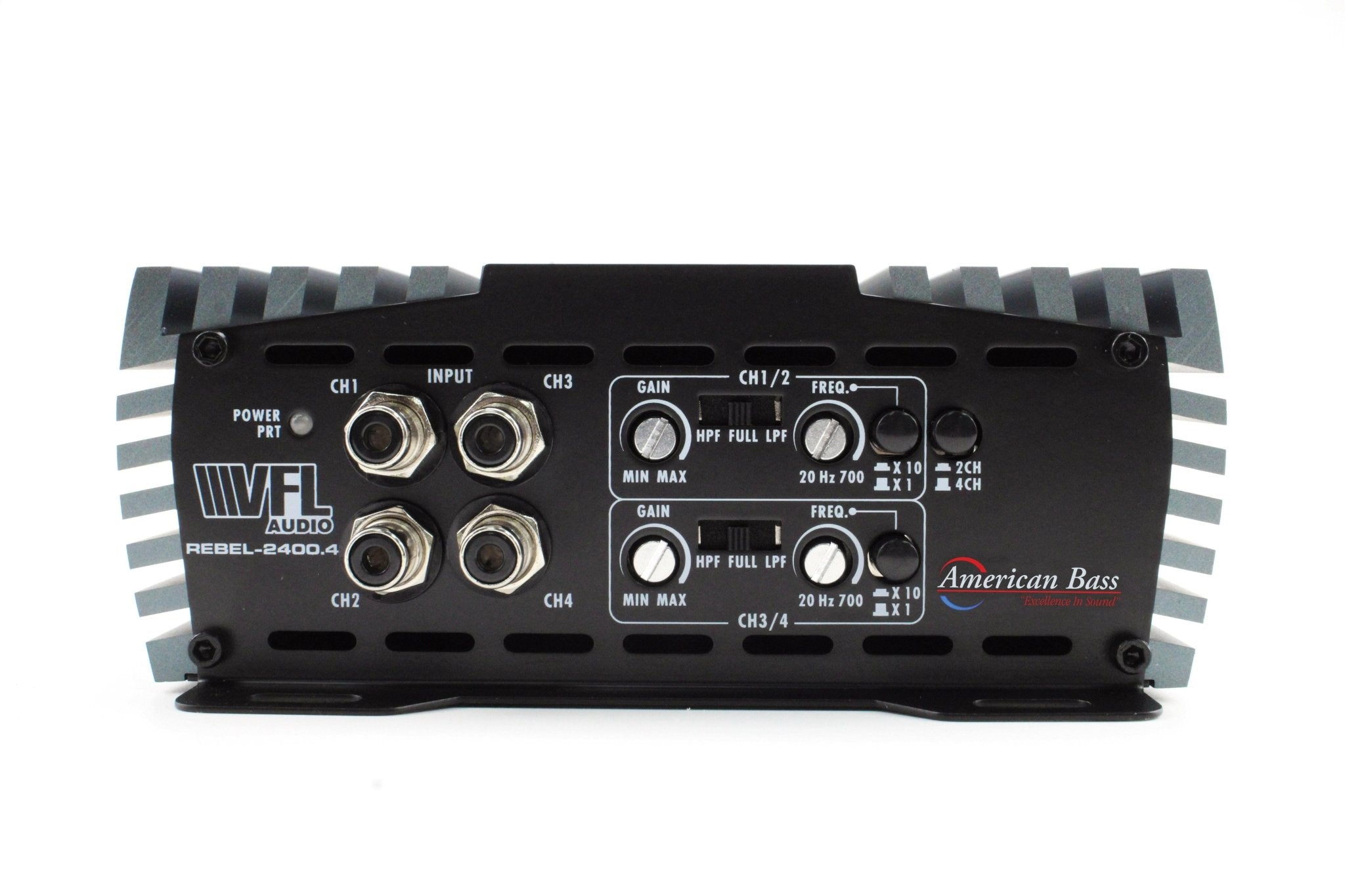

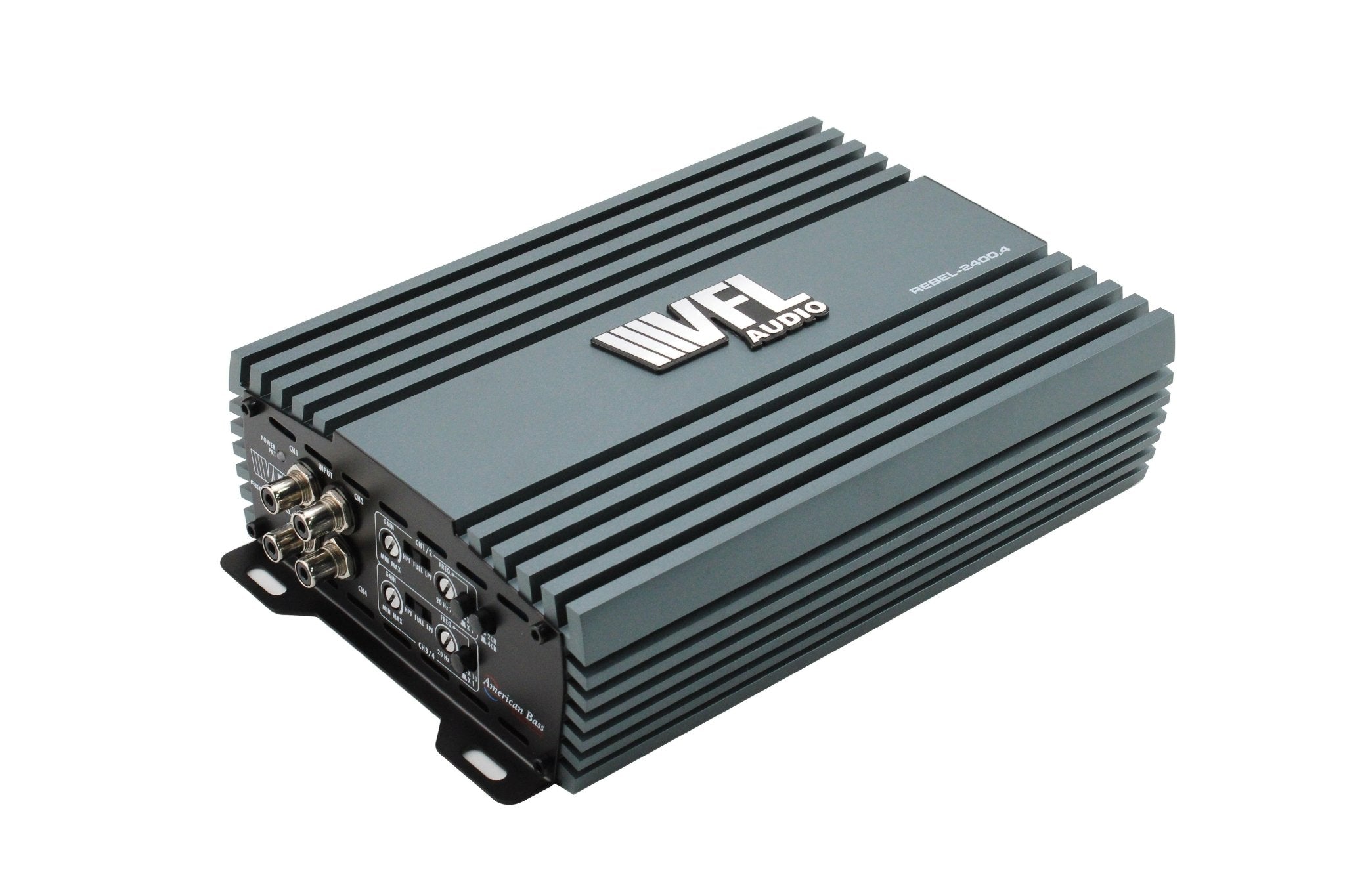

VFL REBEL-2400.4 Class D 4-Channel Car Amplifier — 425W x 4 RMS @ 4Ω (REBEL-2400.4)
This Listing Includes:
- (1) VFL REBEL-2400.4 4-Channel Amplifier
The VFL REBEL-2400.4 is American Bass's high-performance 4-channel built for audio builders who want real power on every channel. With 425 watts RMS per channel at 4 ohms and bridgeable outputs, it has the muscle to anchor a serious full-range system. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D 4-channel design with bridgeable outputs
- Variable low-pass filter, 700Hz – 7KHz
- Variable high-pass filter, 20Hz – 200Hz
- High input sensitivity range, 0.4 – 8V
- 4-way protection circuitry for reliable performance
Specifications
| Number of Channels | 4 |
| Amplifier Class | Class D |
| RMS Power @ 4Ω | 425W x 4 |
| RMS Power @ 2Ω | 640W x 4 |
| Low-Pass Filter | 700Hz – 7KHz |
| High-Pass Filter | 20Hz – 200Hz |
| Signal-to-Noise Ratio | <93dB |
| THD | <0.5% |
| Damping Factor | 150 |
| Input Sensitivity | 0.4 – 8V |
| Fuse Rating | 200A |
| Dimensions (L x W x H) | 12.91" x 5.9" x 2.24" |
