VFL Hybrid 4850.1 Class D High Performance Digital Monoblock Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Compact Class D monoblock subwoofer amplifier from VFL Audio
- 1950 watts RMS at 1Ω and 1350 watts RMS at 2Ω

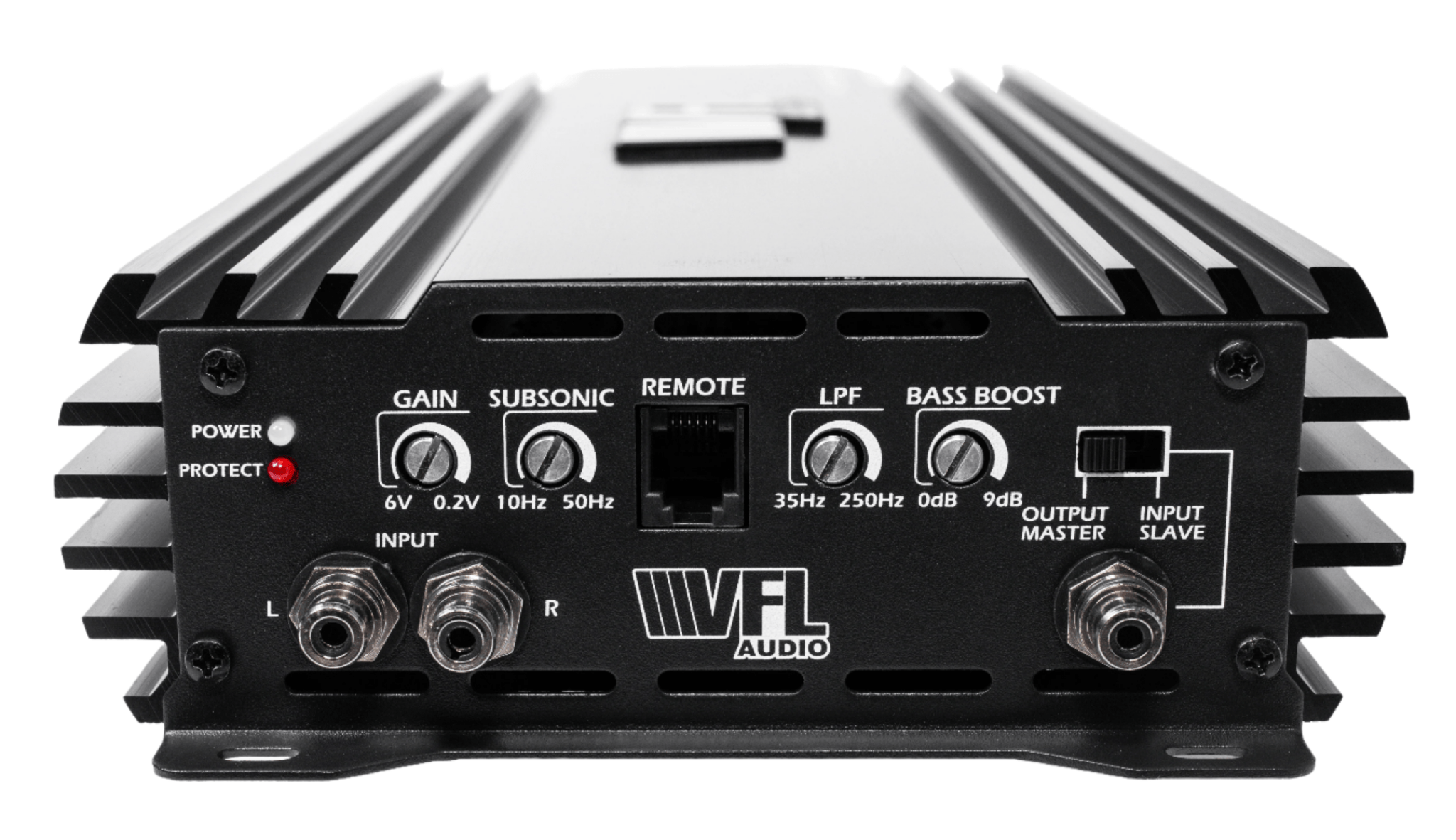

- Variable subsonic and low-pass filters for bass control
- 0–9dB bass boost for added low-end punch
- Damping factor over 200 for tight, controlled bass
VFL Audio Hybrid 4850.1 Class D Monoblock Car Amplifier — 1950W x 1 RMS (VFLHYBRID-4850.1D)
This Listing Includes:

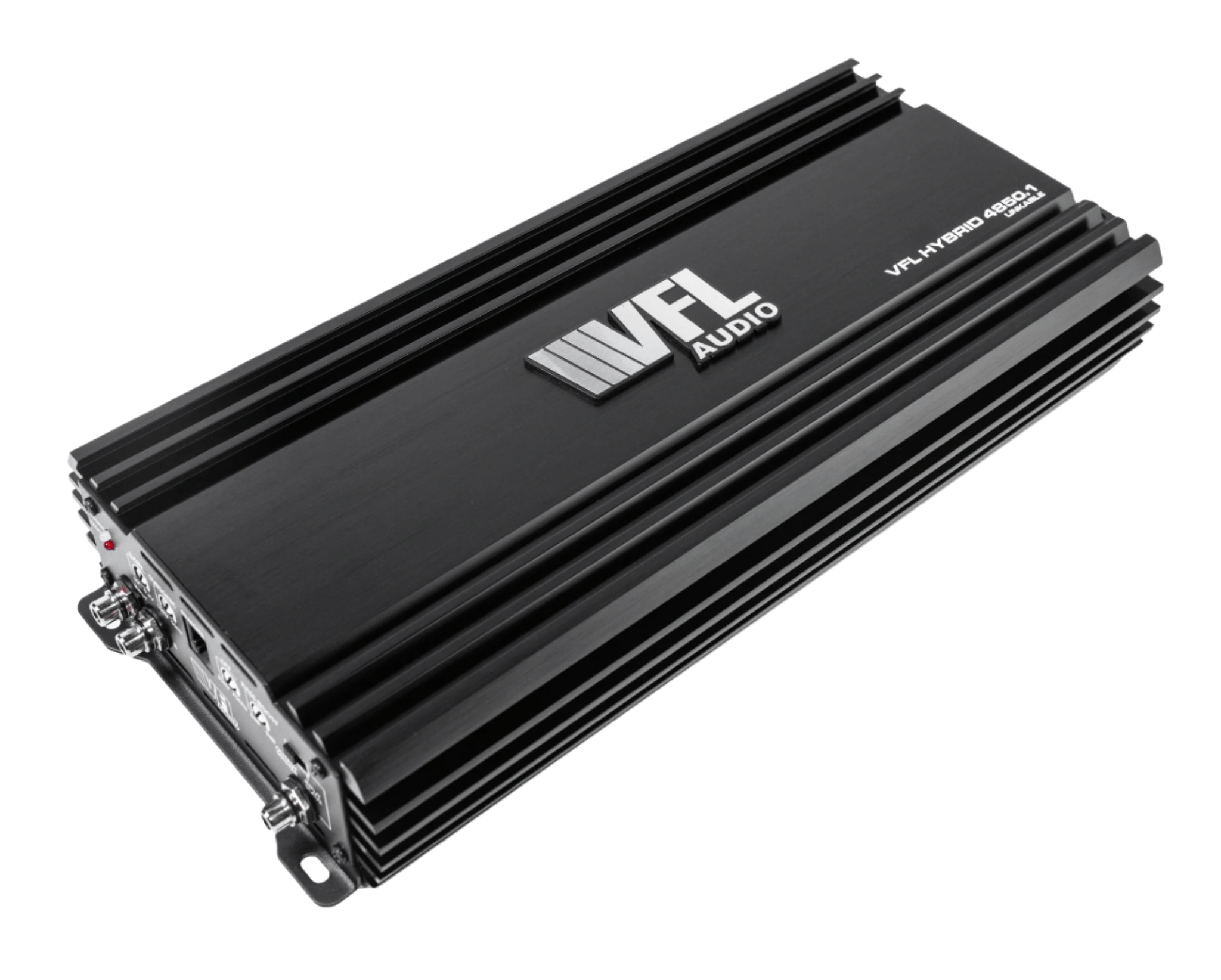

- (1) VFL Audio Hybrid 4850.1 Amplifier
The VFL Audio Hybrid 4850.1 brings big monoblock power in a compact Class D package, delivering 1950 watts RMS at 1Ω and 1350 watts RMS at 2Ω. A variable subsonic filter, variable low-pass filter, and up to 9dB of bass boost give you the control to dial in hard-hitting, accurate bass. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D monoblock design for efficient bass power
- Variable subsonic filter, 10Hz–50Hz
- Variable low-pass filter, 35Hz–250Hz
- Bass boost, 0dB–9dB
- 6V–0.2V input sensitivity for clean gain matching
Specifications
| Channels | 1 |
| RMS Power @ 2Ω | 1350W x 1 |
| RMS Power @ 1Ω | 1950W x 1 |
| Signal-to-Noise Ratio | >90dB |
| THD | <0.1% |
| Damping Factor | >200 |
| Input Sensitivity | 6V–0.2V |
| Subsonic Filter | 10Hz–50Hz |
| Low-Pass Filter | 35Hz–250Hz |
| Bass Boost | 0dB–9dB |
| Fuse Rating | 120A |
| Dimensions (L x W x H) | 13.267" x 6.496" x 2.244" |
