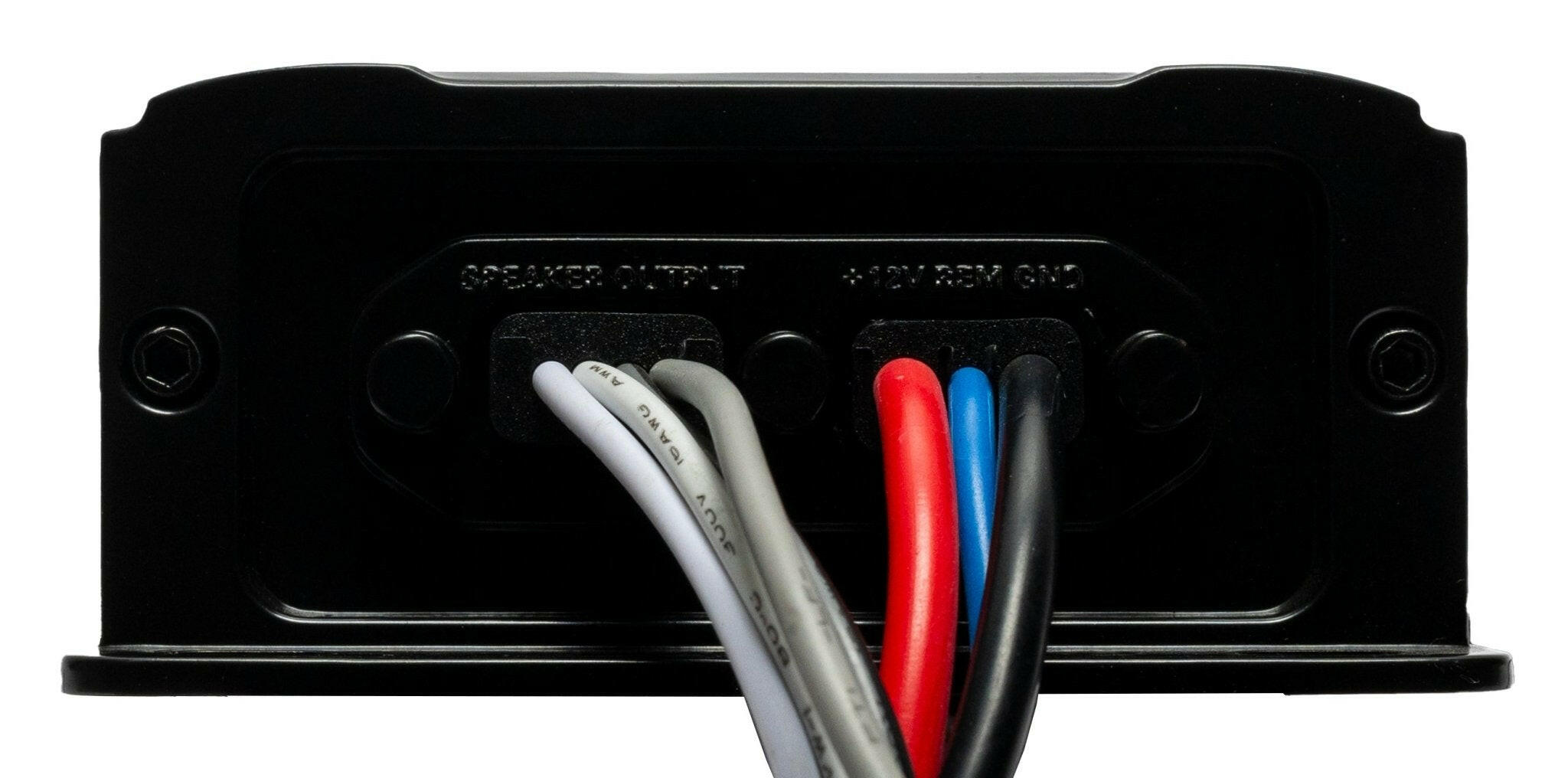

VFL Audio Stealth MMC 2004 Class D High Performance Multichannel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 4-channel Class D full-range amplifier
- 125W x 4 @ 4Ω, 200W x 4 @ 2Ω
- Compact chassis for tight, space-restricted installs
- 12dB/oct high-pass and low-pass filters
- Signal-to-noise ratio greater than 90dBA
VFL Audio Stealth MMC 2004 Class D 4-Channel Car Amplifier — 200W x 4 RMS (STEALTHMMC-2004)
This Listing Includes:
- (1) VFL Audio Stealth MMC 2004 4-Channel Amplifier
The VFL Stealth MMC 2004 is a no-frills 4-channel workhorse built to drive your door speakers and mids hard from a chassis small enough to tuck almost anywhere. Sleek, straightforward and sturdy, it delivers clean Class D power with the filter flexibility to run an entire front and rear stage. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D design for efficient, cool-running performance
- Four channels to power a full front-and-rear speaker stage
- 12dB/oct high-pass and low-pass filters for easy tuning
- Ultra-compact footprint for hidden and space-tight installs
- Thermal, over-current and short-circuit protection built in
Specifications
| Channels | 4 |
| Max Power | 250W x 4 |
| RMS Power @ 2Ω | 200W x 4 |
| RMS Power @ 4Ω | 125W x 4 |
| High/Low-Pass Filter | 12dB/oct |
| Frequency Response | 20Hz – 20kHz |
| Signal-to-Noise Ratio | >90dBA |
| THD | <0.08% |
| Input Range | 250mV – 10V |
| Working Voltage | DC 14.4V |
| Dimensions (L x W x H) | 10.90" x 3.50" x 1.57" |
