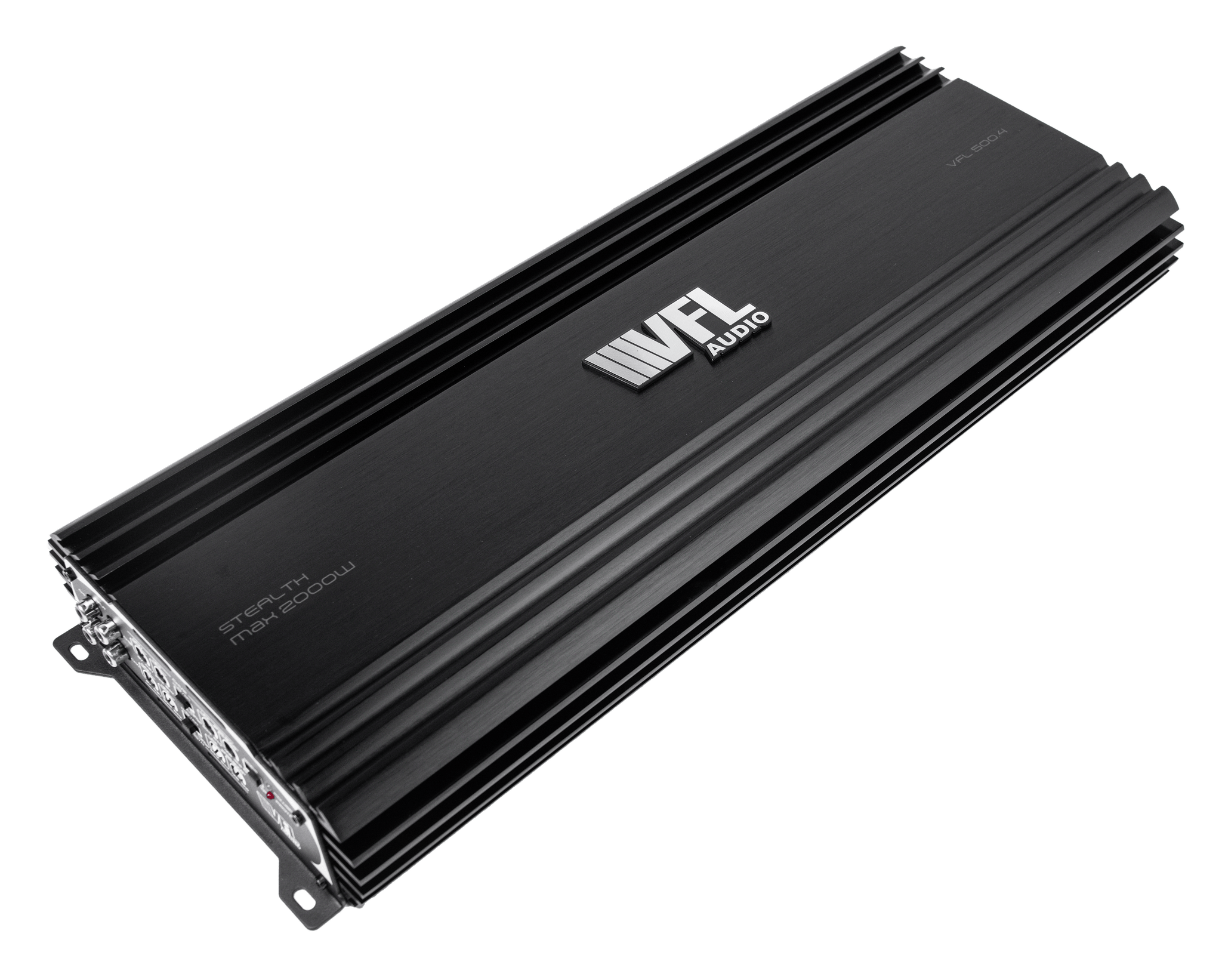

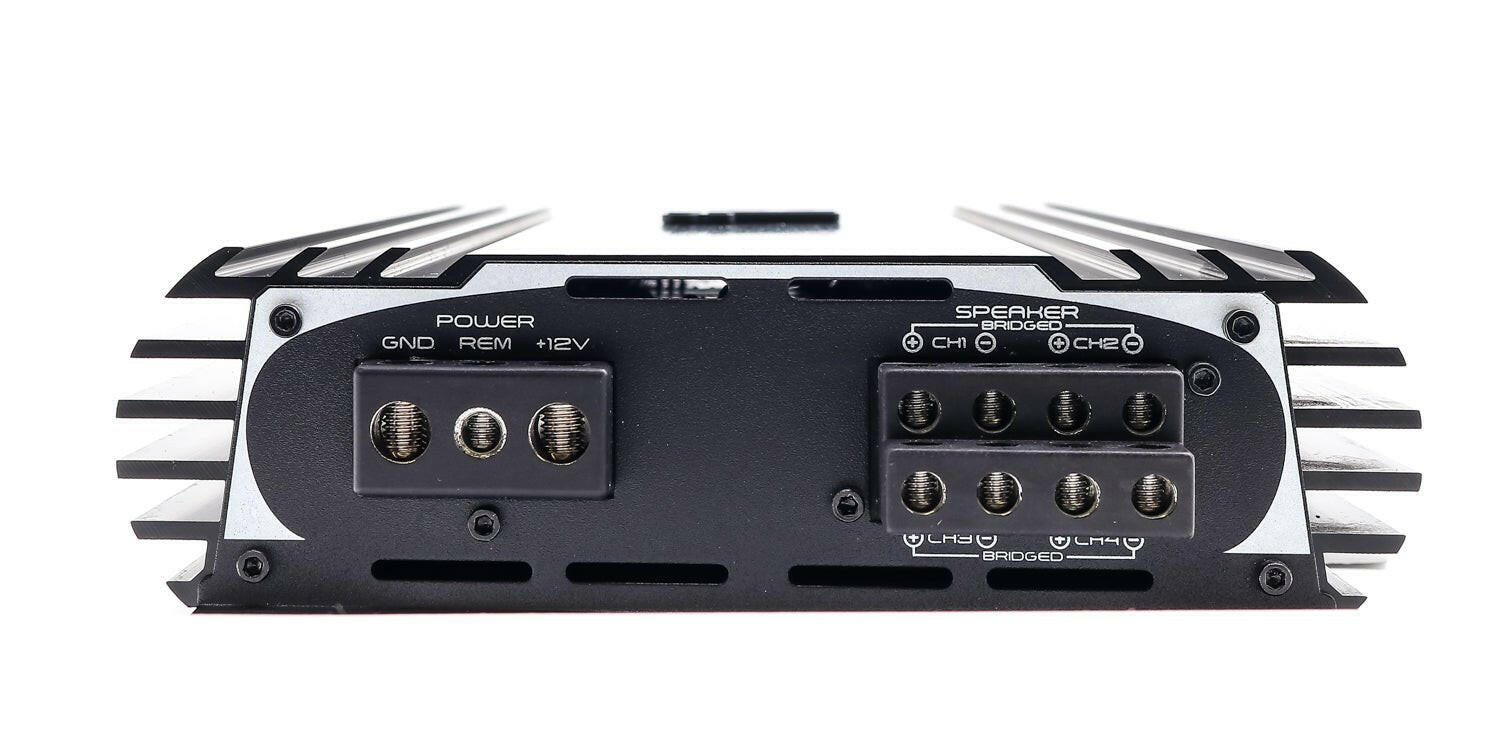

VFL Audio Stealth 500.4 Class AB High Performance Multichannel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 4-channel Class AB amplifier from VFL Audio
- 200 watts RMS x 4 at 4Ω and 350 watts RMS x 4 at 2Ω
- 105dB signal-to-noise ratio for clean output

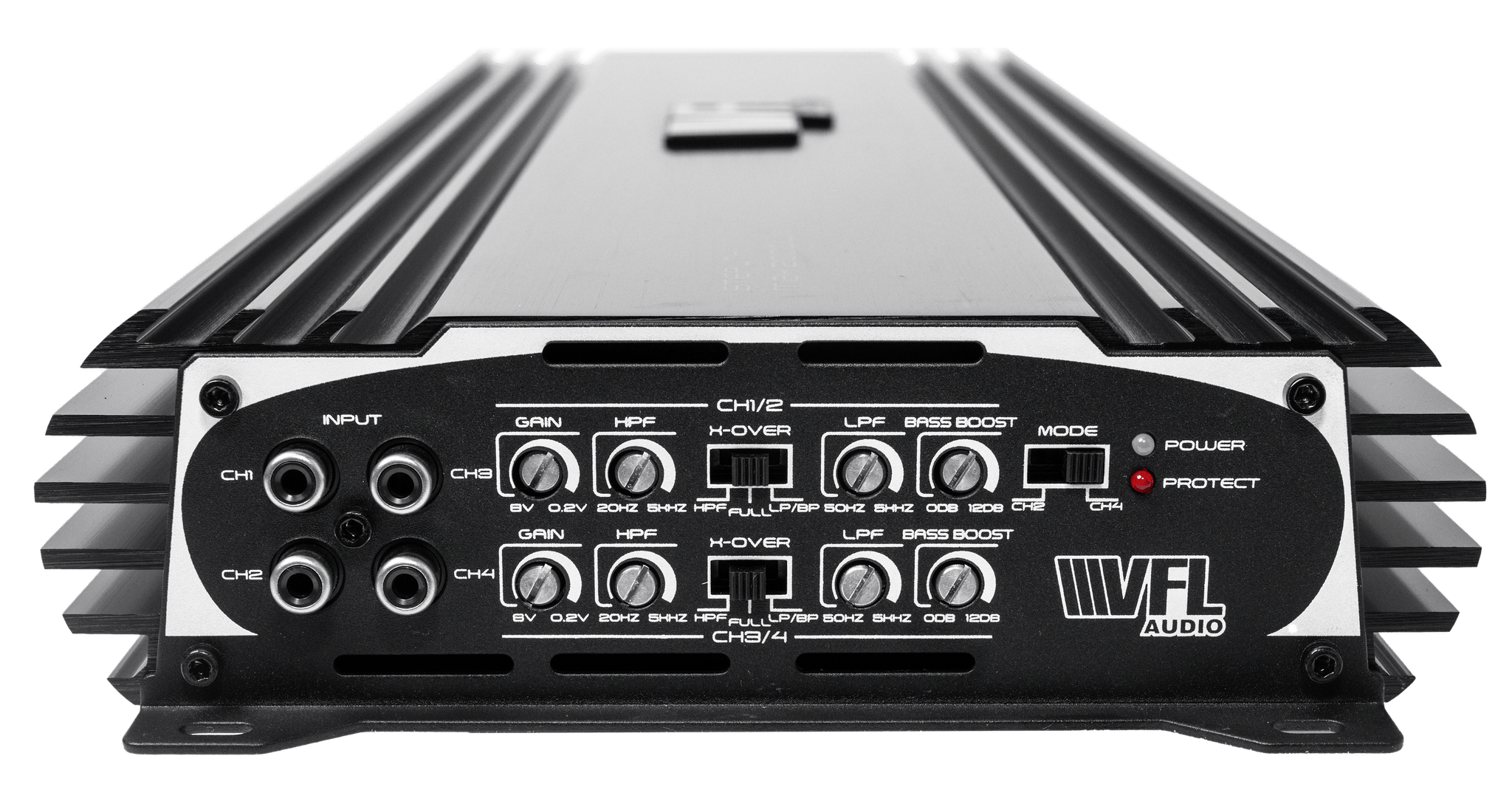

- Variable high- and low-pass filters plus bass boost
- 0–12dB bass boost for added punch
VFL Audio Stealth 500.4 Class AB 4-Channel Car Amplifier — 200W x 4 RMS (VFLSTEALTH-500.4)
This Listing Includes:
- (1) VFL Audio Stealth 500.4 Amplifier
The VFL Audio Stealth 500.4 is a powerful 4-channel Class AB amplifier rated at 200 watts RMS per channel at 4Ω and 350 watts RMS per channel at 2Ω. With a 105dB signal-to-noise ratio, variable crossovers, and up to 12dB of bass boost, it drives a full stage of speakers with clean, dynamic power. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 4-channel Class AB design for full-range power
- Variable low-pass filter, 50Hz–5kHz
- Variable high-pass filter, 20Hz–5kHz
- Bass boost, 0dB–12dB
- 6V–0.2V input sensitivity for clean gain matching
Specifications
| Channels | 4 |
| RMS Power @ 4Ω | 200W x 4 |
| RMS Power @ 2Ω | 350W x 4 |
| Signal-to-Noise Ratio | 105dB |
| THD | <0.1% |
| Damping Factor | >150 |
| Input Sensitivity | 6V–0.2V |
| Low-Pass Filter | 50Hz–5kHz |
| High-Pass Filter | 20Hz–5kHz |
| Bass Boost | 0dB–12dB |
| Fuse Rating | 120A |
| Dimensions (L x W x H) | 19.69" x 10" x 19" |
