- 12,000W RMS Class D digital monoblock subwoofer amplifier
- 1Ω stable for extreme low-impedance SPL builds
- Linkable for strapped multi-amp wall systems
- Full variable subsonic, low-pass, bass boost and phase controls
- Record-setting VFL engineering from American Bass
VFL Audio Comp 12K Class D Mono Car Amplifier — 12,000W RMS (VFLCOMP-12K)
This Listing Includes:

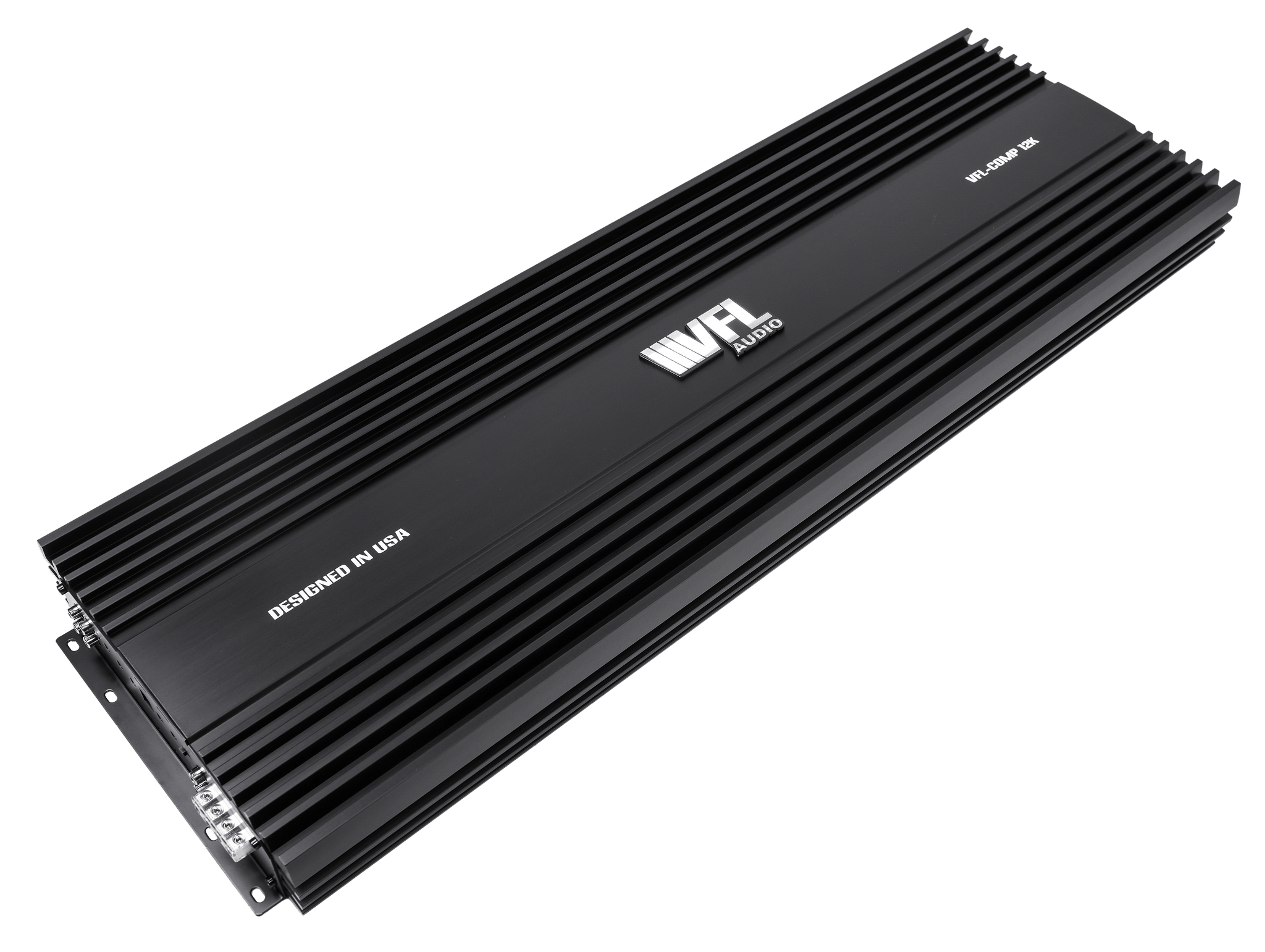

- (1) VFL Audio Comp 12K Monoblock Amplifier
The VFL Comp 12K is a true competition heavyweight, pushing 12,000 watts RMS of 1Ω-stable Class D power for the most demanding SPL walls. Built on the same Comp platform that scored 179.7dB in DB Drag, it is engineered for builders who measure success in decibels and need an amp that simply will not flinch. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D circuitry runs cool and efficient so more of your electrical system goes to output, not heat
- 1Ω stable for low-impedance subwoofer setups that demand maximum current
- Linkable design lets you strap two amps together as your build grows

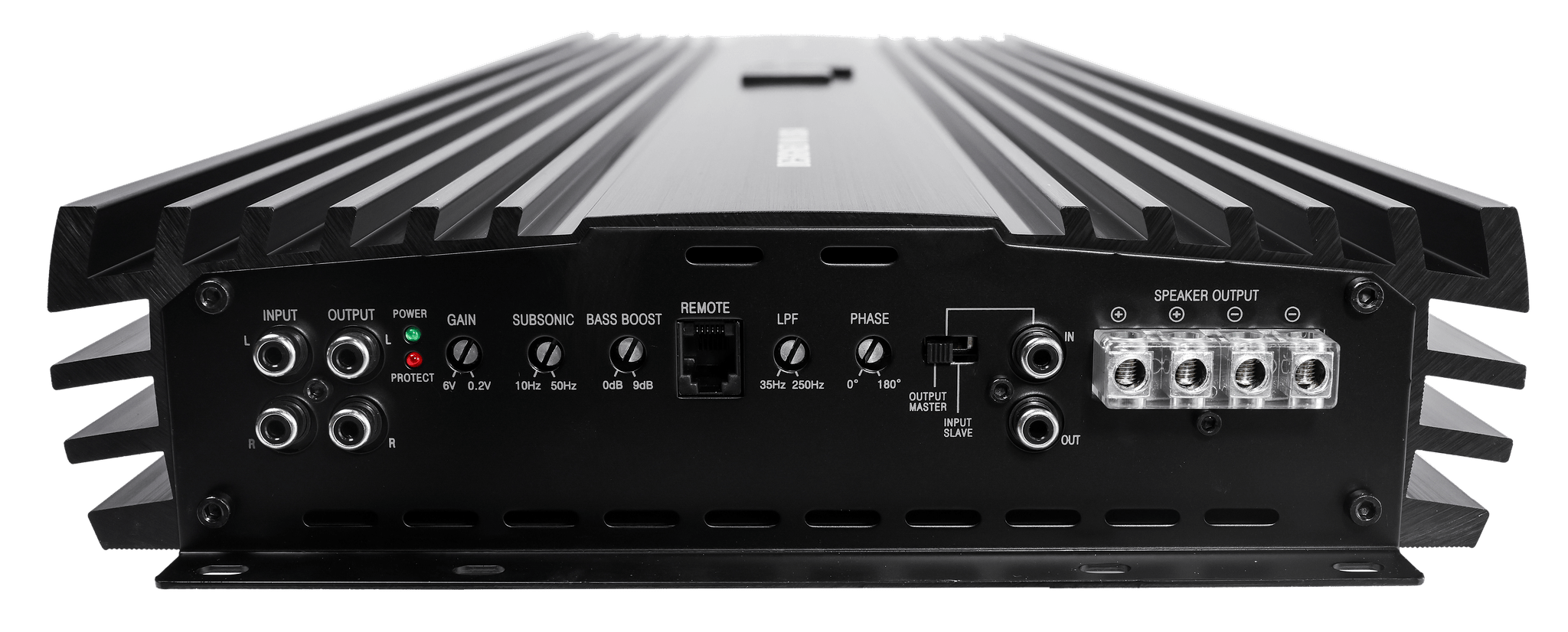

- Full variable controls – subsonic, low-pass, bass boost and phase – for dialing in your enclosure
- Heavy-duty fuse protection guards the amp and your electrical system
Specifications
| RMS Power | 12,000W |
| Frequency Response | 20Hz – 350Hz |
| Variable Subsonic Filter | 10Hz – 50Hz at 24dB/oct |
| Variable Low-Pass Filter | 35Hz – 250Hz at 24dB/oct |
| Variable Bass Boost | 0 – 9dB at 45Hz |
| Variable Phase Shift | 0 – 180 degrees |
| Input Level | 0.2V – 6V |
| Fuse Rating | 800A |
| Link Fuse Rating | 1600A |
| Dimensions (H x W x L) | 2.25" x 9.5" x 32.28" |
