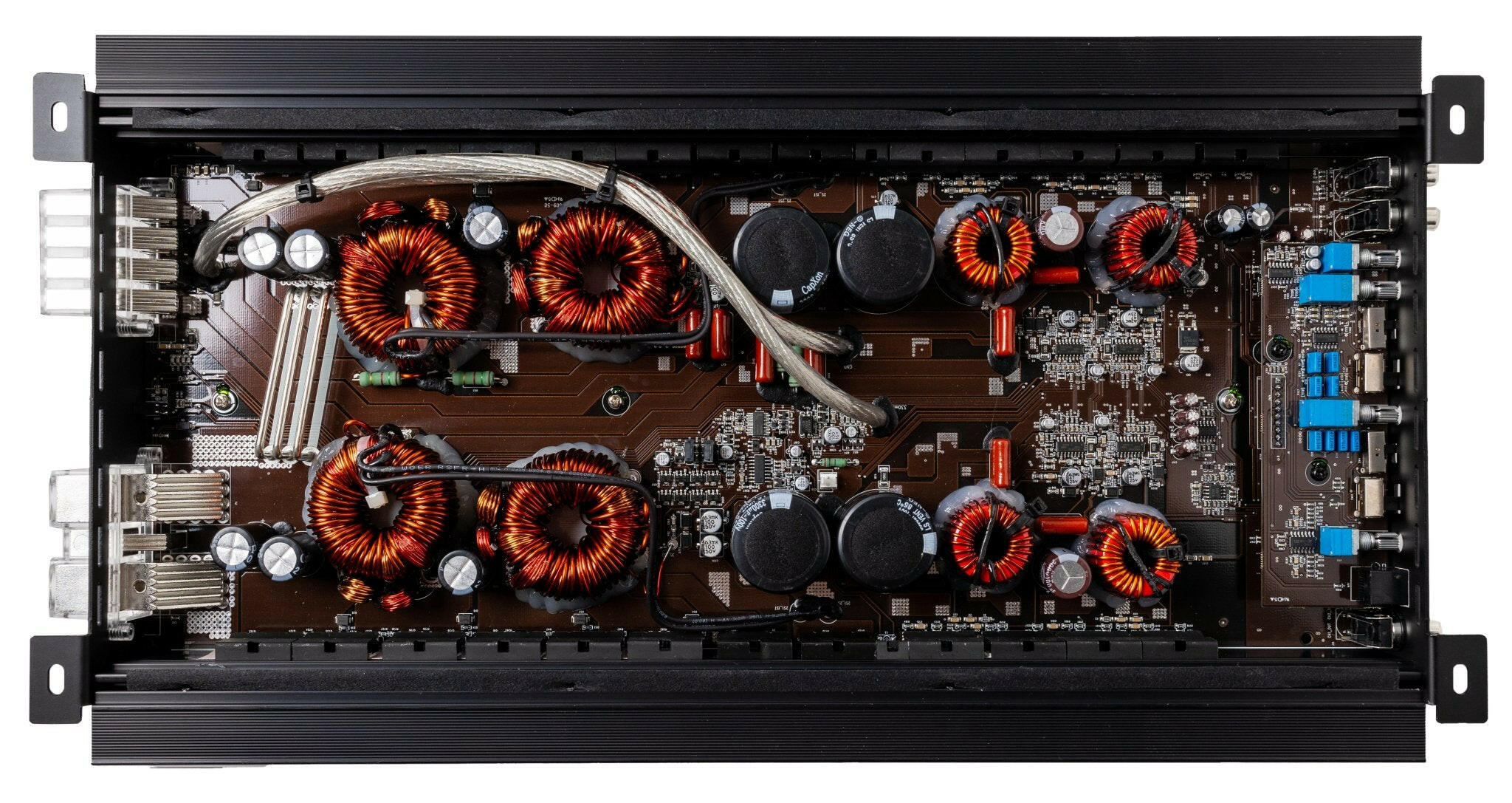

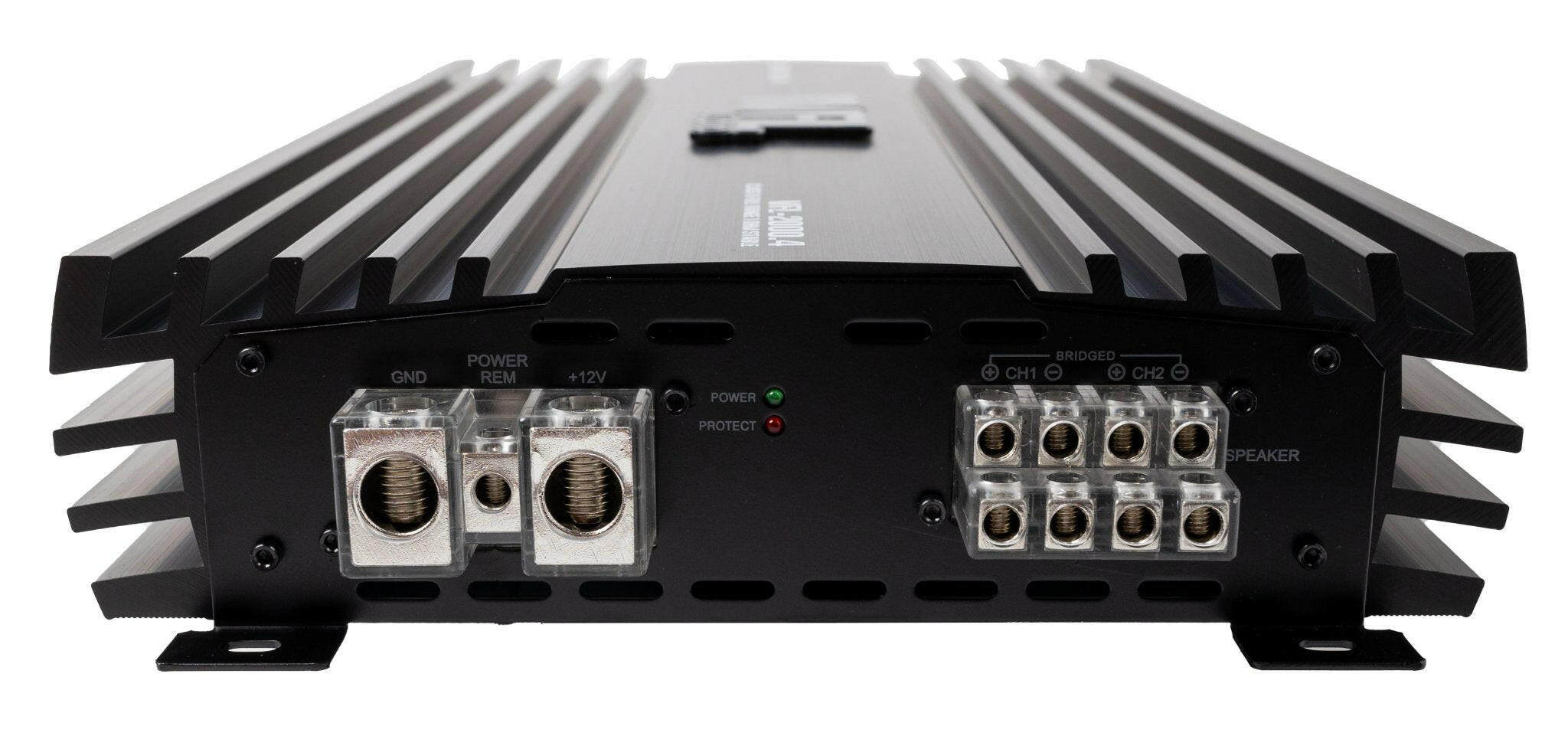

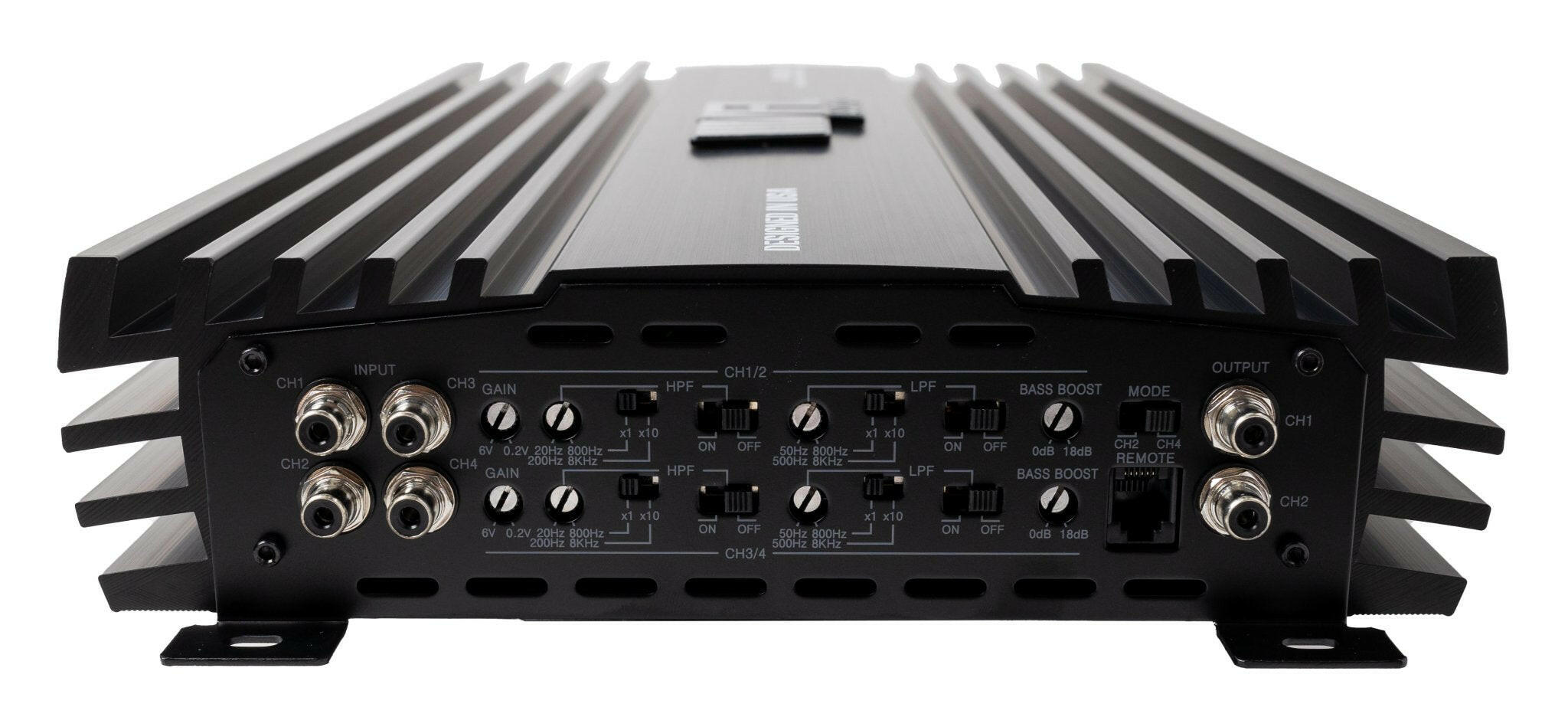

VFL Audio 2000.4 Class D High Performance Multichannel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 4-channel Class D power: 500W x 4 @ 4Ω, 800W x 4 @ 2Ω, 1000W x 4 @ 1Ω RMS
- 1600W x 2 in 4Ω mono/bridged mode for big speaker-plus-sub builds
- Full variable crossover suite: low-pass, high-pass, and band-pass capable
- Variable bass boost (0–18dB) and damping factor of 300
- 450A fuse rating with low THD under 0.1%
VFL 2000.4 Class D 4-Channel Car Amplifier — 500W x 4 RMS @ 4Ω (VFL-2000.4)
This Listing Includes:
- (1) VFL Audio 2000.4 4-Channel Amplifier
The VFL Audio 2000.4 is a full-featured Class D 4-channel that delivers serious power and deep tuning flexibility. With band-pass capability, an 18dB bass boost, and up to 1000 watts per channel at 1 ohm, it's ready to anchor a complete high-output system from one amplifier. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D 4-channel design, 1-ohm stable
- Band-pass capable with full low-pass and high-pass filtering
- Variable bass boost, 0 – 18dB
- High damping factor of 300 for controlled output
- Bridgeable to 1600W x 2 in 4Ω mono mode
Specifications
| Number of Channels | 4 |
| Amplifier Class | Class D |
| RMS Power @ 4Ω | 500W x 4 |
| RMS Power @ 2Ω | 800W x 4 |
| RMS Power @ 1Ω | 1000W x 4 |
| RMS Power @ 4Ω Mono | 1600W x 2 |
| Frequency Response | 10Hz – 27KHz |
| Signal-to-Noise Ratio | >95dB |
| Damping Factor | 300 |
| Input Sensitivity | 6V – 0.2V |
| Variable Low-Pass Filter | 50Hz – 800Hz |
| Variable High-Pass Filter | 20Hz – 800Hz |
| Variable Bass Boost | 0 – 18dB |
| Band Pass | Capable |
| THD @ 4Ω | <0.1% |
| Fuse Rating | 450A |
| Dimensions (L x W x H) | 18.5" x 9.5" x 2.25" |
