VFL 8" Car Subwoofer 600 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 600W RMS / 1200W max — strong output from a compact 8" driver
- Dual voice coil, 2Ω or 4Ω — wiring flexibility for your amp
- 2.5" voice coil — high-temp build for sustained power
- 120 oz strontium magnet — tight, punchy control
- VFL-822 / VFL-844 — Kevlar-composite cone on a die-cast basket

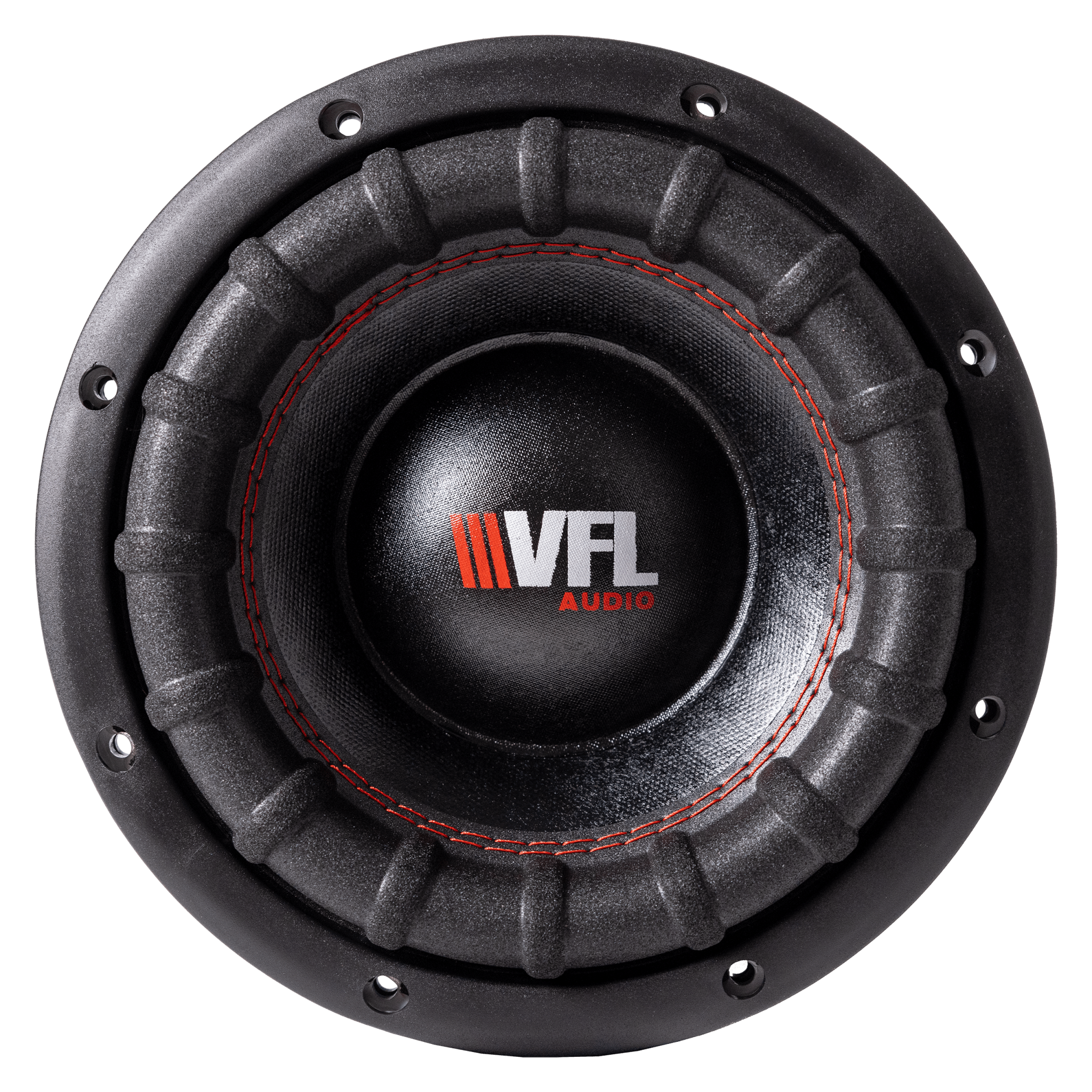

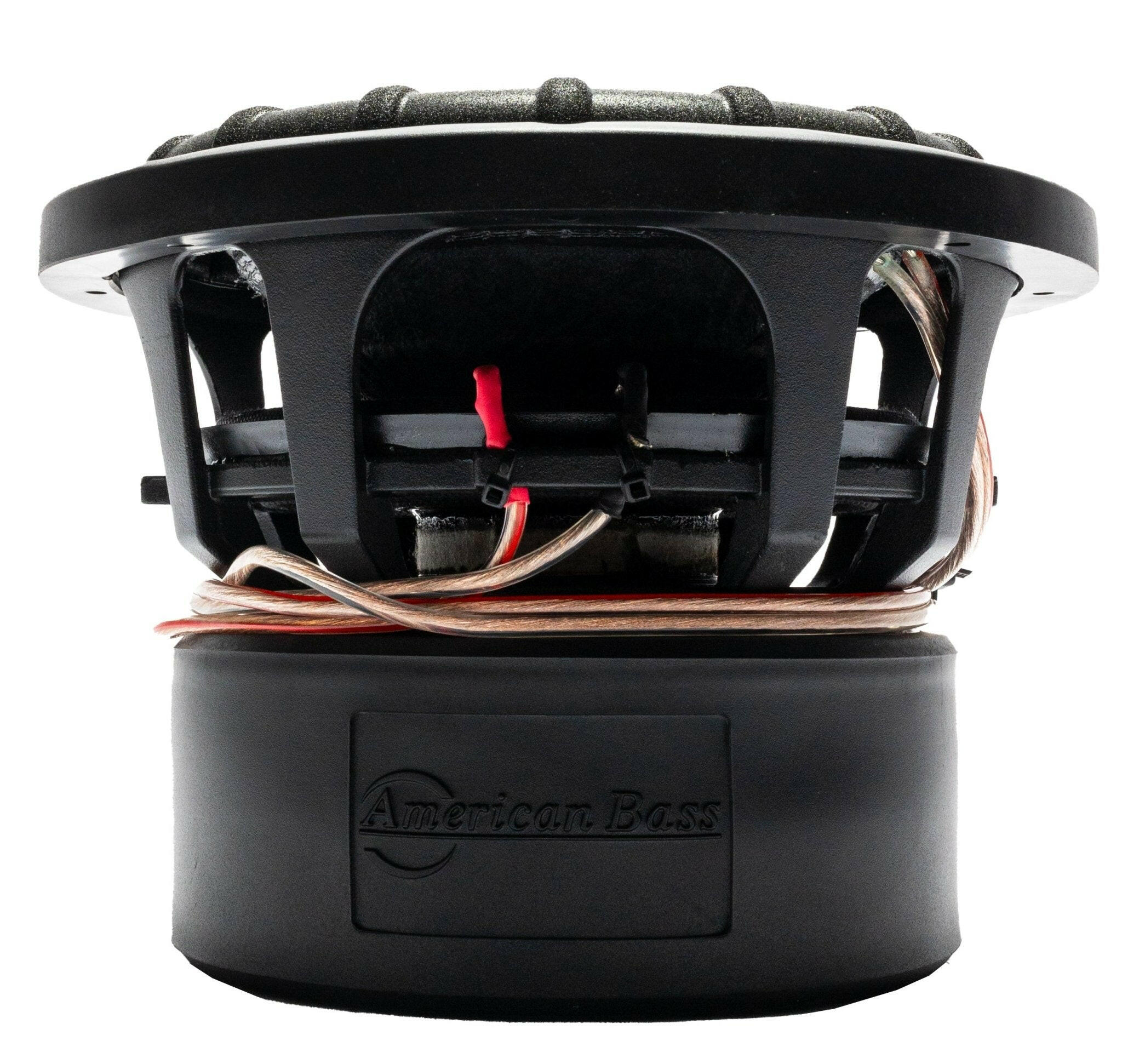

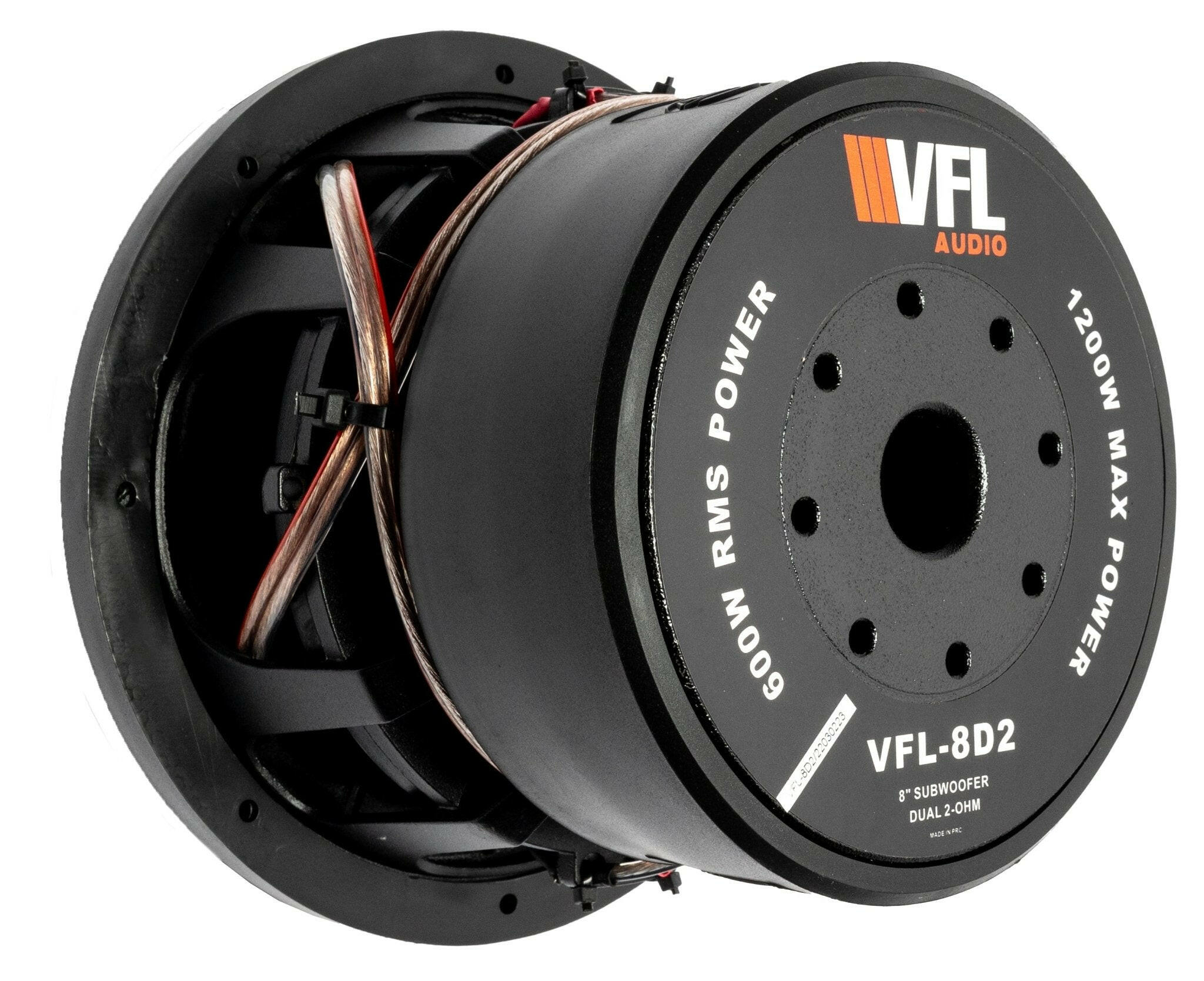

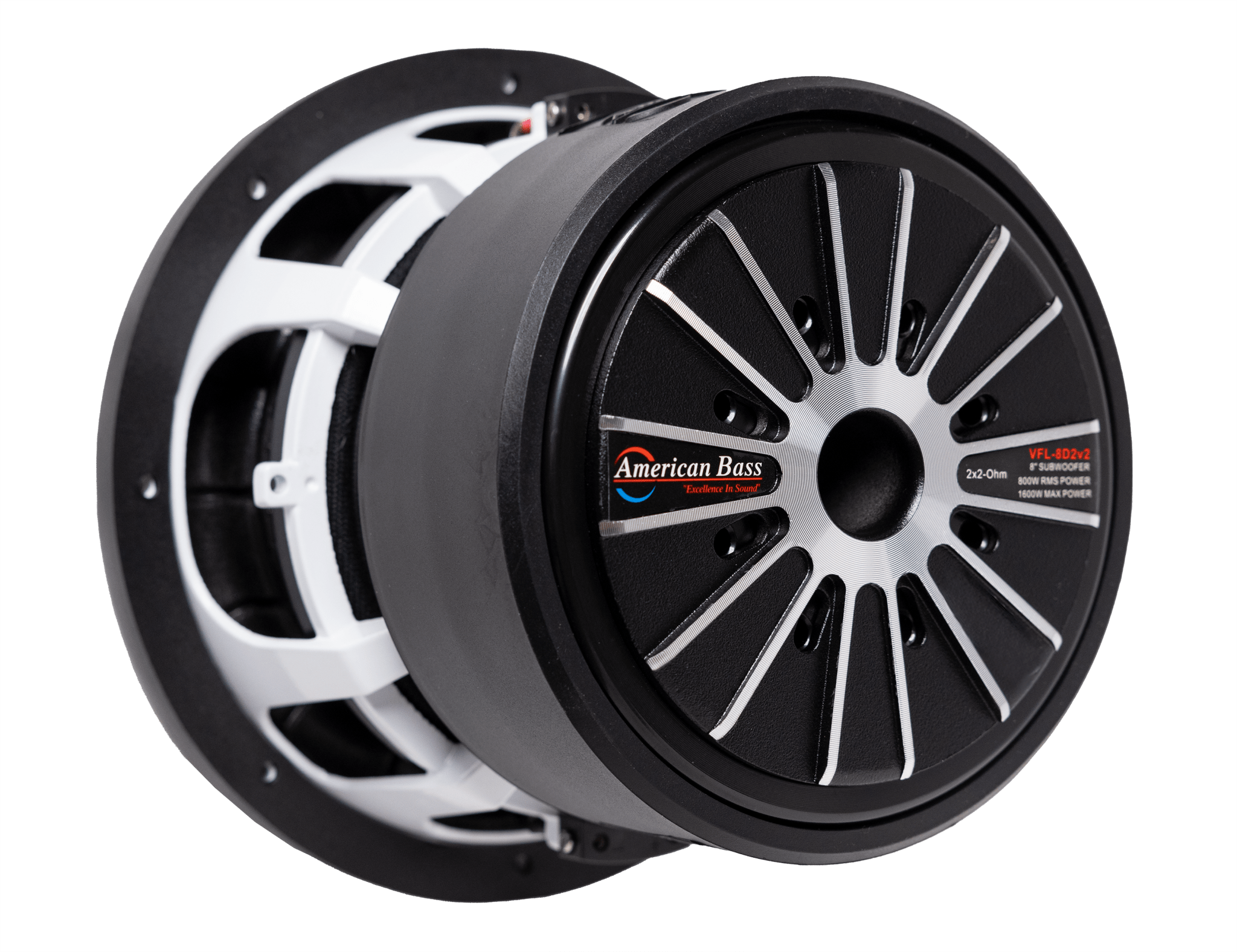

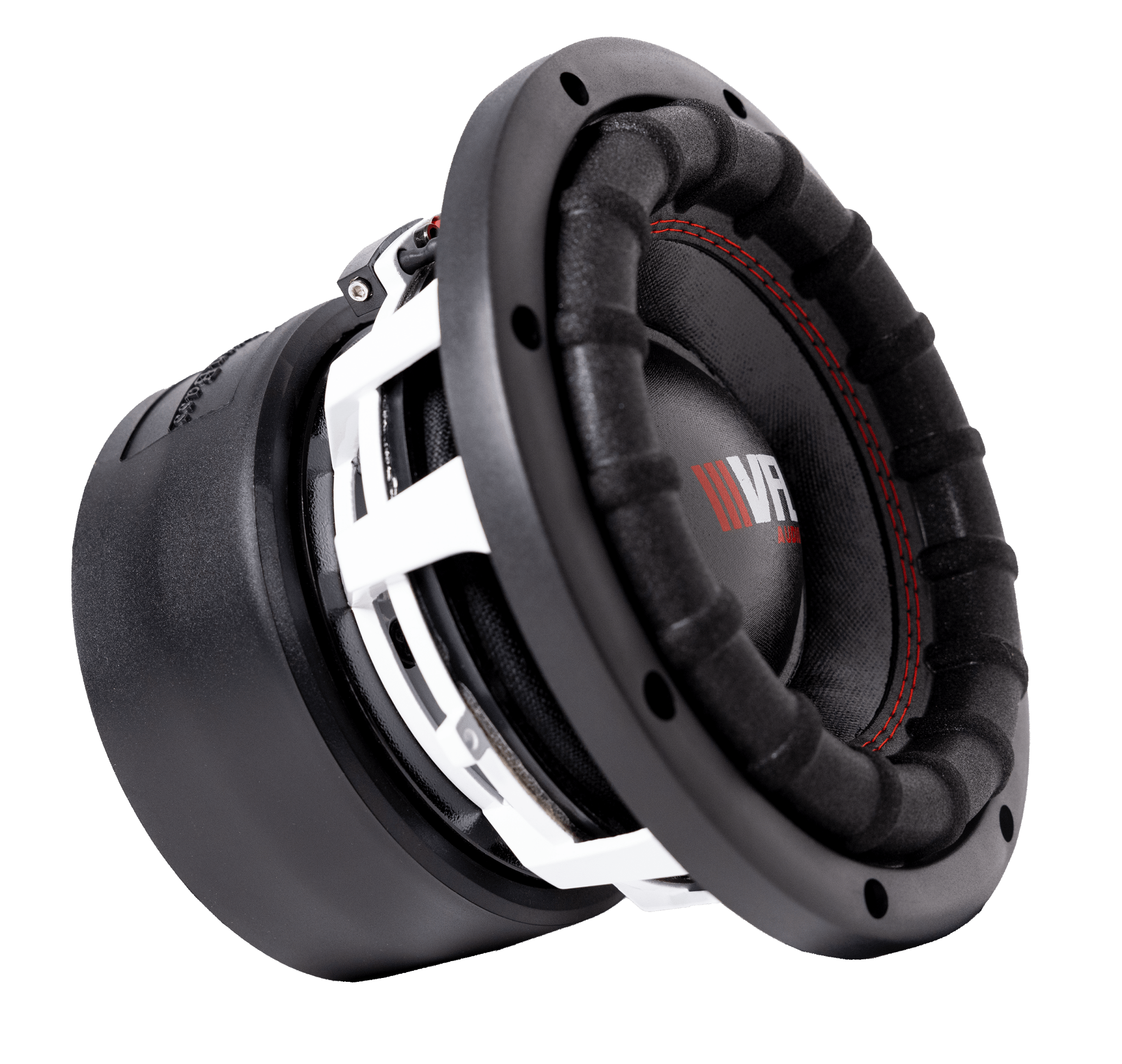

American Bass VFL 8" Car Subwoofer — 600W RMS Dual Voice Coil (VFL-822 / VFL-844)
This Listing Includes:
- (1) American Bass VFL 8" Subwoofer
The VFL 8" brings American Bass VFL-series output to tight spaces where a full-size sub won’t fit. Rated at 600W RMS and 1200W max, the VFL 8" runs a 2.5" high-temp voice coil and a 120 oz strontium motor on a die-cast basket, so it digs hard for its size. Dual 2Ω or 4Ω voice coils let you wire the VFL 8" to match your amplifier.
Features

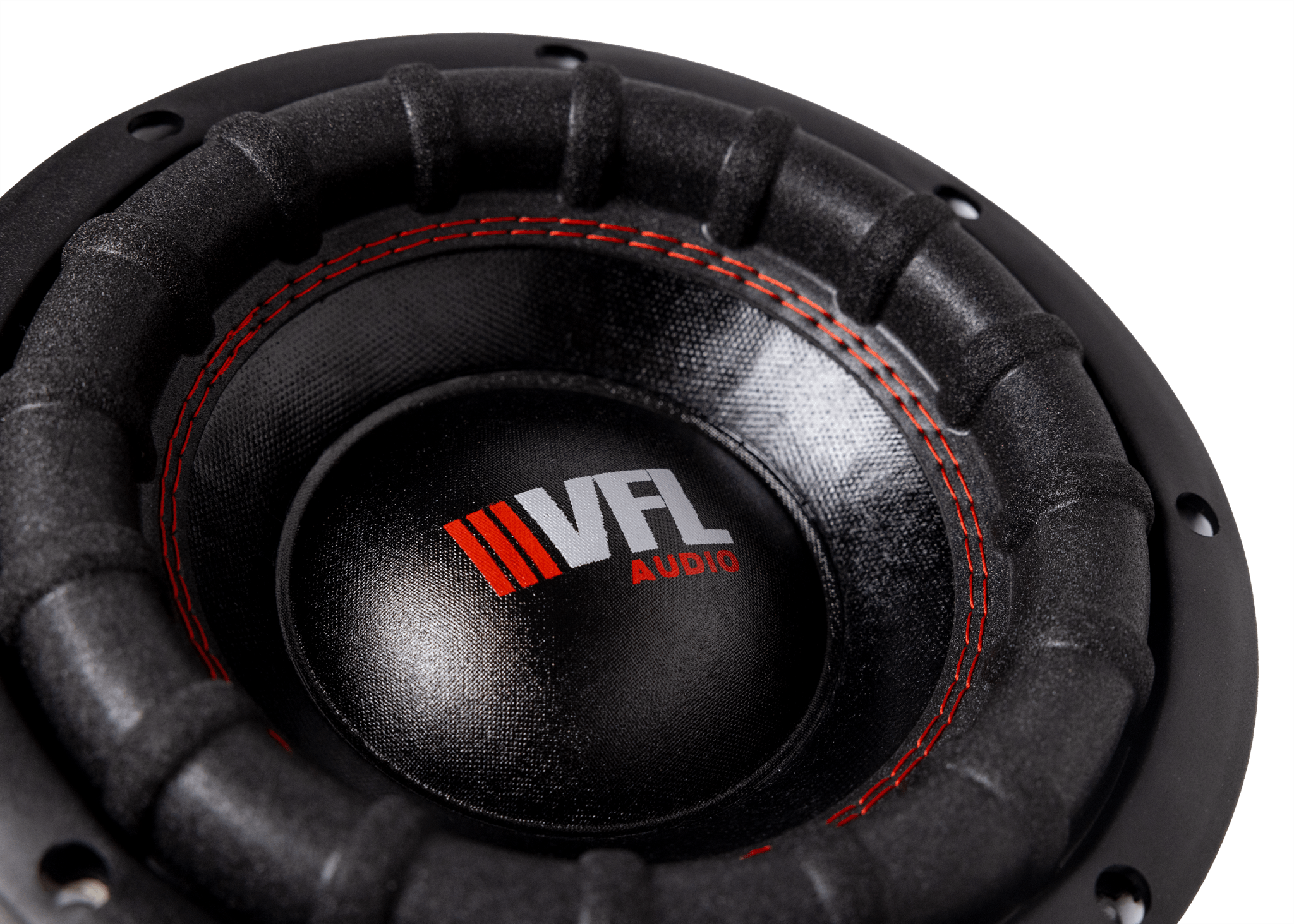

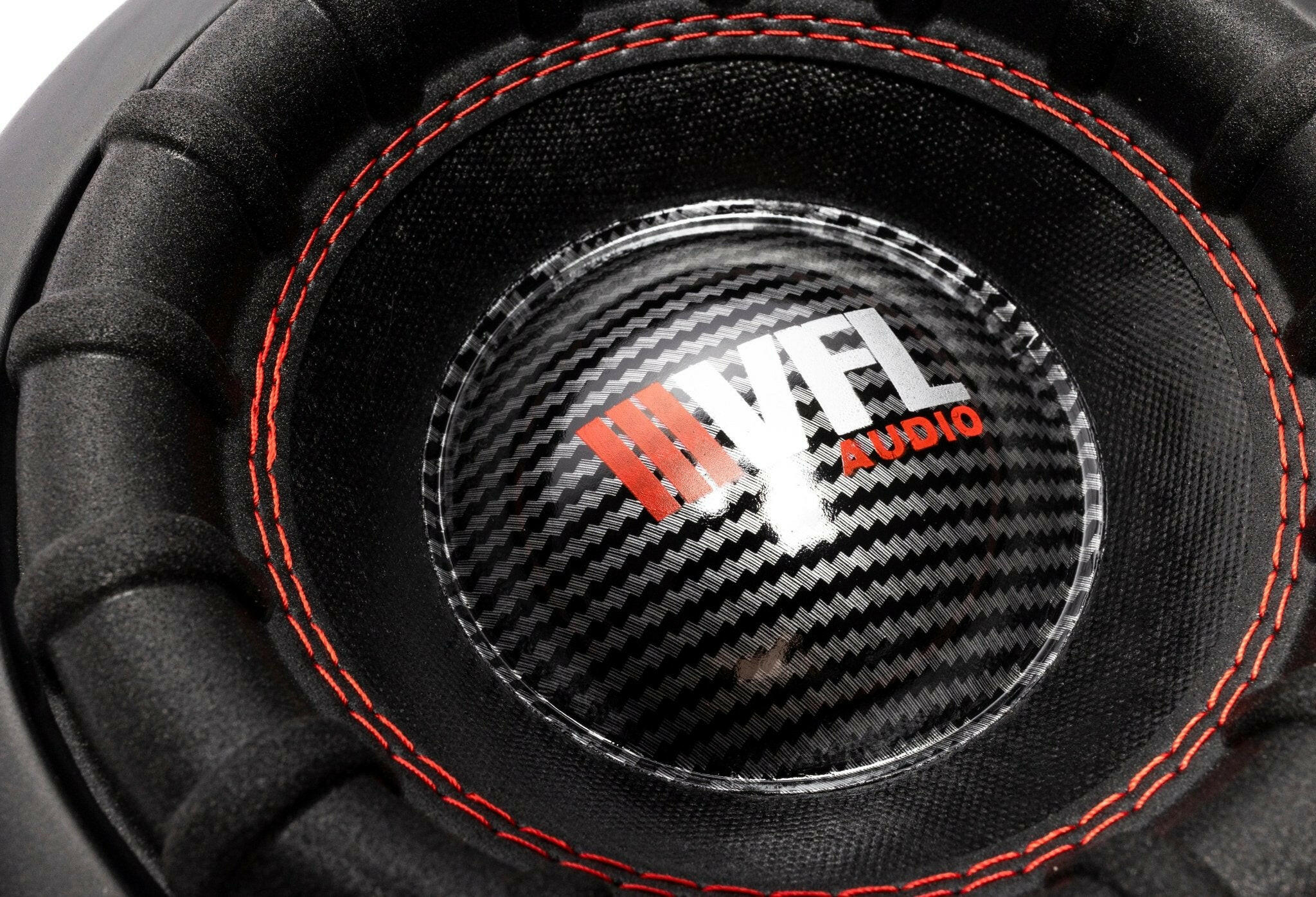

- Kevlar fiber plus non-press paper composite cone for stiff, accurate output
- 2.5" high-temperature voice coil for reliable power handling
- Red-stitched hi-roll ribbed foam surround for long, linear travel (13mm Xmax)

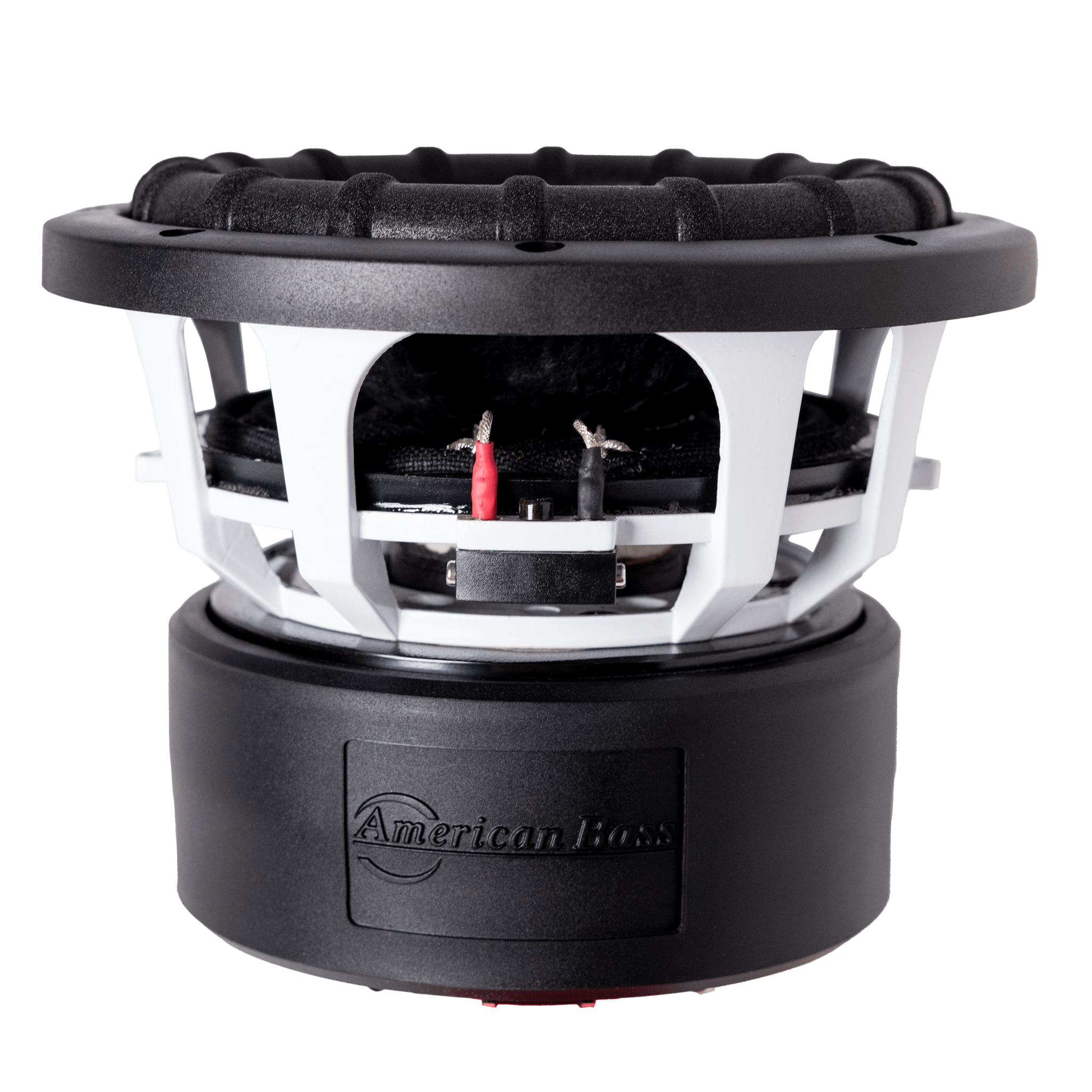

- Heavy-duty die-cast basket with black powder finish
- 120 oz double-stacked strontium magnet for tight control
Specifications
| RMS Power | 600W |
| Max Power | 1200W |
| Impedance | Dual 2Ω (VFL-822) or Dual 4Ω (VFL-844) |
| Sensitivity | 80.9 dB (2Ω) / 80.6 dB (4Ω) |
| Voice Coil | 2.5" high-temp |
| Magnet | 120 oz double-stacked strontium |
| Cone | Kevlar fiber + non-press paper composite |
| Surround | Red-stitched hi-roll ribbed foam |
| Basket | Heavy-duty die-cast, black powder finish |
| Mounting Depth | 5.43" |
| Cutout Diameter | 7.4" |
| Xmax | 13.0 mm |
| Fs | 37.2 Hz (2Ω) / 39.9 Hz (4Ω) |
| Qts | 0.35 (2Ω) / 0.46 (4Ω) |
| Qes | 0.377 (2Ω) / 0.516 (4Ω) |
| Qms | 4.14 (2Ω) / 4.29 (4Ω) |
| Vas | 5.009 L (2Ω) / 4.559 L (4Ω) |
| BL | 9.9 (2Ω) / 11.79 (4Ω) |
| Mms | 166.26 g (2Ω) / 160.29 g (4Ω) |
| Sd | 18.87 cm² |
