- 300W RMS / 600W max — real bass from a 6.5" driver
- Dual 4Ω voice coil — flexible wiring to your amp
- 2" high-temp voice coil — reliable power handling for its size
- 70 oz strontium magnet — tight, responsive control
- VFL-6544 — Kevlar-composite cone on a die-cast basket

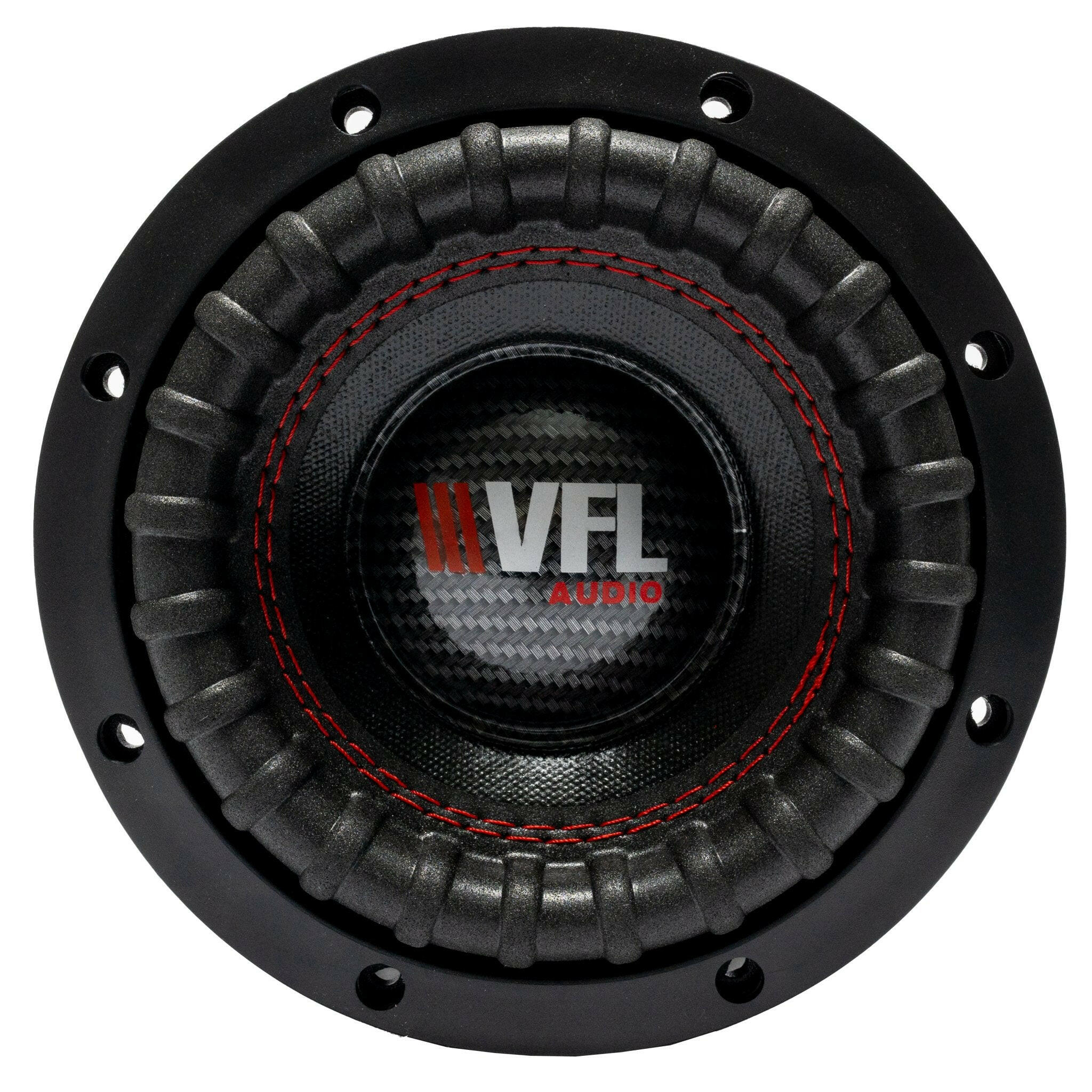

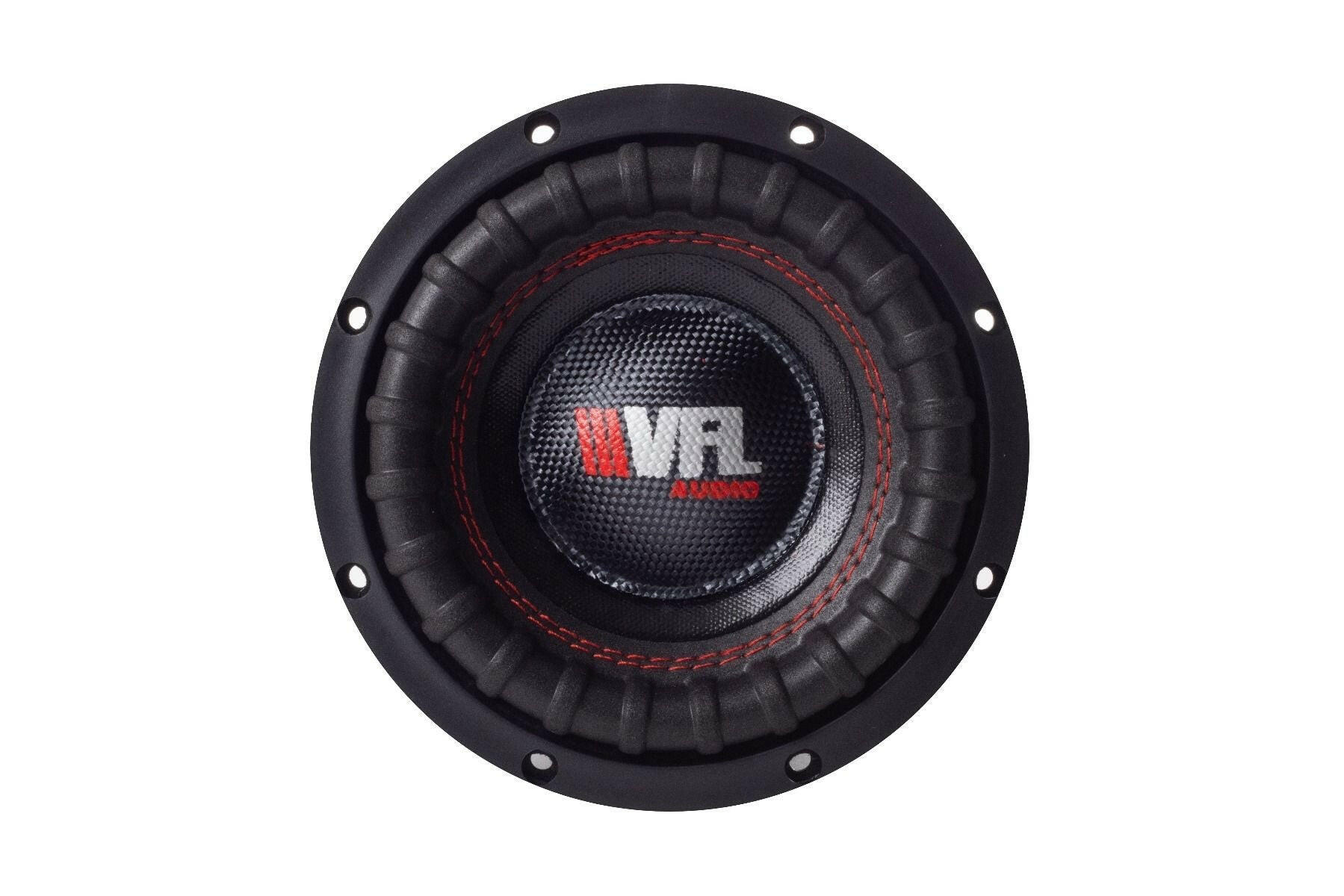

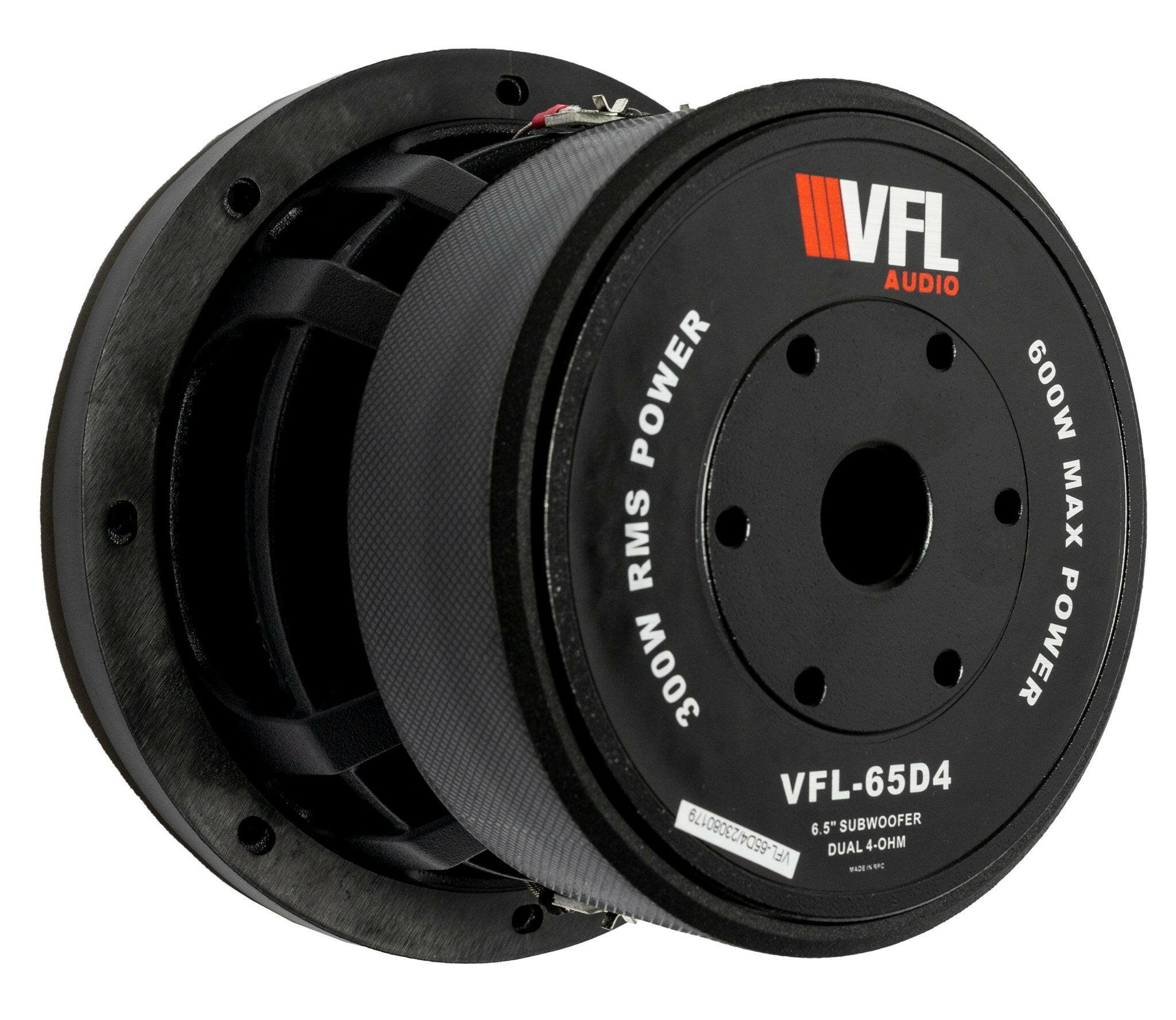

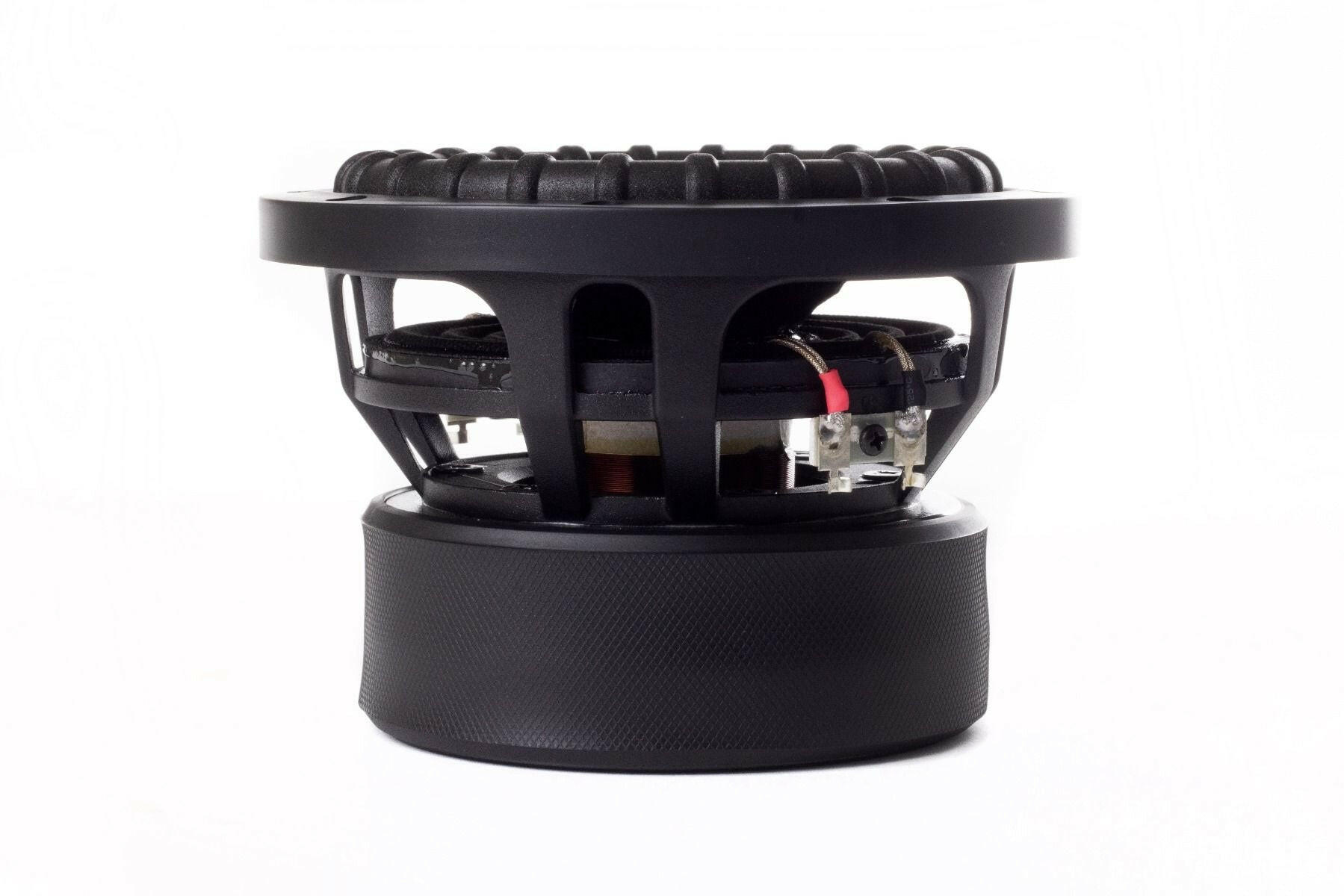

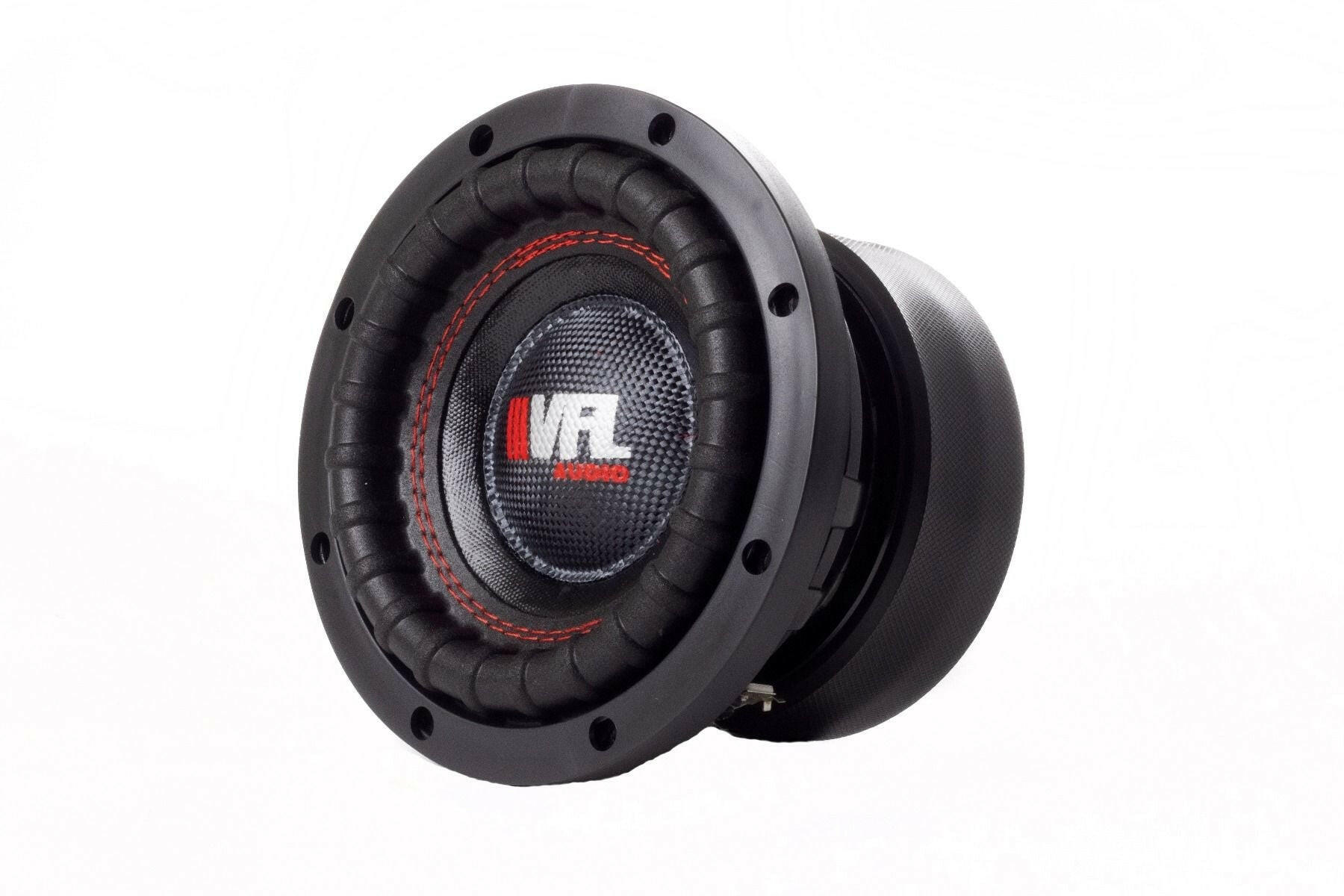

American Bass VFL 6.5" Car Subwoofer — 300W RMS Dual Voice Coil (VFL-6544)
This Listing Includes:
- (1) American Bass VFL 6.5" Subwoofer
The VFL 6.5" proves you don’t need a big enclosure to add real low end. Rated at 300W RMS and 600W max, the VFL 6.5" runs a 2" high-temp voice coil and a 70 oz strontium motor on a die-cast basket, making it ideal for door pods, tight trunks, and compact sealed builds. Its dual 4Ω voice coil keeps wiring flexible.
Features
- Kevlar fiber plus non-press paper composite cone for stiff, accurate output
- 2" high-temperature voice coil for reliable power handling
- Red-stitched hi-roll ribbed foam surround for clean excursion (8mm Xmax)
- Heavy-duty die-cast basket with black powder finish
- 70 oz double-stacked strontium magnet for responsive control
Specifications
| RMS Power | 300W |
| Max Power | 600W |
| Impedance | Dual 4Ω (VFL-6544) |
| Sensitivity | 80.9 dB |
| Voice Coil | 2" high-temp |
| Magnet | 70 oz double-stacked strontium |
| Cone | Kevlar fiber + non-press paper composite |
| Surround | Red-stitched hi-roll ribbed foam |
| Basket | Heavy-duty die-cast, black powder finish |
| Mounting Depth | 4.06" |
| Cutout Diameter | 5.98" |
| Xmax | 8.0 mm |
| Fs | 54.3 Hz |
| Qts | 0.58 |
| Qes | 0.656 |
| Qms | 4.73 |
| Vas | 2.552 L |
| BL | 8.41 |
| Mms | 70.27 g |
| Sd | 13.27 cm² |
