Crescendo Audio UN-12 v3 12" Pro Audio Loudspeaker 4 Ohm 600W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%0A%0AVOICE%20COIL%20%E2%80%94%202.5%22%20edgewound%0A%0ASENSITIVITY%20%E2%80%94%2097.3dB%201w/1m%0A%0AFREQUENCY%20%E2%80%94%20Usable%2060%E2%80%934,500Hz,%20Fs%2059Hz%0A%0AIMPEDANCE%20%E2%80%94%204%20ohm%0AThis%20Listing%20Includes:%20...
){kind=link}
- POWER — 600W RMS (recommended 300–750W RMS per speaker)
- VOICE COIL — 2.5" edgewound
- SENSITIVITY — 97.3dB 1w/1m
- FREQUENCY — Usable 60–4,500Hz, Fs 59Hz
- IMPEDANCE — 4 ohm
This Listing Includes: (1) Crescendo Audio UN-12 v3 12" Loudspeaker

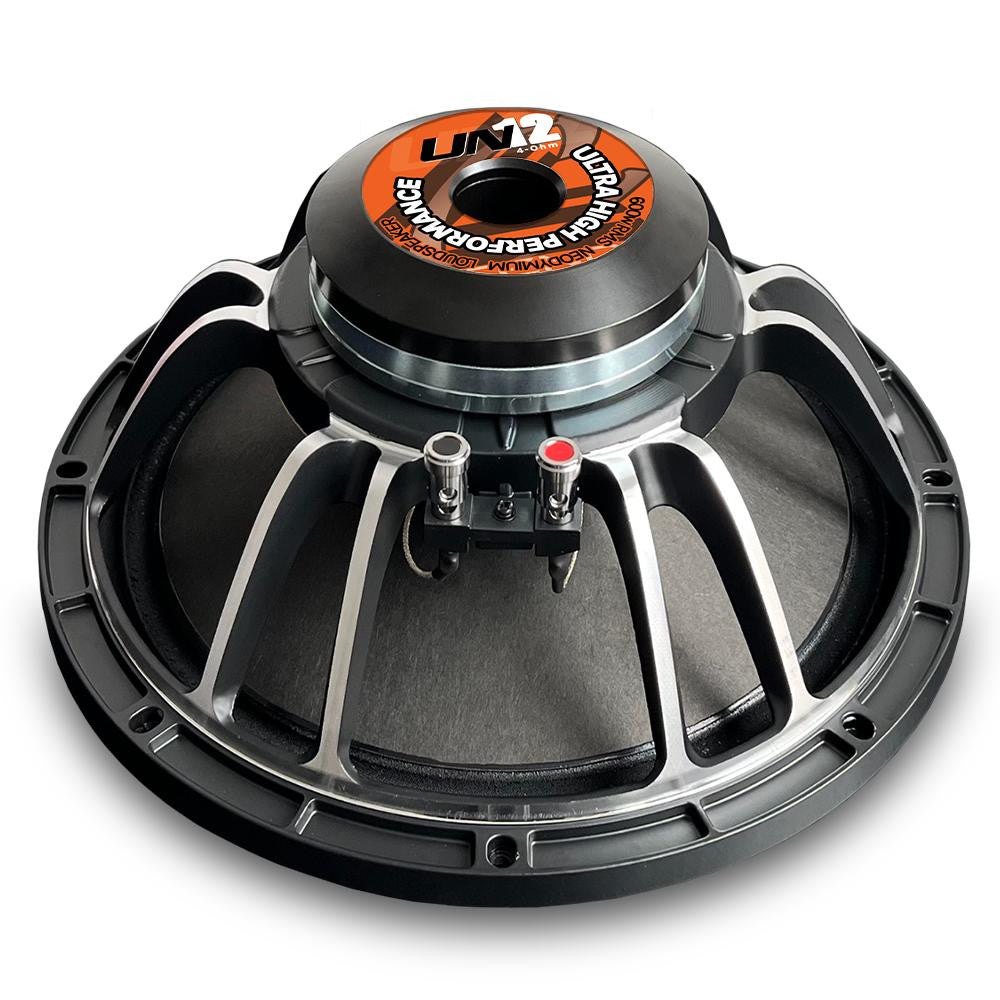

The UN Series is Crescendo's flagship pro audio loudspeaker line, and Version 3 brings a full evolution of performance upgrades. A lightweight treated cone, strategically reinforced for strength and durability, is paired with a DuPont Kapton former and edgewound CCAW voice coil for improved thermal and mechanical control. A larger N52H-grade neodymium motor with an integrated copper shorting ring and CNC-vented cast aluminum frame deliver powerful, full-bodied sound with crisp, dominant vocals and exceptional SPL efficiency. Sold individually. Authorized Crescendo Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Lightweight treated, reinforced cone
- DuPont Kapton former with edgewound CCAW voice coil
- N52H-grade neodymium motor with copper shorting ring
- CNC-vented cast aluminum frame
Specifications
| Size | 12" |
| RMS Power | 600W |
| Recommended Power | 300–750W RMS |
| Voice Coil | 2.5" edgewound |
| Sensitivity | 97.3dB 1w/1m |
| Fs | 59Hz |
| Usable Freq Response | 60–4,500Hz |
| Impedance | 4 ohm |

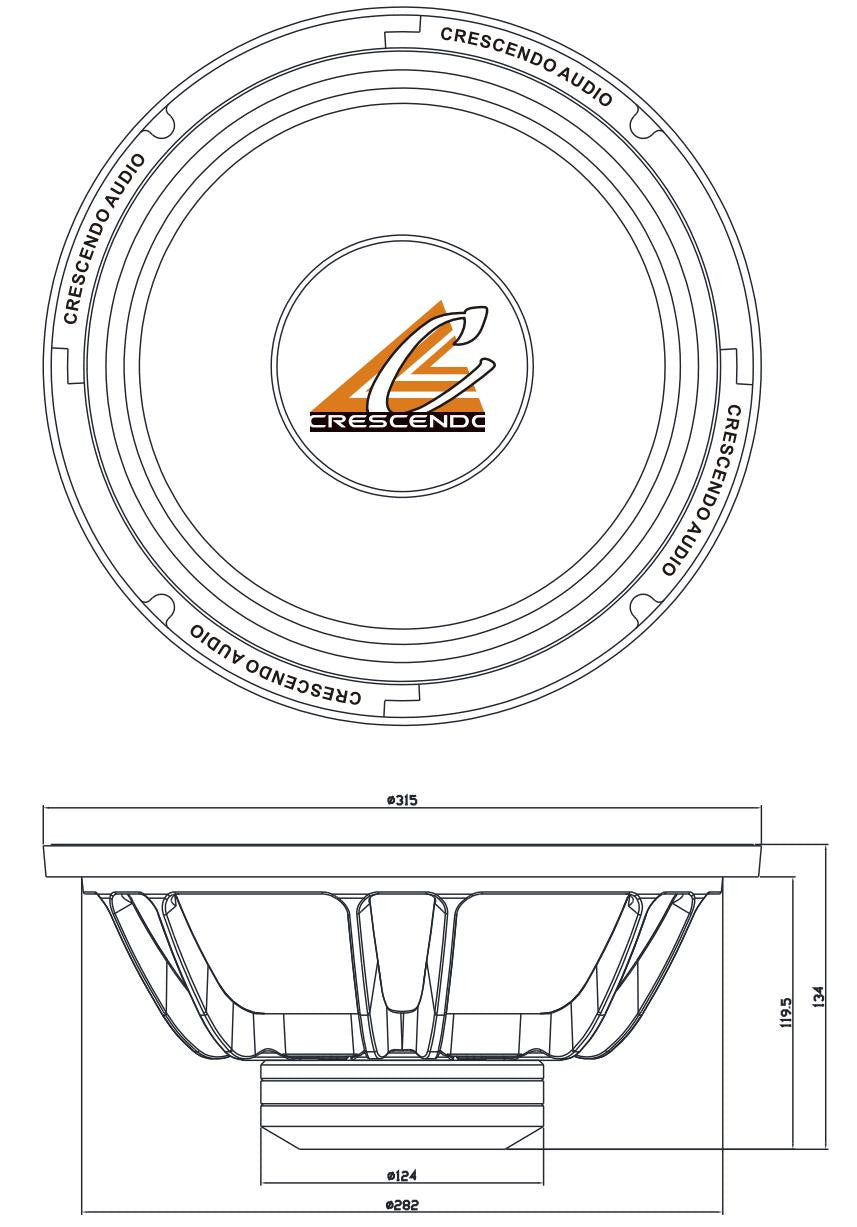

| Overall Diameter | 12 1/2" |
| Hole Cutout | 11 1/8" |
| Mounting Depth | 4.75" |
| Flush Mount Depth | 0.55" |
