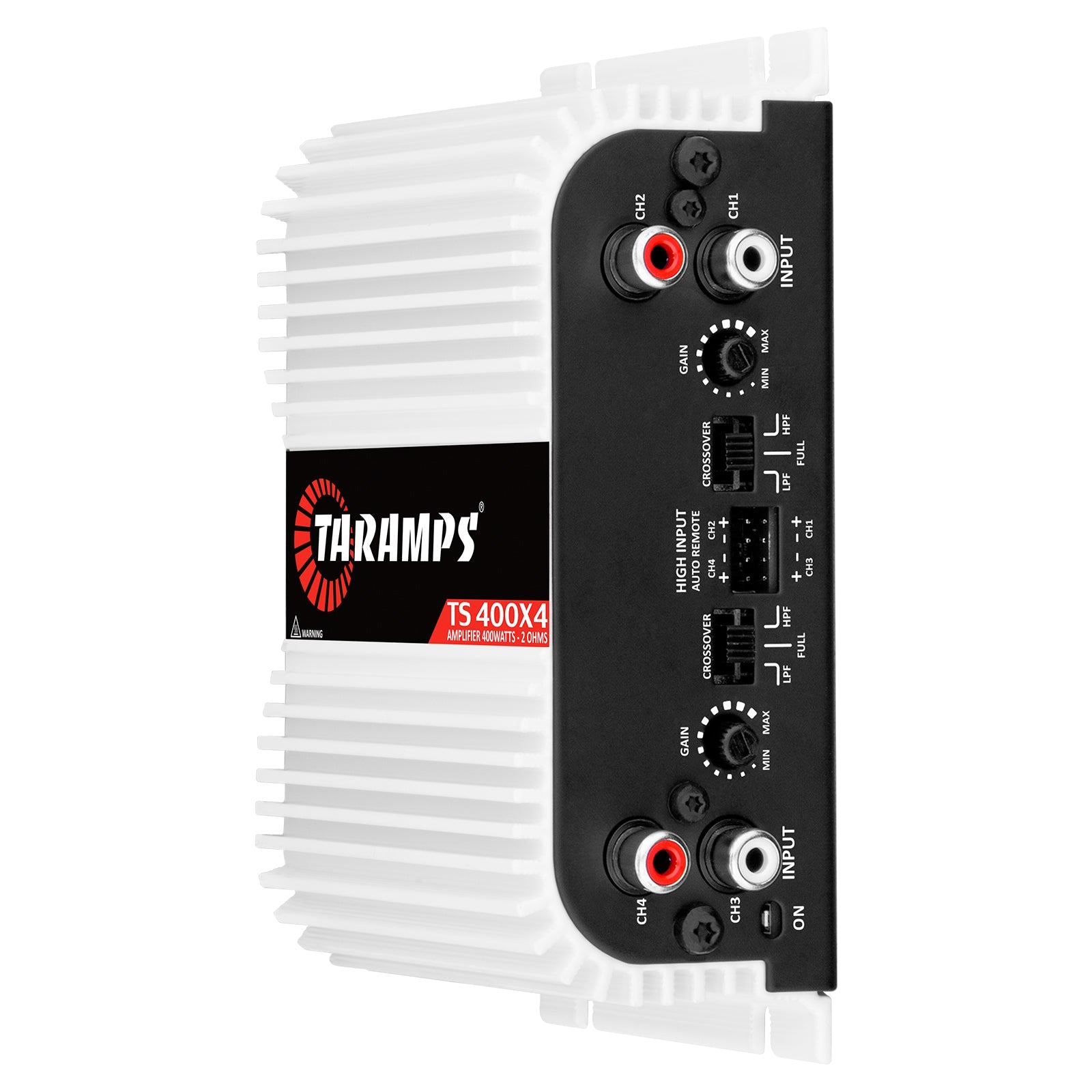

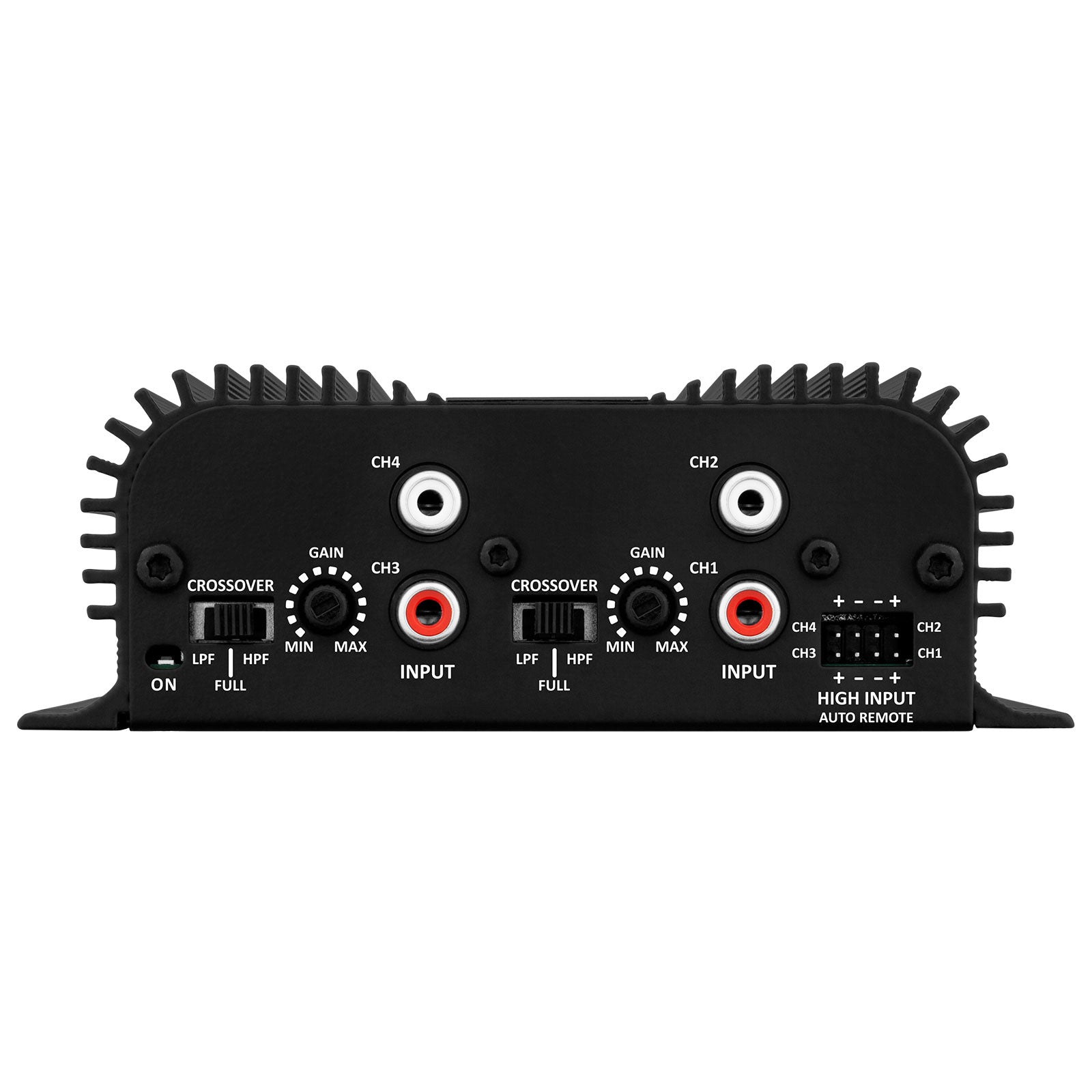

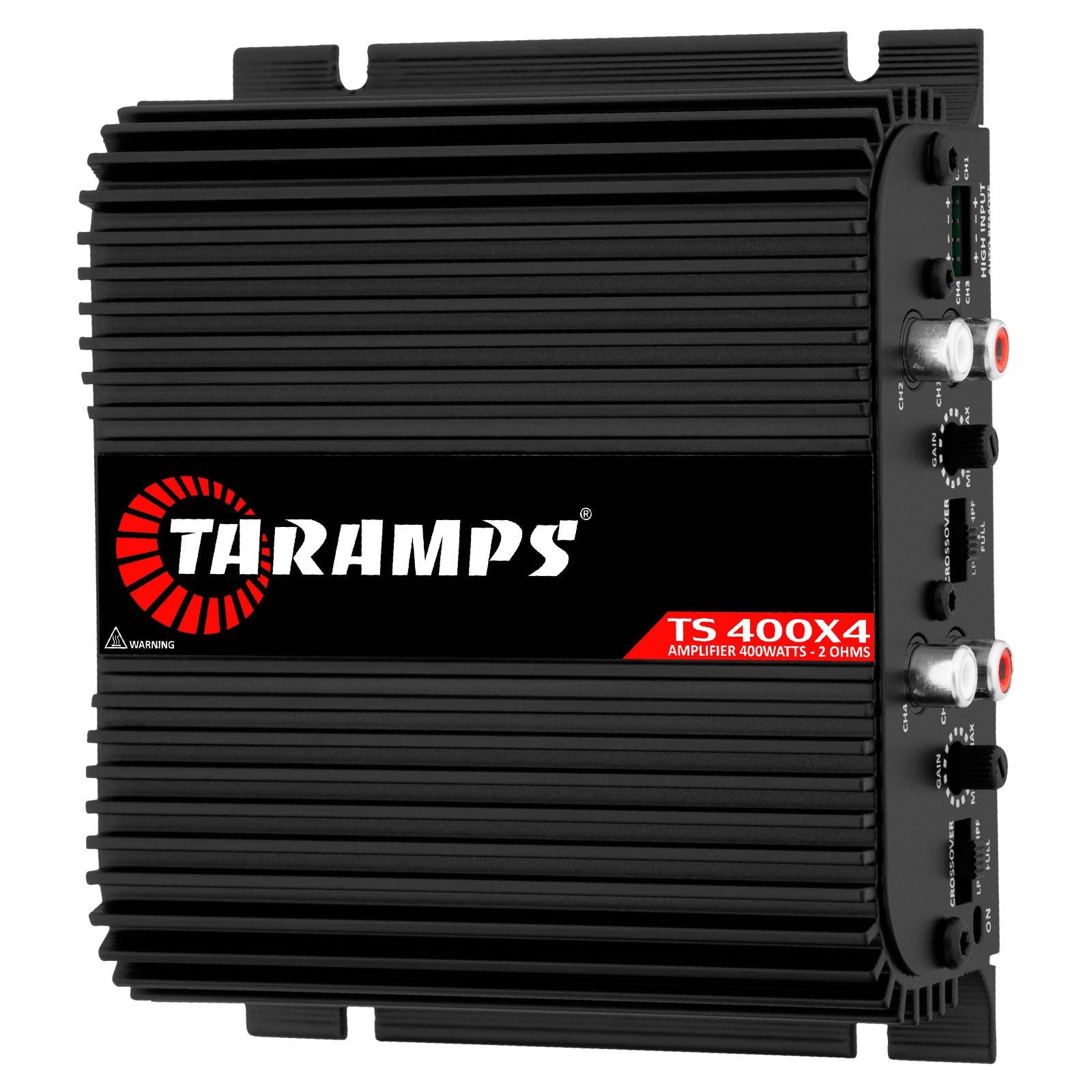

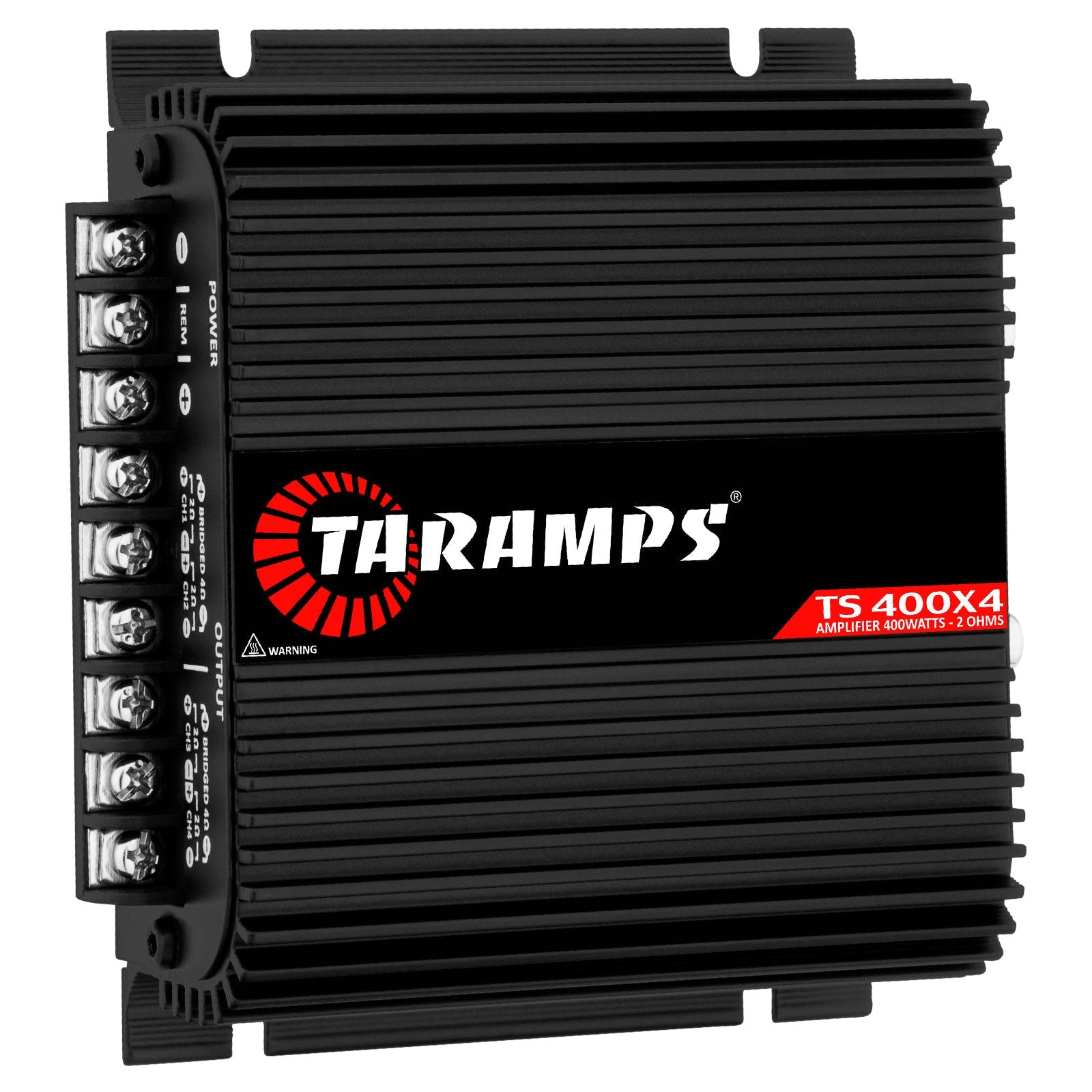

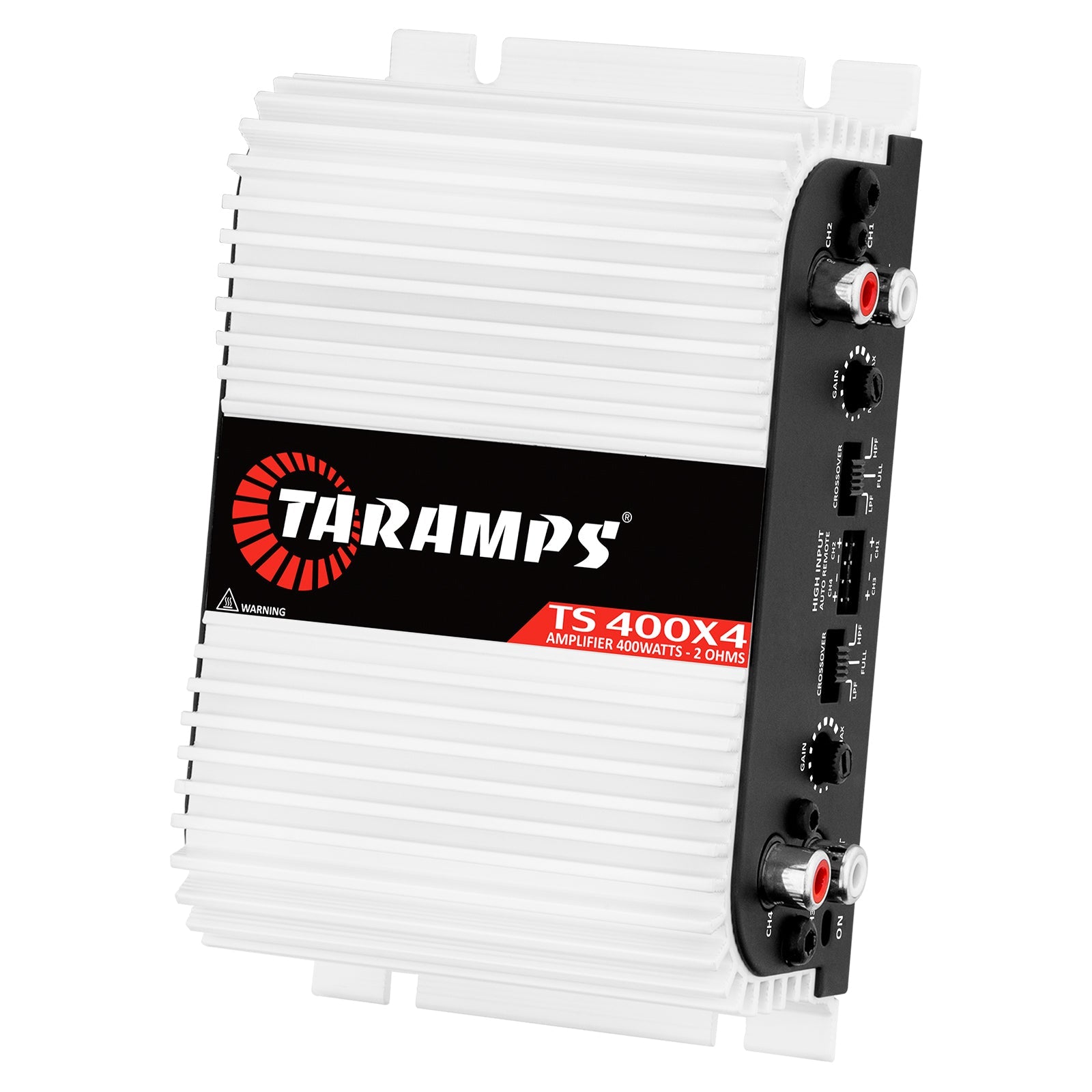

Taramps TS 400X4 HIGH LEVEL INPUT Car Audio Amplifier | NEW SMALL SIZE!
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

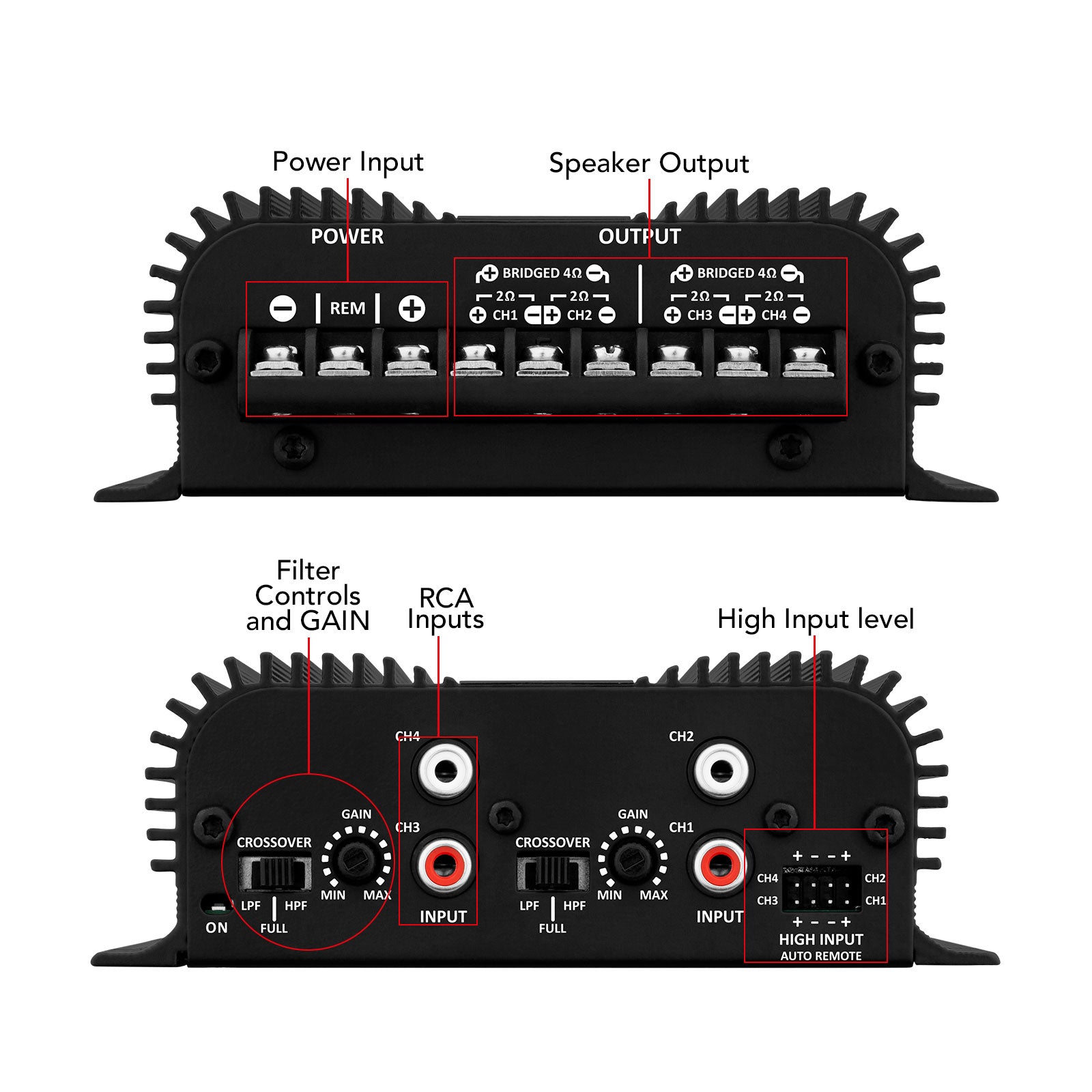

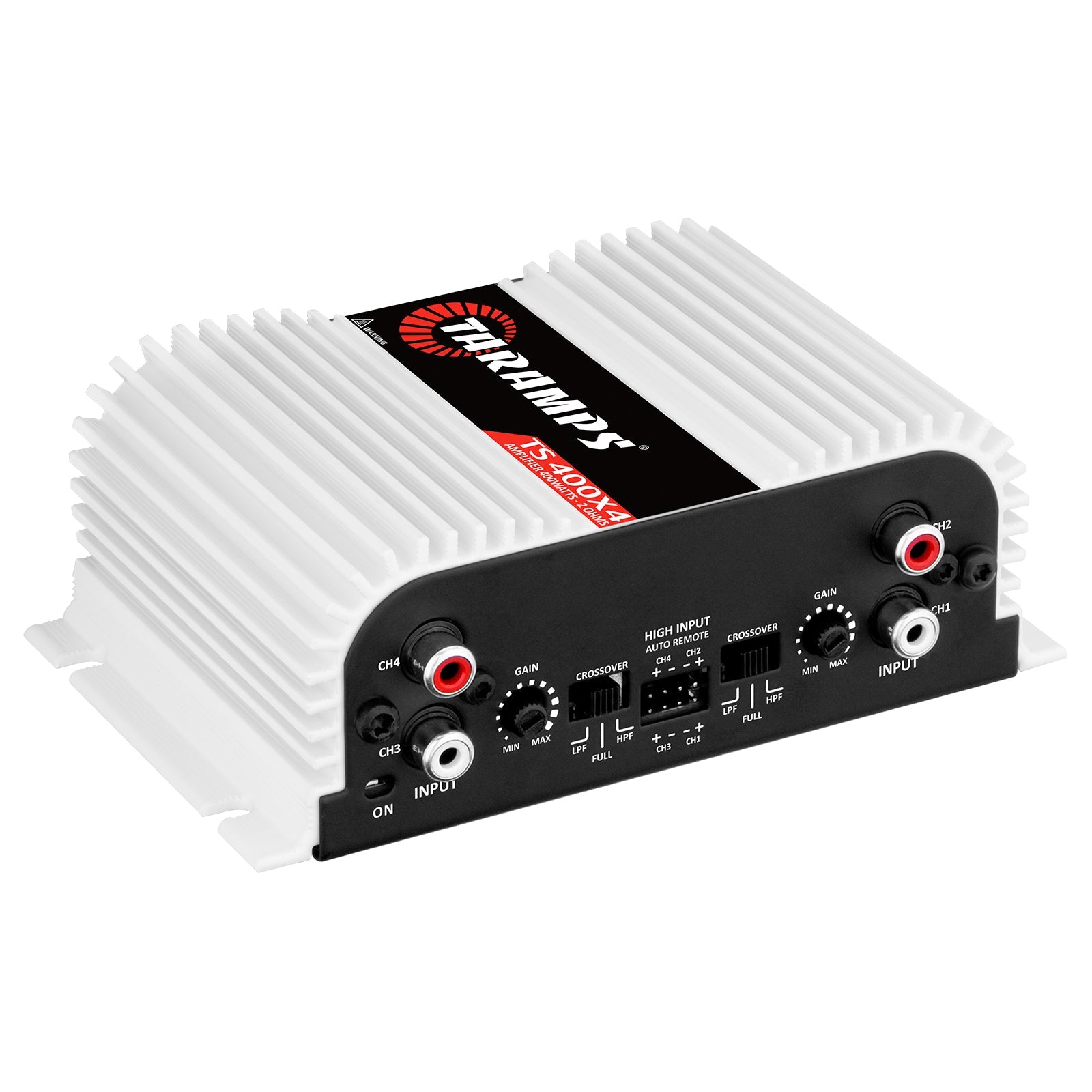

Upgrade effortlessly with the TS 400x4 amplifier, featuring high input with automatic activation—no adapters needed. With 400 watts across 4 channels, versatile connectivity, and reliable Taramps features, it enhances your music experience seamlessly.
SMALLER SIZE, SAME POWER!
Technical Specifications
| Power | 400 watts |
| Maximum Power | @ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS) @ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS) Bridge @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS) |
| Number Of Channels | 4 |
| Operation Class | CLASS D |
| Output Impedance | 2 ohms |
| Input Impedance | 22K ohms |
| Input Sensitivity | 200mV (Vol = max.) |
| Frequency Response | 18Hz ~ 30KHz (-3dB) |
| Signal To Noise Ratio | > 90dB |
| Crossover High Pass (HPF) | 90 Hz (-12dB/8th) |
| Crossover Low Pass (LPF) | 90 Hz (-12dB/8th) |
| Connectivity | 2 |
| Minimum Supply Voltage | 8 VDC |
| Maximum Supply Voltage | 16 VDC |
| Consumption At Rest | 0.8A |
| Maximum Consumption In Sinusoidal Signal | @13,8VDC: 33A |
| Maximum Music Consumption | @13,8VDC: 16.5A |
| Protection System | Thermal and Output Short |
| Dimensions | 3.50" x 1.14" x 4.7" (89 x 29 x 119mm) |
| Weight | 1.322 lbs (0.6 kg) |
