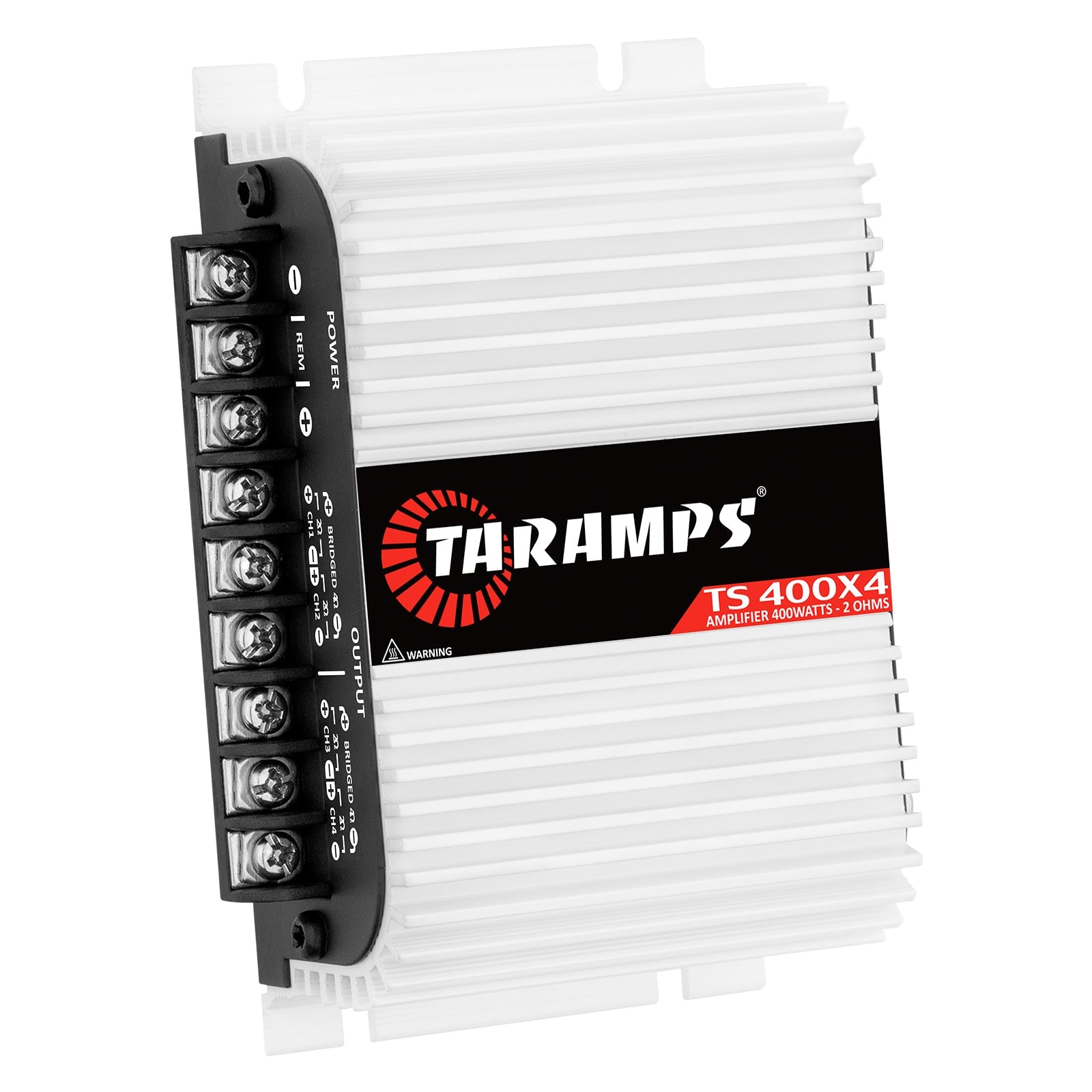

Enhance your audio setup with the TS 400x4 amplifier! This full-range, multichannel amp delivers 400 Watts RMS across four channels, providing top-notch performance with thermal and short-circuit protection for reliability and safety.
SMALLER SIZE, SAME POWER!
Technical Specifications
| Maximum Power | @ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS) @ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS) Bridge @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS) |
| Number Of Channels | 4 |
| Operation Class | Class D |
| Output Impedance | 2 ohms |
| Input Impedance | 22K ohms |
| Input Sensitivity | 200mV (Vol = max.) |
| Frequency Response | (Full Range): 18 Hz to 30 kHz (-1dB) |
| Signal To Noise Ratio | > 90dB |
| Crossover High Pass (HPF) | 90 Hz (-12dB/8th) |
| Crossover Low Pass (LPF) | 90 Hz (-12dB/8th) |
| Minimum Supply Voltage | 8 VDC |
| Maximum Supply Voltage | 16 VDC |
| Consumption At Rest | 0.8A |
| Maximum Consumption In Sinusoidal Signal | @13,8VDC: 33A |
| Maximum Music Consumption | @13,8VDC: 16.5A |
| Protection System | Thermal and Output Short |
| Dimensions | 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm) |
| Weight | 1.322 lbs (0.6 kg) |
