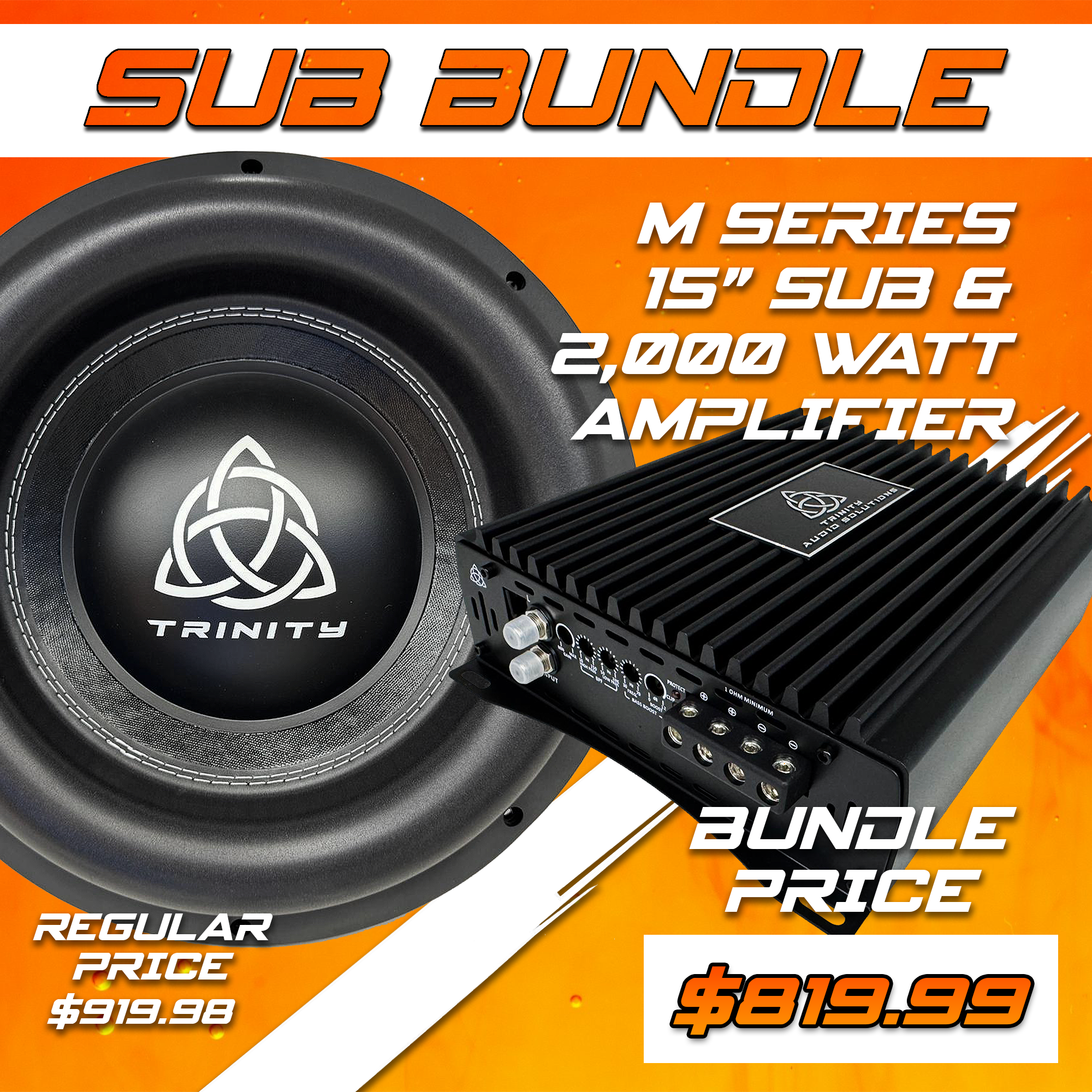

Trinity Audio Solutions M Series 15" Subwoofer + 2000.1v2 Monoblock Amp Bundle — 2,000W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20of%20deep,%20hard-hitting%20bass,%20bundled%20with%20a%20matched%20Trinity%20monoblock%20amplifier%20for%20a%20complete,%20ready-to-build%20l...
){kind=link}
The Trinity Audio Solutions M Series 15" subwoofer delivers 2,000W RMS (6,000W burst) of deep, hard-hitting bass, bundled with a matched Trinity monoblock amplifier for a complete, ready-to-build low-end package. The M Series pairs a double-stacked 650oz ferrite motor with a 3" high-temperature dual voice coil, triple-layer high-excursion surround, and rigid composite paper cone.
Subwoofer Specifications
| Parameter | M15 D1 / D2 |
| FS | 28.3 Hz / 27.2 Hz |
| Re | .95 Ω + .95 Ω / 1.9 Ω + 1.9 Ω |
| Qms | 6.13 / 6.44 |
| Qes | 0.45 / 0.4 |
| Qts | 0.42 / 0.38 |
| Mms | 502.1 g / 552 g |
| Cms | 0.06 mm/N / 0.06 mm/N |
| Sd | 122.72 in² / 122.72 in² |
| Vas | 50.4 L / 48.4 L |
| SPL | 92.3 dB / 89.4 dB |
| BL | 19.3 / 31 |
| X-max | 25mm / 25mm |
| Outer Diameter | 15.5 in |
| Cutout Diameter | 13.78 in |
| Motor Diameter | 9.05 in |
| Mounting Depth | 9.37 in |
| Displacement | .36 ft³ |
| Coil Dimensions | 3" x 55mm |
| Coil Wire | Black CCA |
| Ferrite Grade | Y35 |
| Terminal Wire Gauge | 4ga |
| RMS Power | 2,000 W |
| Burst Power | 6,000 W |
Included Amplifier: Trinity 2000.1v2 Monoblock
The Trinity Audio Solutions 2000.1v2 2,000 Watt Class D monoblock amplifier pairs perfectly with this subwoofer. Built around an oversized heat sink and efficient Class D design, it delivers strong, stable power in a compact footprint.
Amplifier Specifications
| RMS @ 4 Ohms | 720 Watts |
| RMS @ 2 Ohms | 1,100 Watts |
| RMS @ 1 Ohm | 2,000 Watts |
| Total Harmonic Distortion | <.02% |
| Signal to Noise Ratio | 94dB |
| Frequency Range | 10 Hz - 20,000 Hz |
| Signal Input Range | .4 - 7 VAC |
| DC Voltage Input Range | 9-16.5 VDC |
| Dimensions (L x W x H) | 8" x 7.5" x 2.5" |
Features
- Compact, small-footprint chassis
- Included bass knob with volt meter & clip indicator
- Tiffany-styled panel-locking RCA inputs
- All-metal adjustment potentiometers
- Active on-board cooling fan
JS Ultimate Sounds is an authorized Trinity Audio Solutions dealer. Every product is 100% genuine and backed by full manufacturer warranty. Questions about fitment, wiring, or building your system? Our car-audio experts are here to help — reach out any time.
