Trinity Audio Solutions B Series 15" Single Ported Subwoofer Enclosure — 3.4 cubic feet @ 30 Hz
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

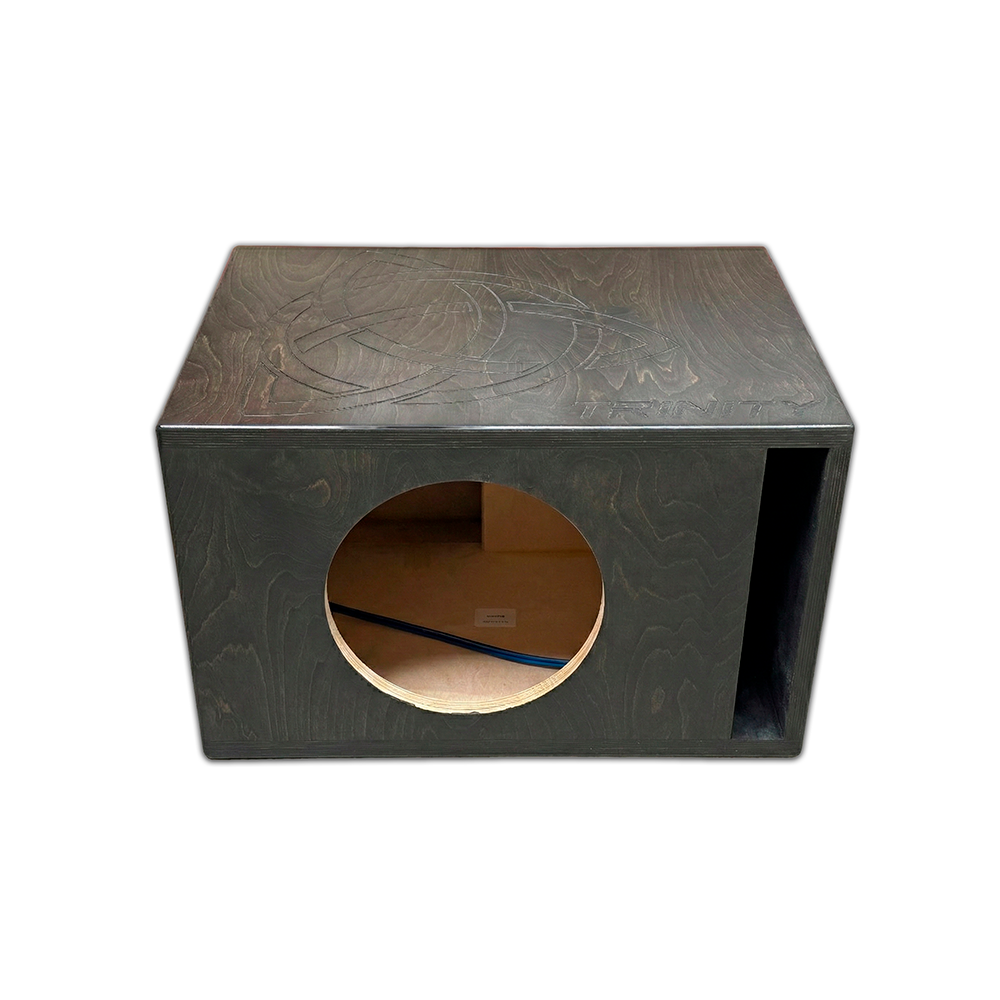

Engineered specifically for the Trinity Audio Solutions B Series 15" subwoofer, this single ported enclosure delivers optimal airspace and 30 Hz tuning for deep, controlled bass response. Each box is precision-built for a factory-tight fit and a clean, finished look.
Specifications
| Net Volume | 3.4 cubic feet |
| Tuning | 30 Hz |
| Port Area | 44.56 sq in |
| Port Size | 15.499" x 2.875" |
| Cutout | 13.78" |
| Construction | 3/4" (18mm) Russian Baltic Birch — 13 ply |
| Baffle | Solid 1" (24mm) front baffle — 17 ply |
| Finish | Carbon gray stain with polyurethane topcoat |

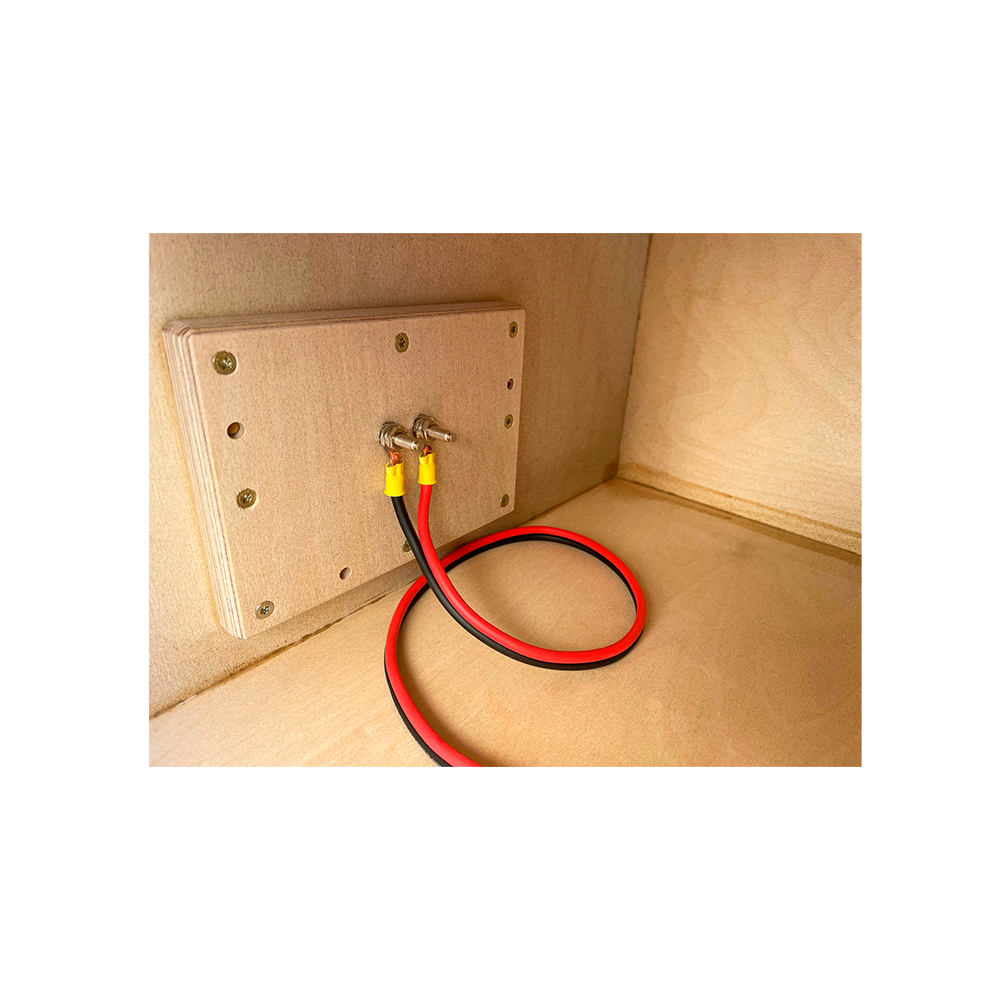

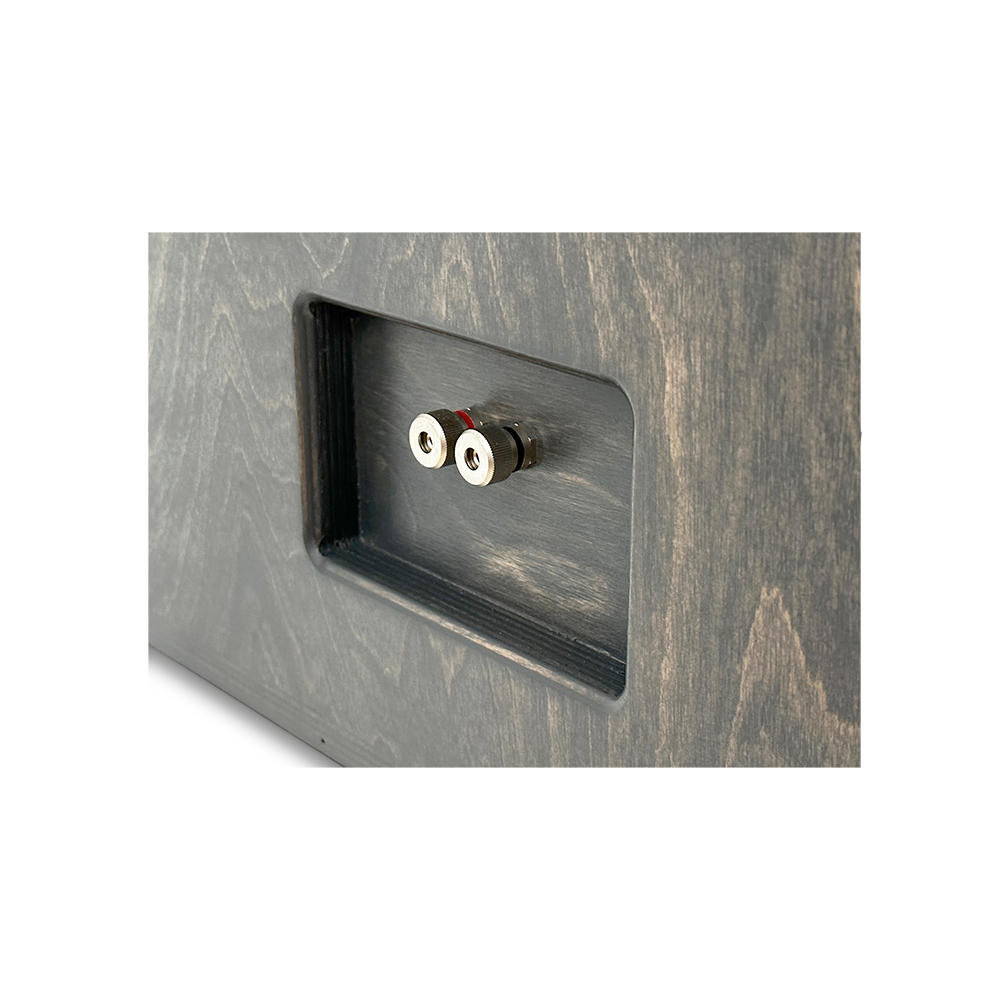

| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power Rating | Up to 1750W RMS |
| Dimensions (H x W x D) | 17.0" x 29.875" x 20.0" |
Features
- Handcrafted by hand in the USA
- Zero visible screw holes on the exterior for a clean, show-quality look
- Fully glued with Titebond III for airtight integrity and long-term durability
- Arrives ready to install — just wire up your subwoofer
Lead time: Built to order. Ships in 2-3 weeks. All sales final.
