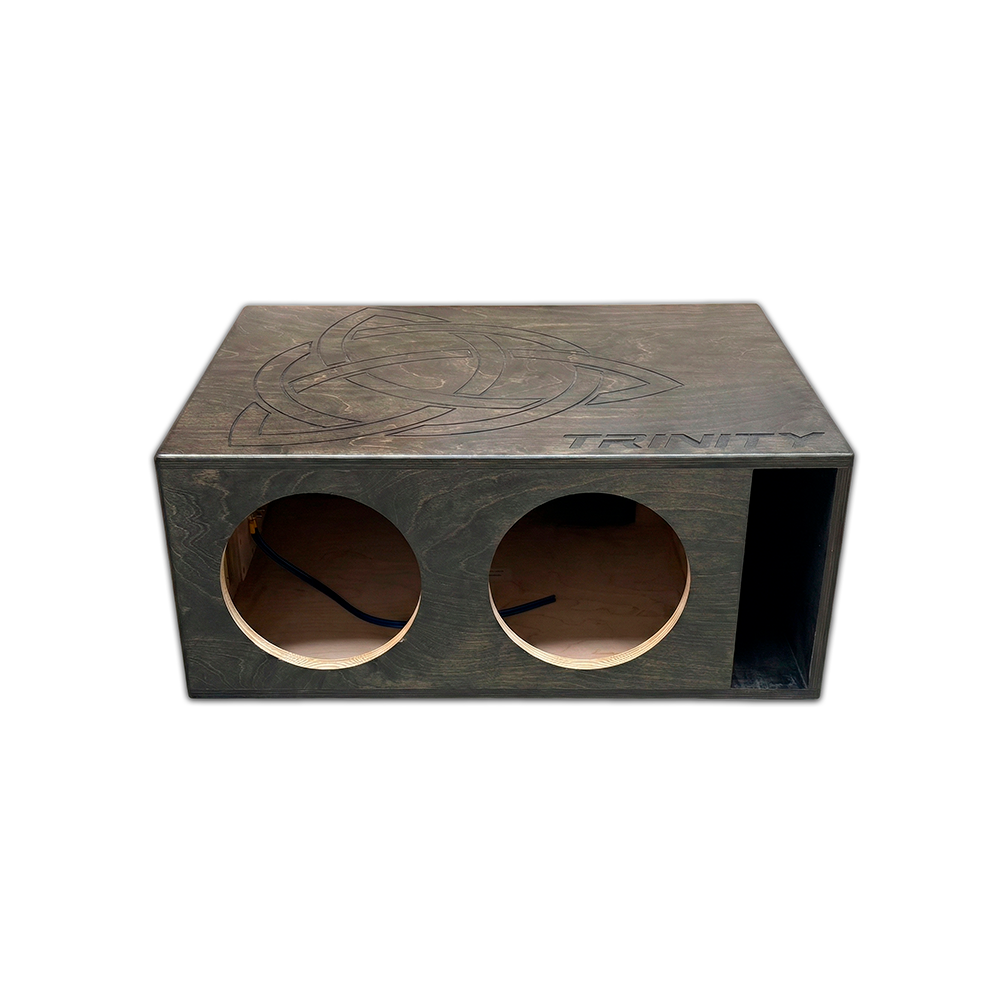

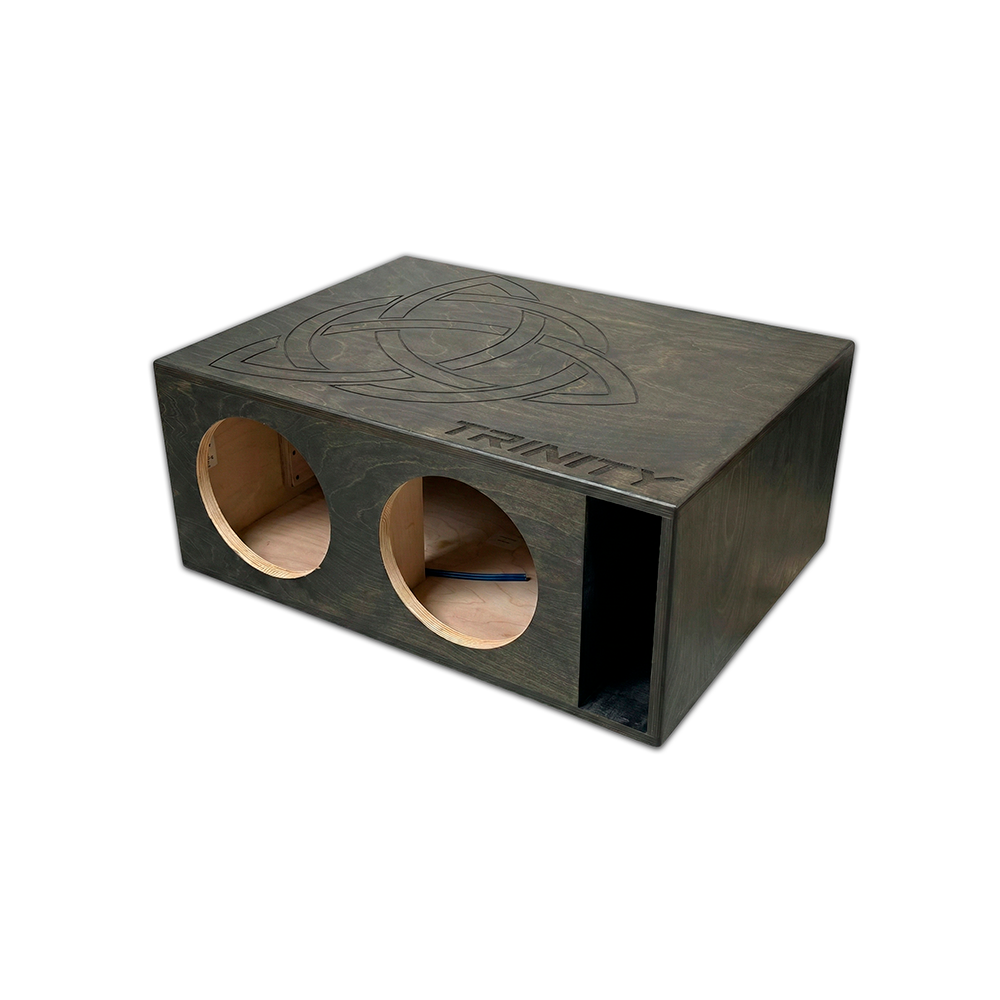

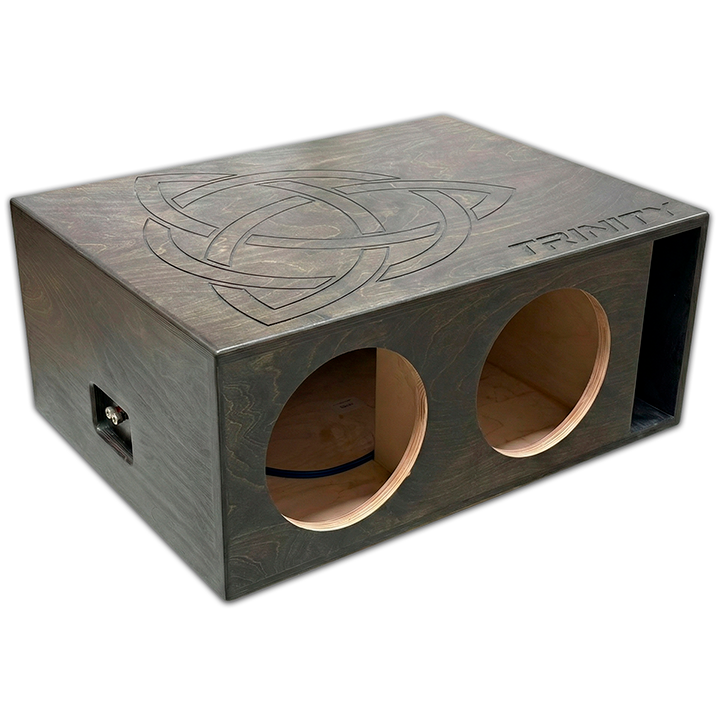

Engineered specifically for the Trinity Audio B Series 10" subwoofer, this dual 10" ported enclosure delivers the airspace and 33 Hz tuning needed for deep, controlled bass. Handcrafted by hand in the USA from Russian Baltic birch, it arrives ready to install — just wire up your subwoofers and enjoy.
Specifications
| Net Volume | 3.2 cubic feet |
| Tuning | 33 Hz |
| Port Area | 42.55 sq in |
| Port Size | 11.5" x 3.7" |
| Cutout | 9.25" |
| Construction | 3/4" (18mm) Russian Baltic birch, 13-ply |
| Baffle | Solid 1" (24mm) front baffle, 17-ply |
| Bracing | 3/4" (18mm) center baffle brace |
| Finish | Carbon gray stain with polyurethane topcoat |

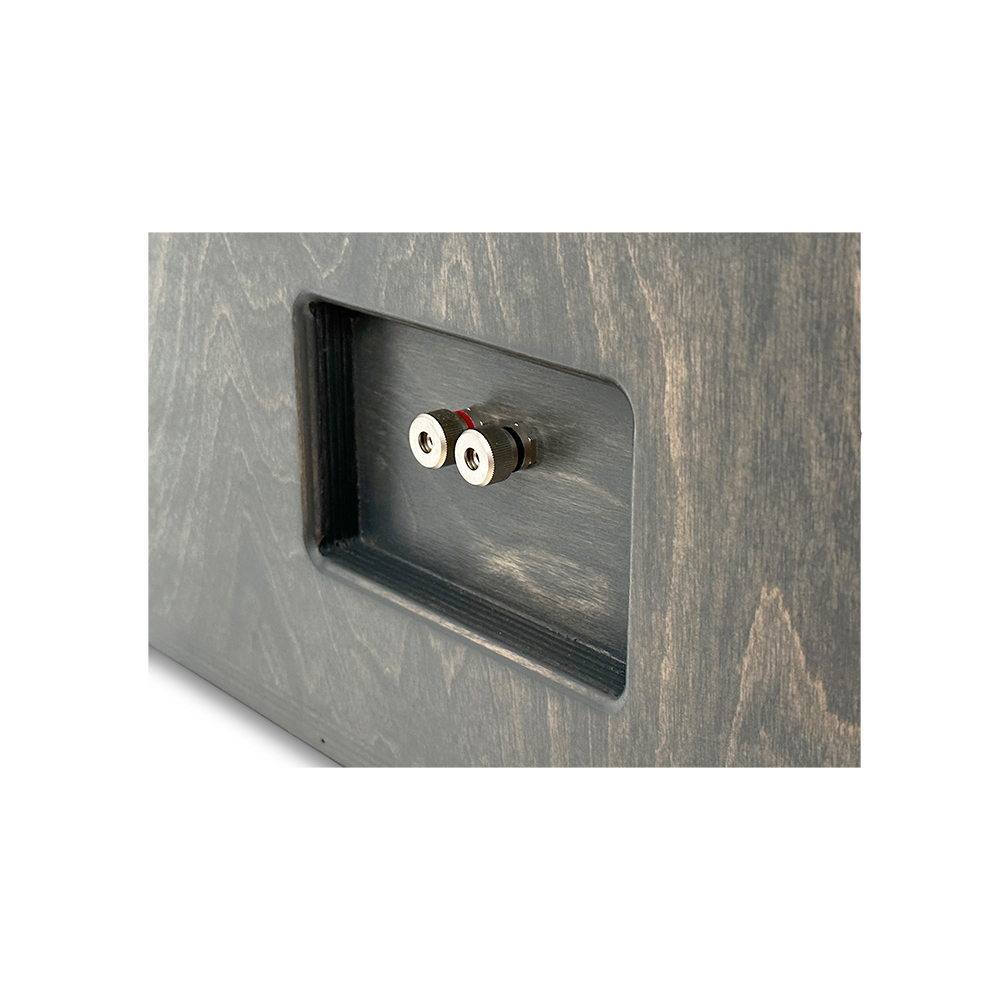

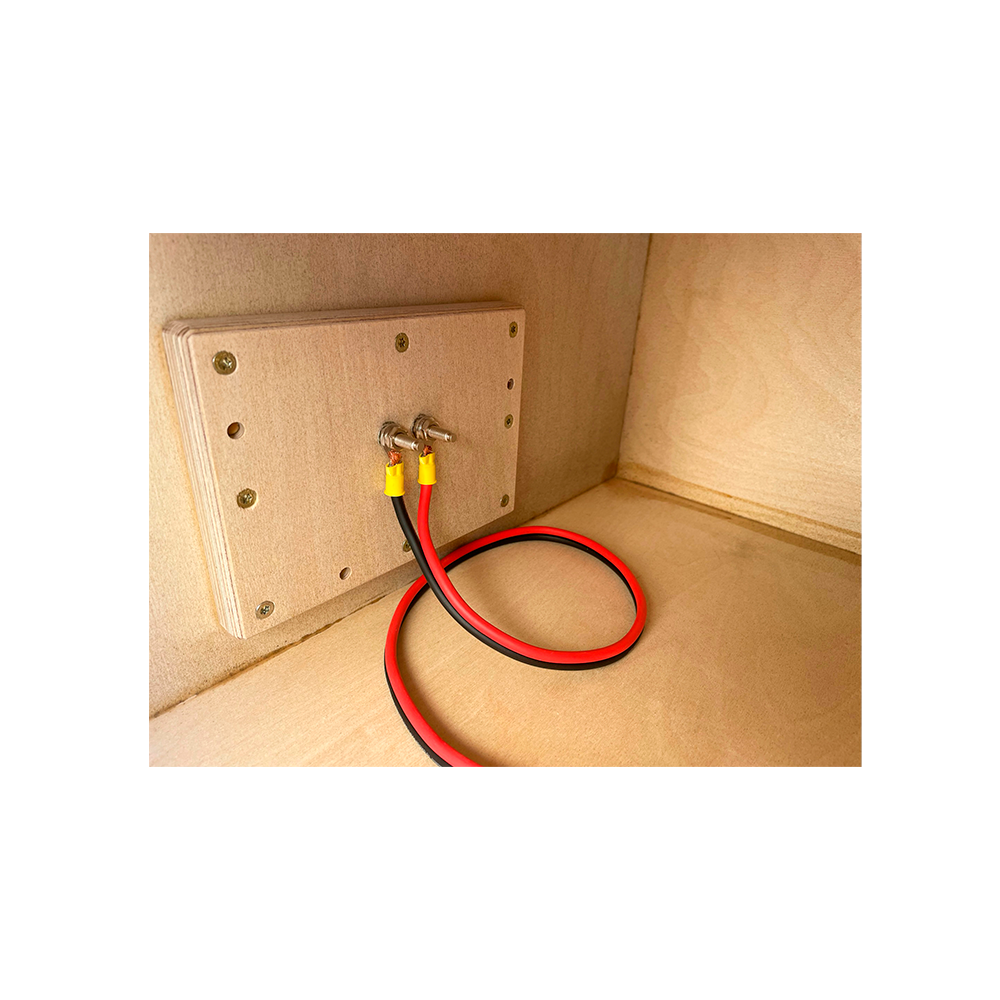

| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power Rating | Up to 3,500W RMS |
| Dimensions (H x W x D) | 13.0" x 31.0" x 23.0" |
Features
- Handcrafted in the USA with zero visible exterior screw holes
- Fully glued with Titebond III for airtight integrity and durability
- Ships ready to install
Built to order. Ships in 2–3 weeks. All sales final.
