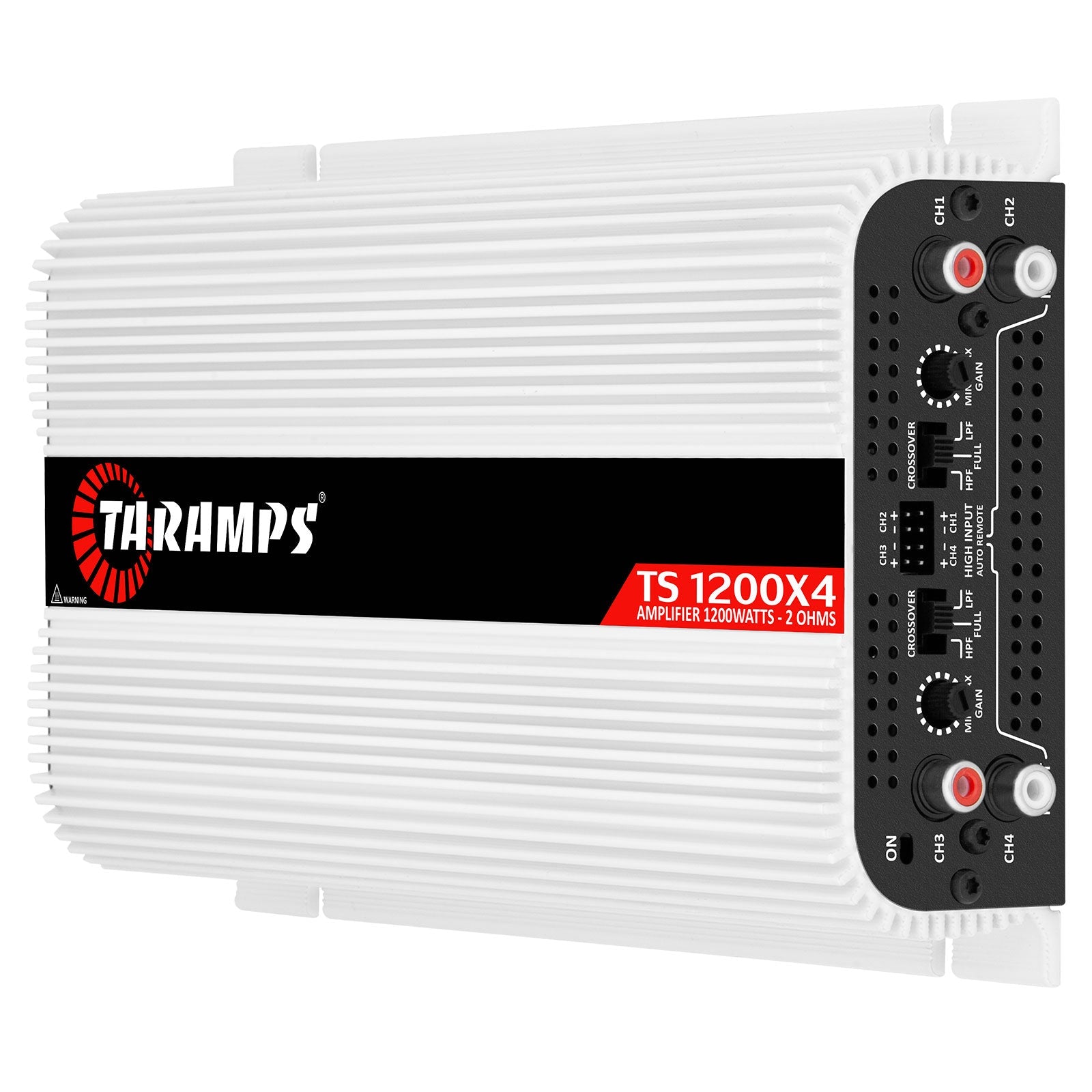

Taramps TS 1200x4 Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

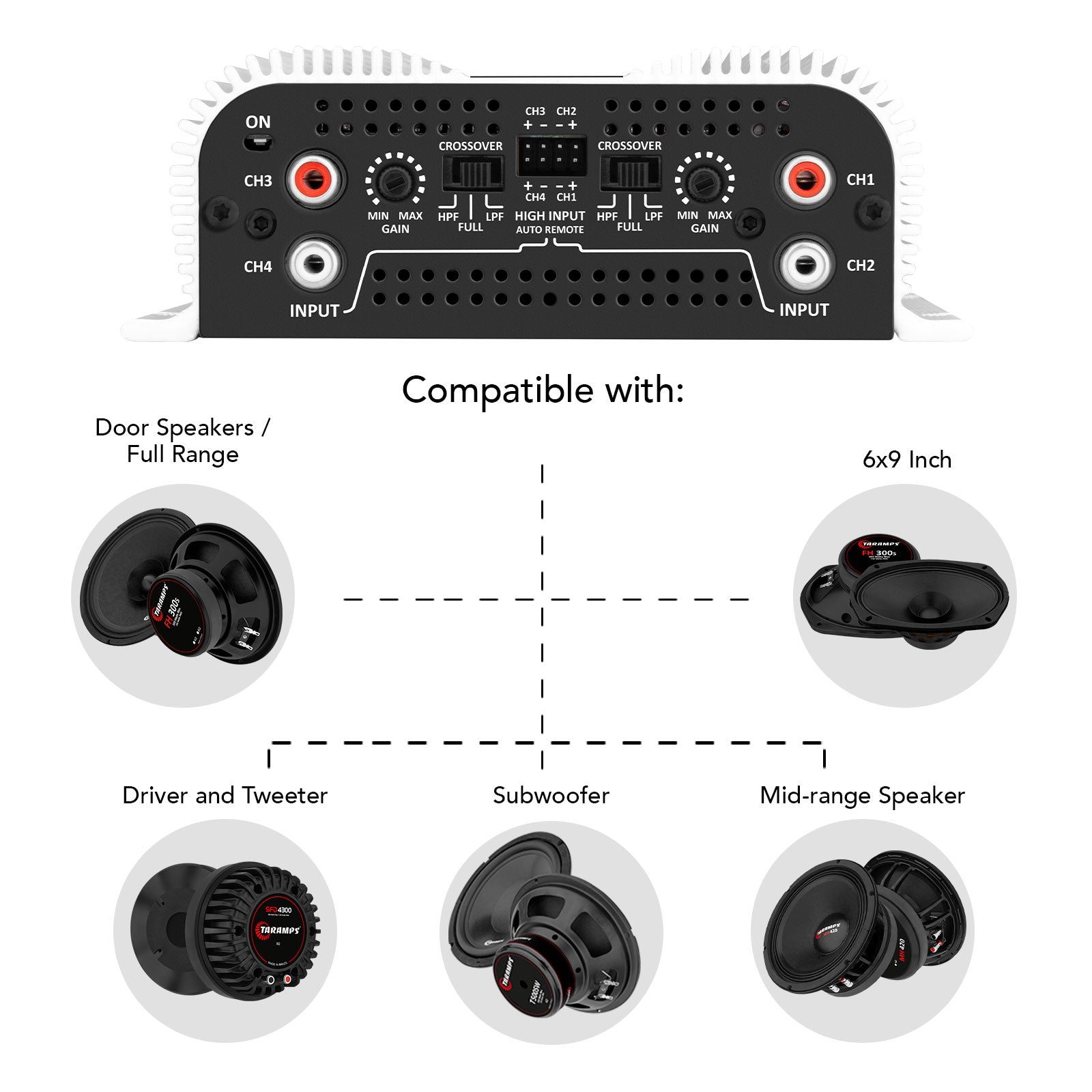

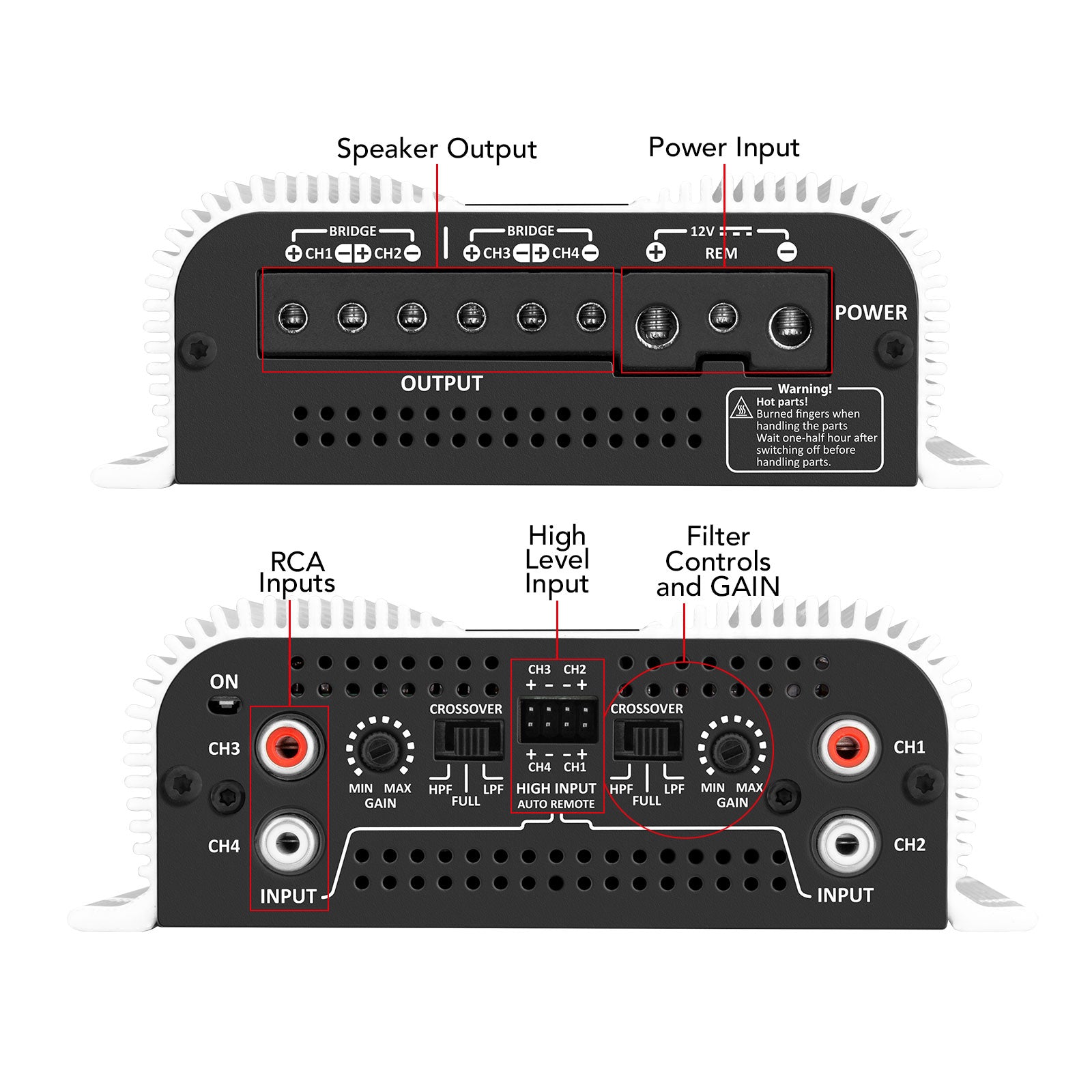

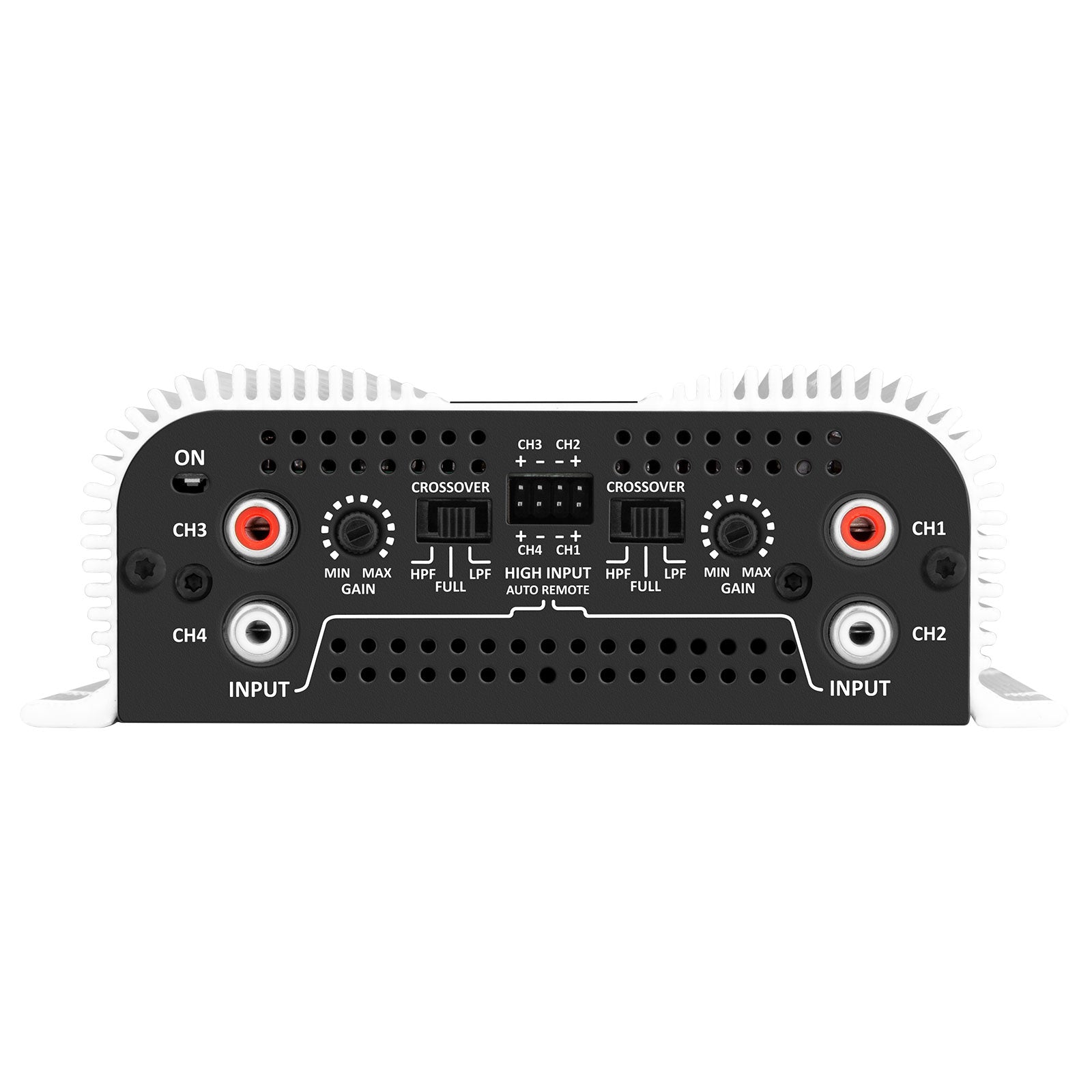

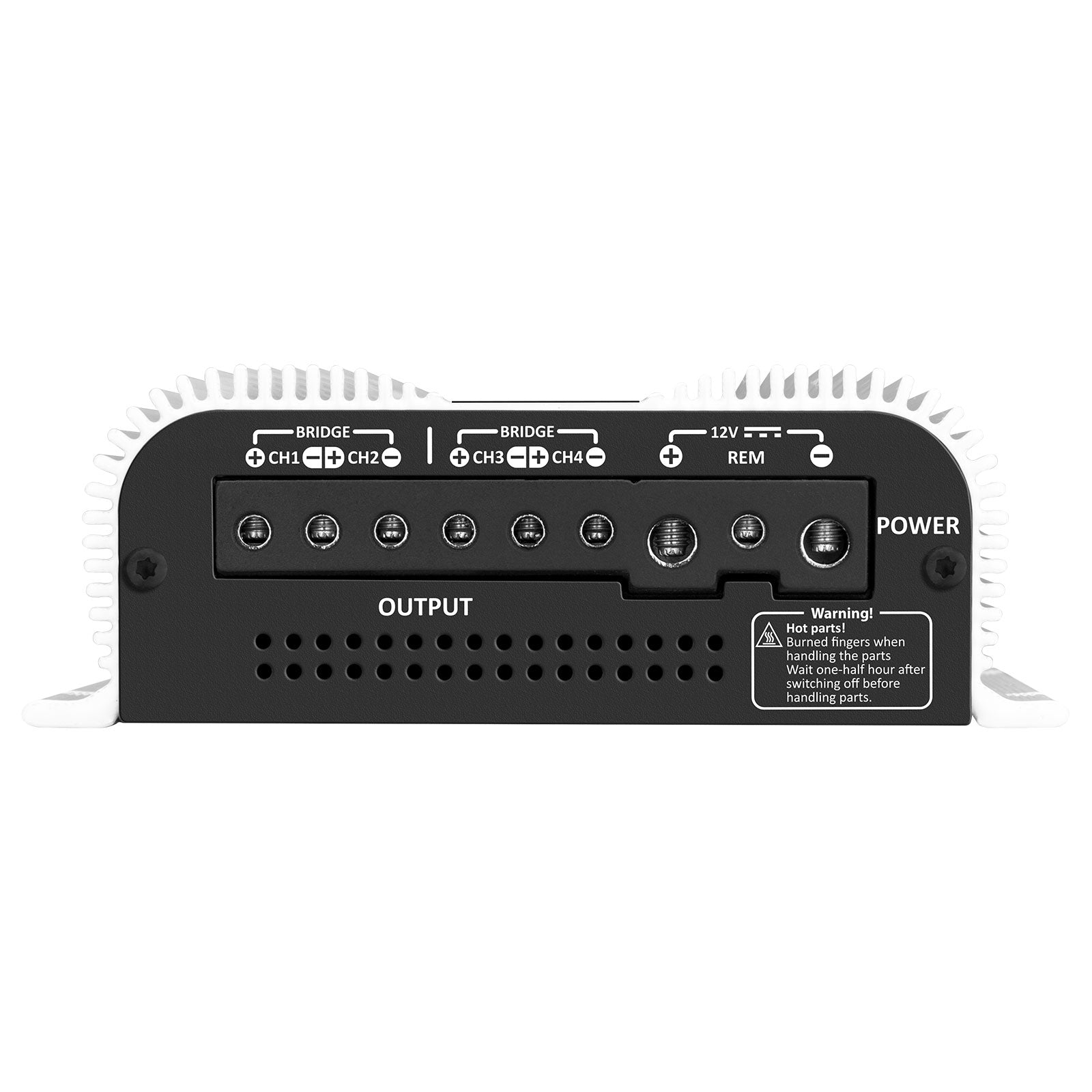

The TS 1200×4 2 Ohms amplifier offers 1200 watts of power across 4 channels with bridge capability, perfect for enhancing your car's audio. With automatic activation, RCA inputs, gain control, and built-in crossover filters, it ensures top performance for speakers, drivers, and tweeters. Ideal for seamless installation!
Technical Specifications
| Maximum Power | Nominal Power @14.4VDC 2 Ohms: 1200W RMS (4 x 300W RMS) 4 Ohms: 740W RMS (4 x 185W RMS) 2 Bridged Channels 4 Ohms: 1200 W RMS (2 x 600W RMS) |
| Number Of Channels | 4 |
| Input Impedance | 10K Ohms (RCA) |
| Input Sensitivity | (RCA) - 4V (min.) / 250mV (max.) (WIRE) - >10V (min.) / 3V (max.) |
| Frequency Response | (FULL RANGE) - 8Hz ~ 25KHz (-3dB) |
| Signal To Noise Ratio | >90dB |
| Crossover High Pass (HPF) | 90Hz (-12dB/8ª) Fixed |
| Crossover Low Pass (LPF) | 90Hz (-12dB/8ª) Fixed |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 16VDC |
| Consumption At Rest | 0.9A |
| Maximum Music Consumption | 55A |
| Dimensions | 5.43" x 1.89" x 9.84" (138 x 48 x 250 mm) |
| Weight | 2.73 lb (1.24 Kg) |
In stock and shipping free from JS Ultimate Sounds — your authorized Taramps dealer.
