The Big Boss 5 Bass amplifier combines power, style, and cutting-edge tech. With 108 RGB LED effects, it creates a dynamic audiovisual experience. Its versatile multi-impedance system (0.5 to 2 Ohms) delivers top performance with subwoofers, making it perfect for bass lovers who want both power and flair!
Technical Specifications
| Power | Nominal Power @14.4VDC 0,5 Ohm: 5000W RMS 1 Ohm: 5000W RMS 2 Ohms: 5000W RMS 4 Ohms: 2700W RMS |
| Number Of Channels | 01 |
| Output Impedance | 0.5 ~ 2 Ohms |
| Input Impedance | 10K Ohms |
| Input Sensitivity | 4V ~ 0.2V |
| Frequency Response | 8Hz ~ 200Hz (-3dB) |
| Signal To Noise Ratio | >90dB |
| Crossover High Pass (HPF) | 8Hz ~ 30Hz (-12dB/8ª) Variable |
| Crossover Low Pass (LPF) | 60Hz ~ 200Hz (-12dB/8ª) Variable |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Consumption At Rest | 2.60A |
| Maximum Consumption In Sinusoidal Signal | 461A @ 0.5 Ohm | 431A @ 1 Ohm | 420A @ 2 Ohms |
| Maximum Music Consumption | @14.4VDC 230A @ 0.5 Ohm | 215.5A @ 1 Ohm | 210A @ 2 Ohms |
| Protection System | Output short-circuit, Low/High supply voltage and Thermal protection |

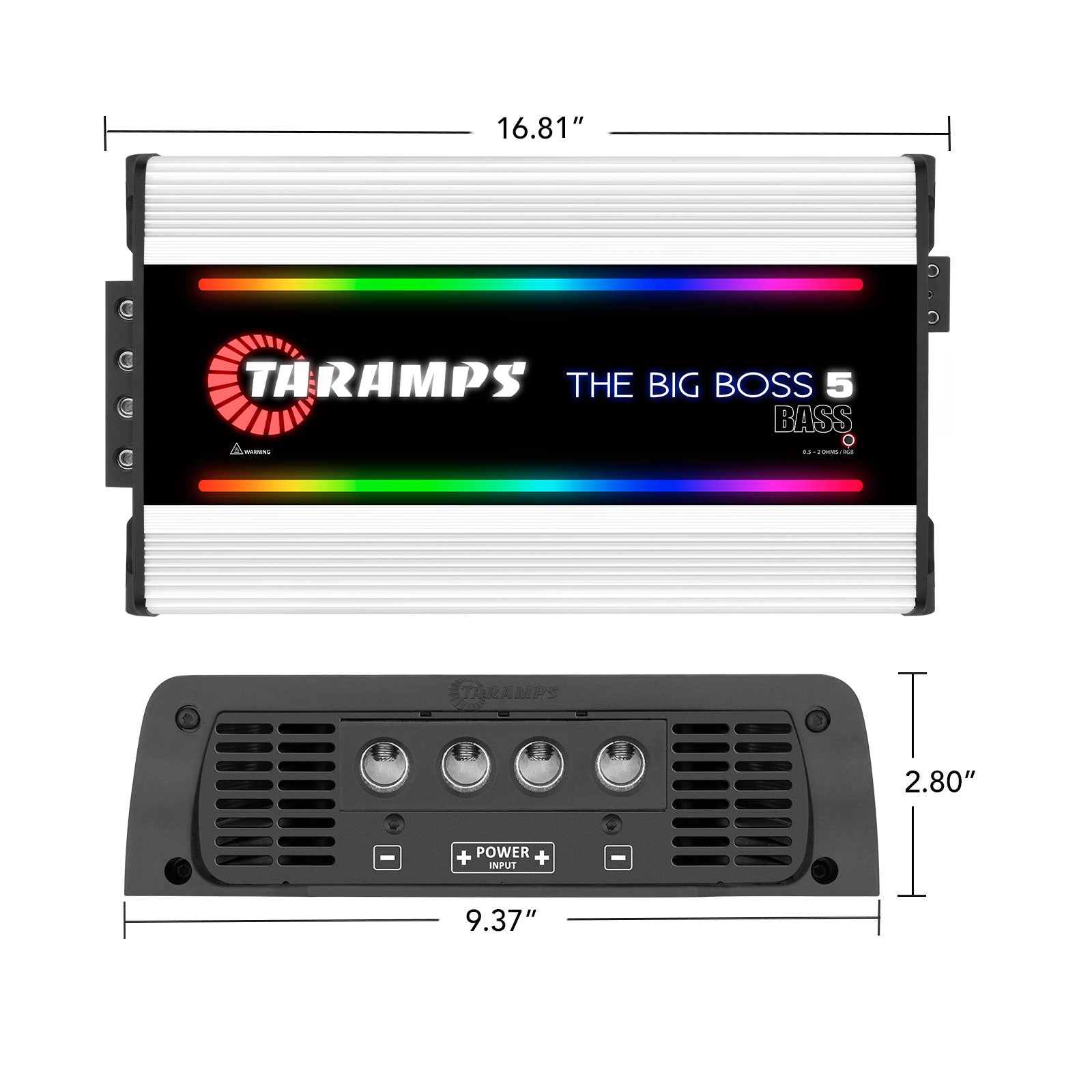

| Dimensions | 9.37" x 2.80" x 16.81" (238 x 71 x 427 mm) |
| Weight | 12,76 lb (5,80 Kg) |
