Experience audiovisual brilliance with the BIG BOSS 3 BASS amplifier! Featuring 108 RGB LED effects, it turns your car into a spectacle of sound and light. With a flexible 0.5 to 2 Ohm multi-impedance system and rugged design, it's perfect for enhancing subwoofers. For unmatched power and style, choose BIG BOSS 3 BASS.
Technical Specifications
| Maximum Power | Nominal Power @14,4VDC 0,5 Ohm: 3000W RMS 1 Ohm: 3000W RMS 2 Ohms: 3000W RMS 4 Ohms: 1700W RMS |
| Output Impedance | 100 Ohms |
| Input Impedance | 10K Ohms |
| Input Sensitivity | 4V ~ 0.2V |
| Frequency Response | 8Hz ~ 200Hz (-3dB) |
| Crossover High Pass (HPF) | 8Hz ~ 30Hz (-12dB/8ª) Variable |
| Crossover Low Pass (LPF) | 60Hz ~ 200Hz (-12dB/8ª) Variable |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Consumption At Rest | 2.30A |
| Maximum Consumption In Sinusoidal Signal | 278A |
| Maximum Music Consumption | @14.4 VDC: 190A |
| Protection System | Output short-circuit, low/high supply voltage and Thermal protection |

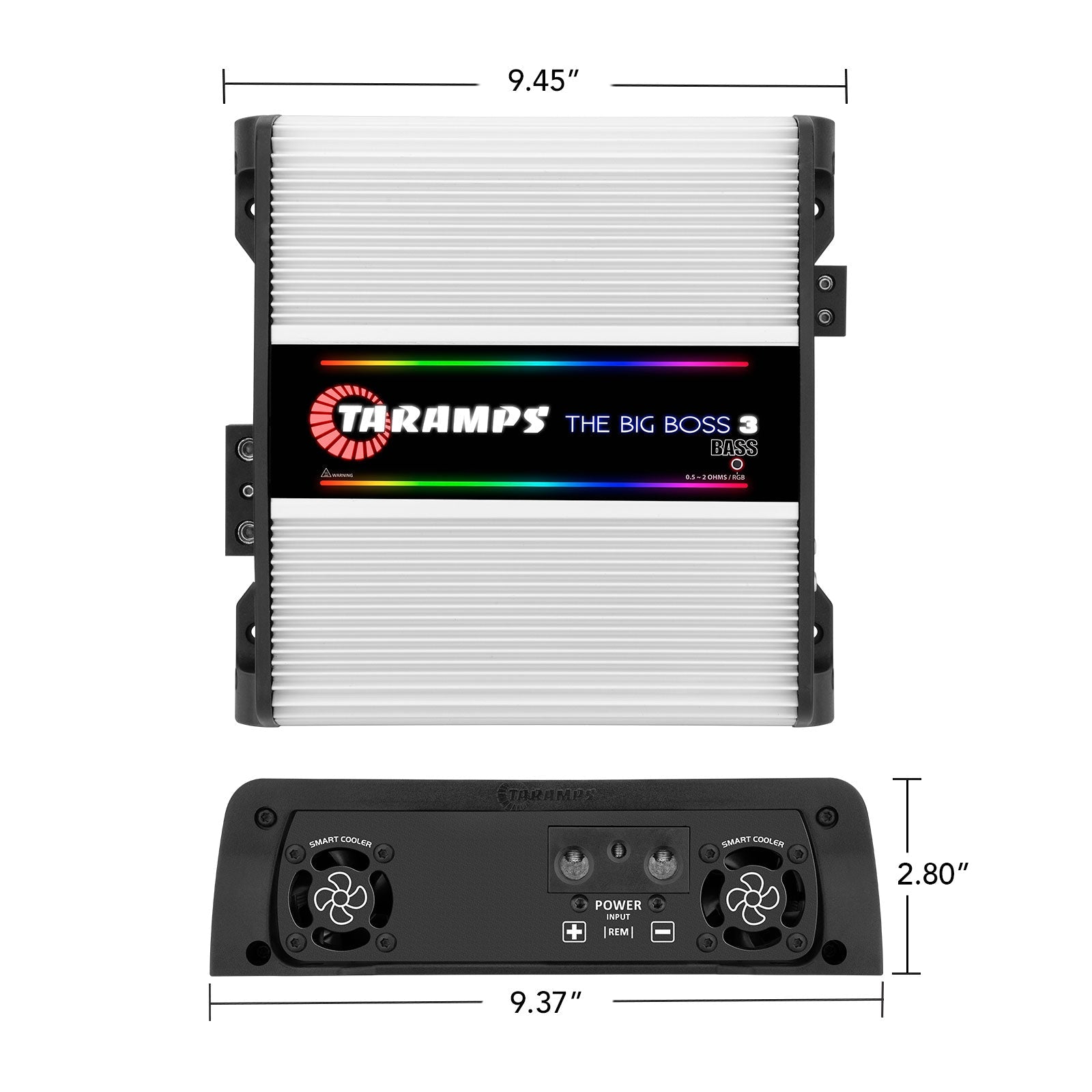

| Dimensions | 9.37" x 2.80" x 9.45" (238 x 71 x 240 mm) |
| Weight | 6.60 lb (3.00 Kg) |
