Taramps T 9.000 CHIPEO Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Experience unparalleled sound quality with the Taramps T 9.000 Chipeo amplifier, delivering 9,000 WRMS at 12.6V and up to 11,000 WRMS at 14.4V. With a wide frequency response of 5Hz to 5kHz, it excels across sub-bass to midrange frequencies. Elevate your audio experience with unmatched power and efficiency!
Technical Specifications
| Number Of Channels | 01 |
| Input Impedance | 10K Ohms |
| Input Sensitivity | 220mV ~ 4V RMS |
| Frequency Response | 5Hz ~ 5KHz (-3dB) |
| Signal To Noise Ratio | >90dB |
| Connectivity | 1 Ohm Version: Nominal Power@12.6VDC 1 Ohm: 9000W RMS 2 Ohms: 5445W RMS Nominal Power@13.8VDC 1 Ohm: 10000W RMS 2 Ohms: 6100W RMS Nominal Power@14.4VDC 1 Ohm: 11000W RMS 2 Ohms: 6710W RMS 2 OHMS Version: Nominal Power@12.6VDC 2 Ohms: 9000W RMS 4 Ohms: 5445W Nominal Power@13.8VDC 2 Ohms: 10000W RMS 4 Ohms: 6100W RMS Nominal Power@14.4VDC 2 Ohms: 11000W RMS 4 Ohms: 6710W RMS |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Consumption At Rest | 1 Ohm: 3.70A | 2 Ohms: 1.50A |
| Maximum Consumption In Sinusoidal Signal | 1 Ohm: 900A | 2 Ohms: 846A |
| Maximum Music Consumption | @12,6VDC: 1 Ohm: 450A | 2 Ohms: 423A |
| Protection System | Short-circuit on output and in relation to GRD, low impedance, high/low voltage and thermal protection |

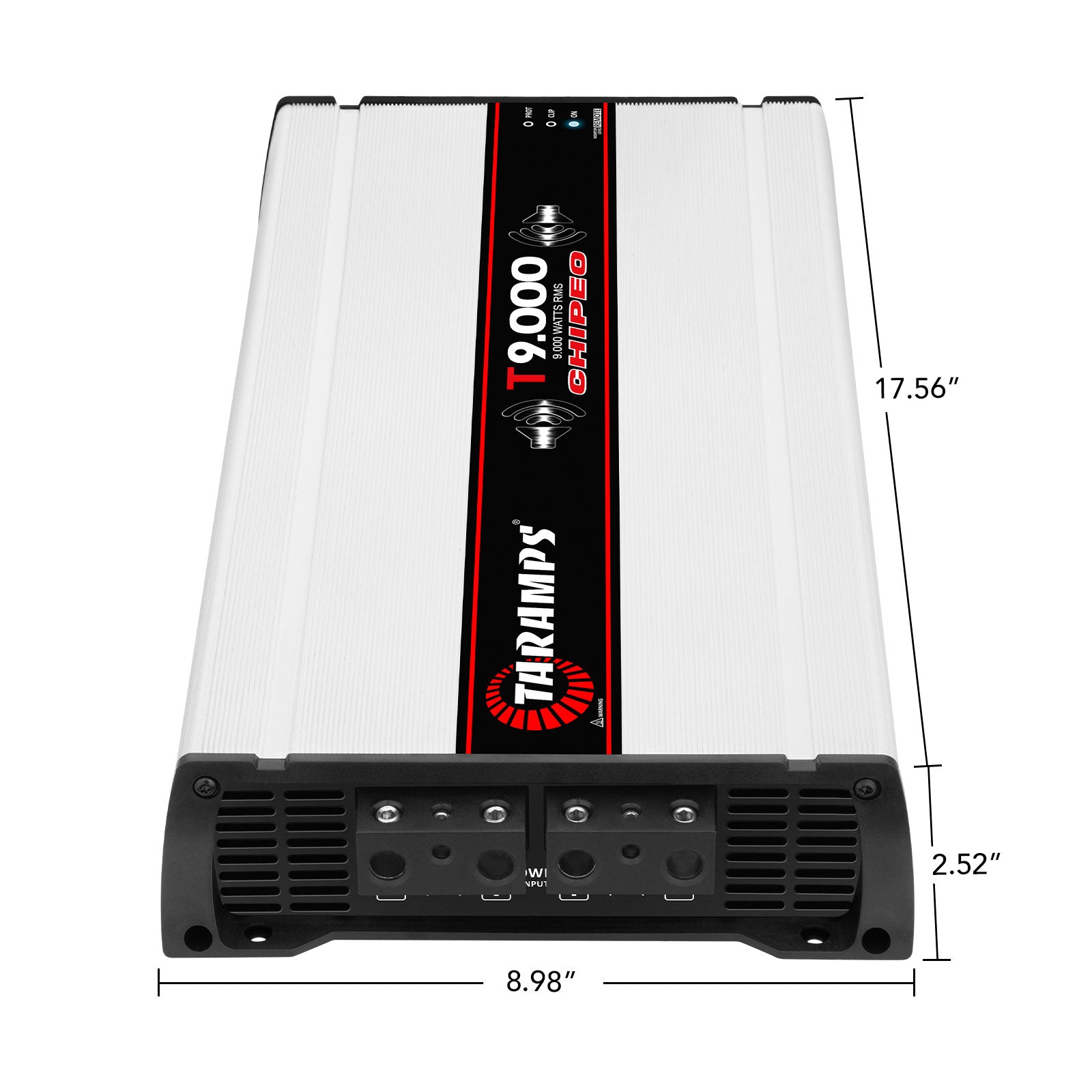

| Dimensions | 8.98" x 2.52" x 17.56" (228 x 64 x 446 mm) |
| Weight | 12.79 lb (5.80 Kg) |
In stock and shipping free from JS Ultimate Sounds — your authorized Taramps dealer.
