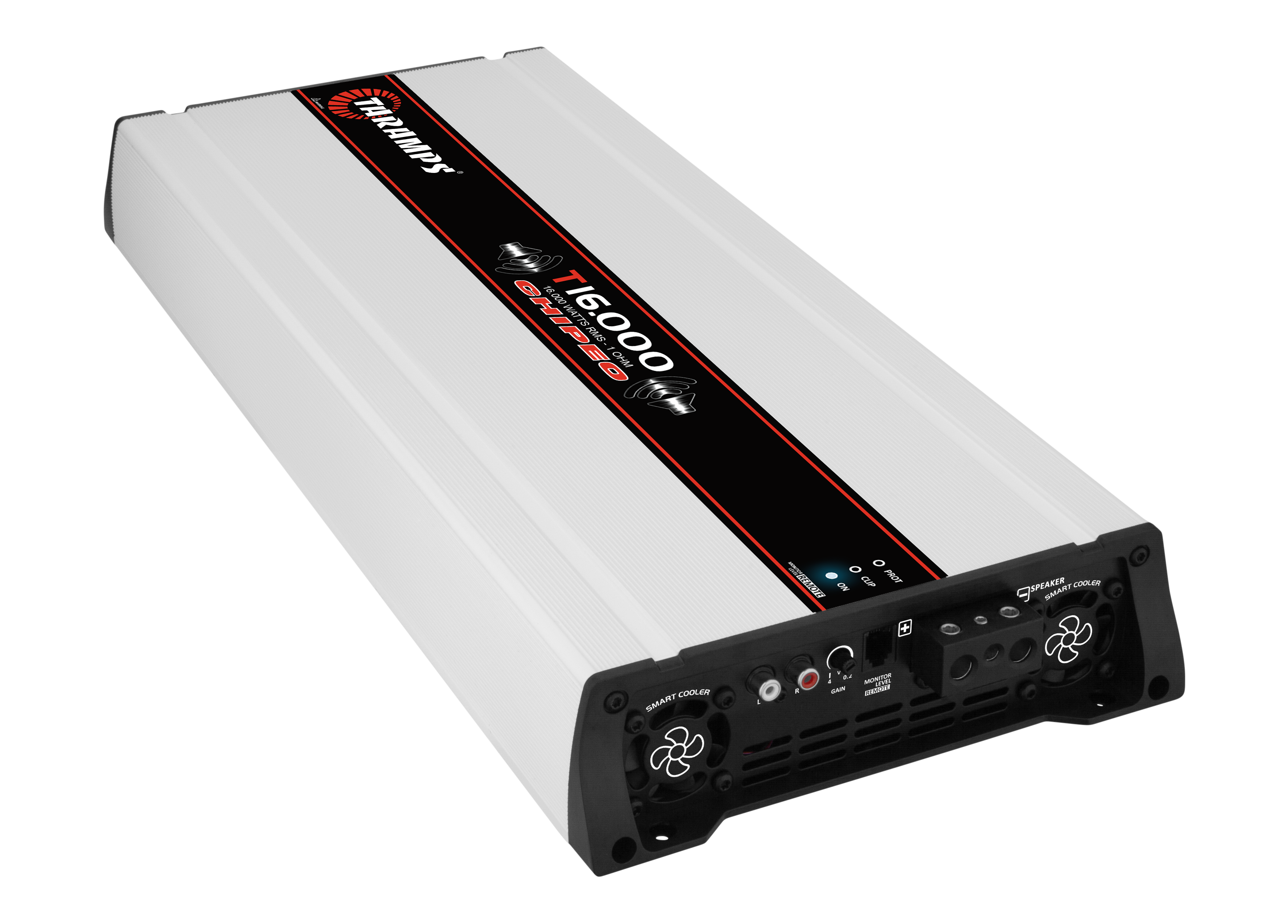

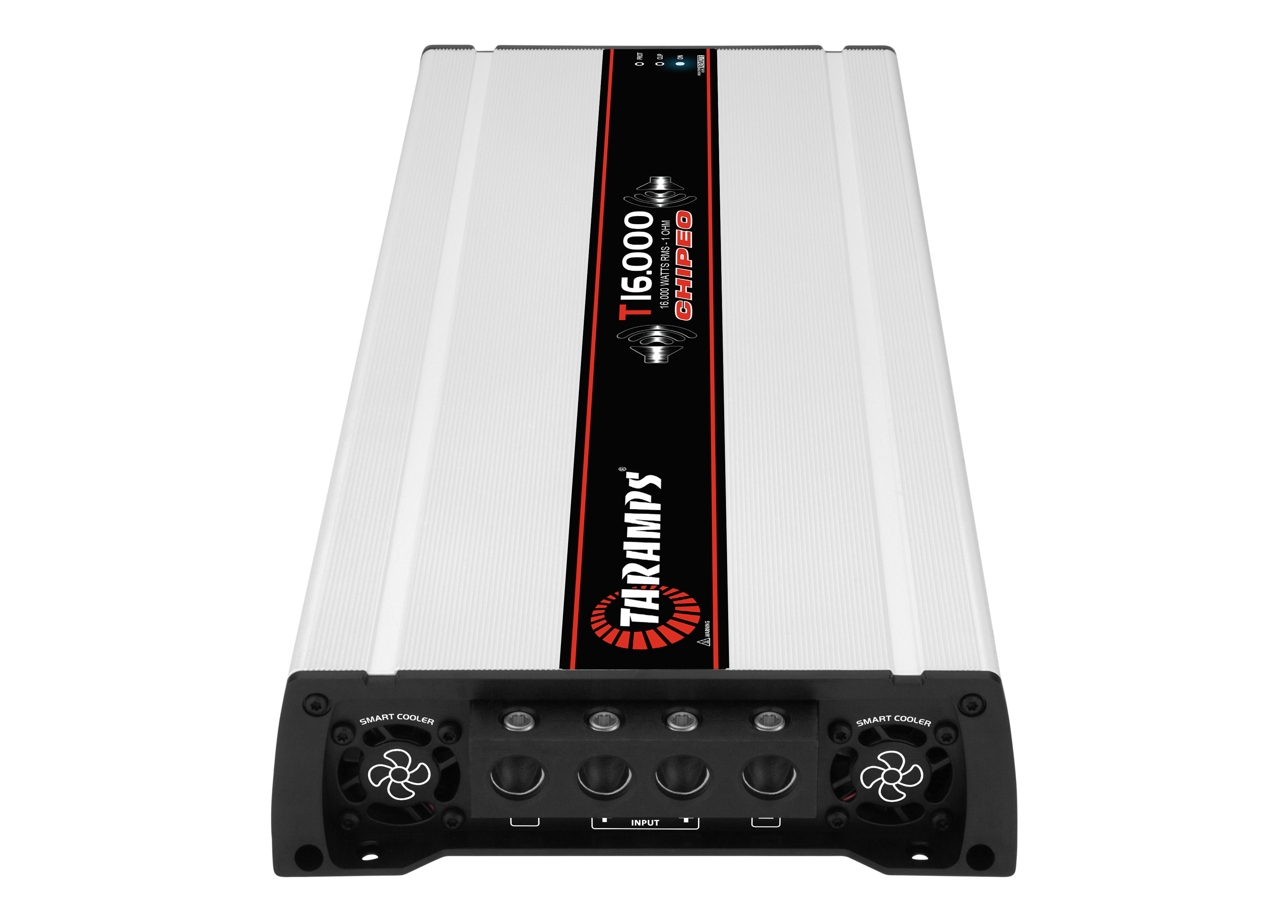

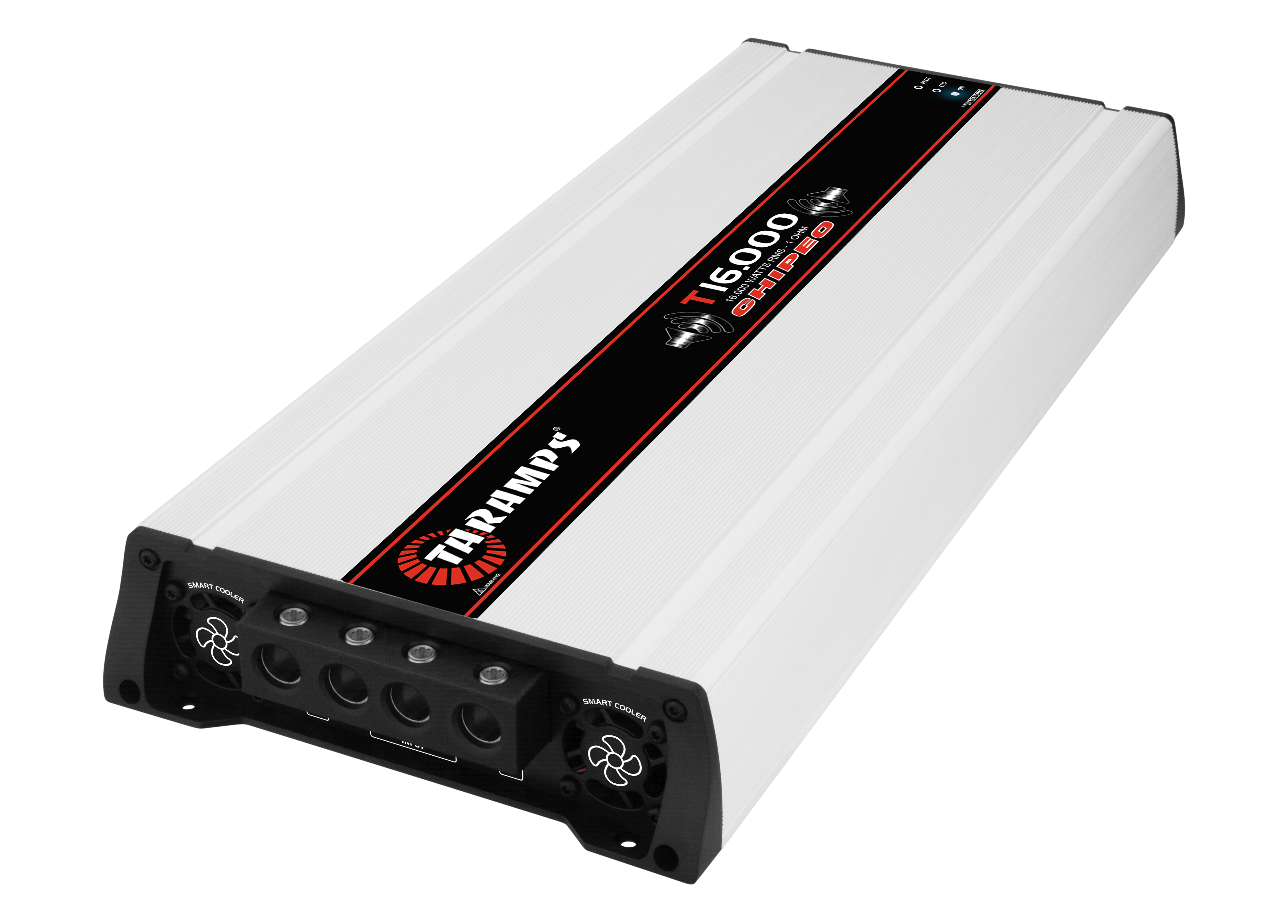

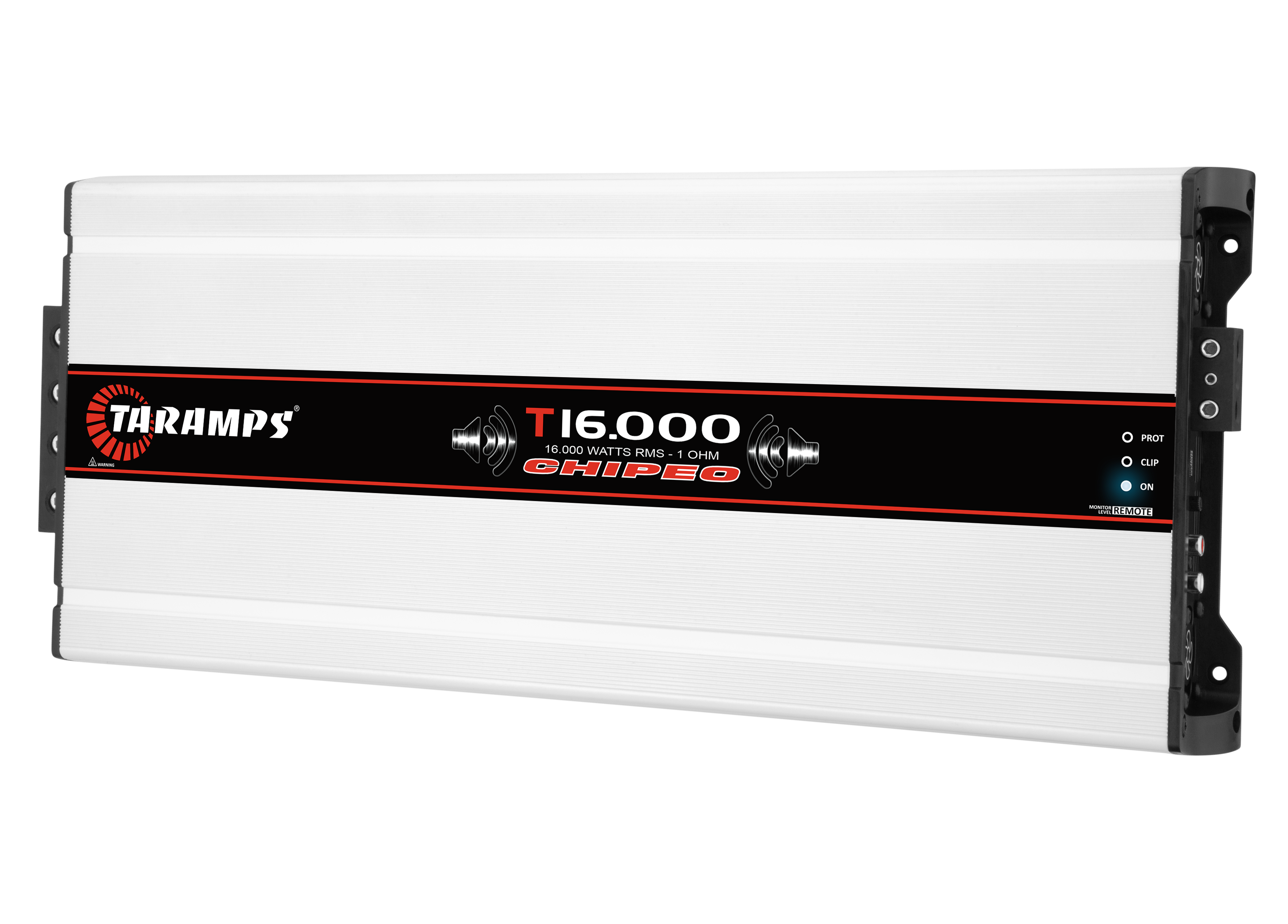

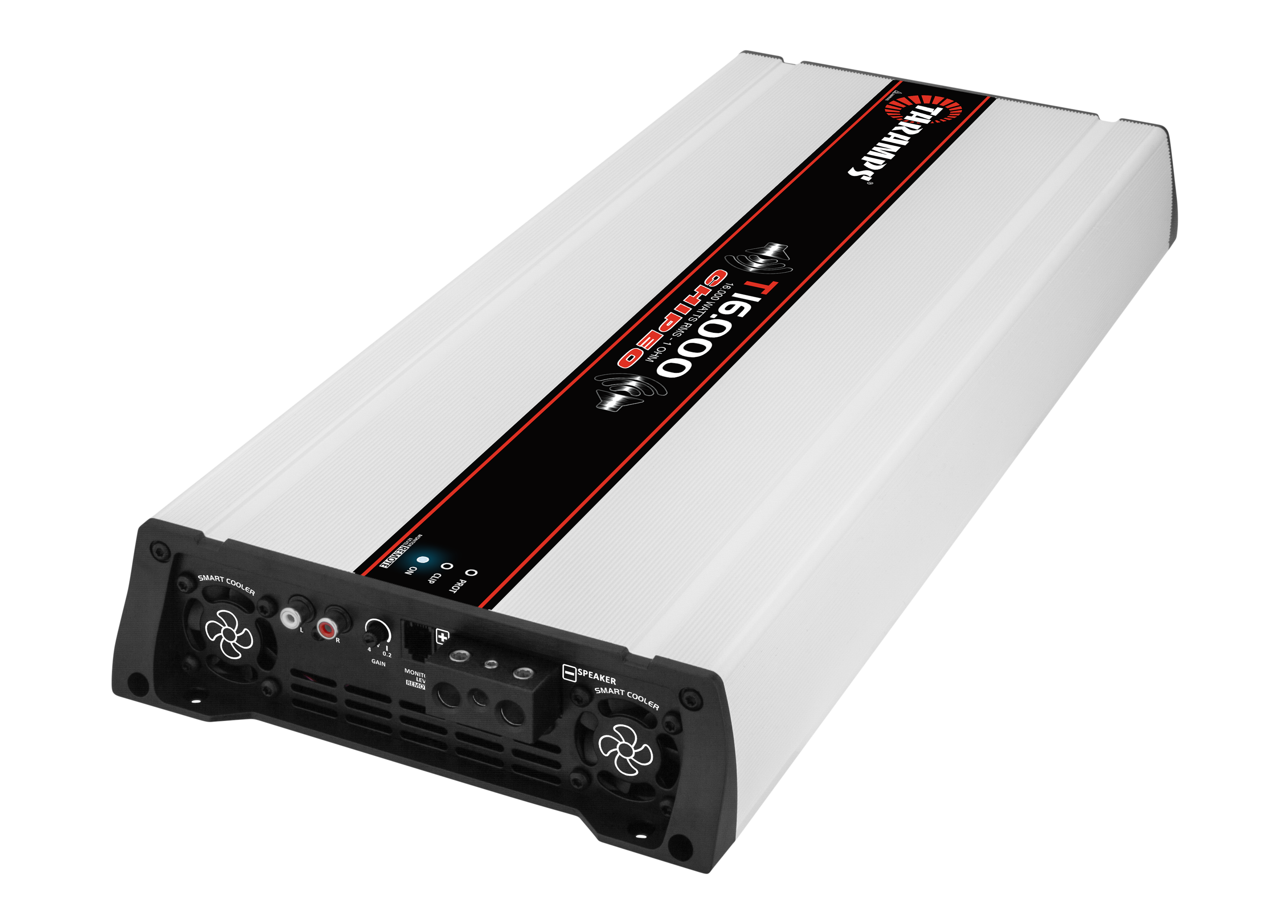

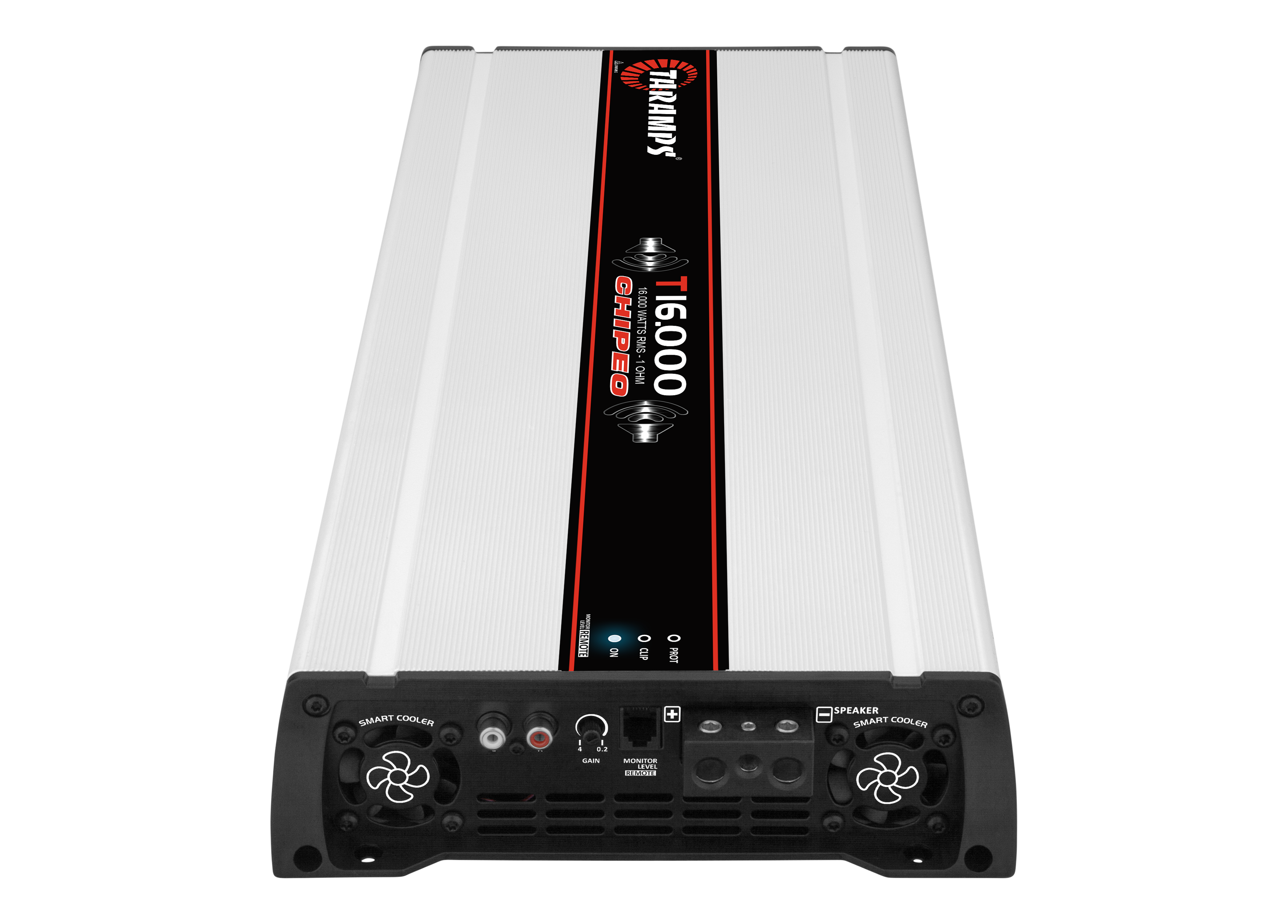

Taramps T 16.000 CHIPEO Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20+%207%20AWG%20speaker%20terminals%0ALED%20indicators...
){kind=link}
KEY FEATURES:
- 16,000W RMS
- 1 Ohm Full Range Monoblock amplifier
- Frequency response: 5Hz – 5kHz

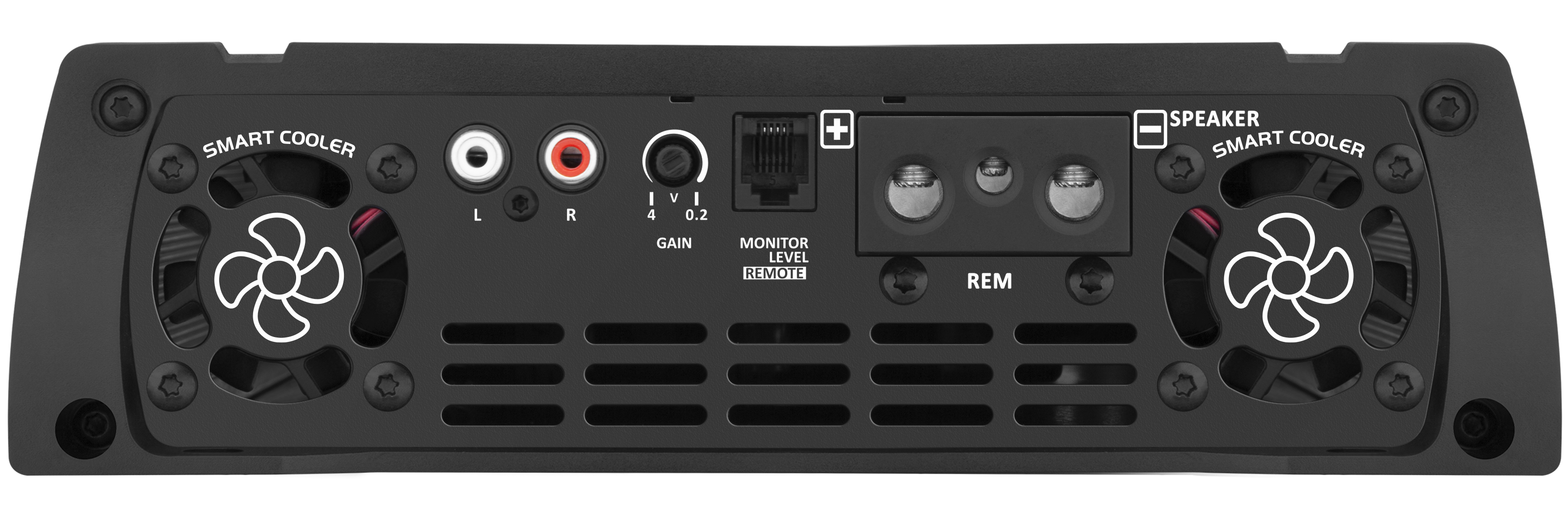

- RCA input with 0.2–4V gain control

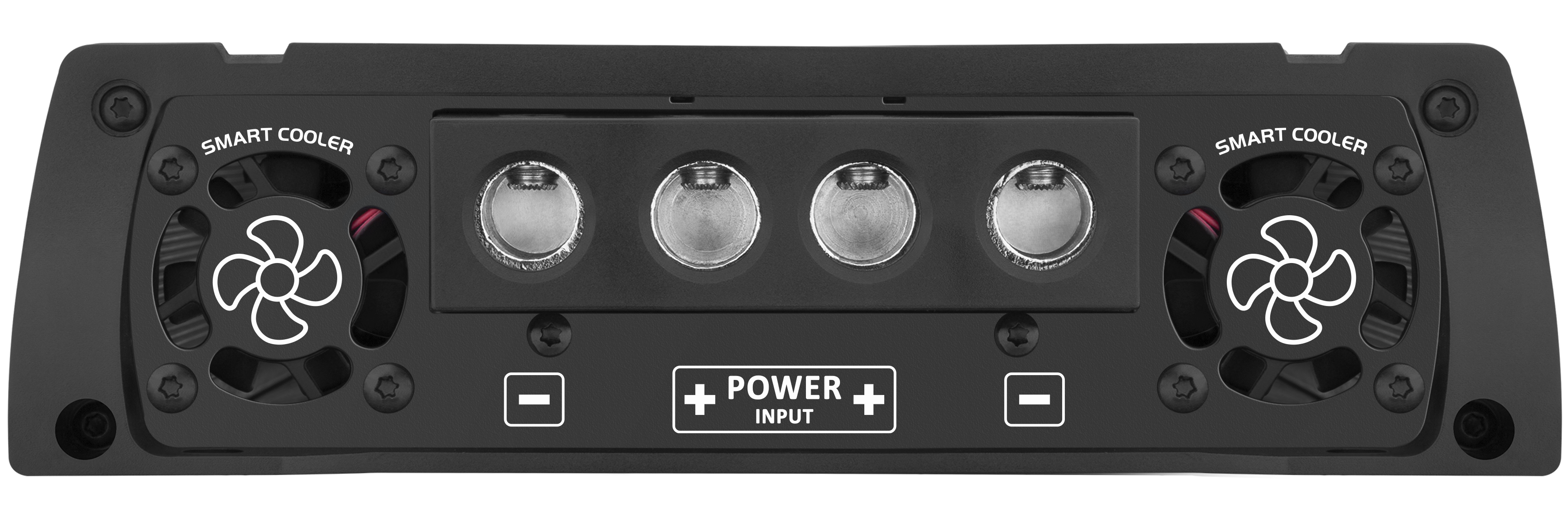

- Dual power input (2/0 AWG) + 7 AWG speaker terminals
- LED indicators for power, clip, and protection
- Smart Cooler thermal management system
- Compatible with M1 LED Monitor, Bass Control & EQ Bass
Technical Specifications
| Maximum Power | Output Power @14.4VDC 1 OHM: 16.000W RMS 2 OHMS: 9.920W RMS |
| Number Of Channels | 1 |
| Input Impedance | 10K Ohms |
| Input Sensitivity | 220mV ~ 4V Rms |
| Frequency Response | 5Hz ~ 5KHz (-3dB)** |
| Signal To Noise Ratio | >90dB |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Consumption At Rest | 5.80A |
| Maximum Music Consumption | Musical Consumption @14.4VDC: 824A |
| Protection System | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection |
| Dimensions | 228 x 64 x 532mm (8.98" x 2.52" x 20.94") |
| Weight | 7.60Kg (16.72lb) |
In stock and shipping free from JS Ultimate Sounds — your authorized Taramps dealer.
