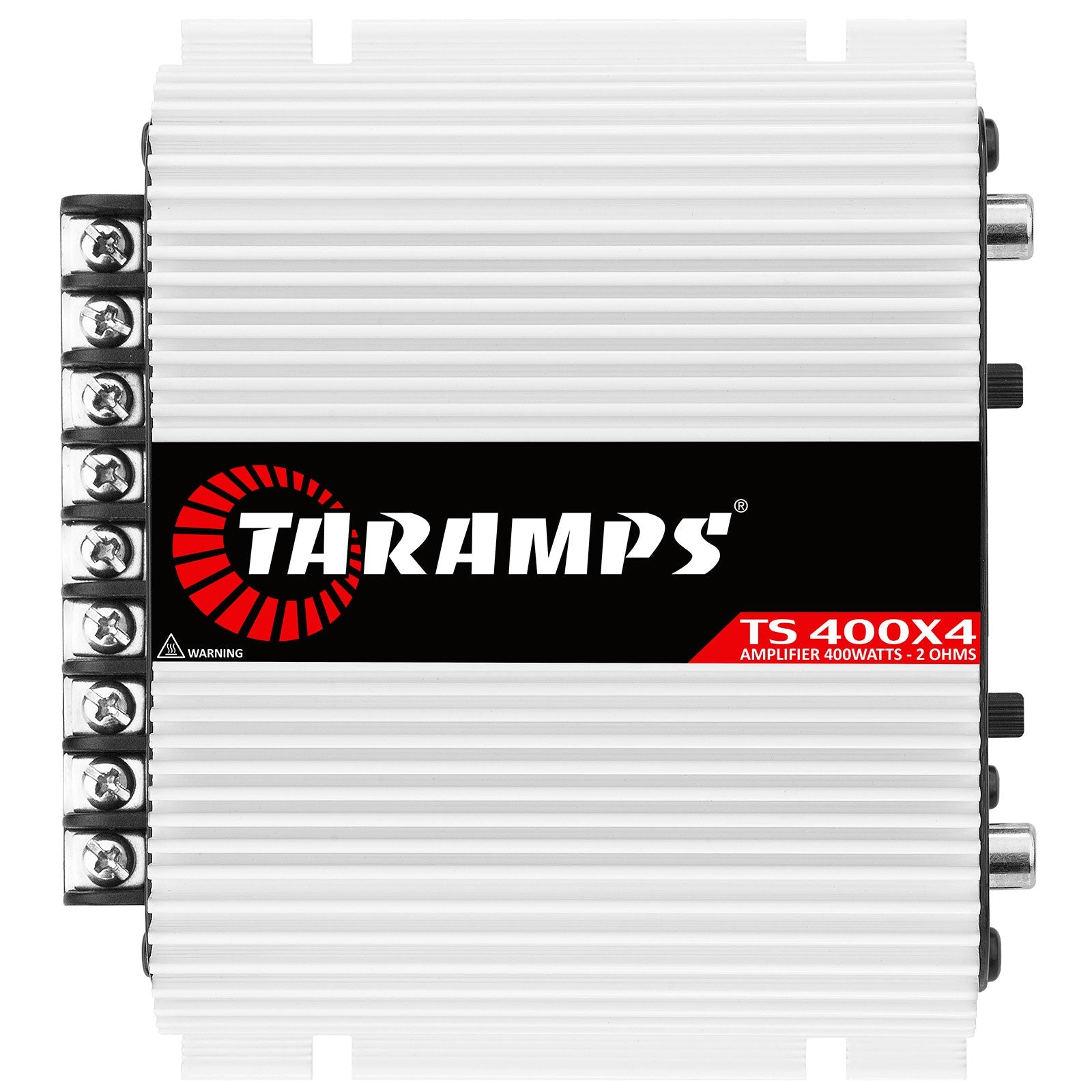

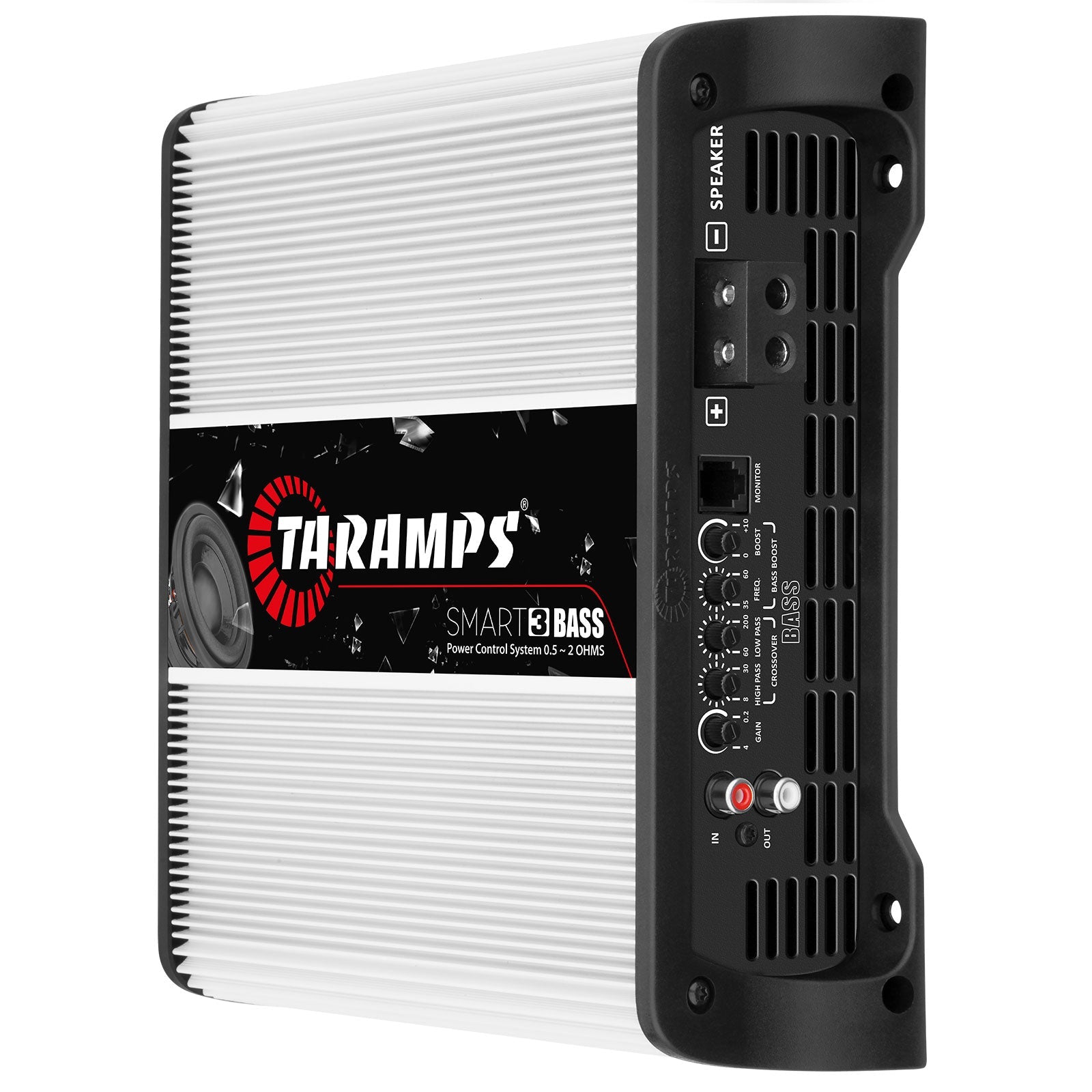

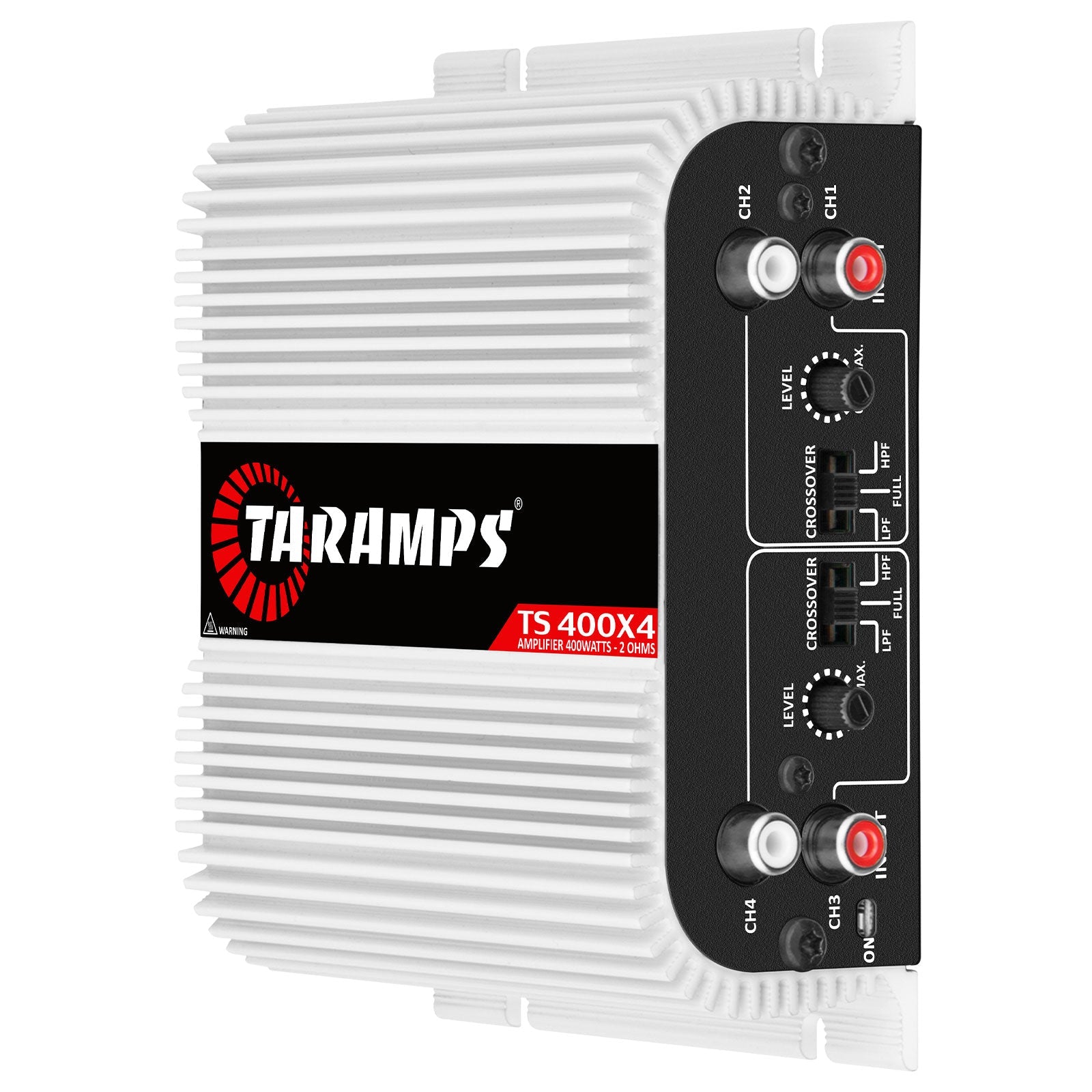

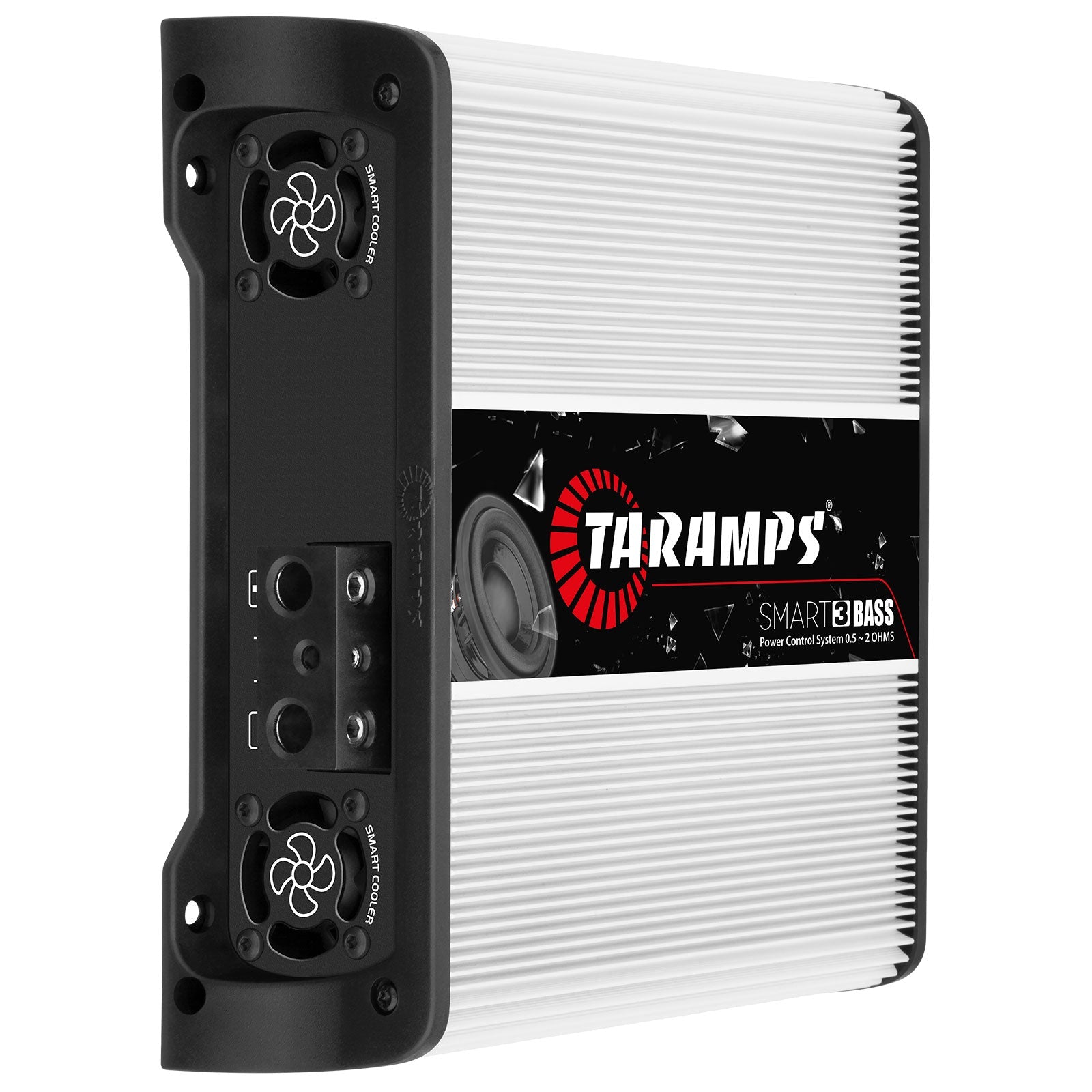

Take your car audio to the next level with the Taramps SMART 3 BASS and TS 400x4 2 OHM Amplifier Combo. Featuring 3000W RMS for deep, controlled bass and a 4-channel amp for crisp mids and highs, this combo delivers unmatched power, clarity, and versatility for any audio setup.
Technical Specifications
| Output Impedance | SMART 3 BASS: 0.5 ~2 Ohms | TS 400x4: 2 Ohms |
| Input Impedance | SMART 3 BASS: 10K Ohms | TS 400x4: 22K ohms |
| Input Sensitivity | SMART 3 BASS: 4V ~ 0.2V | TS 400x4: 200mV |
| Frequency Response | SMART 3 BASS: 8Hz ~ 200Hz (-3dB) | TS 400x4: 18Hz ~ 30KHz (-3dB |
| Signal To Noise Ratio | SMART 3 BASS: >90dB | TS 400x4: >90dB |
| Crossover High Pass (HPF) | SMART 3 BASS: 8Hz ~ 30Hz (-12dB/8ª) Variable | TS 400x4: 90Hz (-12dB/8ª) Fixed |
| Crossover Low Pass (LPF) | SMART 3 BASS: 60Hz ~ 200Hz (-12dB/8ª) Variable | TS 400x4: 90Hz (-12dB/8ª) Fixed |
| Minimum Supply Voltage | SMART 3 BASS: 9VDC | TS 400x4: 8VDC |
| Maximum Supply Voltage | SMART 3 BASS: 17VDC | TS 400x4: 16VDC |
| Consumption At Rest | SMART 3 BASS: 1.10A | TS 400x4: 0.8A |
| Maximum Consumption In Sinusoidal Signal | SMART 3 BASS: 278A | TS 400x4: 33A |
| Maximum Music Consumption | SMART 3 BASS: 190A | TS 400x4: 16.5A |
| Protection System | SMART 3 BASS: Output short-circuit low/high supply voltage thermal protection | TS 400x4: Thermal and Output Short |

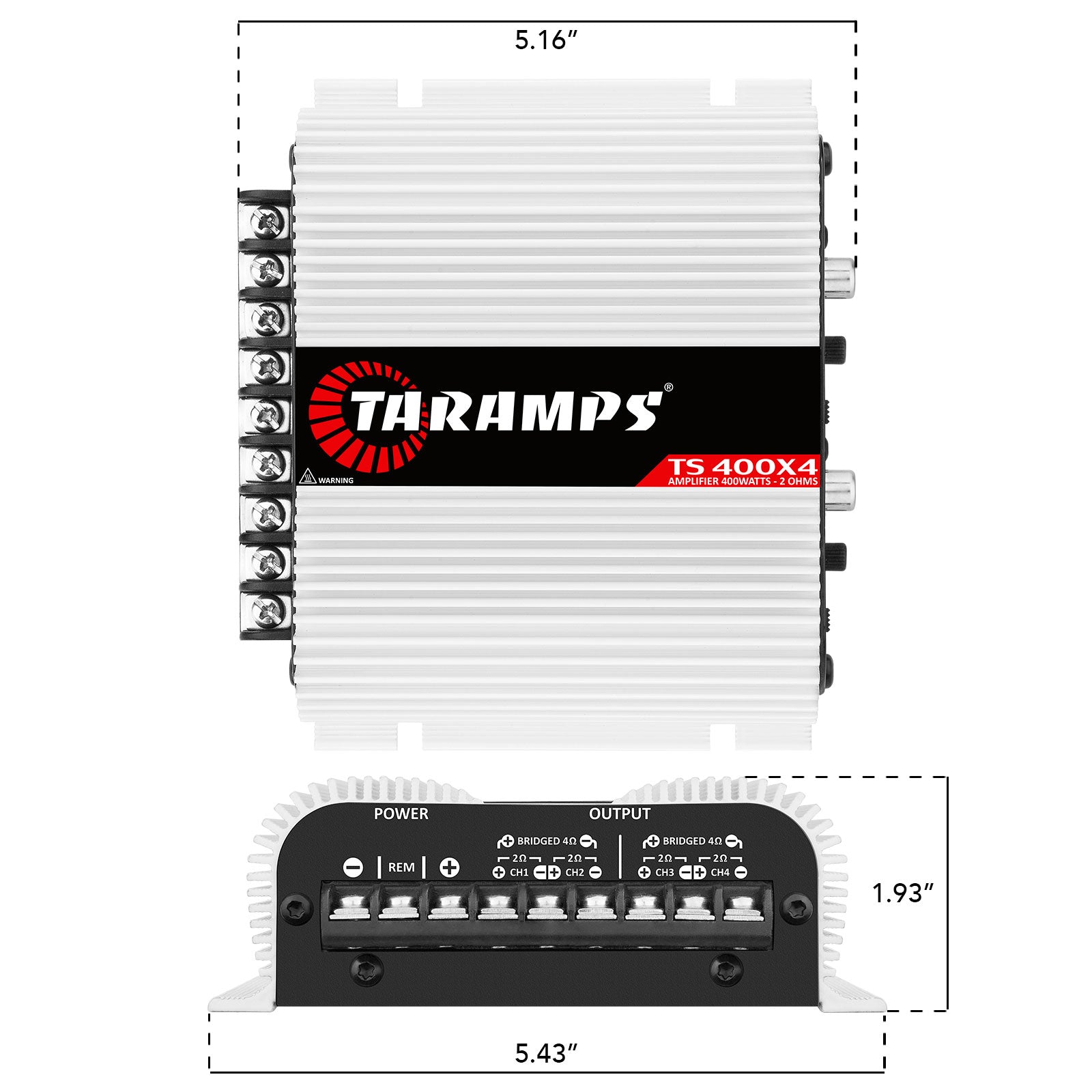

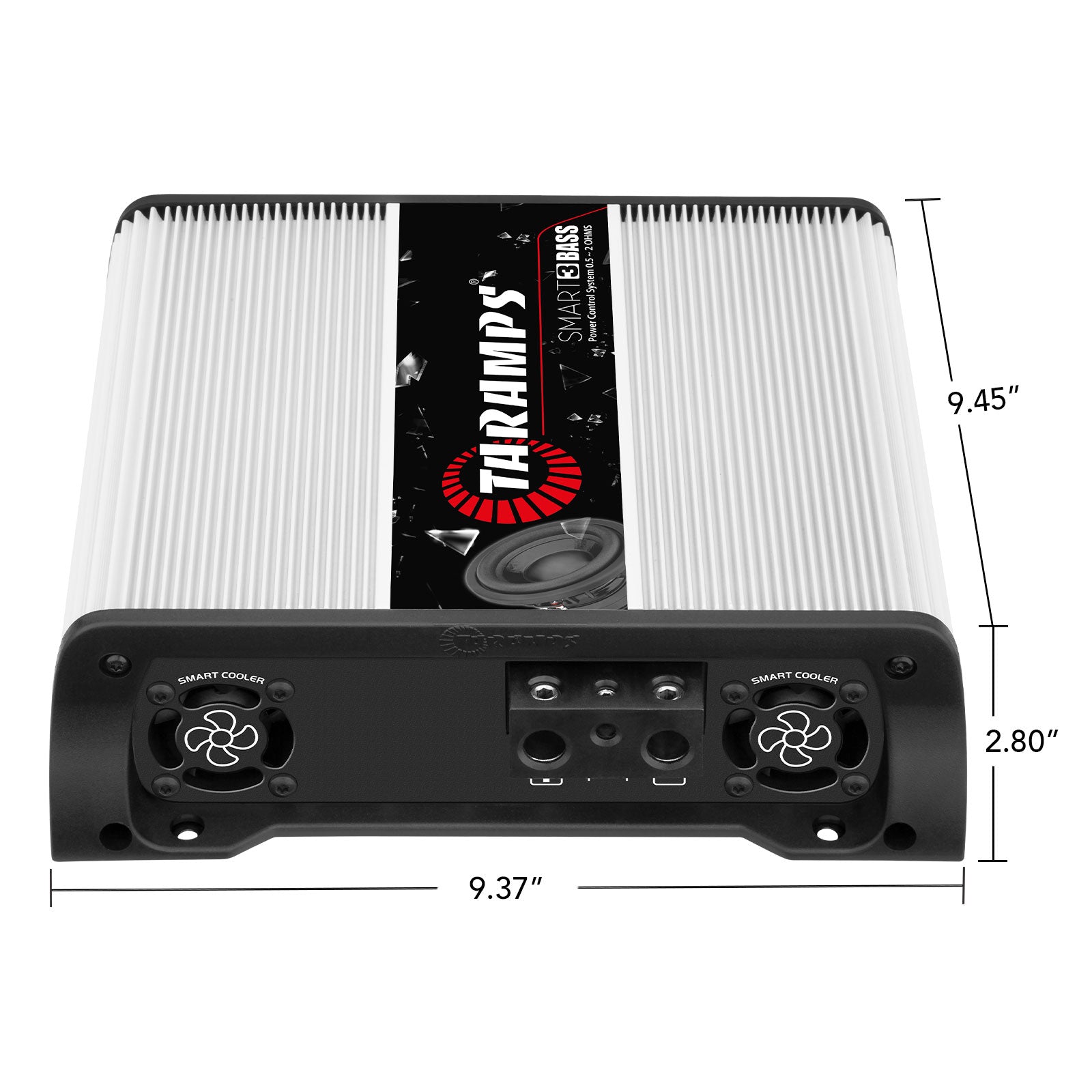

| Dimensions | SMART 3 BASS: 9.37" x 2.80" x 9.45" (238 x 71 x 240mm) | TS 400x4: 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm) |
| Weight | SMART 3 BASS: 6.60lb (3Kg) | TS 400x4: 1.322 lbs (0.60kg) |
