Taramps HV 80.000 CHIPEO Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

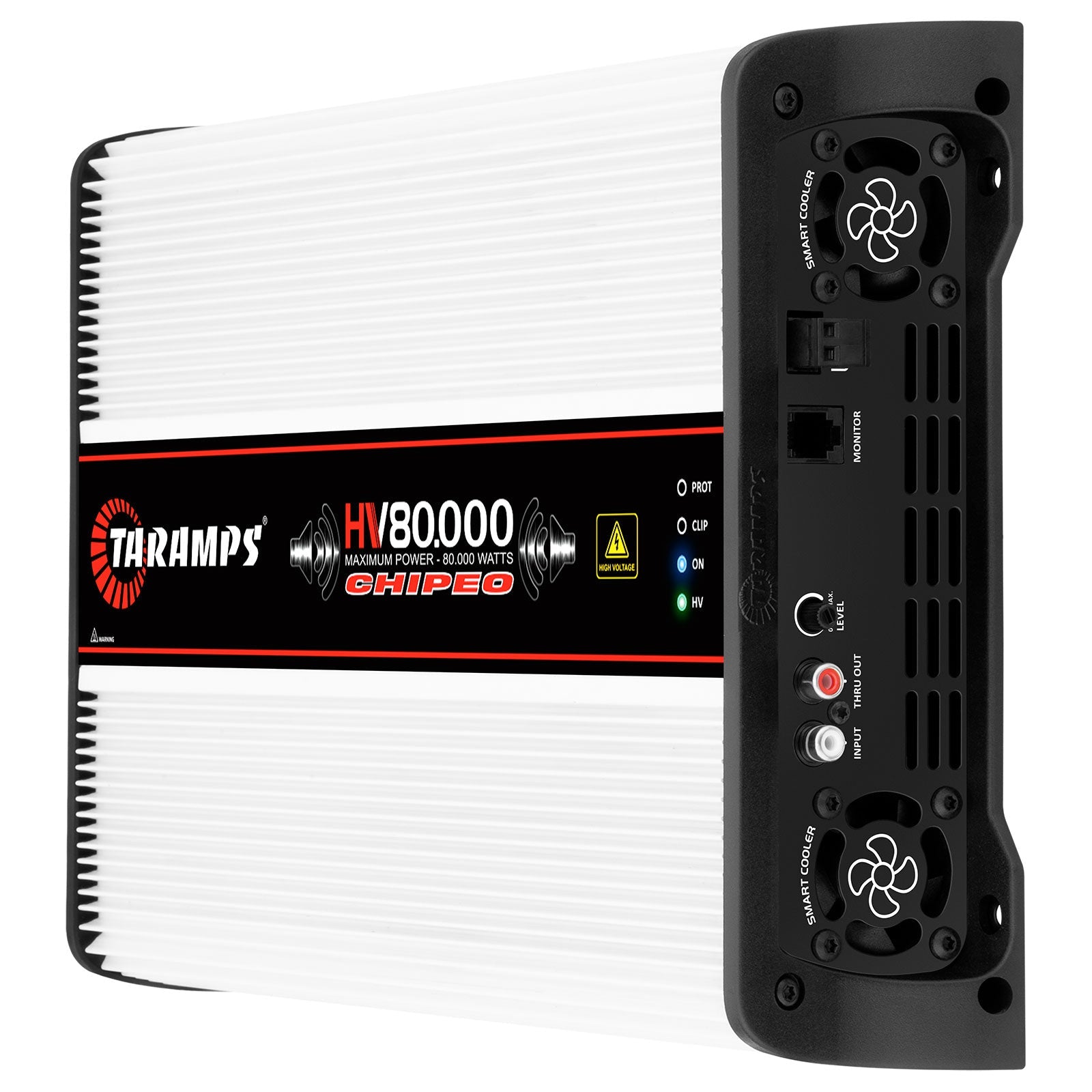

Unleash the true power of sound with the HV 80,000 CHIPEO amplifier, delivering an astounding 80,000 watts at 0.5 ohms. Engineered for medium to large automotive sound systems, it ensures exceptional performance from sub-bass to mid-range frequencies. With thermal and short circuit protection, enjoy intense sound without worry!
Technical Specifications
| Maximum Power | @ 300VDC 0.5 Ohm: 80.000W RMS (For competition) | 1 Ohm: 40.000W RMS |
| Number Of Channels | 01 |
| Input Impedance | 20K Ohms |
| Input Sensitivity | 500mV (Level 100%) @ 1 Ohm |
| Frequency Response | 10Hz ~ 15KHz (-1dB) |
| Signal To Noise Ratio | >95dB |
| Minimum Supply Voltage | 150VDC |
| Maximum Supply Voltage | 350VDC |
| Consumption At Rest | 90mA |
| Maximum Consumption In Sinusoidal Signal | 284A |
| Maximum Music Consumption | 142A |
| Protection System | Short-circuit on output and in relation to GND, Low/High voltage and thermal protection |

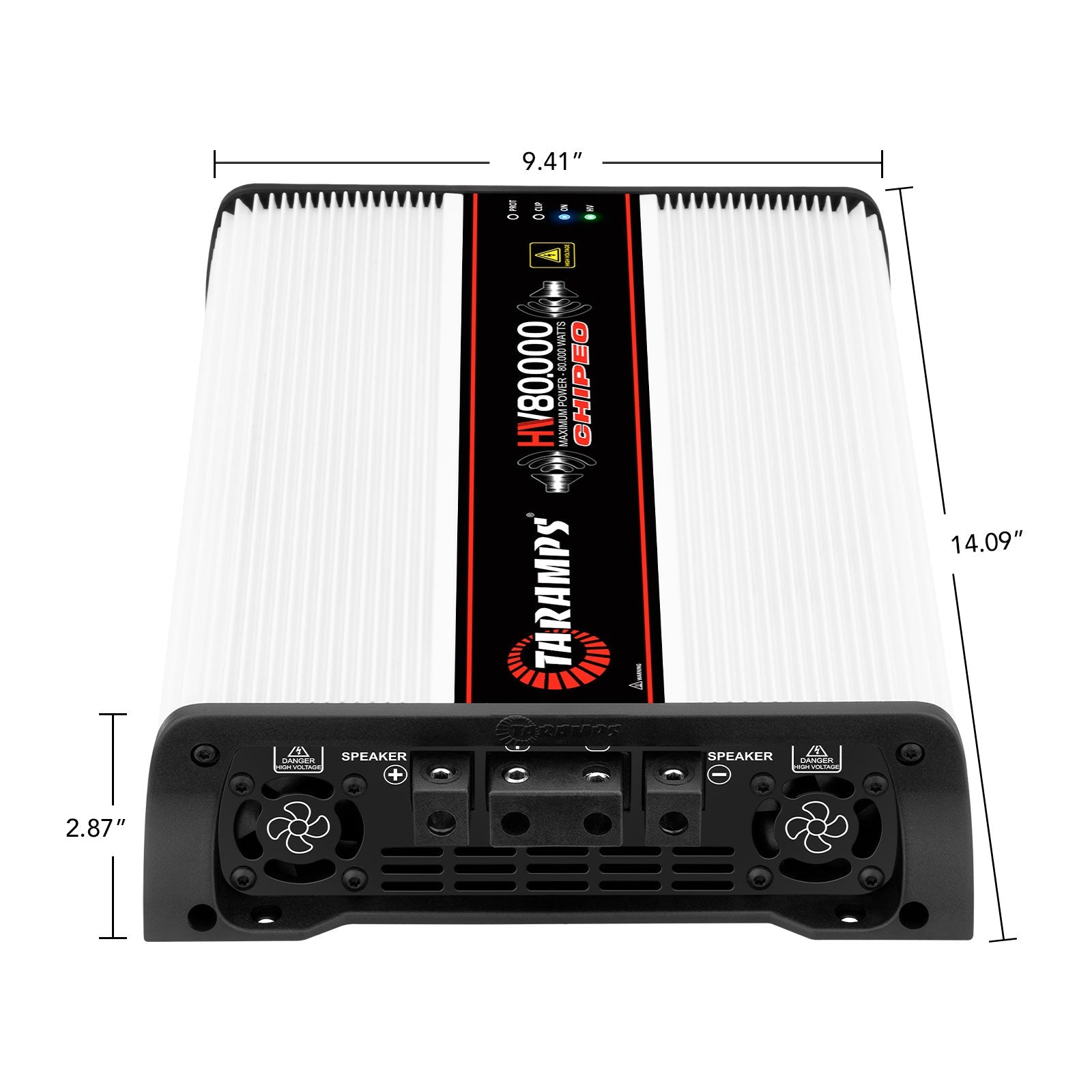

| Dimensions | 9.41" x 2.87" x 14.09" (239 x 73 x 358 mm) |
| Weight | 9.48 lb (4.30Kg) |
In stock and shipping free from JS Ultimate Sounds — your authorized Taramps dealer.
