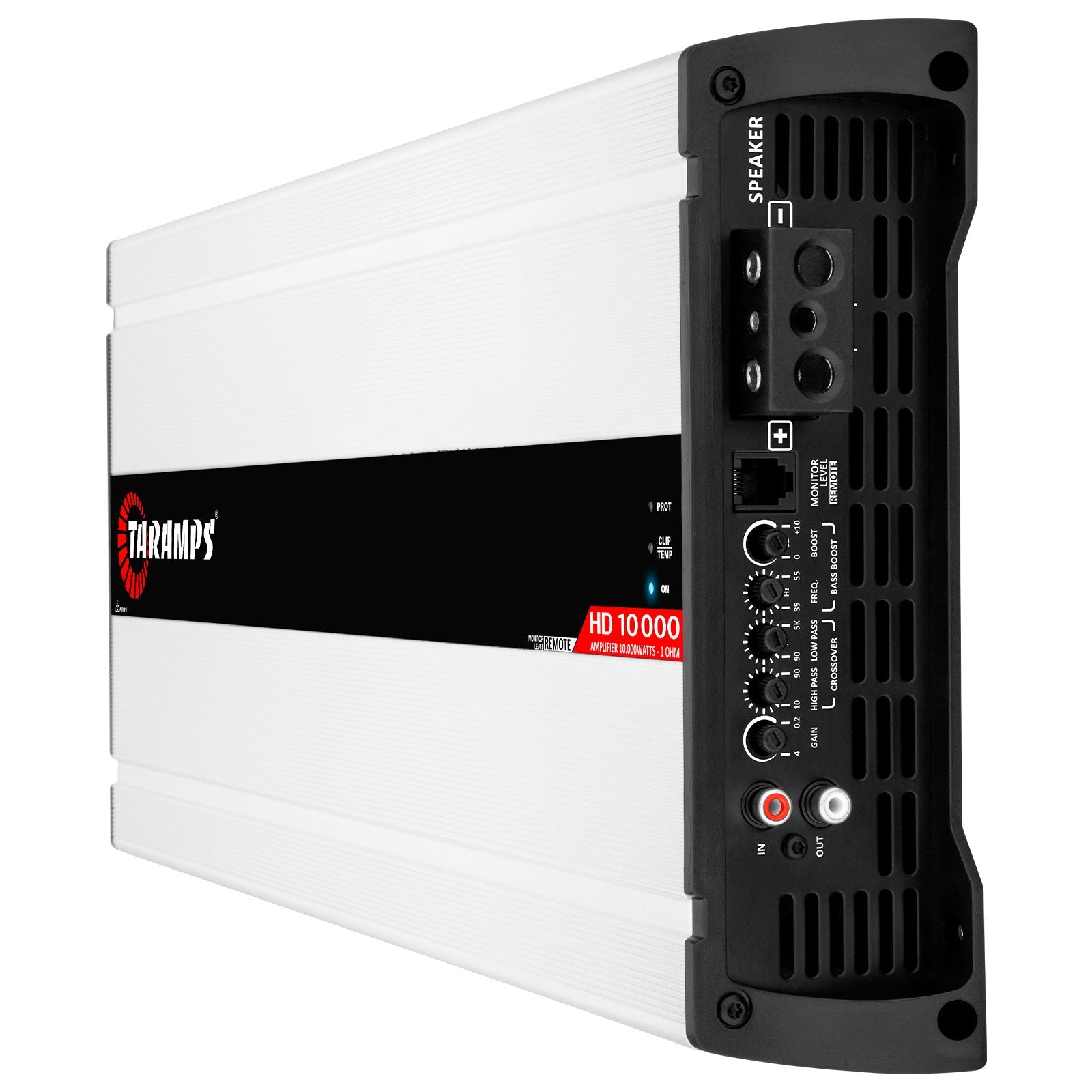

Taramps HD 10000 Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The Taramps HD 10000 amplifier delivers up to 12,000W RMS at 14.4V with a frequency range of 10Hz to 5kHz, perfect for subbase to midrange. Experience unmatched power, quality, and endurance for an audio system that transforms your listening experience!

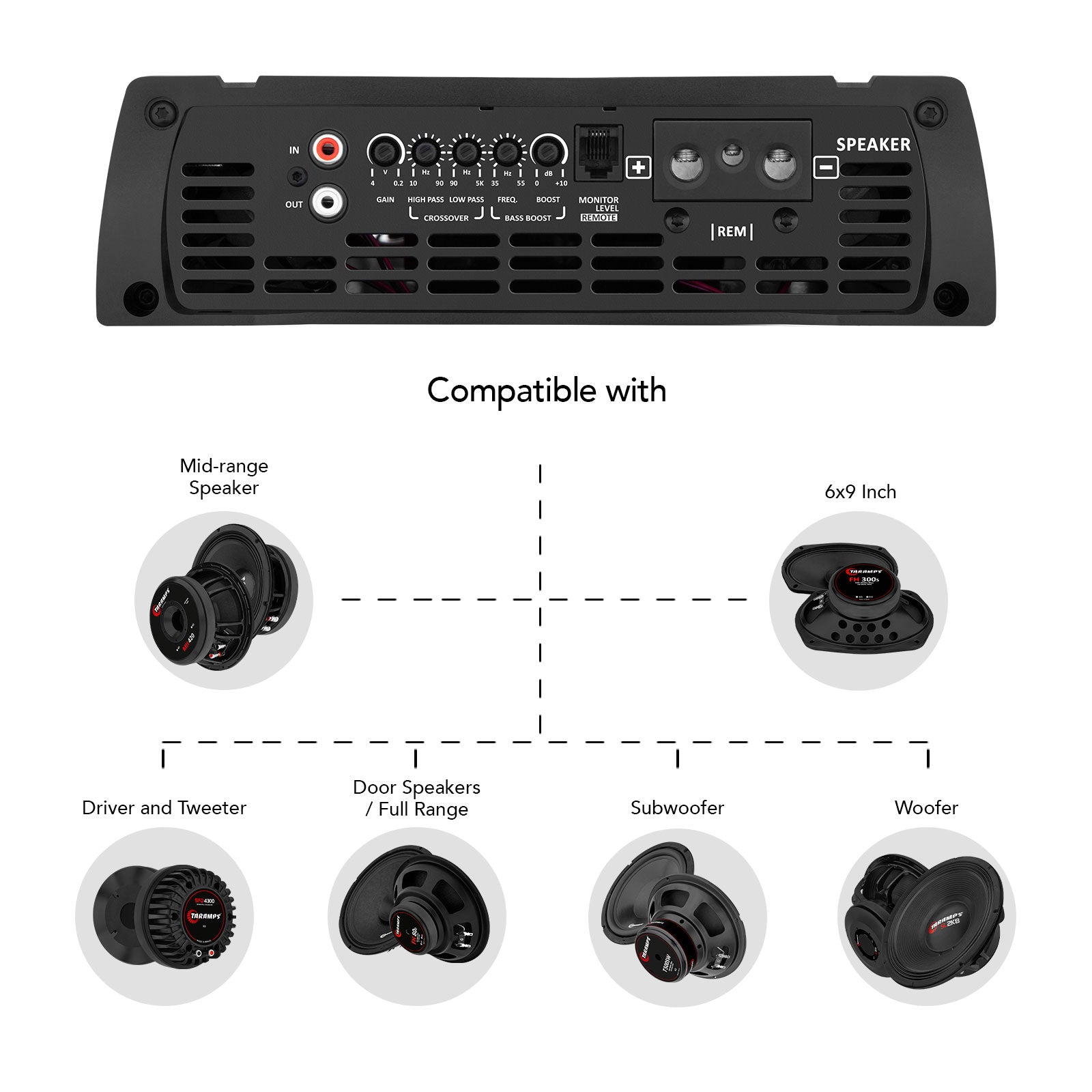

This product is compatible with the Monitor Level Remote and LED Clip Monitor M1 accessories.
Technical Specifications
| Power | Nominal Power @12.6 VDC 1 Ohm: 10,162W RMS 2 Ohms: 6,080W RMS 4 Ohms: 3,332W RMS Nominal Power @13.8 VDC 1 Ohm: 11,545W RMS 2 Ohms: 7,366W RMS 4 Ohms: 3,987W RMS Nominal Power @14.4 VDC 1 Ohm: 12,136W RMS 2 Ohms: 7,787W RMS 4 Ohms: 4,370W RMS |
| Number Of Channels | 01 |
| Input Impedance | 10K Ohms |
| Input Sensitivity | 0.22 V ~ 4 V |
| Frequency Response | 10 Hz ~ 5 KHz (-3 dB) |
| Signal To Noise Ratio | >90 dB |
| Crossover High Pass (HPF) | 10 Hz ~ 90 Hz (-12 dB/8ª) Variable |
| Crossover Low Pass (LPF) | 90 Hz ~ 5 KHz (-12 dB/8ª) Variable |
| Minimum Supply Voltage | 9 VDC |
| Maximum Supply Voltage | 17 VDC |
| Consumption At Rest | 4.2A |
| Maximum Consumption In Sinusoidal Signal | 980A |
| Maximum Music Consumption | 490A |
| Protection System | Short-Circuit in Relation to GND, Low Impedance, Low/High Voltage and Thermal Protection |
| Weight | 15 lbs. |
In stock and shipping free from JS Ultimate Sounds — your authorized Taramps dealer.
