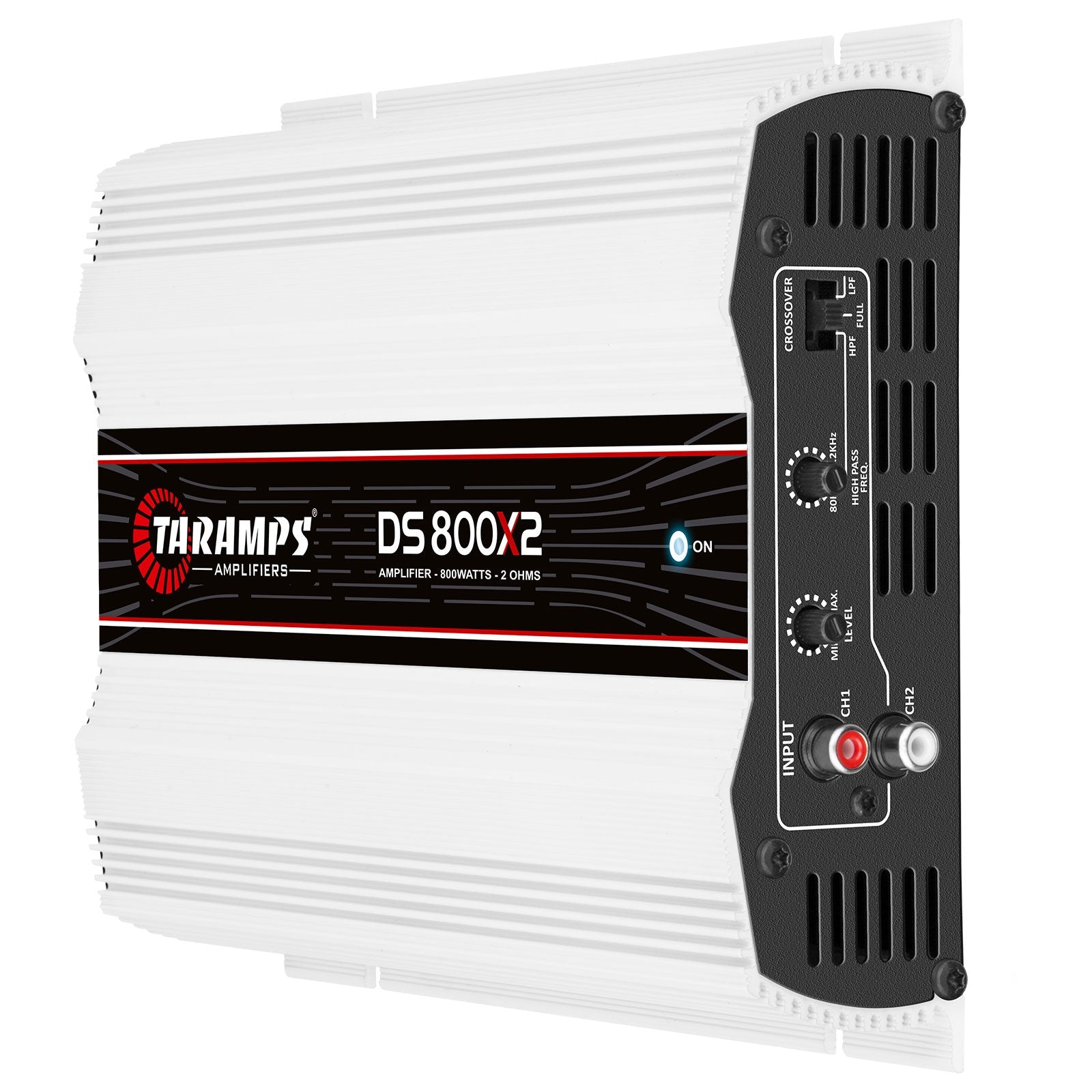

Taramps DS 800x2 Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Technical Specifications
| Power | 800 Watts |
| Number Of Channels | 2 |
| Operation Class | D |
| Output Impedance | 2 Ohms |
| Input Impedance | 18K Ohms |
| Input Sensitivity | 250mV |
| Frequency Response | 10Hz ~ 22KHz (-3dB) |
| Signal To Noise Ratio | >96dB |
| Crossover High Pass (HPF) | 80Hz to 2.2KHz (-6dB/8a) Variable |
| Crossover Low Pass (LPF) | 80Hz (-12dB/8ª) Fixed |
| Connectivity | 2 |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 16VDC |
| Consumption At Rest | @12.6 VDC: 0.85A |
| Maximum Consumption In Sinusoidal Signal | 77A |
| Maximum Music Consumption | @12.6 VDC: 38A |
| Protection System | output overload |

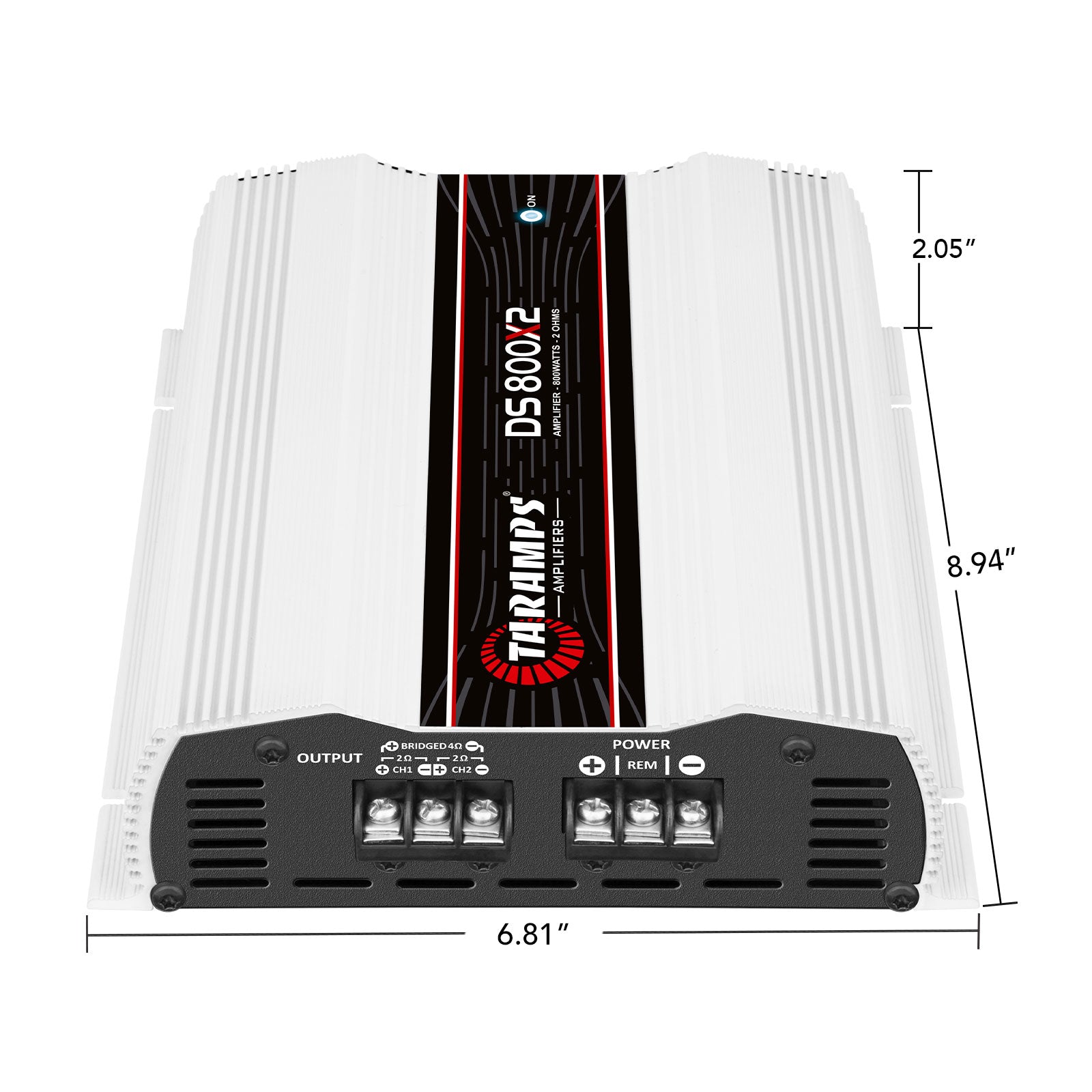

| Dimensions | 7.24" x 2.13" x 7.48" (173 x 52 x 227mm) |
| Weight | 3.04lb (1,43kg) |
