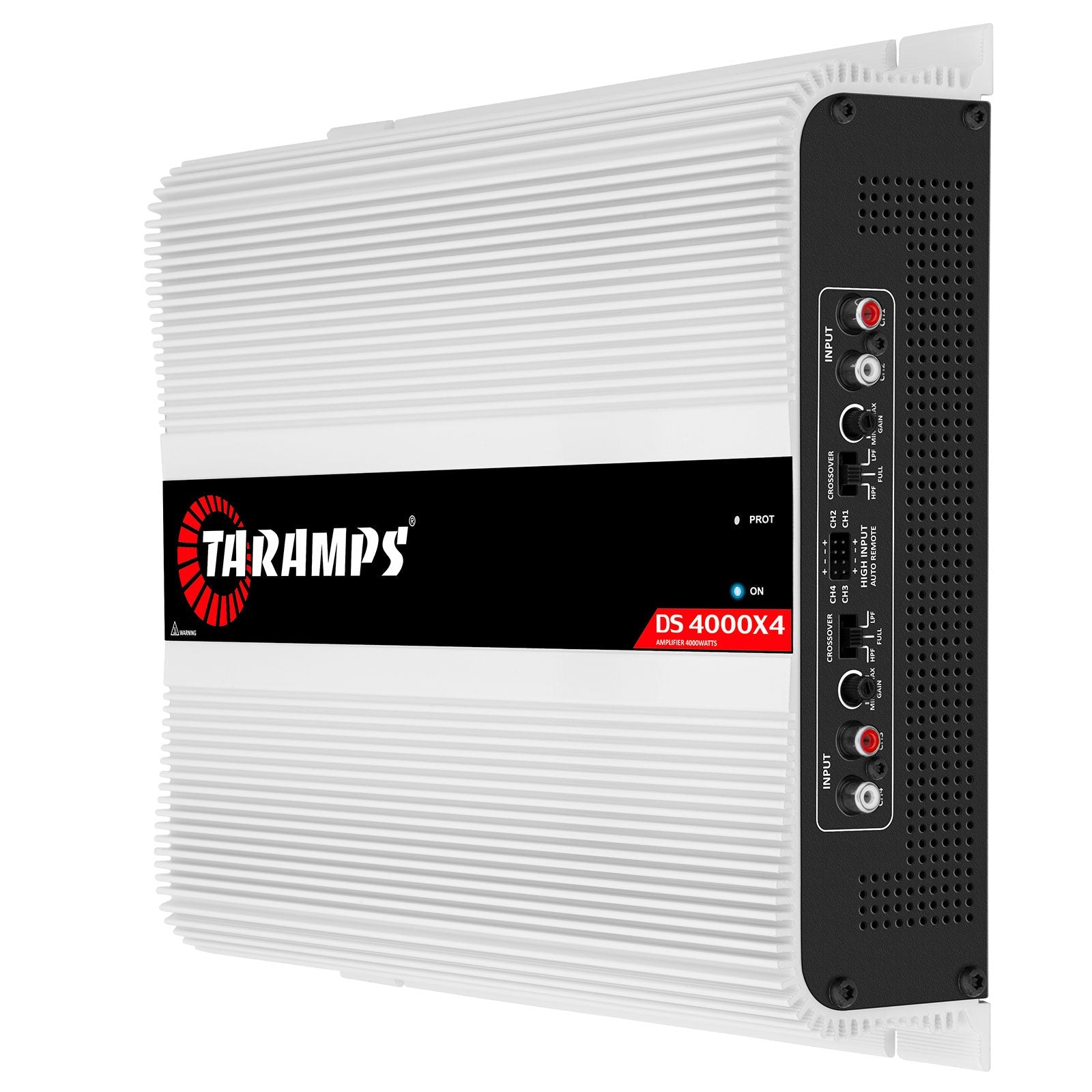

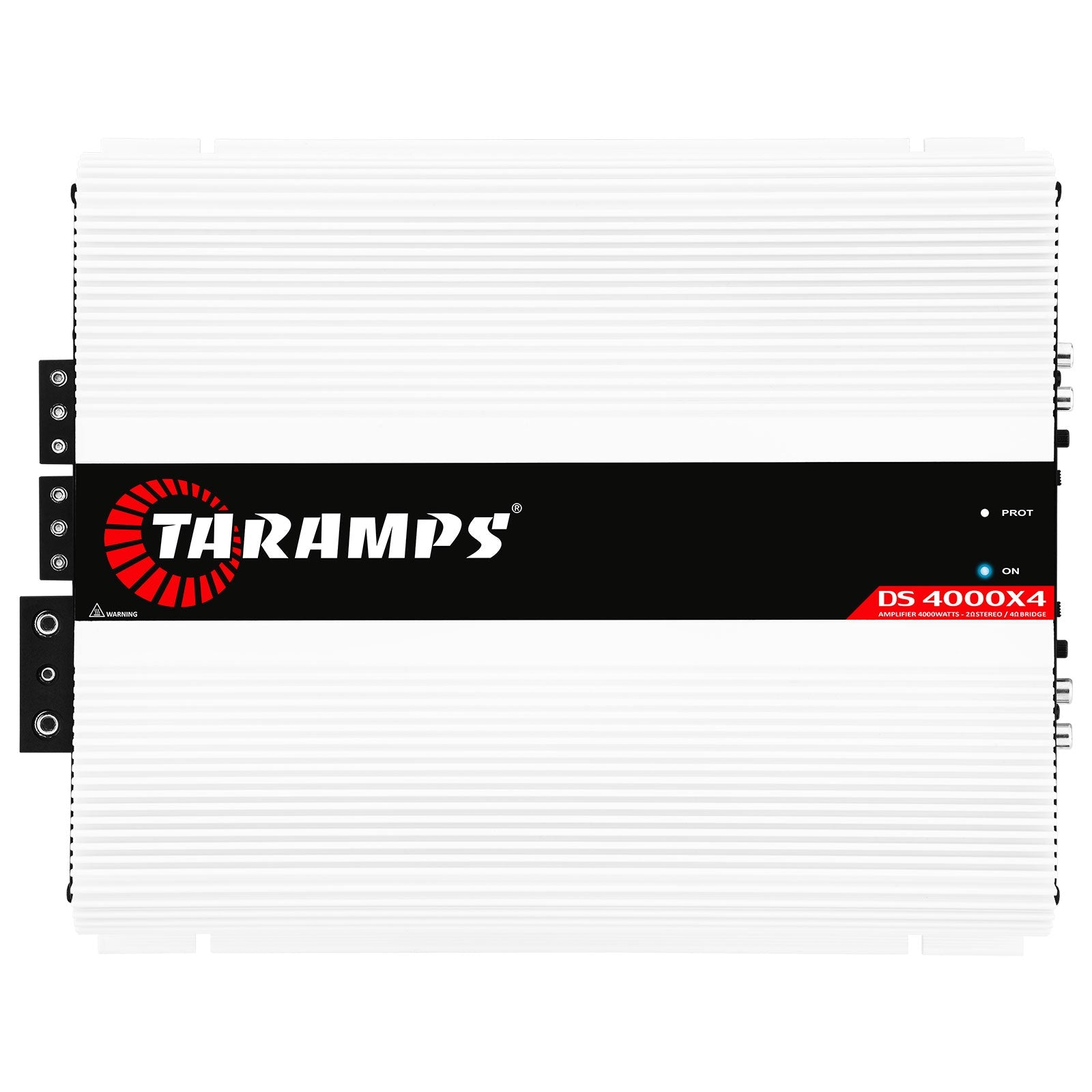

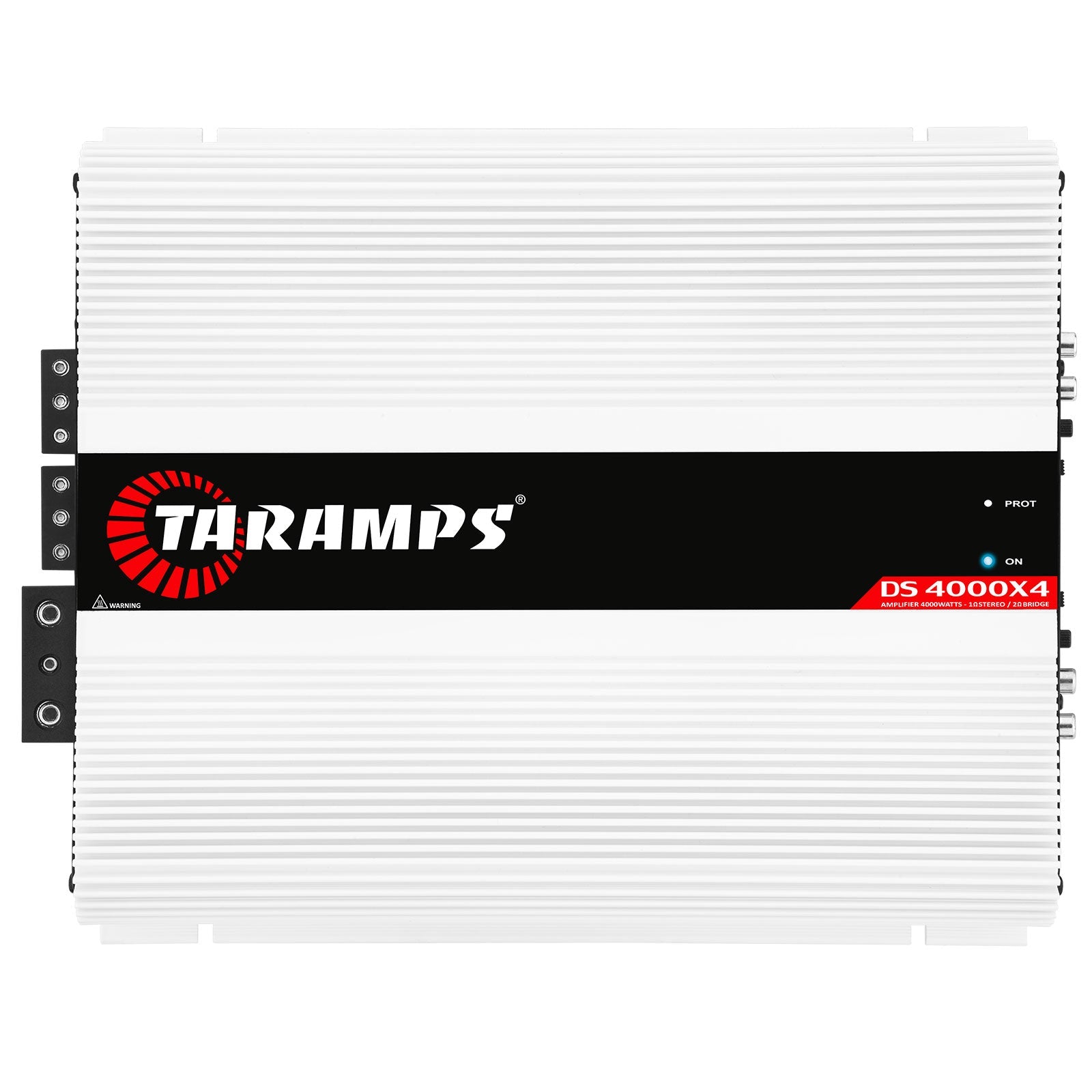

Taramps DS 4000X4 Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

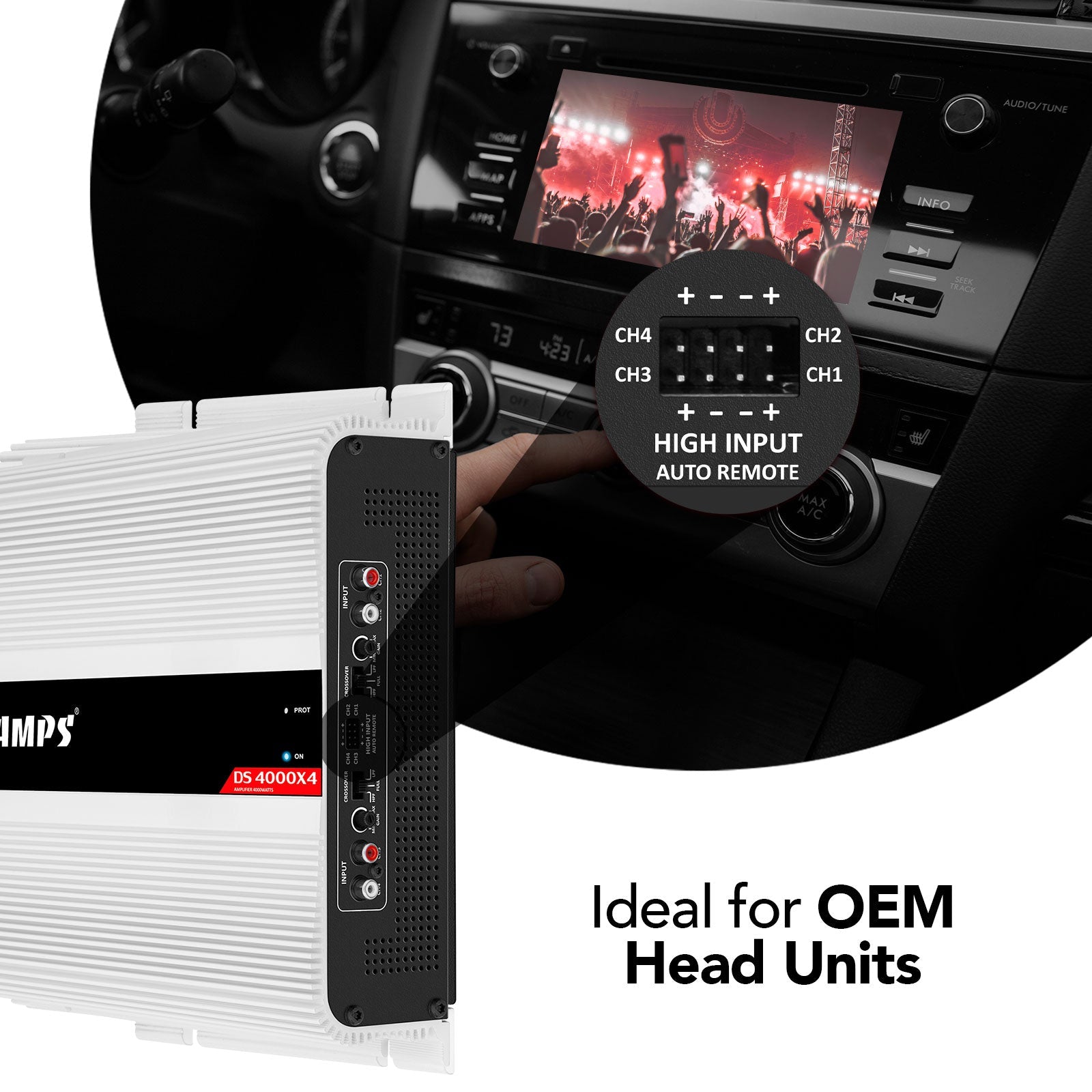

The DS 4000×4 is a 4000W amplifier with 4x1000W RMS channels that can bridge, featuring high-level input and compatibility with most head units. Includes RCA, Gain, and fixed Crossover for enhanced sound across all music styles.
Technical Specifications
| Power | 4000 Watts |
| Number Of Channels | 4 |
| Operation Class | D |
| Input Sensitivity | (Gain = Max): 250mV (RCA) / 3V (WIRE) | (Gain = Max): 4V (RCA) / >10V (WIRE) |
| Frequency Response | 8Hz ~ 20KHz (-3dB) |
| Signal To Noise Ratio | >86dB |
| Crossover High Pass (HPF) | 90Hz (-12dB/8ª) Fixed |
| Crossover Low Pass (LPF) | 90Hz (-12dB/8ª) Fixed |
| Connectivity | 4 |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Consumption At Rest | 2.5A |
| Maximum Consumption In Sinusoidal Signal | 370A |
| Maximum Music Consumption | 185A |
| Protection System | Output Short Circuit |
| Dimensions | 10.55" x 2.83" x 13.11" (268 x 72 x 333mm) |
| Weight | 11.15lb (5,06Kg) |
In stock and shipping free from JS Ultimate Sounds — your authorized Taramps dealer.
