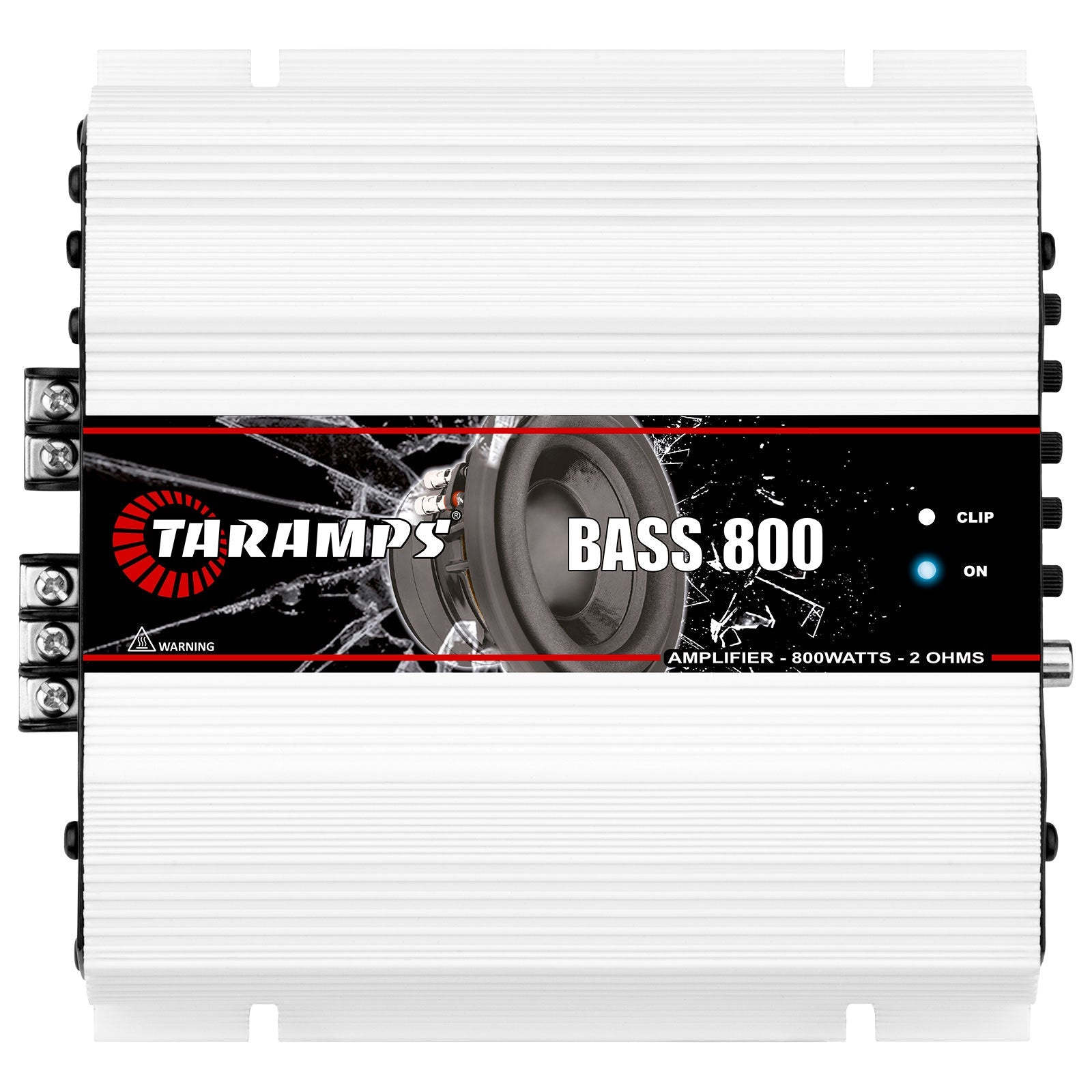

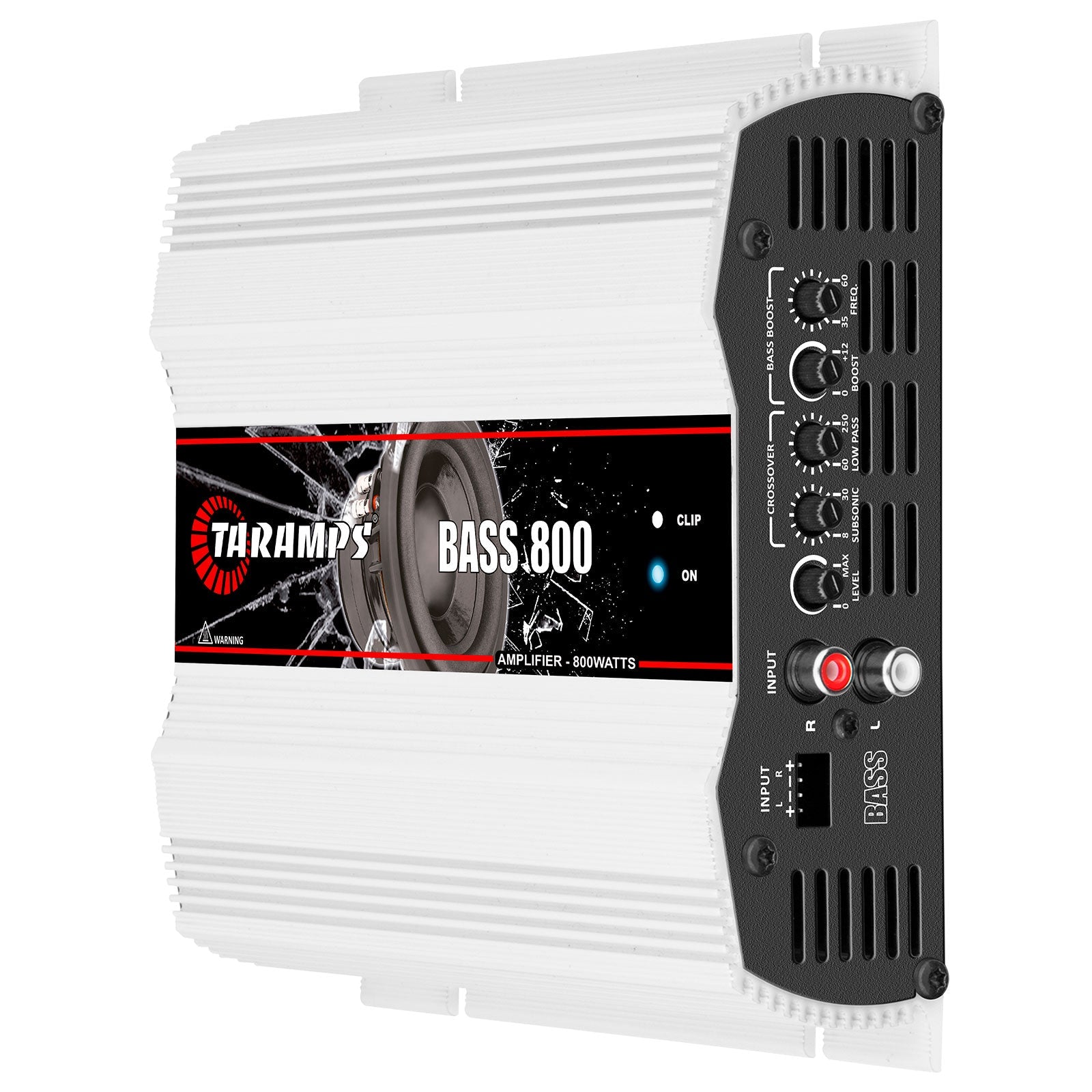

Taramps Bass 800 Car Audio Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20and%20features%20like%20Subsonic,%20Low%20Pass%20filters,%20and%20Bass%20Boost,%20it%20ensu...
){kind=link}

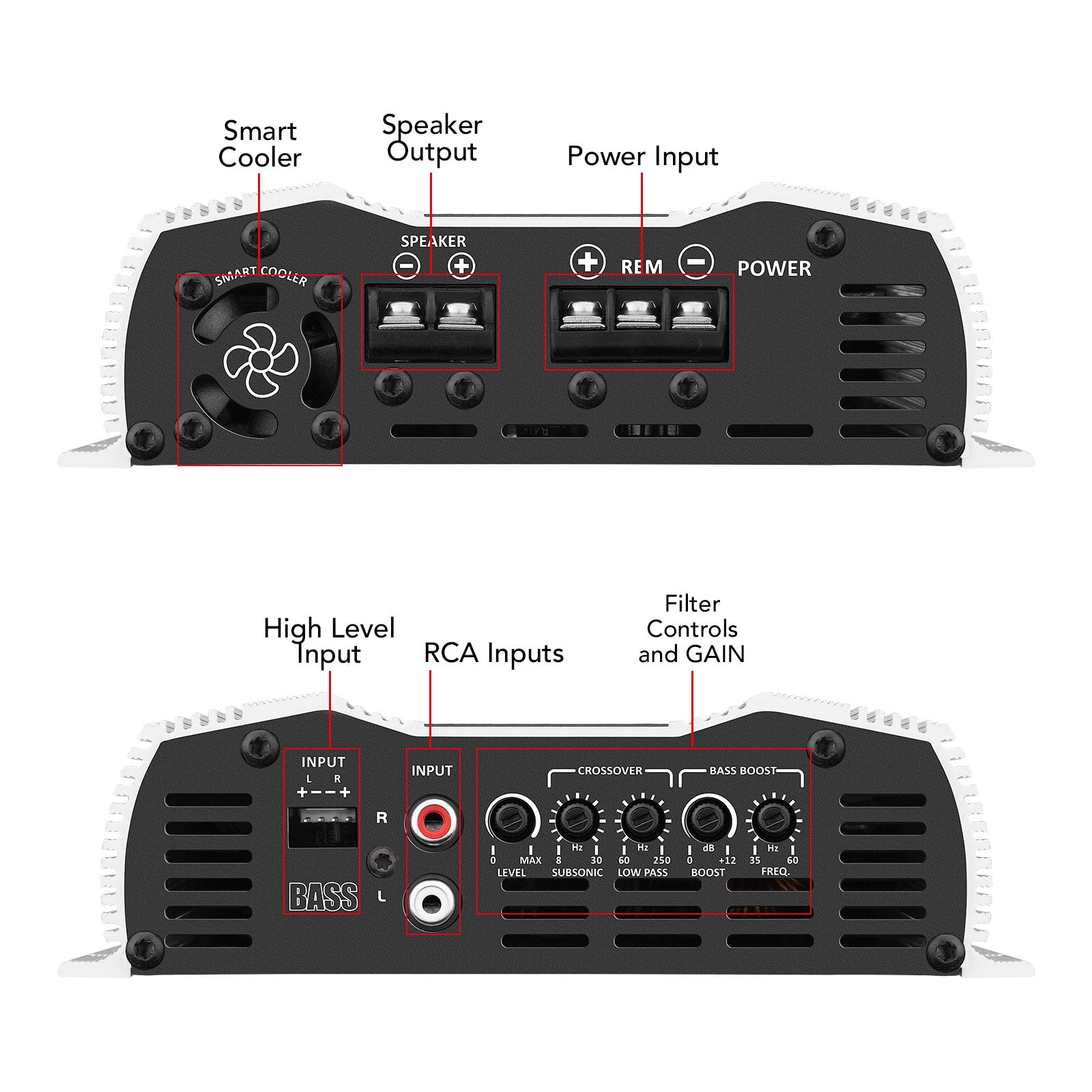

The Taramps BASS 800 amplifier delivers 800W of powerful bass, operating from 8Hz to 250Hz. With versatile inputs (RCA or wire) and features like Subsonic, Low Pass filters, and Bass Boost, it ensures superior control and enhanced bass performance. Ideal for any automotive sound system!
Technical Specifications
| Maximum Power | @14.4VDC - 1 Ohm: 800W RMS | 2 Ohms: 800W RMS |
| Number Of Channels | 01 |
| Operation Class | D |
| Input Impedance | 10K Ohms |
| Input Sensitivity | 200mV (RCA) / 6V (WIRE) |
| Frequency Response | 8Hz ~ 250Hz (-3dB) |
| Signal To Noise Ratio | >90dB |
| Crossover High Pass (HPF) | 8Hz ~ 30Hz (-12dB/8ª) Variable |
| Crossover Low Pass (LPF) | 60Hz ~250Hz (-12dB/8ª) Variable |
| Minimum Supply Voltage | 9.5VDC |
| Maximum Supply Voltage | 16VDC |
| Consumption At Rest | 1 Ohm: 1.20A | 2 Ohms: 1.0A |
| Maximum Consumption In Sinusoidal Signal | 1 Ohm: 86A | 2 Ohms: 74A |
| Maximum Music Consumption | @14.4VDC - 1Ohm: 43A | 2 Ohms: 37A |
| Protection System | Output overload, high/low supply voltage |
| Dimensions | 7.09" x 2.01" x 6.89" (180 x 51 x 175 mm) |
| Weight | 2.69 lb (1.22 Kg) |
In stock and shipping free from JS Ultimate Sounds — your authorized Taramps dealer.
