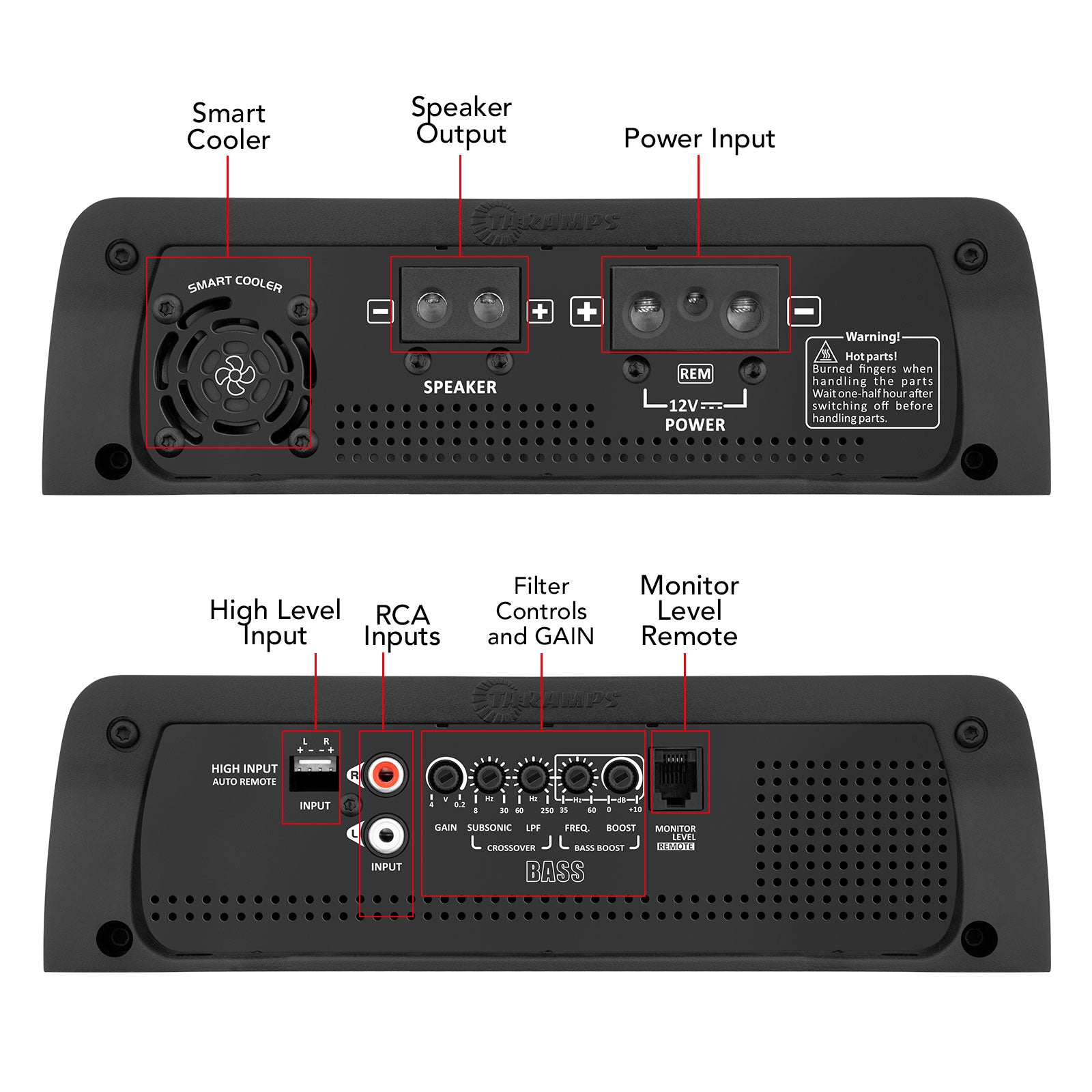

The BASS 1200 amplifier delivers 1200W RMS of deep, powerful bass with precision control. Perfect for subwoofers, it features adjustable gain, subsonic and LPF filters, and Bass Boost. With versatile inputs, efficient cooling, and a remote monitor for easy volume control, elevate your audio experience!

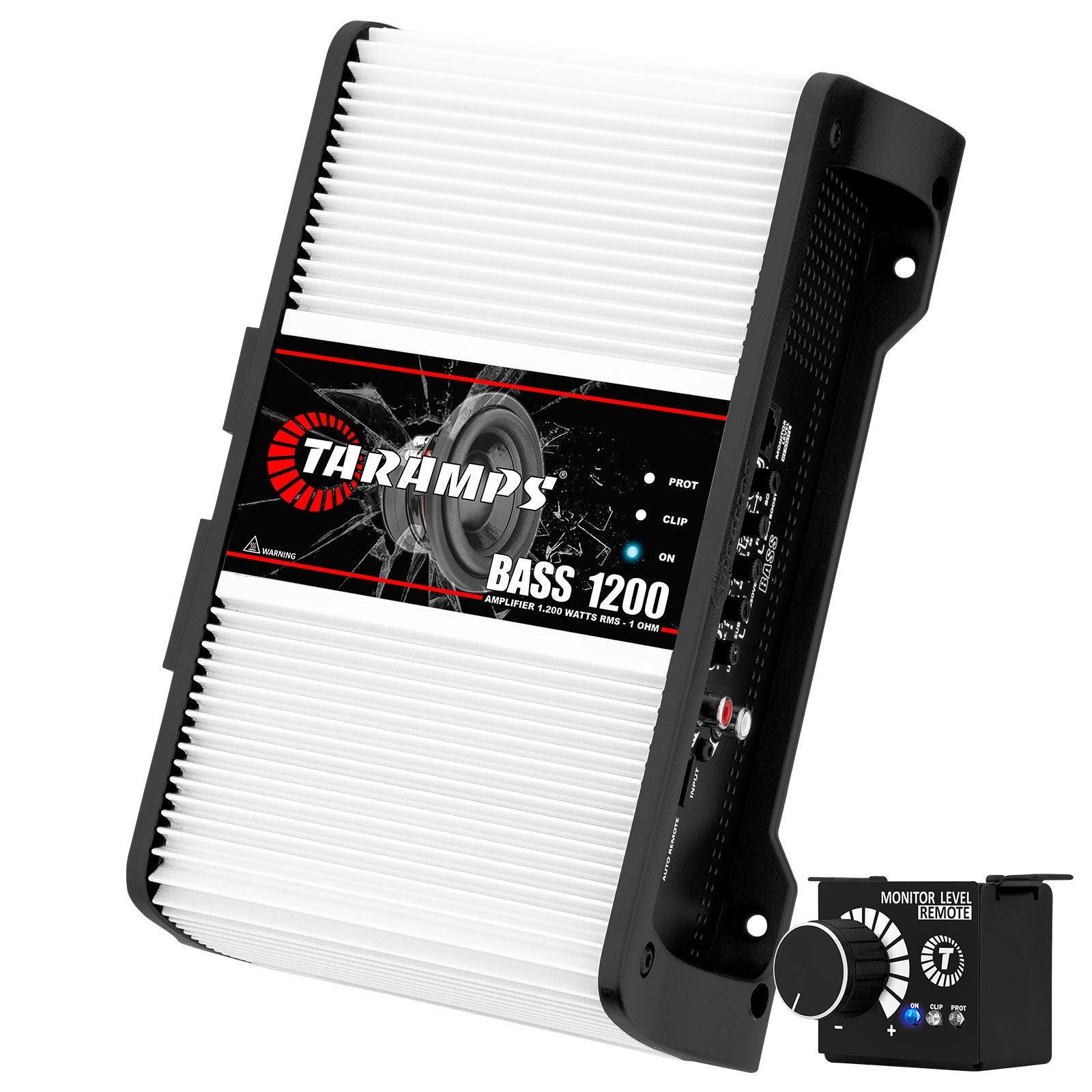

Monitor Level Remote Included!
Technical Specifications
| Number Of Channels | 1 |
| Operation Class | D |
| Input Impedance | 10K Ohms |
| Input Sensitivity | (RCA): 4 V (min.) / 250 mV (max.) | (WIRE): >10 V (min.) / 3 V (max.) |
| Frequency Response | 8 Hz ~ 250 Hz (-3 dB) |
| Crossover High Pass (HPF) | 8 Hz ~ 30 Hz (-12 dB/8ª) Variable |
| Crossover Low Pass (LPF) | 60 Hz ~250 Hz (-12 dB/8ª) Variable |
| Consumption At Rest | 2 Ohms: 1.60A | 4 Ohms: 1.80A |
| Maximum Consumption In Sinusoidal Signal | 2 Ohms: 110A | 4 Ohms: 110A |
| Maximum Music Consumption | @14.4 VDC 2 Ohms: 52.5A | 4 Ohms: 55A |
| Protection System | Output Overload, Low / High Supply Voltage and Thermal Protection |

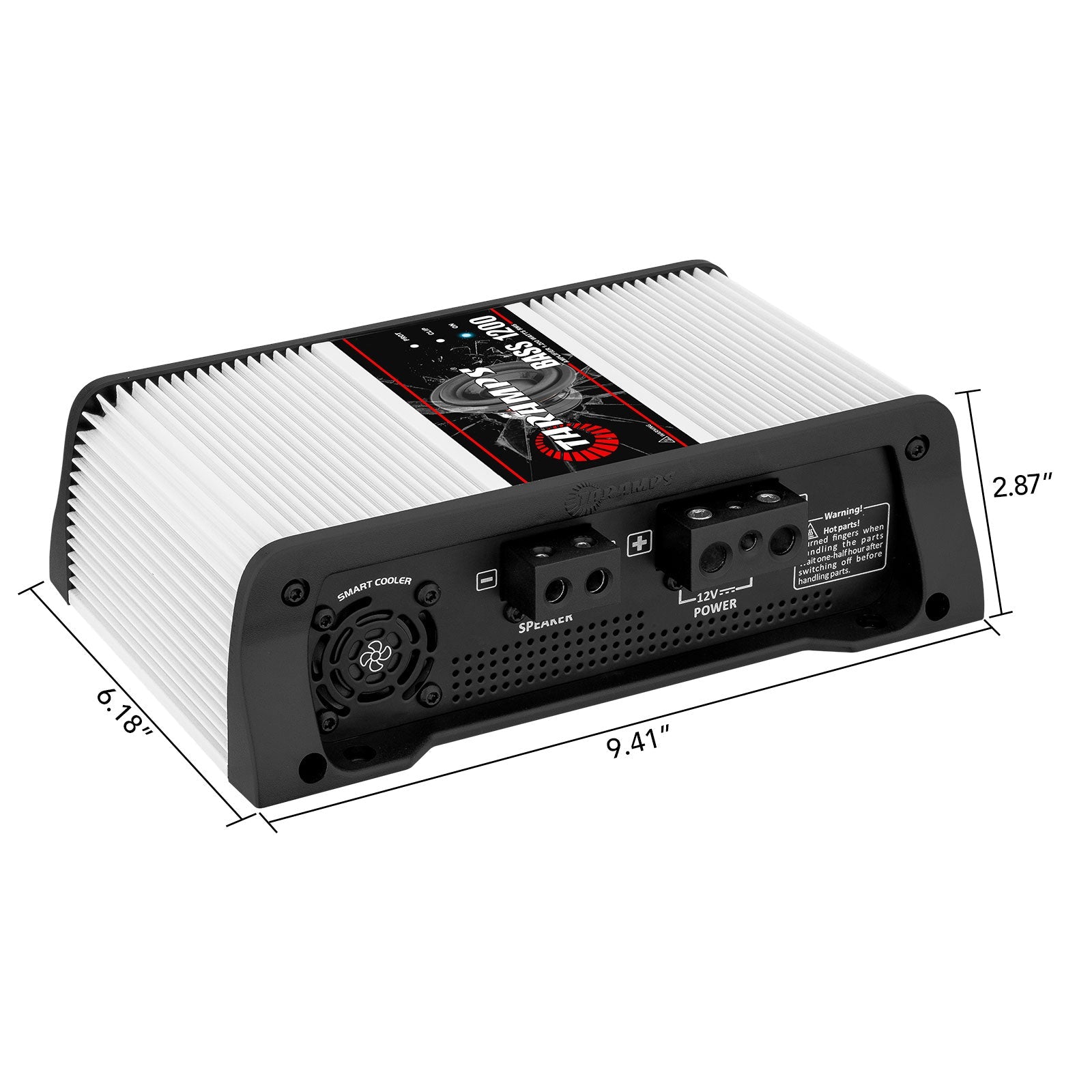

| Dimensions | 9.41" x 2.87" x 6.18" (239 x 73 x 157 mm) |
| Weight | 4.4 lb (2.0 Kg) |
