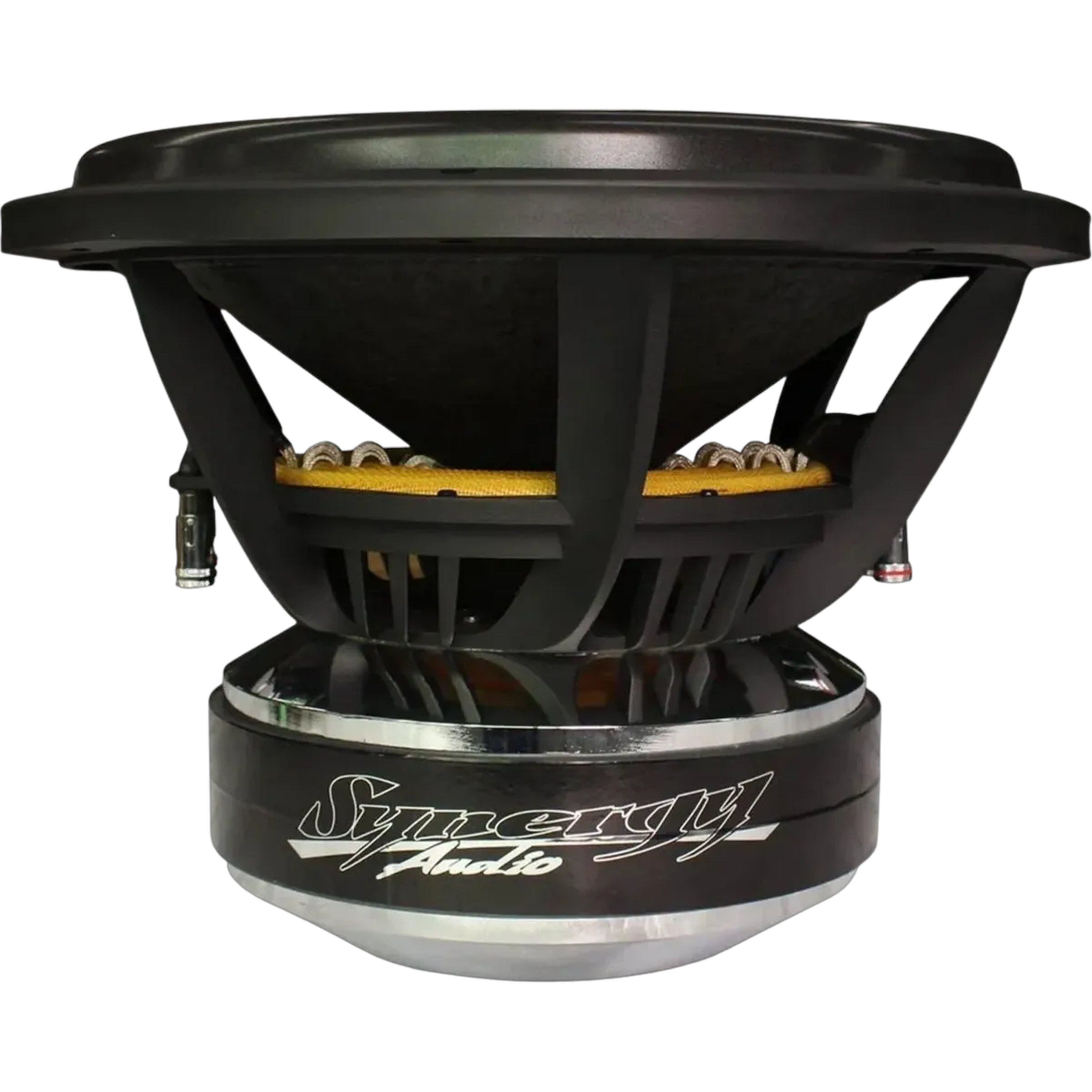

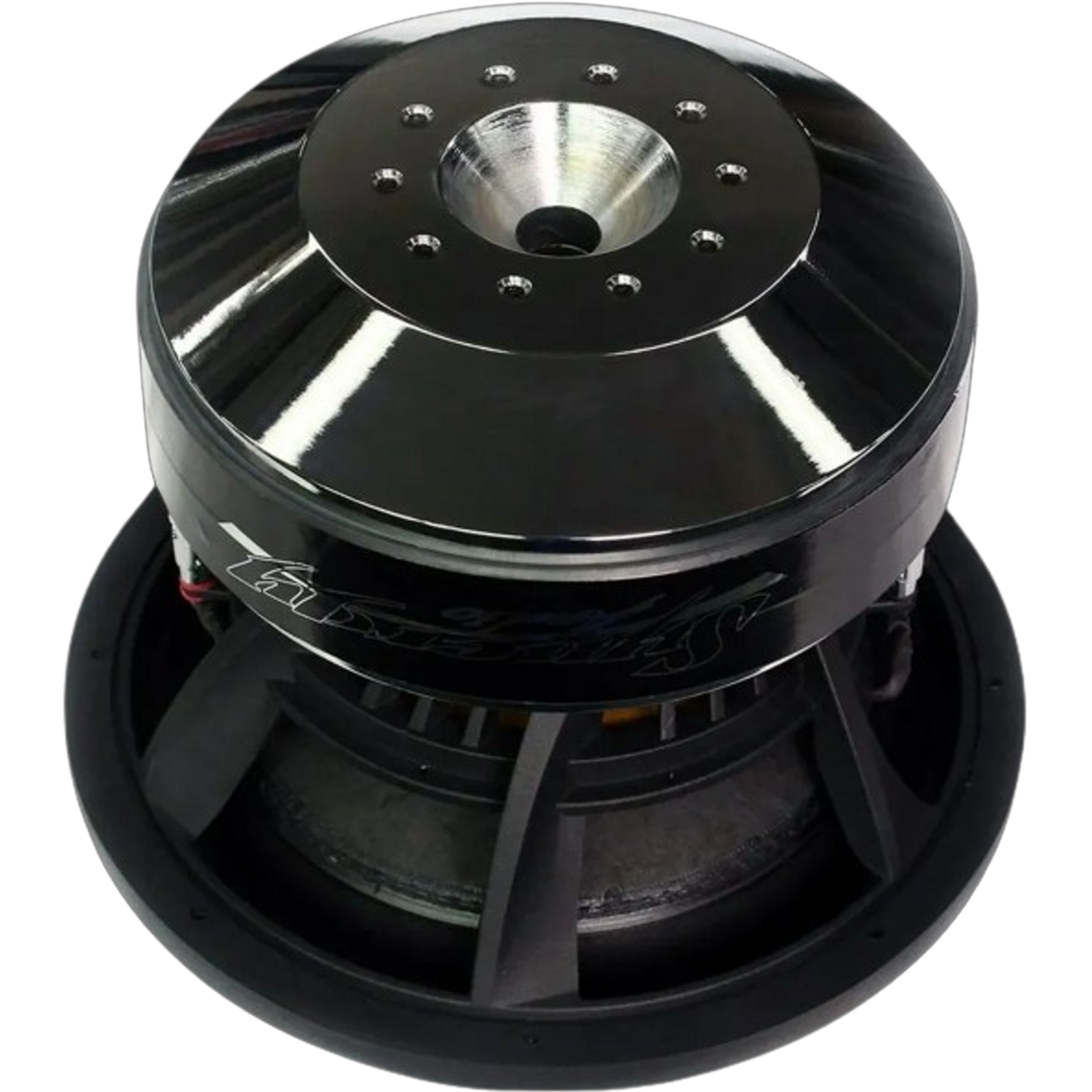

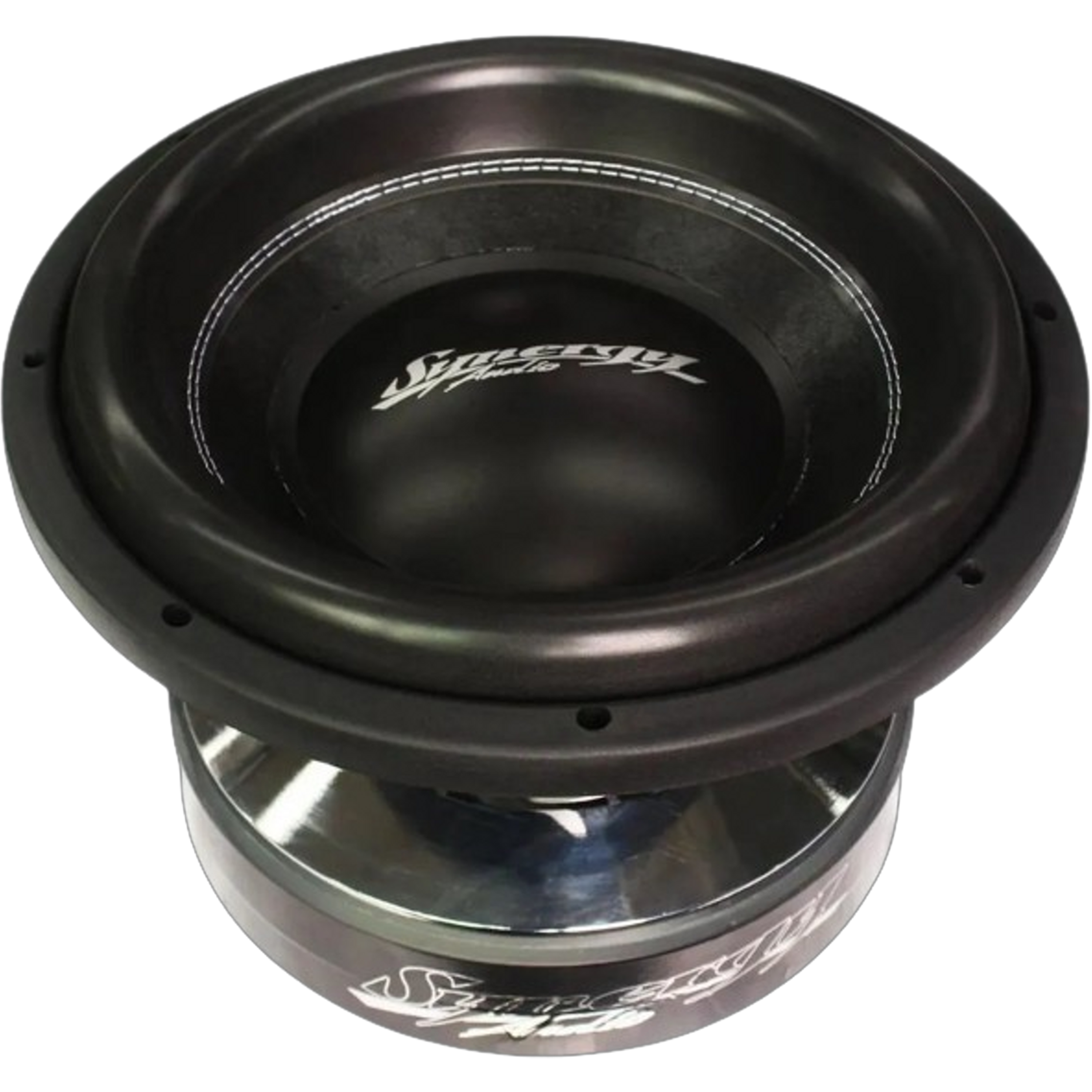

Synergy Audio WFO Series 12" Competition Subwoofer — 2,500W RMS DVC
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The Synergy Audio WFO Series 12" is a world-class competition subwoofer built with high-end design, engineering, and premium components for maximum output and reliability. Rated at 2,500 watts RMS and offered in dual voice coil configurations, it delivers hard-hitting low end for SPL and demo builds.
Choose your coil configuration below — Dual 2 Ohm or Dual 4 Ohm — to match your amplifier and wiring plan.
Specifications
| RMS Power | 2,500W |
| Voice Coil Diameter | 3" |
| Motor Diameter | 9.8" |
| Motor Weight | 78 lbs |
| Suggested Ported Space | 2–3 ft³ |
| Cutout Diameter | 11.5625" |
| Mounting Diameter | 12.875" |
| Mounting Depth | 9.0" |
| Re | 3.96 ohm |
| Fs | 41.8 Hz |
| Sd | 53.093 m |
| Bl | 25.787 Tm |
| Qms | 5.760 |
| Qes | 0.508 |
| Qts | 0.467 |
| SPL | 87.5 dB |
| Vas | 15.883 L |
| Cms | 39.679 uM/N |
| Mms | 268.430 g |
JS Ultimate Sounds is an authorized Synergy Audio dealer. Every product is 100% genuine and backed by full manufacturer warranty. Questions about fitment, wiring, or building your system? Our car-audio experts are here to help — reach out any time.
