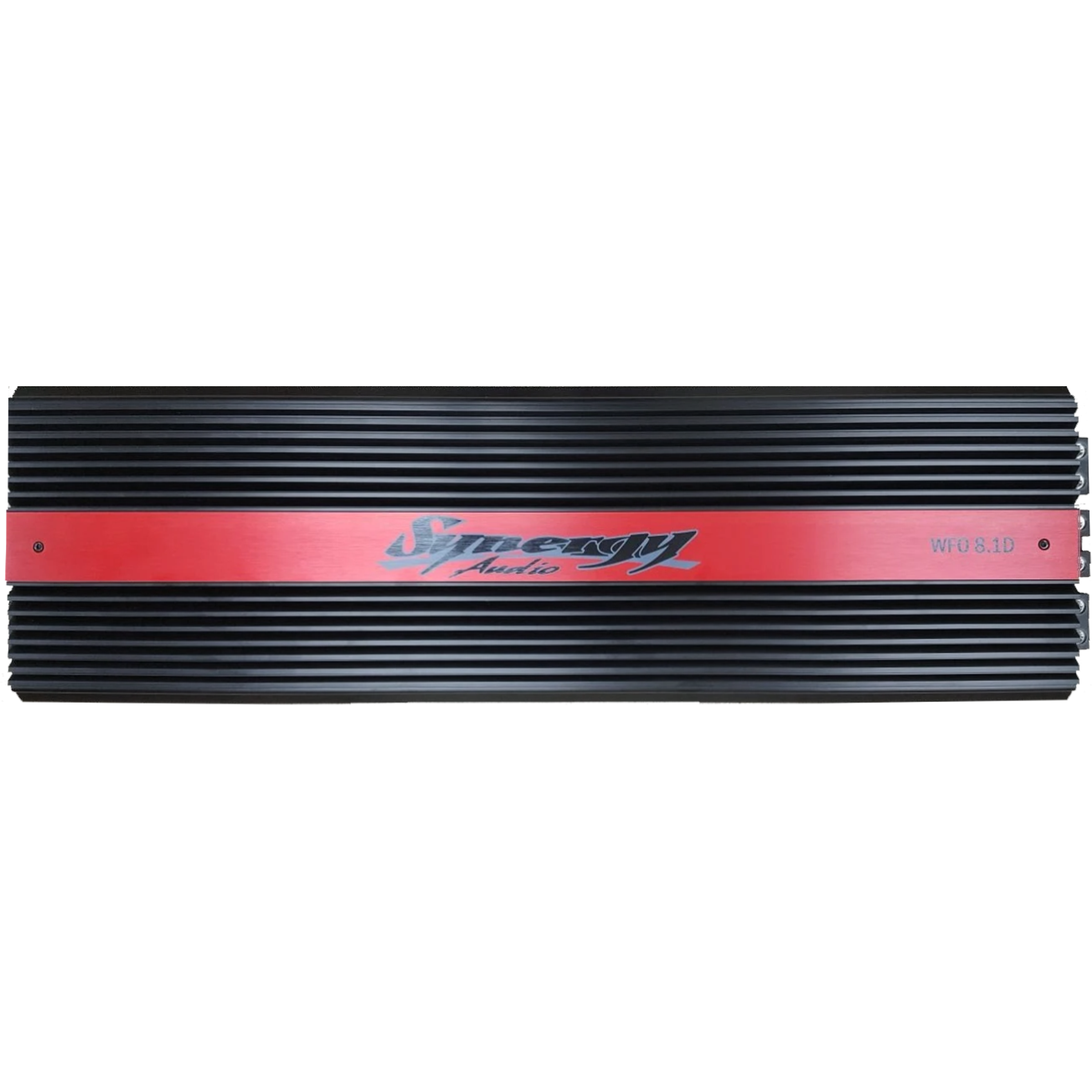

Synergy Audio WFO 8.1D Monoblock Amplifier — 9,600W
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The Synergy Audio WFO 8.1D is a world-class monoblock amplifier featuring high-end Korean design, engineering, and premium components for maximum performance. Rated at 9,600 watts at 1 ohm, it's built for all-out daily demo builds and the SPL competition lanes.
Specifications
| Power @ 1 Ohm | 9,600W @ 14.4V |
| Power @ 2 Ohm | 6,400W @ 14.4V |
| Power @ 4 Ohm | 3,900W @ 14.4V |
| Power @ 1 Ohm (16V) | 10,800W @ 16V |
| Frequency Response | 12 Hz – 250 Hz |
| Signal to Noise Ratio | >100 dB |
| Damping Factor | >200 |
| Subsonic Filter | 10 Hz – 50 Hz |
| Low Pass Filter | 35 Hz – 250 Hz |
| Working Voltage | 16V |
| Power Transformers | 4 |
| Power & Ground Terminals | (3) 0 GA |
| Dimensions | 780mm L x 239mm W x 69mm H |
Features
- Custom high-mass, thermally optimized aluminum heat sink casing
- Overbuilt power supplies and output sections using high-grade components

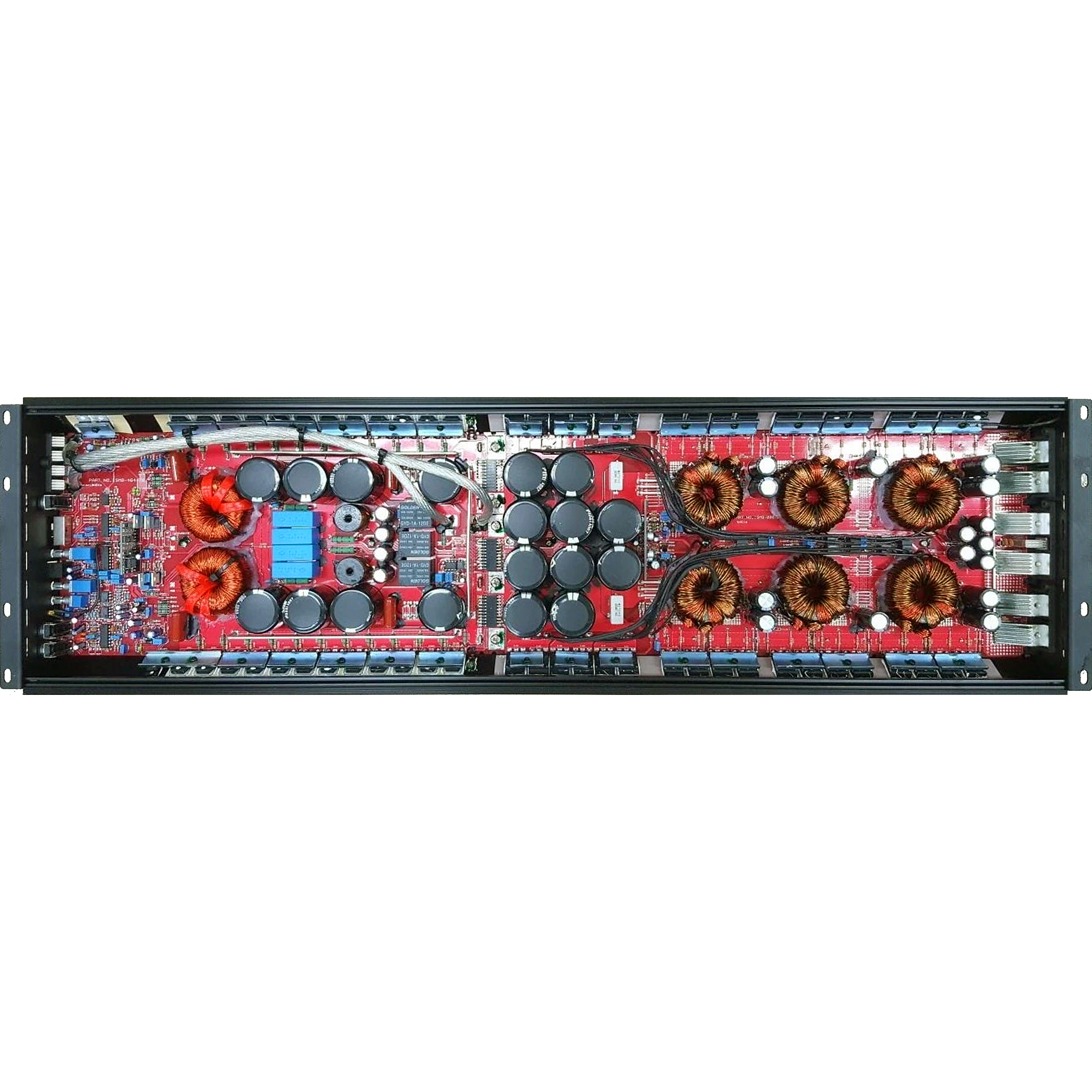

- Heavy-duty double-sided through-hole PCBs with thick solid copper traces

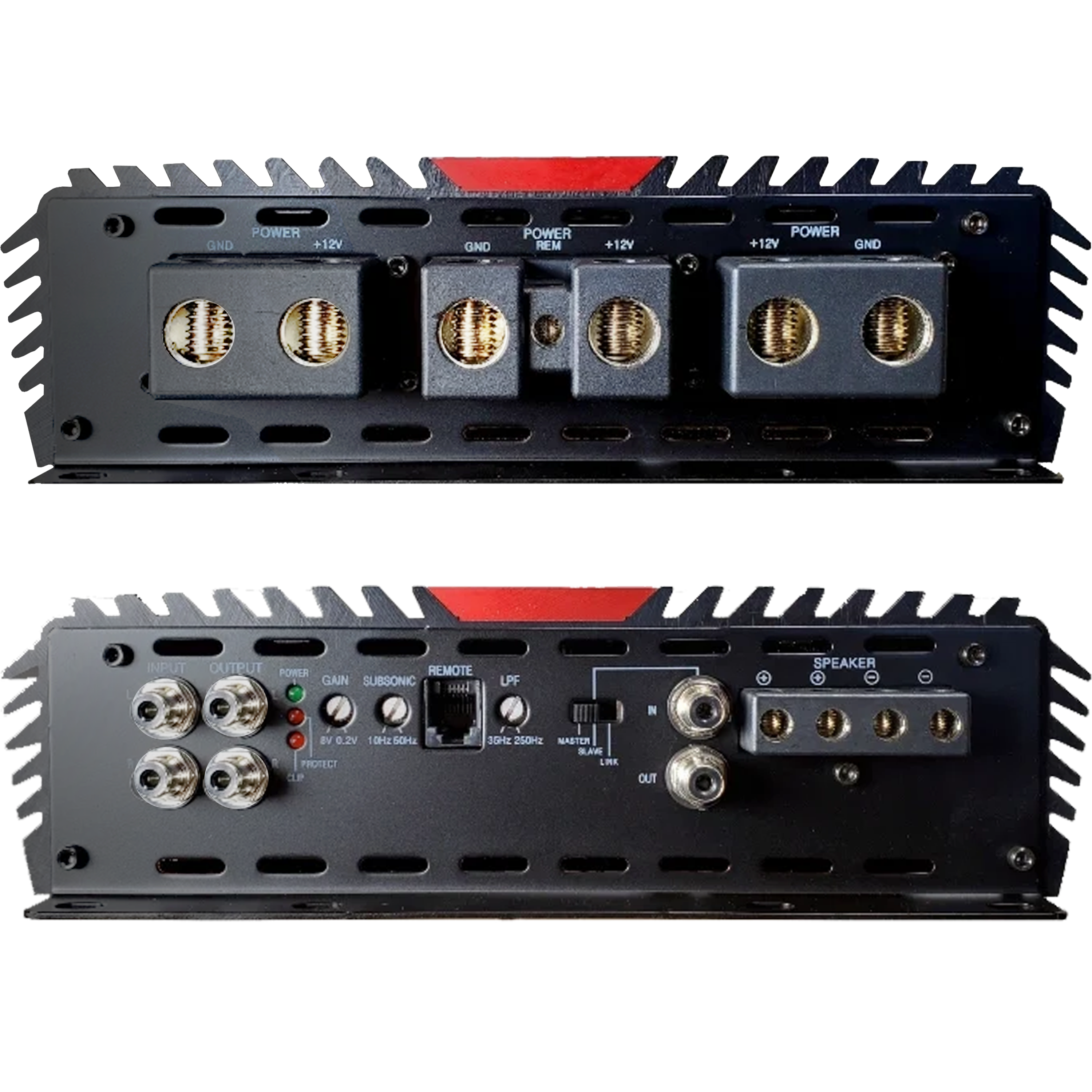

- Hand-soldered nickel-plated Tiffany RCA inputs/outputs
- Single 1/0 and 4 gauge nickel-plated power and ground inputs
- Nickel-plated 8 gauge speaker outputs
- Fully linkable/strappable (monoblock)
- Input sensitivity 8V – 200mV
- +18dB remote gain control
- Multi-way fully intelligent protection circuitry
JS Ultimate Sounds is an authorized Synergy Audio dealer. Every product is 100% genuine and backed by full manufacturer warranty. Questions about fitment, wiring, or building your system? Our car-audio experts are here to help — reach out any time.
