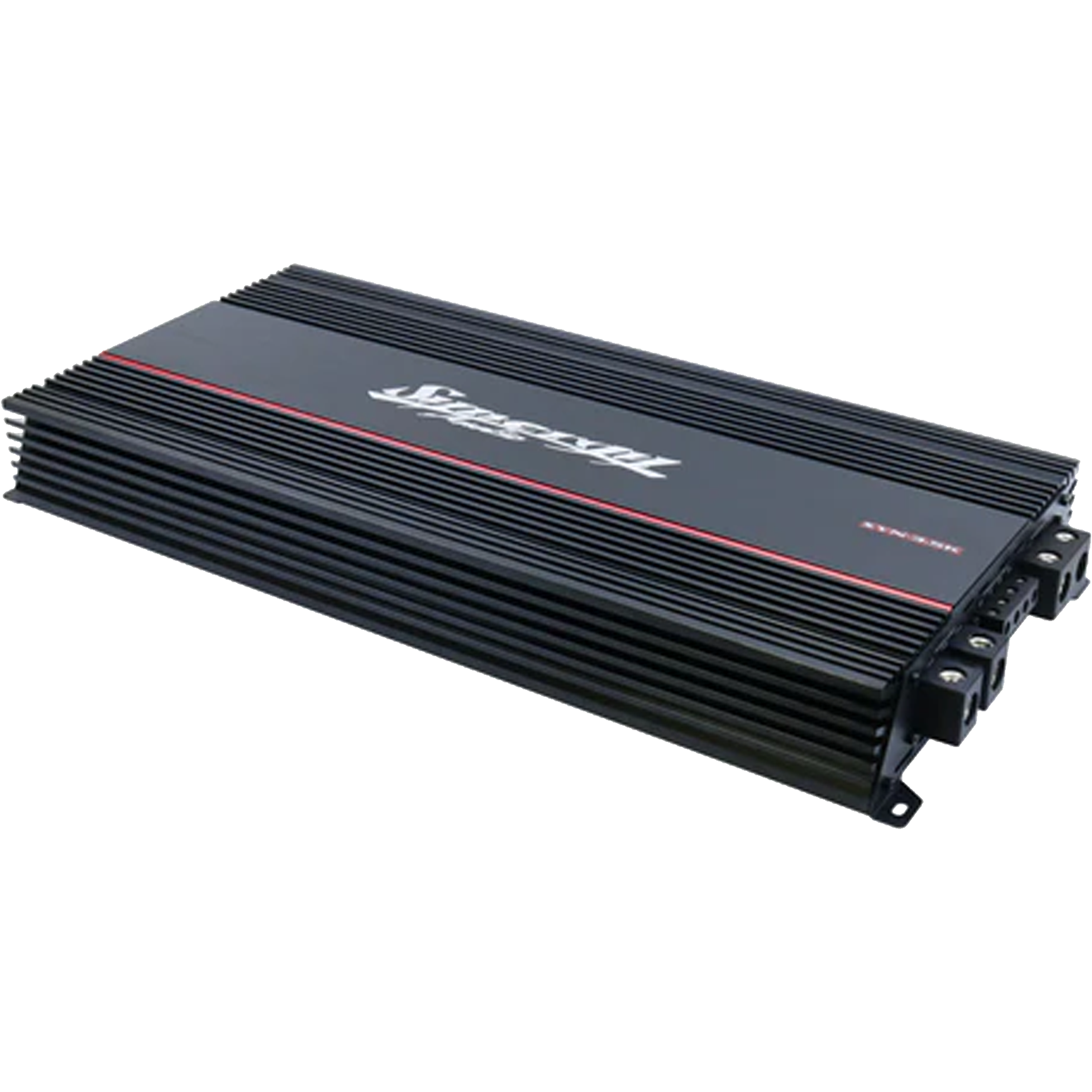

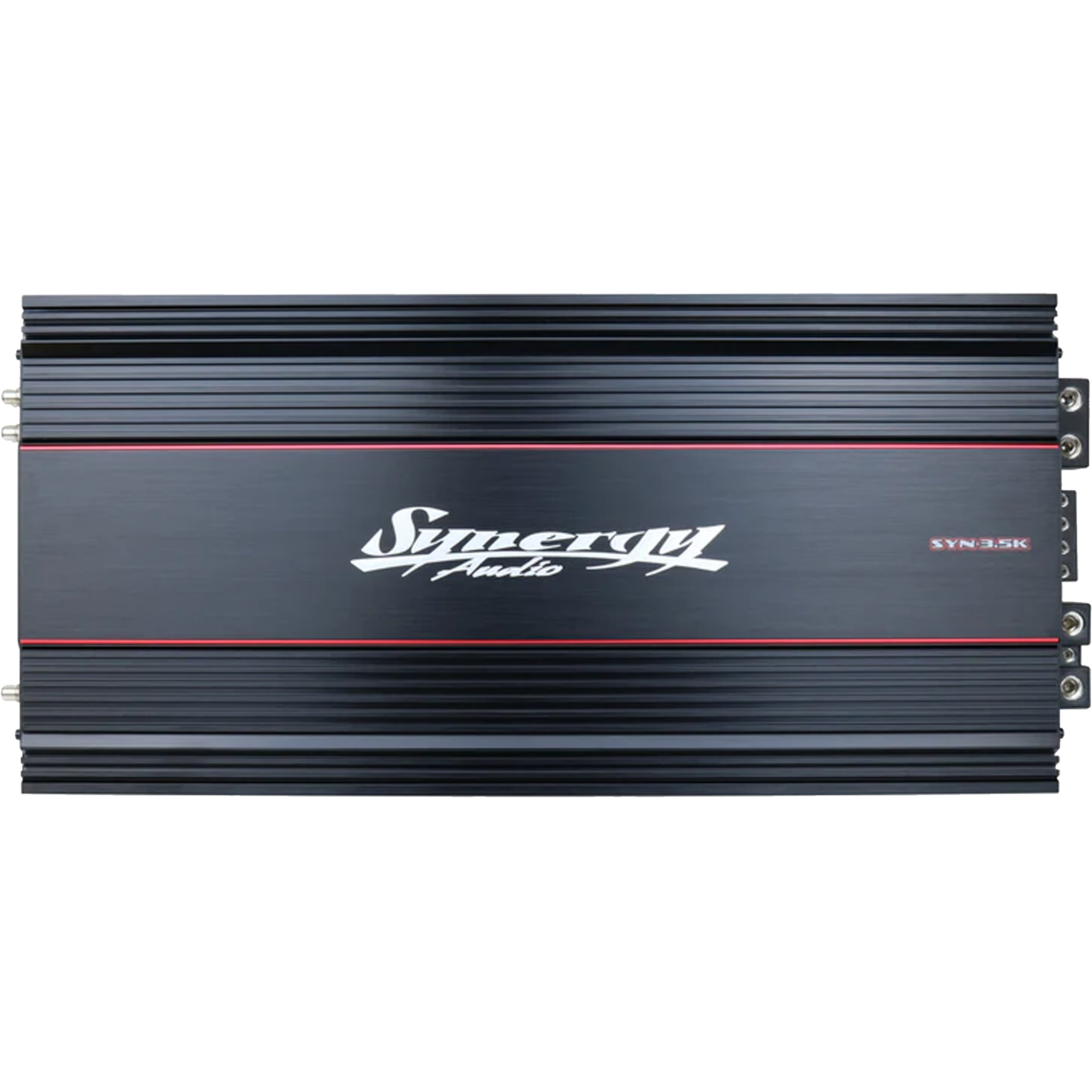

Synergy Audio SYN Series 3.5K Monoblock Amplifier — 3,500W
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The Synergy Audio SYN 3.5K is a world-class monoblock amplifier featuring high-end circuit design and premium components — South Korean Samyoung capacitors, Texas Instruments op-amps and ICs, German WIMA film and filter capacitors, and Fairchild chip sets for lasting reliability.
The SYN series is equally at home in a daily driver, a ground-pounding demo car, or the SPL competition lanes.
Specifications
| Power @ 1 Ohm | 3,500W @ 14.4V |
| Power @ 2 Ohm | 2,600W @ 14.4V |
| Power @ 4 Ohm | 1,500W @ 14.4V |
| Power @ 1 Ohm (16V) | 5,025W @ 16V |
| Frequency Response | 10 Hz – 250 Hz |
| Signal to Noise Ratio | >85 dB |
| Damping Factor | >200 |
| Subsonic Filter | 10 Hz – 50 Hz |
| Low Pass Filter | 35 Hz – 250 Hz |
| Working Voltage | 16V |
| Power Transformers | 4 |
| Power & Ground Terminals | (2) 0 GA |
| Dimensions | 19.69" L x 9.45" W x 2.44" H |
Features
- Custom high-mass, thermally optimized aluminum heat sink casing
- Overbuilt power supplies and output sections using high-grade components
- Heavy-duty double-sided through-hole PCBs with thick solid copper traces

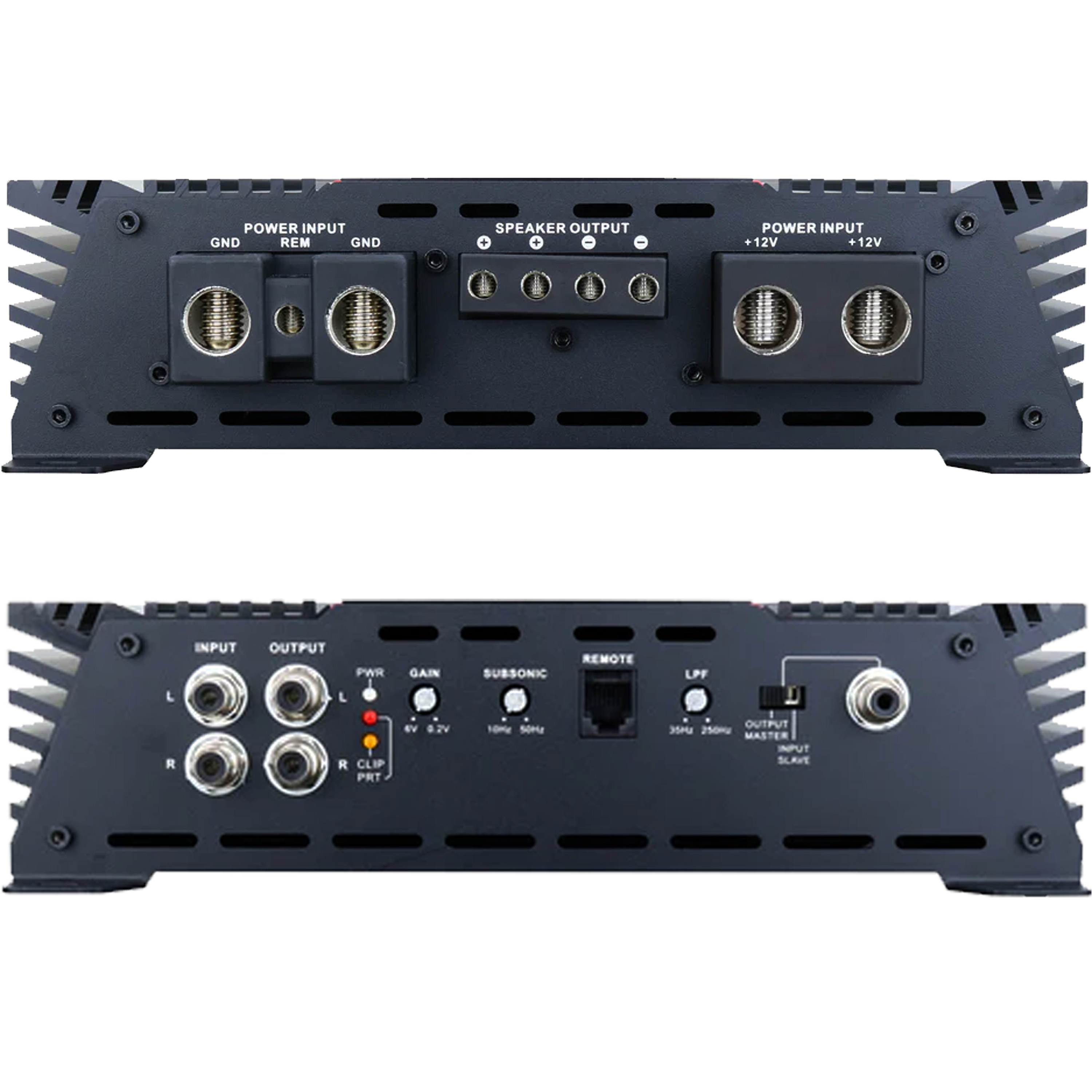

- Nickel-plated locking Tiffany RCA inputs/outputs
- Single 1/0 and 4 gauge nickel-plated power and ground inputs
- Nickel-plated 8 gauge speaker outputs
- Fully linkable/strappable (monoblock)
- Input sensitivity 6V – 200mV
- +18dB remote gain control with power and clipping indicator lights
- Multi-way fully intelligent protection circuitry
