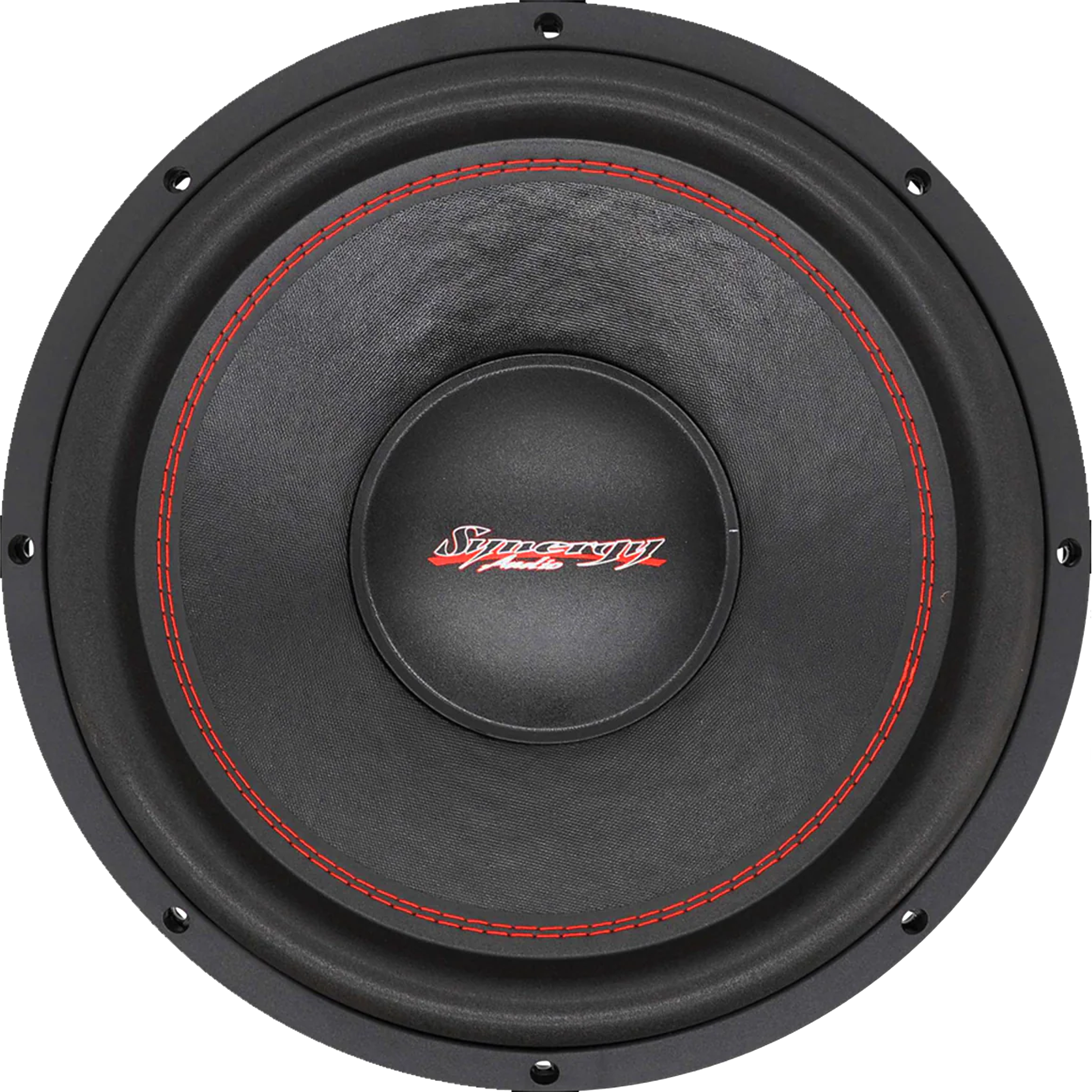

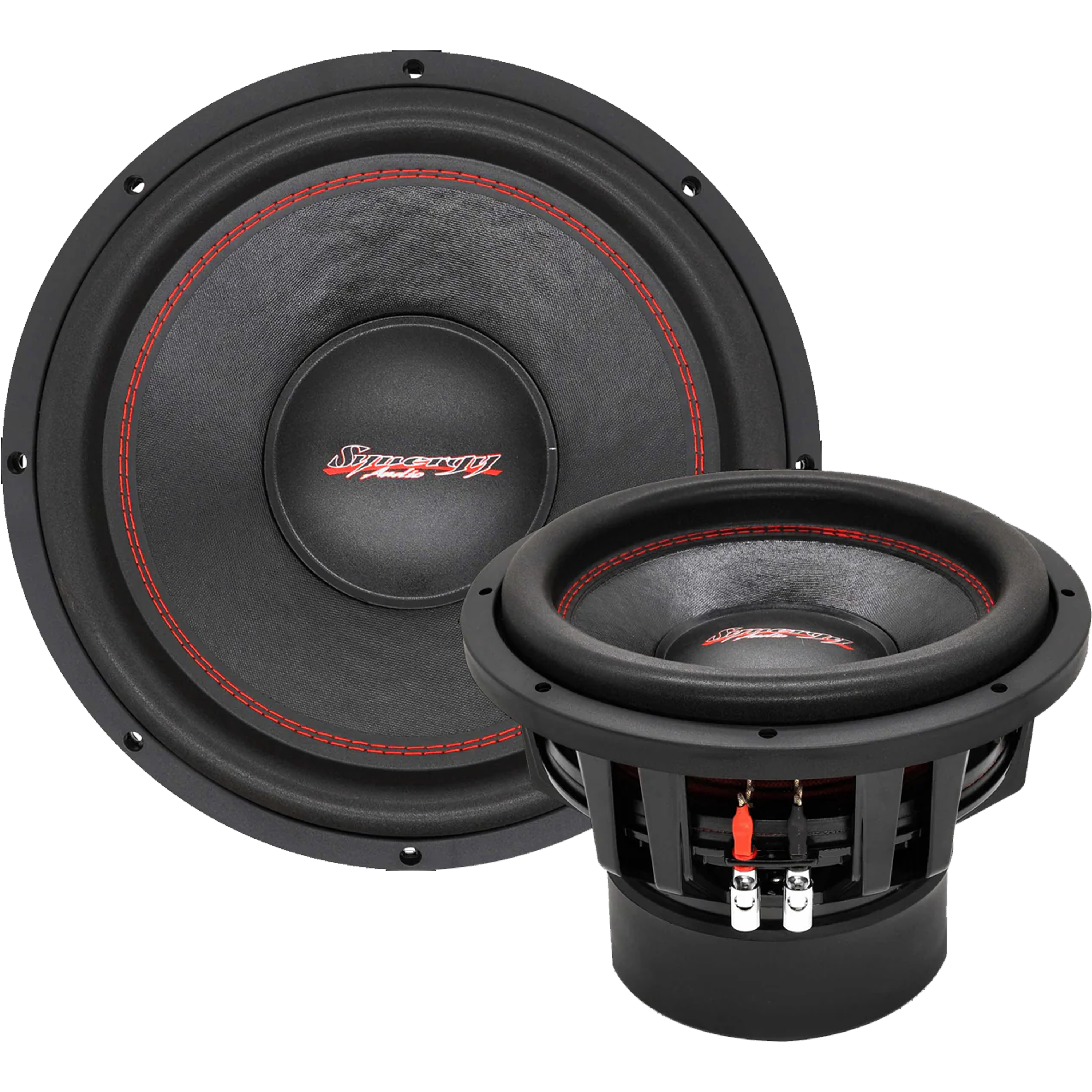

Synergy Audio SYN Series 15" Subwoofer — 1,250W RMS DVC
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20subwoofer%20is%20a%201,250W%20RMS%20daily%20driver%20built%20for%20strong,%20accurate,%20room-shaking%20bass.%20Triple%20190mm%20strontium%20ferrite%20magnets,%20an%20extended%20pole%20with%20flare...
){kind=link}

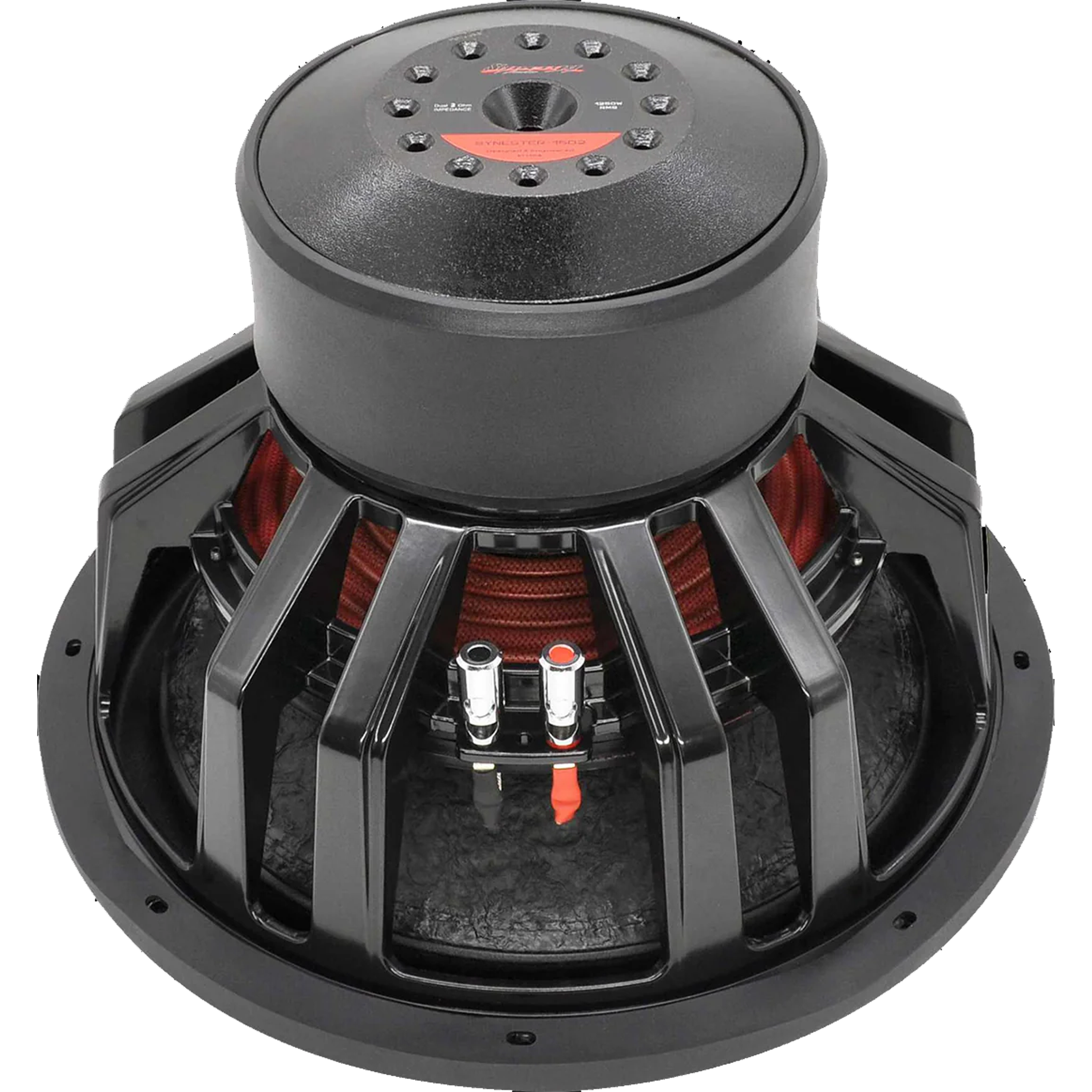

The Synergy Audio SYN Series 15" (Synester) subwoofer is a 1,250W RMS daily driver built for strong, accurate, room-shaking bass. Triple 190mm strontium ferrite magnets, an extended pole with flared vent, and 12 magnetic gap vents deliver maximum cooling under sustained power.
A high-temperature 4-layer 3" voice coil on a black aluminum former, a non-pressed pulp paper cone with red double stitching, a high-roll foam surround and dual 10" Nomex spiders keep this sub stable, loud and reliable — all wrapped in a gloss-black 6-spoke cast aluminum frame.
Specifications
| Size | 15" |
| RMS Power | 1,250W |
| Voice Coil | 3" 4-layer, dual voice coil |
| Magnet | Triple 190mm Y35 strontium ferrite |
| Cone | Non-pressed pulp paper, high-roll foam surround |
| Spider | Dual 10" Nomex |
| Frame | 6-spoke cast aluminum, gloss black |
| Suggested Ported Box | 3.0 – 4.0 ft³ |
| Cutout Diameter | 14.125" |
| Mounting Diameter | 15.5625" |
Thiele/Small Parameters — 15D4 (Dual 4 Ohm)
| Re | 6.40 ohm |
| Fs | 33.829 Hz |
| Sd | 834.690 cm² |
| Bl | 25.358 Tm |
| Qms | 7.955 |
| Qes | 0.796 |
| Qts | 0.653 |
| SPL | 89.4 dB |
| Vas | 58.210 L |
| Cms | 58.838 mm/N |
| Mms | 376.187 g |
Thiele/Small Parameters — 15D2 (Dual 2 Ohm)
| Re | 4.00 ohm |
| Fs | 33.256 Hz |
| Sd | 834.690 cm² |
| Bl | 23.136 Tm |
| Qms | 7.710 |
| Qes | 0.650 |
| Qts | 0.600 |
| SPL | 89.8 dB |
| Vas | 54.406 L |
| Cms | 73.010 mm/N |
| Mms | 416.478 g |
